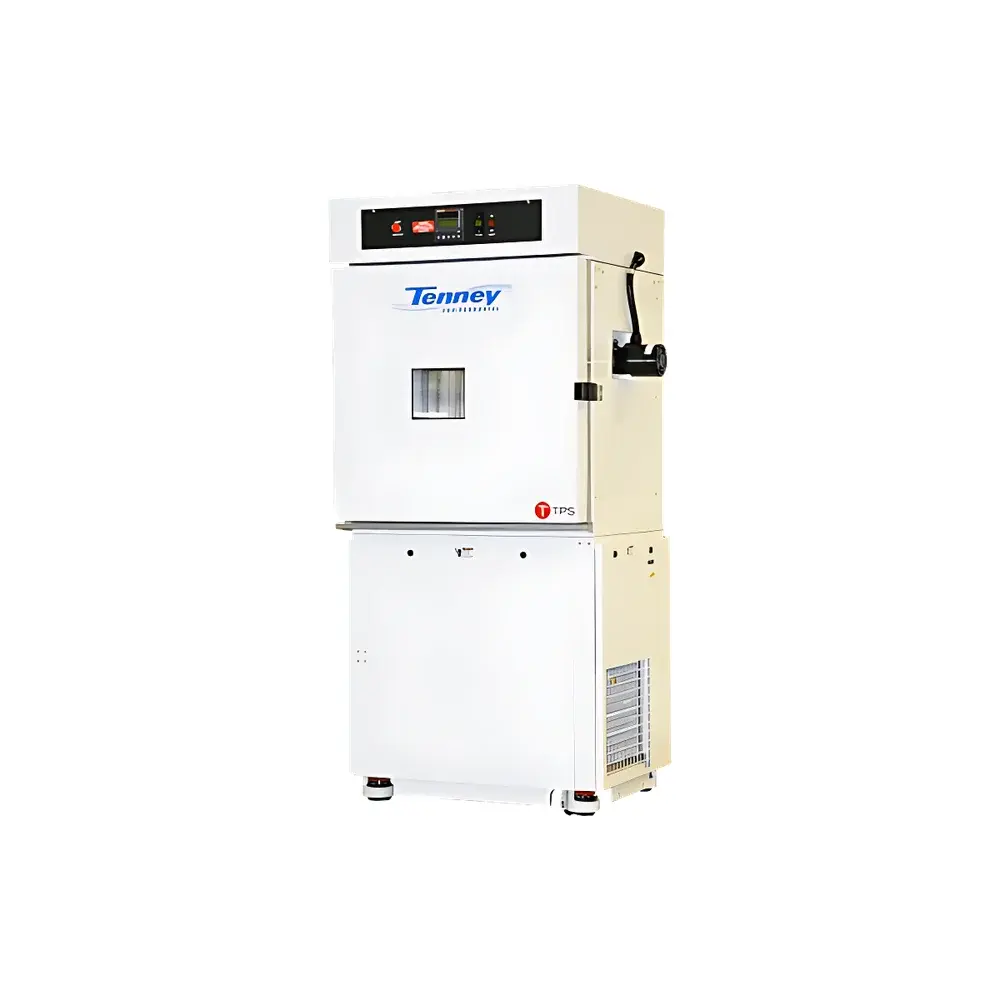

Tenney UTC Upright Temperature and Humidity Environmental Test Chamber

Overview

The Tenney UTC Upright Temperature and Humidity Environmental Test Chamber is an ISO 17025-compliant, vertically oriented environmental simulation system engineered for precision thermal and hygrothermal stress testing of materials, components, and assemblies. Designed and manufactured in the USA by Blue M (a Tenney Environmental brand), the UTC chamber employs a dual-stage cascade refrigeration system and a high-capacity 2 kW resistive heating array to achieve rapid, stable, and repeatable control across its full operational range of –70°C to +180°C — with optional extension to +200°C for accelerated aging applications. Its vertical architecture optimizes laboratory floor space while delivering large internal working volumes (up to 10.5 ft³ / ~297 L), making it suitable for both small-scale validation samples and full-size subassemblies. The chamber integrates Watlow F4T INTUITION® temperature process controllers with TRU-TUNE+ adaptive algorithms, ensuring robust regulation under dynamic load conditions and compliance with ASTM E145, IEC 60068-2, and MIL-STD-810G thermal test protocols.

Key Features

• Vertically oriented design reduces footprint by up to 40% compared to conventional horizontal chambers without sacrificing internal volume or airflow efficiency
• Airtight, continuously welded stainless-steel interior liner with corrosion-resistant hardware and insulated observation window (6″ × 8″, double-glazed, heated to prevent condensation)
• Modular Watlow F4T controller with 4.3″ color touchscreen, real-time clock, battery-backed memory, and support for up to 40 programmable ramp-and-soak profiles
• Integrated humidity system featuring 1500 W steam generator, 5-gallon recirculating water reservoir, built-in water softener, and optional external desiccant dryer for extended low-RH operation down to 5% RH
• Low-water-level safety interlock (standard on RH models), over-temperature/under-temperature protection (TempGard IV), and NIST-traceable calibration documentation
• Standard RS-232 and RS-485 serial interfaces; optional Ethernet (Modbus TCP) and USB 2.0 host port for remote monitoring, data logging, and integration into LIMS or MES environments
• High-efficiency air circulation via downward-directed, turbulence-minimized re-circulation ducting — validated to maintain ±1.0°C uniformity per IEC 60068-3-5

Sample Compatibility & Compliance

The UTC chamber accommodates diverse sample geometries and thermal masses through its configurable interior layout, including four adjustable, removable stainless-steel shelves (each rated for 10 lb / 4.5 kg, max total load 50 lb / 23 kg). Its vertical airflow path ensures consistent exposure across vertically stacked specimens — critical for evaluating layered composites, PCBs, battery modules, and medical device packaging. The system meets GLP/GMP-relevant requirements for auditability: all controller firmware supports 21 CFR Part 11-compliant electronic signatures, event logging, and audit trail generation when paired with TempGard IV or third-party SCADA platforms. Calibration services adhere to ISO/IEC 17025:2017 standards, with certificates traceable to NIST. For regulatory submissions, test reports generated using the integrated Watlow data logger comply with ASTM D3574 (foam aging), ISO 11357 (polymer thermal analysis), and USP stability protocol frameworks.

Software & Data Management

Data acquisition and chamber supervision are enabled via Watlow’s native INTUITION software suite or third-party platforms supporting Modbus TCP or OPC UA. The F4T controller logs timestamped temperature and humidity values at user-defined intervals (1 sec to 1 hr resolution), stores up to 1 million data points internally, and exports CSV or XML files via USB or network transfer. Graphical trend displays — including real-time overlay of setpoint, process value, and deviation — are accessible directly on the front-panel touchscreen or remotely via web browser. Optional TempGard IV software adds alarm escalation (email/SMS), multi-chamber synchronization, and automated report generation compliant with FDA 21 CFR Part 11 Annex 11 requirements. All logged data includes immutable metadata: operator ID, calibration status, sensor ID, and environmental context (e.g., ambient temperature, power supply voltage).

Applications

The Tenney UTC chamber serves as a primary tool in reliability engineering, quality assurance, and regulatory validation workflows. It is routinely deployed for: accelerated thermal aging of elastomers and adhesives per ASTM D573; humidity cycling of automotive electronics (SAE J2238); long-term storage stability testing of pharmaceutical intermediates (ICH Q1A–Q1E); thermal shock evaluation of aerospace composites (MIL-STD-202G Method 107); and accelerated corrosion resistance assessment of coated metals (ASTM B117 modified with cyclic humidity). Its wide operating envelope and vertical configuration make it especially effective for testing vertically oriented assemblies such as LED lighting fixtures, HVAC control panels, and server rack components where natural convection effects must be replicated under controlled boundary conditions.

FAQ

What is the standard calibration interval for the UTC chamber?

Tenney recommends annual recalibration per ISO/IEC 17025 guidelines; however, frequency may be adjusted based on usage intensity, internal QA policy, or regulatory requirements (e.g., every 6 months for GMP environments).

Can the UTC chamber operate continuously at –70°C with 95% RH?

No — the specified humidity range (20–95% RH) is only valid within the dry-bulb temperature band of +20°C to +85°C. At sub-zero temperatures, humidity control is disabled; the chamber operates in dry thermal mode only.

Is the internal lighting compatible with photostability testing per ICH Q5C?

The standard LED interior lighting is not spectrally calibrated for photostability. For ICH Q5C-compliant studies, users must integrate externally mounted UV/visible light sources with spectral irradiance monitoring — the chamber provides dedicated feedthrough ports for this purpose.

Does the UTC support nitrogen purge functionality?

Yes — optional GN₂ purge capability is available via a dedicated inlet port and flow-controlled regulator, enabling oxygen-sensitive testing (e.g., lithium battery cell aging) in accordance with UL 1642 and UN 38.3 Section 38.3.4.

What maintenance is required for the cascade refrigeration system?

Biannual inspection of condenser coils and refrigerant charge verification is recommended. Tenney-certified technicians perform preventive maintenance, including oil analysis, filter-drier replacement, and leak detection per ASHRAE Standard 15.
