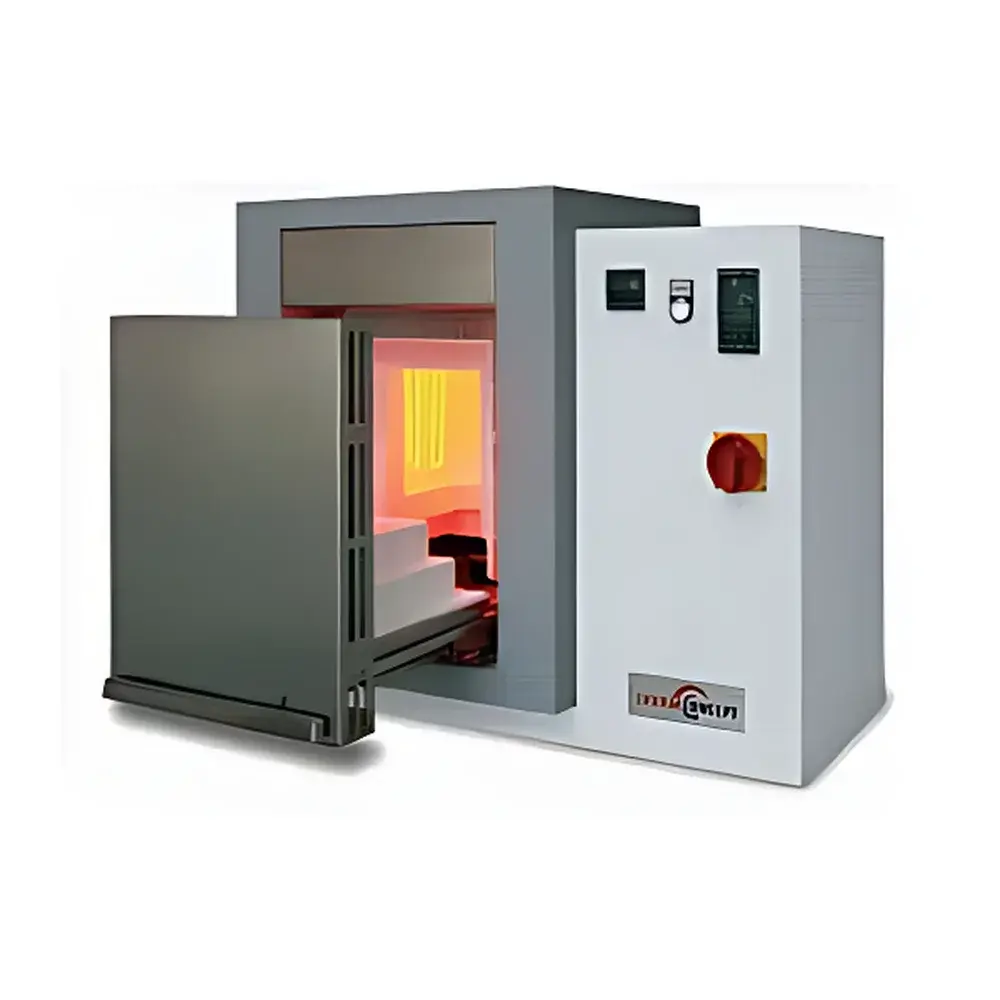

Thermconcept High-Temperature Muffle Furnace with MoSi₂ Heating Elements
| Brand | Thermconcept |
|---|---|
| Origin | Germany |
| Model | High-Temperature Muffle Furnace |
| Max Operating Temperature | 1500 °C, 1600 °C, 1750 °C, or 1800 °C |
| Chamber Uniformity | ±3 °C (at setpoint) |
| Construction | Dual-wall insulated cabinet with rear ventilation |
| Insulation | High-purity alumina fiber (low thermal conductivity, <0.12 W/m·K at 1000 °C) |
| Heating Elements | Dual-side mounted molybdenum disilicide (MoSi₂) rods |
| Control System | Solid-state relay (SSR) with PID algorithm |
| Temperature Accuracy | ±1 °C (typical, within operating range) |
| Safety Compliance | EN 60519-2 certified overtemperature protection |
| Optional Features | Motorized bottom door, inert gas inlet port, active cooling module, programmable exhaust damper |
Overview
The Thermconcept High-Temperature Muffle Furnace is an engineered solution for precision thermal processing in research laboratories, materials science facilities, and quality control environments requiring stable, repeatable operation up to 1800 °C. Built upon the fundamental principle of resistive heating via siliconized molybdenum (MoSi₂) elements—known for exceptional oxidation resistance and long-term stability in air—the furnace delivers uniform thermal distribution across its insulated chamber without direct flame or combustion involvement. Its design adheres to the core requirements of ASTM E1142 (Standard Specification for Laboratory Muffle Furnaces), ensuring suitability for applications such as ashing, sintering, heat treatment, calcination, and thermal gravimetric pre-conditioning. The dual-wall structural architecture, combined with high-purity alumina fiber insulation, minimizes external surface temperature rise (<60 °C at ambient conditions) while enabling rapid thermal ramp rates (up to 15 °C/min typical) and energy-efficient dwell cycles.
Key Features
- Dual-side MoSi₂ heating elements mounted in corrosion-resistant ceramic holders, providing symmetrical heat flux and extended service life beyond 2,000 hours at 1750 °C in air
- High-density alumina fiber insulation (Al₂O₃ ≥ 95%) with low thermal effusivity, reducing standby power consumption by up to 40% versus traditional brick-lined furnaces
- Precision PID temperature controller with solid-state relay (SSR) actuation—eliminates mechanical contactor noise and ensures <0.5 °C repeatability over 100-cycle validation tests
- Lift-type front door mechanism with counterbalanced hinge system for ergonomic access and reduced operator fatigue during frequent loading/unloading
- Integrated EN 60519-2–compliant independent overtemperature cut-off (OTC) limiter, physically isolated from the main controller for fail-safe redundancy
- Top-mounted passive exhaust port (Ø25 mm) compatible with ducted fume extraction or optional motorized damper-controlled venting
Sample Compatibility & Compliance
This furnace accommodates crucibles and trays made from alumina, silicon carbide, platinum, or graphite—compatible with ISO/IEC 17025–accredited testing workflows. Chamber geometry supports standard DIN 51062–defined sample positioning for homogeneity verification. All electrical and thermal safety systems conform to IEC 61000-6-3 (EMC emissions) and IEC 61000-6-2 (immunity). For regulated environments, optional audit-trail-capable controllers support 21 CFR Part 11–aligned electronic recordkeeping when paired with validated software modules. The unit meets CE marking requirements under the EU Machinery Directive 2006/42/EC and Low Voltage Directive 2014/35/EU.
Software & Data Management
While the base configuration includes a front-panel digital interface with real-time setpoint/actual display and 10-segment programmable ramp-soak profiles, optional Ethernet- or RS485-enabled controllers allow integration into centralized lab management systems (LIMS) or SCADA platforms. Data logging resolution supports timestamped temperature acquisition at 1-second intervals, exportable in CSV or XML format. Firmware updates are performed via secure USB interface; version history and calibration logs are retained locally for GLP/GMP traceability. Remote monitoring capabilities include email/SNMP alerts for deviation events (e.g., OTC activation, door-open timeout >30 s).
Applications
- Thermal decomposition analysis of polymers and composites per ISO 11358
- Sintering of advanced ceramics (e.g., ZrO₂, Si₃N₄) under controlled atmosphere using integrated gas ports
- Ash content determination in pharmaceutical excipients (USP <281>) and food matrices (AOAC 942.05)
- Pre-oxidation of refractory metal powders prior to HIP processing
- Calibration of thermocouples (Type S, R, B) using fixed-point cells (e.g., Au, Ag, Cu) in accordance with ISO/IEC 17025 Clause 6.5.2
- Heat treatment of geological samples for XRD phase stabilization (e.g., clay mineral dehydroxylation)
FAQ
What atmosphere options are supported?
The furnace operates natively in ambient air. Optional inert gas purging (N₂, Ar) is enabled via standardized 6 mm Swagelok fittings and pressure-regulated mass flow controllers.
Is vacuum operation possible?
No—this model is not rated for vacuum use. For vacuum/high-vacuum applications, Thermconcept offers separate graphite-heated or tungsten-heated furnace lines compliant with ISO 27402.
How is temperature uniformity verified?
Uniformity mapping is performed per ASTM E2203 using nine-point thermocouple array scans at three vertical levels; certification reports are provided with each unit shipment.
Can the furnace be integrated into automated sample handling systems?
Yes—motorized bottom-door variants include dry-contact I/O signals (door open/closed, heater on/off) and Modbus RTU protocol support for PLC-level synchronization.
What maintenance intervals are recommended?
MoSi₂ element resistance should be measured quarterly; insulation integrity inspection is advised annually. No lubrication or consumable replacement is required between scheduled calibrations.
