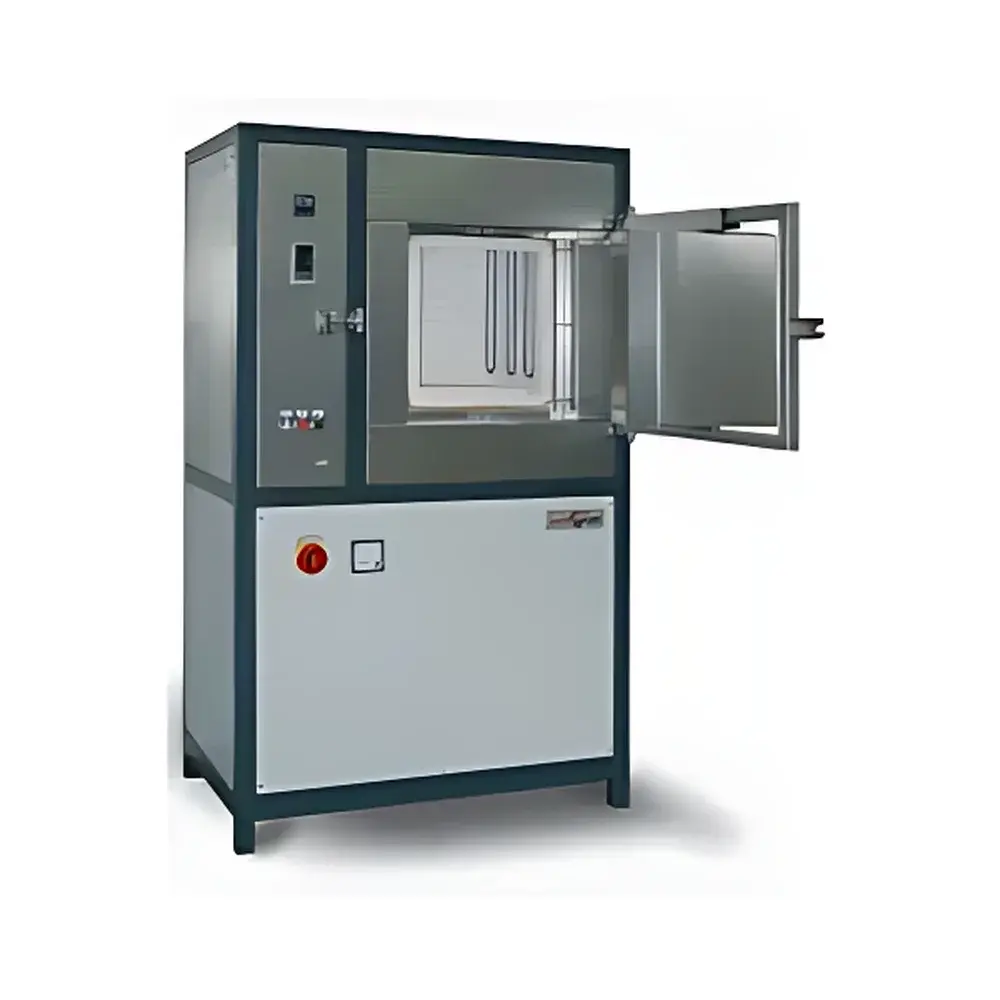

Thermconcept MoSi₂ High-Temperature Muffle Furnace (Germany-Made)

Overview

The Thermconcept MoSi₂ High-Temperature Muffle Furnace is a precision-engineered laboratory furnace designed for demanding thermal processing applications requiring stable, uniform heating up to 1800 °C. Utilizing molybdenum disilicide (MoSi₂) heating elements—known for exceptional oxidation resistance and long-term stability in air at elevated temperatures—the furnace delivers reproducible thermal profiles across its full operating range. Its double-walled insulated construction, combined with high-density alumina fiber chamber lining (≥1600 °C rated), minimizes thermal mass and enables rapid heating and cooling cycles while maintaining low external surface temperatures (<55 °C at ambient conditions). The vertical, compact footprint optimizes lab space without compromising chamber volume (16–70 L options), and the parallel-guided door mechanism ensures safe, repeatable access while preventing operator exposure to radiant heat zones. All units are assembled and quality-verified in Bremen, Germany, adhering to strict CE marking requirements under Directive 2014/35/EU (Low Voltage) and 2014/30/EU (EMC).

Key Features

• MoSi₂ heating elements mounted on dual side walls (standard) or configurable rear-wall layout for optimized thermal uniformity across large loads
• High-purity alumina fiber insulation (Al₂O₃ ≥99.5%) providing low thermal conductivity (<0.15 W/m·K at 1000 °C) and minimal heat loss
• Polished AISI 304 stainless steel outer casing with passive rear ventilation channels for efficient convective cooling
• Microprocessor-based temperature controller with solid-state relays—ensuring silent operation (<35 dB(A)) and ±1 °C stability at steady state
• Top-mounted exhaust port compatible with fume extraction systems; optional motorized exhaust lid with programmable open/close timing
• Reinforced ceramic fiber floor plate rated for static loads up to 25 kg (depending on chamber size); optional heavy-duty refractory brick base available
• Integrated inert gas interface (1/4″ VCR fitting) supporting N₂, Ar, or forming gas purging; optional mass-flow-controlled gas mixing module

Sample Compatibility & Compliance

This furnace accommodates diverse sample geometries—including crucibles (alumina, silicon carbide, platinum), ceramic setters, sintering boats, and custom fixtures—within its uniformly heated zone (±5 °C deviation over central 70% volume at 1600 °C). It complies with key international standards governing laboratory thermal equipment: IEC 61010-1 (safety requirements for electrical equipment), EN 60529 (IP20 ingress protection), and ISO/IEC 17025-relevant environmental monitoring provisions when integrated with optional data logging. For regulated environments (e.g., GLP/GMP labs), the optional visualization software supports 21 CFR Part 11-compliant audit trails, electronic signatures, and secure user access levels.

Software & Data Management

The optional Thermconcept Visualization Suite provides real-time graphical monitoring of temperature profiles, power consumption, gas flow rates, and cooling rates via Ethernet-connected PC interface. Logged data is stored in timestamped CSV and SQLite formats, enabling traceability and post-run analysis. The software supports recipe-based program storage (up to 99 multi-step ramps/holds), alarm configuration (deviation, overtemperature, communication loss), and export to LIMS-compatible schemas. All firmware updates are delivered via signed binary packages verified against SHA-256 checksums.

Applications

• Ceramic sintering and densification (e.g., ZrO₂, Si₃N₄, AlN)
• Heat treatment of advanced alloys and superconductors
• Ashing and residue quantification per ASTM D3174, ISO 1171
• Thermal gravimetric analysis (TGA) pre-conditioning and sample preparation
• Calibration of thermocouples and reference materials (per ISO/IEC 17025 clause 6.4.10)
• Pre-oxidation of Mo–Si–B composites and other high-temperature structural materials
• Research-scale crystal growth support (flux and solid-state methods)

FAQ

What atmosphere options are supported?
Standard configuration includes air operation only. Optional inert gas purging (N₂, Ar) is available via front-panel controlled valve or programmable mass flow controller.
Is remote monitoring possible?
Yes—Ethernet-enabled control modules allow integration into lab-wide SCADA or building management systems using Modbus TCP or HTTP API protocols.
How is temperature uniformity validated?
Each unit undergoes factory verification per DIN 17025 Annex A using 9-point mapping with calibrated S-type thermocouples; as-shipped reports document uniformity at 1000 °C, 1400 °C, and maximum rated temperature.
Can the furnace be used for vacuum applications?
No—this model is not rated for vacuum service. Thermconcept offers separate vacuum-compatible furnace lines (e.g., VT series) with tungsten or graphite heating elements.
What maintenance is required for MoSi₂ elements?
MoSi₂ elements require no scheduled replacement under normal air-atmosphere use up to 1750 °C; periodic visual inspection for surface cracking or warping is recommended after 500 operational hours.
