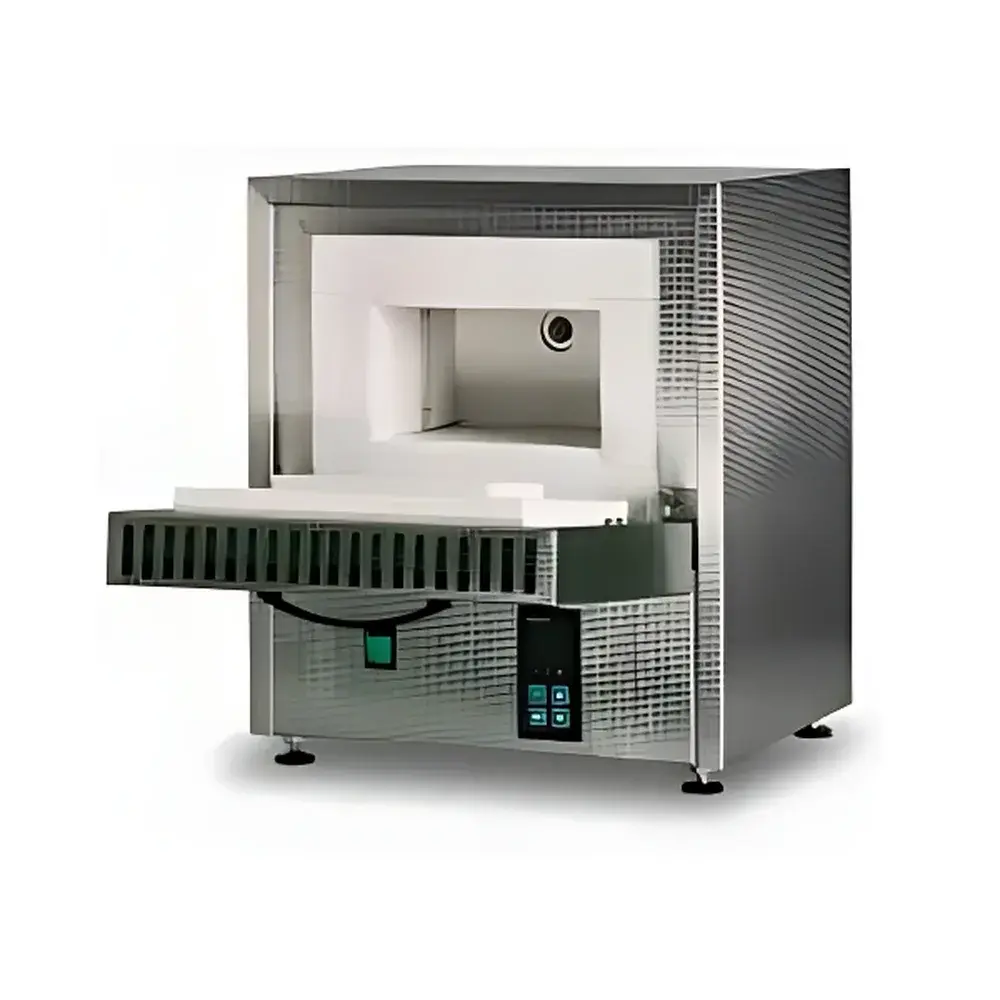

Thermconcept TC-UF Series Universal Muffle Furnace

Overview

The Thermconcept TC-UF Series Universal Muffle Furnace is a rigorously engineered benchtop thermal processing system designed for routine laboratory applications requiring precise, repeatable, and contamination-free high-temperature treatment. Operating on the principle of radiant heat transfer within an electrically heated, fully insulated chamber, the furnace isolates samples from direct contact with heating elements and combustion byproducts—ensuring uniform thermal distribution and minimal cross-contamination. With maximum operating temperatures of either 1100 °C or 1200 °C (model-dependent), it supports essential protocols including ashing, calcination, heat treatment, gravimetric analysis, and pre-conditioning of crucibles and substrates. Its compact footprint and robust thermal architecture make it suitable for integration into quality control laboratories, academic research facilities, and industrial R&D settings where space efficiency, operational reliability, and regulatory traceability are critical.

Key Features

• Stainless steel housing with reinforced structural integrity for long-term mechanical stability and corrosion resistance in demanding lab environments.
• High-density ceramic fiber insulation lining the entire chamber interior—providing rapid heat-up times, low thermal mass, and reduced energy consumption without compromising temperature homogeneity.
• Heating elements embedded within ceramic heating plates, eliminating exposed wire coils and significantly reducing risk of mechanical damage, oxidation, or short-circuit failure.
• PID-controlled solid-state relay system delivering ±1 °C temperature stability at setpoint across the full operating range, with silent operation due to absence of mechanical contactors.
• Reinforced fiber-reinforced door seal minimizing thermal leakage and enhancing safety during frequent opening/closing cycles.
• Rear-mounted exhaust port compatible with optional ventilation accessories—including active exhaust chimneys with integrated fans and catalytic converters for volatile organic compound (VOC) abatement during organic matrix ashing.
• Dual independent overtemperature protection: primary controller-based limit and secondary independent mechanical cut-off switch calibrated per EN 60519-2, ensuring fail-safe shutdown under fault conditions.

Sample Compatibility & Compliance

The TC-UF Series accommodates standard laboratory crucibles (alumina, quartz, platinum, and stainless steel), ceramic boats, and refractory trays up to 180 mm × 180 mm × 100 mm (W × D × H). Its muffle design ensures chemical inertness—ideal for ASTM E1867 (ash content determination), ISO 1171 (determination of ash in coal and coke), and USP <281> (residue on ignition). The furnace meets electromagnetic compatibility (EMC) requirements per EN 61326-1 and electrical safety standards per EN 61010-1. Its control architecture supports audit-ready operation when paired with validated data logging systems compliant with FDA 21 CFR Part 11 and EU Annex 11 guidelines.

Software & Data Management

While the base TC-UF model operates via intuitive front-panel controls with digital LED display, optional RS485/Modbus RTU interface enables integration with centralized laboratory information management systems (LIMS) or SCADA platforms. Thermconcept provides calibration documentation traceable to national metrology institutes (e.g., PTB), including as-delivered temperature uniformity maps (±5 °C across working zone at 1000 °C) and verification reports aligned with EURAMET cg-18. For GxP environments, optional firmware upgrades support electronic signature, user access levels, and automated event logging—including ramp/soak profiles, deviation alerts, and maintenance timestamps.

Applications

• Gravimetric analysis: Quantitative ash residue determination in food, pharmaceuticals, polymers, and environmental samples.
• Pre-treatment of analytical substrates: Cleaning quartz cuvettes, igniting filter papers, and conditioning ceramic filters prior to ICP-MS or AAS analysis.
• Material science workflows: Sintering of metal oxides, annealing of thin-film precursors, and thermal stability screening of battery cathode materials.
• Regulatory testing: Compliant execution of AOAC 942.05 (ash in dairy products), EPA Method 2540E (total suspended solids ignition), and DIN 51718 (ash content in lubricants).
• Educational labs: Demonstrating thermal decomposition kinetics, phase transitions, and stoichiometric oxide formation under controlled atmospheres (ambient air only).

FAQ

What temperature uniformity can be expected across the working chamber?
At 1000 °C, typical radial and axial uniformity is ±5 °C within the central 70% volume—verified per ISO/IEC 17025-accredited procedures.
Is inert atmosphere operation supported?
The standard TC-UF operates in ambient air; optional gas inlet ports and purge fittings are available for nitrogen or argon purging—but not for vacuum or reducing atmospheres.
Can the furnace be validated for GMP use?
Yes—Thermconcept supplies IQ/OQ documentation templates, calibration certificates, and supports third-party PQ execution per ASTM E2500 and ISPE GAMP5.
What maintenance intervals are recommended?
Ceramic fiber integrity inspection every 12 months; thermocouple verification before each critical batch; relay function test semiannually.
Are custom chamber dimensions or higher temperature variants available?
Yes—Thermconcept offers engineering consultation for application-specific adaptations, including 1400 °C MoSi₂-element models and extended-depth chambers.
