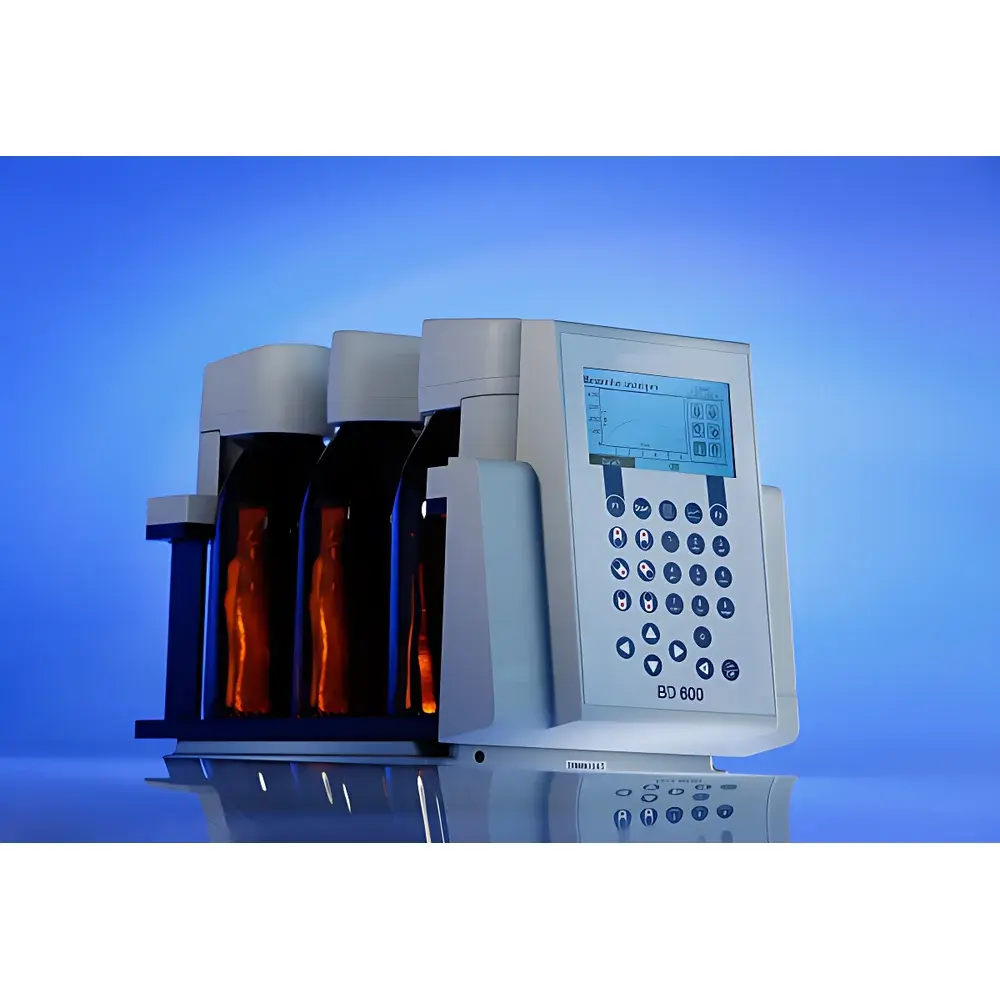

Thermo Fisher BD600 Automated BOD Analyzer (BSB/BOD-OxiDirect Platform)

Overview

The Thermo Fisher BD600 Automated BOD Analyzer is a laboratory-grade, manometric respirometric system engineered for precise, unattended biochemical oxygen demand (BOD) determination in accordance with ISO 5815-1:2019 and ASTM D5210–92 (reapproved 2021). It employs the pressure-difference principle to quantify oxygen consumption during aerobic biodegradation of organic matter in aqueous samples. In each sealed BOD bottle, dissolved oxygen depletion is continuously replenished from the headspace gas phase; concurrently, CO₂ generated by microbial metabolism is chemically absorbed by potassium hydroxide (KOH) impregnated pads. This creates a measurable pressure differential proportional to the mass of O₂ consumed—directly correlating to BOD concentration in mg/L. Unlike dilution-based or titrimetric methods, the BD600 eliminates manual intervention, volumetric error, and operator bias while maintaining full traceability across the 0–4000 mg/L range.

Key Features

• Six independent, programmable measurement channels enable parallel analysis of heterogeneous sample sets—critical for wastewater treatment plant monitoring, environmental compliance reporting, and research-grade kinetics studies.
• Real-time pressure transduction via integrated microprocessor-controlled sensors ensures continuous data acquisition without interruption, supporting dynamic BOD profiling over customizable incubation periods (1–28 days).
• Mercury-free, electrochemical pressure sensing architecture complies with EU RoHS Directive 2011/65/EU and supports sustainable laboratory operations under ISO 14001 frameworks.
• Auto-start function initiates measurement only after sample temperature equilibrates within ±0.5 °C of setpoint—minimizing thermal drift artifacts common in conventional BOD incubators.
• Low-profile permanent-magnet stirring system maintains consistent suspension of biomass without mechanical wear, lubrication, or recalibration—ensuring long-term reproducibility (±3% RSD) across repeated runs.
• Full-color graphical LCD displays live BOD curves, endpoint values in mg/L, and deviation alerts against user-defined control standards—facilitating immediate QA/QC verification.

Sample Compatibility & Compliance

The BD600 accommodates diverse water matrices—including raw sewage, treated effluent, surface water, groundwater, and industrial process streams—without pre-dilution for most routine applications. Its calibrated response covers BOD concentrations from 0.01 mg/L (detection limit) to 4000 mg/L using standardized 60-mL amber glass bottles equipped with KOH-saturated absorbent pads and nitrification inhibitors (allylthiourea). The system meets method validation requirements for regulatory reporting under EPA Method 405.1 and supports GLP-compliant audit trails when paired with optional TC-series thermostatic incubators (temperature stability ±0.2 °C). All hardware and firmware are designed to support 21 CFR Part 11–ready data integrity protocols when integrated with Thermo Fisher’s TraceFinder™ LIMS interface modules.

Software & Data Management

Data acquisition, visualization, and export are handled via embedded firmware with timestamped storage of raw pressure differentials, calculated BOD values, and environmental metadata (ambient temperature, incubation duration, sensor ID). Internal memory retains ≥10,000 test records. Export options include CSV via USB 2.0, Bluetooth 5.0 pairing with Windows/macOS desktop applications, and SDHC card logging compatible with Excel-based post-processing workflows. Optional software packages provide automated report generation aligned with ISO/IEC 17025 documentation templates, including uncertainty budgeting per GUM (JCGM 100:2008) and instrument calibration history tracking.

Applications

• Wastewater treatment plant performance monitoring (influent, effluent, sludge supernatant)
• Environmental impact assessment of industrial discharges (textile, food processing, pharmaceutical manufacturing)
• Research on biodegradability kinetics of novel surfactants, polymers, and agrochemicals
• Educational laboratory instruction in environmental microbiology and analytical chemistry curricula
• Regulatory compliance testing for municipal discharge permits (e.g., NPDES, UK EA WFD reporting)
• Validation of tertiary treatment efficiency in membrane bioreactors (MBRs) and constructed wetlands

FAQ

How does the BD600 eliminate the need for sample dilution?
It achieves this through dual-range pressure transduction and adaptive algorithmic scaling—allowing direct quantification across 0–4000 mg/L without manual dilution steps or secondary calculations.
Is the system compatible with existing LIMS infrastructure?
Yes—via USB CDC serial emulation or Bluetooth RFCOMM profiles, enabling seamless integration with major LIMS platforms including LabWare, STARLIMS, and Thermo Fisher SampleManager.
What maintenance is required for the magnetic stirring system?
None—permanent magnet design operates contactlessly; no bearings, brushes, or lubricants require replacement over the instrument’s rated service life (>10 years under typical lab use).
Can the BD600 measure BOD₅, BOD₇, and extended incubation periods?
Yes—users define incubation duration precisely from 1 to 28 days in 1-hour increments; the system auto-calculates BOD_n values and stores all intermediate time-point data.
Does the instrument support nitrification suppression for carbonaceous BOD-only measurements?
Yes—standard inclusion of allylthiourea (ATU) inhibitor enables selective measurement of CBOD per ISO 5815-2:2019, with optional dual-mode sensor configurations for simultaneous CBOD/NBOD differentiation.
