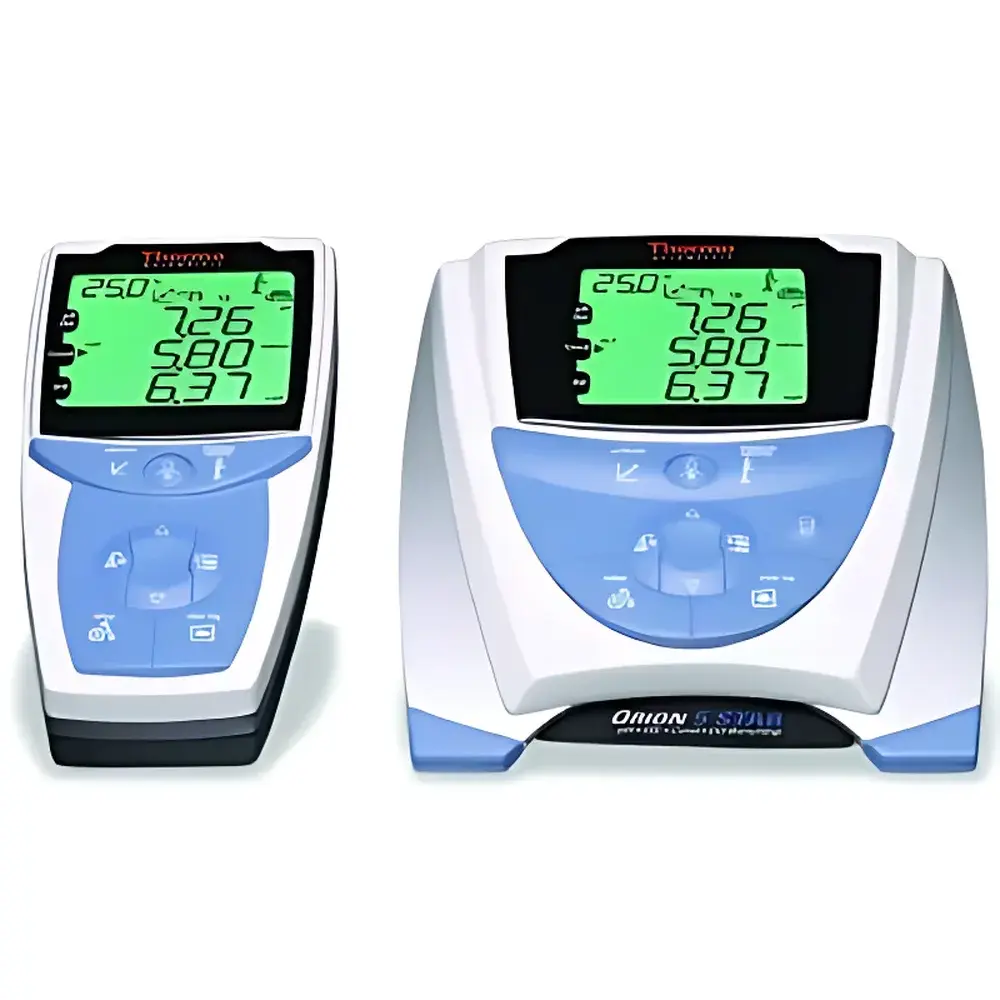

Thermo Fisher Orion 5-Star Benchtop/Portable Multiparameter Meter for pH, ORP, Ion Concentration, Conductivity, and Dissolved Oxygen

Overview

The Thermo Fisher Orion 5-Star Benchtop/Portable Multiparameter Meter is an electrochemical measurement platform engineered for high reproducibility and operational flexibility in environmental, regulatory, and research laboratories. It integrates four core measurement modalities—potentiometric pH and ORP, ion-selective electrode (ISE) quantification, conductometric conductivity/resistivity/salinity/TDS, and amperometric dissolved oxygen (DO) via polarographic membrane sensors—within a single, field-validated architecture. Its dual form factor (benchtop and portable) supports both fixed-lab compliance workflows and mobile field deployment under ISO 5667, ASTM D1293, D3693, D511, D1125, and EPA Method 4500-OC (for DO), enabling consistent data generation across sampling locations and analytical tiers. The instrument operates on fundamental electrochemical principles: pH and ISE rely on Nernstian potential response; conductivity employs AC four-electrode or two-electrode cell geometry with automatic cell constant compensation; and DO utilizes Clark-type polarography with temperature-, salinity-, and barometric pressure–compensated current integration.

Key Features

• Simultaneous real-time measurement of pH, ORP, ion concentration (e.g., F⁻, NO₃⁻, NH₄⁺, Ca²⁺), conductivity, resistivity, salinity, TDS, and dissolved oxygen—without hardware swapping or module reconfiguration.
• Smart Stability™ and Smart Averaging™ algorithms automatically detect measurement endpoints and suppress noise, delivering optimized response time and precision without user intervention.
• Auto-buffer recognition for NIST/US (pH 1.68, 4.01, 7.00, 10.01, 12.46) and DIN (pH 1.68, 4.01, 6.86, 9.18) standards reduces calibration errors and accelerates setup.
• Comprehensive DO calibration suite: air-saturated water, water-saturated air, Winkler titration, and zero-point—fully compliant with EPA-approved BOD and DO protocols.
• Ion blank correction and low-concentration calibration modes enhance accuracy for trace-level analyses (e.g., nitrate in drinking water per WHO guidelines).
• Benchtop model includes integrated stirrer control port for endpoint-triggered automated stirring—critical for standardized titration and equilibrium-based ISE measurements.
• Dual power architecture: portable version operates >2000 hours on four AA alkaline cells (IEC LR6); benchtop supports AC adapter with battery backup for uninterrupted operation during power fluctuations.
• Robust mechanical design: IP67-rated portable unit withstands immersion and dust ingress; IP54 benchtop unit resists splashes and particulate ingress in humid lab environments.

Sample Compatibility & Compliance

The 5-Star meter accommodates diverse sample matrices—from ultrapure water (18.2 MΩ·cm) and wastewater effluents to seawater (up to 80 ppt salinity) and industrial process streams—via interchangeable, application-optimized electrodes. It supports all major Orion sensor families: Triode™ pH/ATC combination electrodes, ROSS™ Ultra pH electrodes, Orion® solid-state and liquid-filled ISEs, CDC™ four-electrode conductivity cells, and Polarographic DO probes with replaceable membranes and electrolyte. Regulatory alignment includes full traceability for GLP/GMP environments: audit-trail-enabled calibration history (last 10 sessions), password-protected method storage (10 user-defined protocols), and optional 21 CFR Part 11–compliant software for electronic signature, data integrity, and change control. CE, CSA, UL, TÜV, and FCC Class A certifications confirm electromagnetic compatibility and electrical safety across global laboratory infrastructures.

Software & Data Management

Data capture is performed via bidirectional RS232 serial interface (USB adapter optional), supporting direct export to LIMS or spreadsheet applications. The instrument stores up to 500 measurement records with timestamps, electrode IDs, calibration metadata, and environmental parameters (temperature, pressure, salinity). All calibration events—including buffer IDs, slope/mV values, offset, and date/time—are retained in a tamper-evident log. Ten password-protected user accounts enable role-based access control, while method templates ensure procedural consistency across multi-shift operations. When paired with Thermo Fisher’s optional PC software, the system generates ALCOA+–aligned reports with electronic signatures, automated PDF archiving, and revision-controlled method libraries—meeting FDA, EMA, and ISO/IEC 17025 documentation requirements.

Applications

• Regulatory water quality monitoring per EPA 4500-B (pH), 4500-Cl⁻ (chloride ISE), 4500-EC (conductivity), and 4500-OC (DO) methods.
• Drinking water treatment: corrosion control (pH/ORP), disinfectant residual tracking (free chlorine ISE), and source water characterization (TDS, salinity, alkalinity).
• Wastewater compliance: BOD incubation DO profiling, nitrification/denitrification redox monitoring, and effluent discharge verification.
• Environmental field surveys: river, lake, and estuarine profiling using portable configuration with GPS-synchronized logging.
• Academic and method development labs: validation of new ISEs, sensor fouling studies, and temperature-dependent conductivity modeling.
• Pharmaceutical water systems: PW/DIW conductivity mapping per USP and EP 2.2.38, including TOC-correlated resistivity trending.

FAQ

Is the Orion 5-Star compliant with 21 CFR Part 11 for regulated pharmaceutical or clinical labs?
Yes—when used with Thermo Fisher’s validated PC software, the instrument supports electronic signatures, audit trails, and role-based access control required for FDA-regulated environments.
Can the same electrode be used interchangeably between benchtop and portable configurations?
Yes—Orion’s standardized BNC (pH), miniDIN (temperature), and dedicated DO connectors ensure full sensor compatibility across both form factors.
Does the meter support automatic temperature compensation for all parameters?
Yes—ATC is applied to pH, ORP, conductivity, and DO measurements using integrated or external temperature probes; reference temperature selection (5–25 °C) is configurable per parameter.
What is the maximum allowable salinity for accurate DO measurement?
The built-in salinity compensation algorithm remains valid up to 45 ppt, covering estuarine, brackish, and coastal marine applications.
How does the instrument handle low-conductivity ultrapure water measurements?
It employs high-impedance circuitry and selectable cell constants (0.001–199.9 cm⁻¹), enabling stable readings down to 0.001 µS/cm with minimal polarization error.
