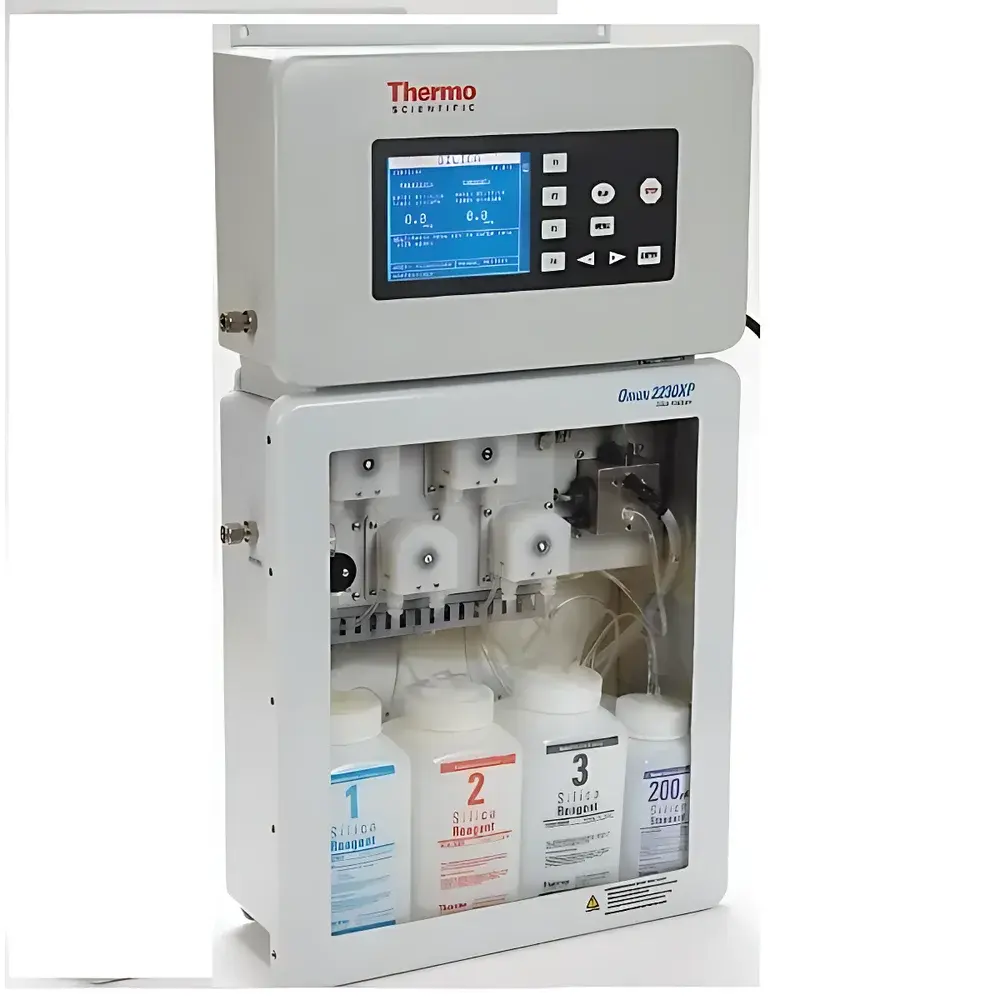

Thermo Fisher Scientific 2230XP Online Silicon Analyzer

Overview

The Thermo Fisher Scientific 2230XP Online Silicon Analyzer is a dedicated photometric analyzer engineered for continuous, real-time silicon dioxide (SiO₂) monitoring in ultra-pure water streams. It employs the molybdenum blue colorimetric method—standardized under ASTM D859 and ISO 15705—where soluble silicate reacts with molybdate under acidic conditions to form a heteropoly acid, subsequently reduced to an intensely colored complex measurable at 810 nm. This principle ensures high specificity for reactive silica (monosilicic acid, H₄SiO₄), critical for detecting trace contamination in high-value process waters. Designed specifically for demanding power generation and microelectronics applications, the 2230XP delivers stable, interference-resistant performance in boiler feedwater, condensate, and ultrapure rinse water loops where silica concentrations must remain below 5–20 ppb to prevent turbine scaling or wafer surface defects.

Key Features

• Ultra-low reagent consumption: Only 0.2 mL per reagent per analysis cycle—reducing operational cost and waste generation by up to 67% versus conventional online silicon analyzers.
• Dual-range measurement architecture: Full 0–5000 ppb dynamic range with optimized photometric linearity and signal-to-noise ratio in the critical 0–500 ppb sub-range, meeting USP and EP 2.2.42 requirements for purified water qualification.
• Integrated temperature conditioning: On-board Peltier-heated sample path maintains consistent 25 °C reaction temperature—even for inlet streams as low as 5 °C—ensuring complete color development and eliminating cold-water kinetic bias.
• Zero-point verification per cycle: Automatic blank measurement using deionized water reference prior to each sample analysis, compensating for optical drift, cuvette fouling, and ambient light leakage.
• Robust optical design: Solid-state 810 nm LED source eliminates aging filters, fragile fibers, and lamp alignment issues; lifetime exceeds 100,000 hours with no scheduled recalibration required.
• High-reliability fluidics: Chemically resistant peristaltic pump with proprietary rotor geometry and fluoropolymer tubing—rated for >10,000 cycles between tube replacements (typical interval: 6 months under continuous operation).
• NEMA 4-rated enclosure: Dust-tight, corrosion-resistant aluminum housing with gasketed access panels protects internal components—including pump assembly and electronics—from harsh plant environments (e.g., turbine halls, chemical dosing rooms).

Sample Compatibility & Compliance

The 2230XP accepts continuously flowing samples at 10–100 mL/min across a pH range of 5.5–9.0 and conductivity ≤1 µS/cm. It is validated for use with demineralized water, condensate, and steam-cycle return streams containing typical cationic impurities (Na⁺, Ca²⁺, Mg²⁺) and low-level organics (<0.1 mg/L TOC). The analyzer complies with IEC 61508 SIL 2 functional safety requirements for critical water chemistry control loops and supports audit-ready data integrity per FDA 21 CFR Part 11 when paired with Thermo Fisher’s optional IQ/OQ/PQ documentation packages. Its measurement uncertainty meets ISO/IEC 17025 validation criteria for routine QC testing in GLP and GMP-regulated facilities.

Software & Data Management

Embedded firmware provides full local control via intuitive menu navigation on the backlit graphical LCD. All calibration events—including standard addition, slope verification, and zero adjustment—are timestamped and stored with operator ID, reagent lot numbers, and raw absorbance values. Historical data—up to 31 days of 15-minute interval results—is retained in non-volatile memory and exportable via RS-485 Modbus RTU or optional Ethernet/IP interface. Optional Thermo Fisher AquaLink™ software enables remote configuration, trend visualization, alarm logging (with configurable hysteresis), and automated report generation aligned with ISO 5725 repeatability protocols.

Applications

• Coal-fired and nuclear power plants: Monitoring silica breakthrough in mixed-bed polisher effluent and main steam condensate to prevent deposition on HP/LP turbine blades.
• Semiconductor fabs: Ensuring sub-5 ppb silica compliance in UPW distribution loops feeding lithography and CMP tools.
• Pharmaceutical manufacturing: Supporting continuous verification of purified water systems per USP and Annex 1 (sterile production).
• Petrochemical refineries: Tracking silica leaching from catalyst support materials in high-pressure boiler feed circuits.
• Pulp & paper mills: Controlling silica carryover in recovery boiler feedwater to minimize refractory damage.

FAQ

Does the 2230XP require daily manual calibration?
No. It performs automatic zero-point correction before every analysis cycle and supports weekly standard verification. Manual calibration is only required after reagent change or system maintenance.
Can it operate reliably in outdoor or unconditioned mechanical rooms?
Yes—the NEMA 4 enclosure and wide input voltage range (100–240 VAC, 50–60 Hz) enable deployment in ambient temperatures from 5 °C to 45 °C and relative humidity up to 95% non-condensing.
Is grab sampling supported without interrupting continuous monitoring?
Yes. A dedicated bypass valve allows manual grab sampling directly from the flow cell while the analyzer continues uninterrupted online operation.
How is data security and traceability ensured for regulated industries?
All user actions, calibration logs, and measurement data include immutable timestamps and optional electronic signatures. When integrated with Thermo Fisher’s AquaLink™ platform, full 21 CFR Part 11 compliance—including audit trails, role-based access, and electronic record retention—is achievable.
What maintenance tasks are required beyond pump tube replacement?
None beyond quarterly visual inspection of tubing integrity and annual verification of heater setpoint accuracy using an NIST-traceable thermometer. No optical alignment or lamp replacement is ever required.
