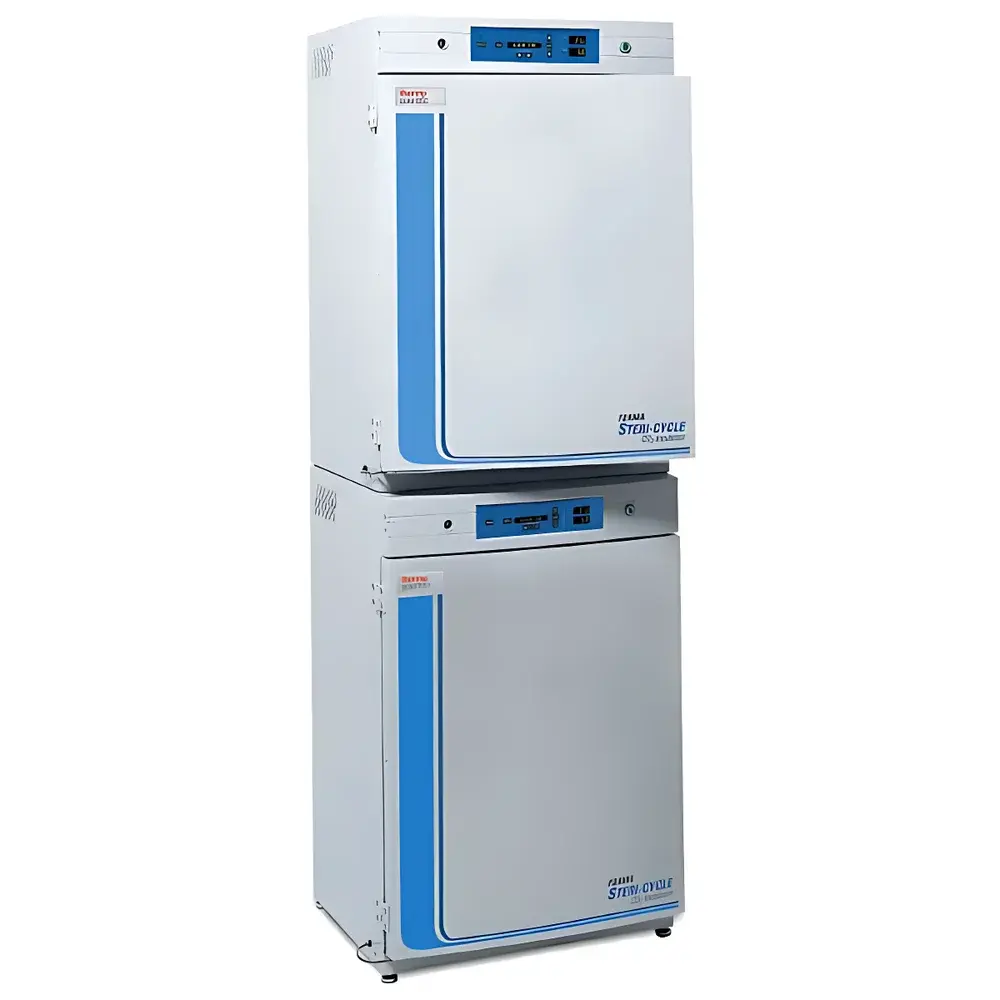

Thermo Fisher Scientific Forma Steri-Cycle CO₂ Incubator (Domestically Manufactured in Shanghai)

Overview

The Thermo Fisher Scientific Forma Steri-Cycle CO₂ Incubator (Domestically Manufactured in Shanghai) is a rigorously engineered cell culture environment system designed to maintain precise, stable, and contamination-controlled conditions for mammalian cell propagation, stem cell expansion, and hybridoma work. Built upon the validated architecture of the global Forma Steri-Cycle platform, this domestically manufactured variant retains core functional integrity—including microprocessor-controlled dual-loop regulation of temperature, CO₂ concentration, and optional relative humidity—while meeting regional regulatory expectations for locally assembled life science instrumentation. The incubator operates on a forced-air convection principle with an optimized laminar airflow pattern that minimizes thermal gradients and mechanical disturbance to sensitive cultures. Its chamber environment is actively purified via in-chamber HEPA filtration (ISO Class 5 / Class 100 equivalent), ensuring particulate-free air delivery at ≥99.99% efficiency for 0.3 µm particles. A dedicated 140°C dry-heat sterilization cycle provides validated decontamination of internal surfaces without requiring disassembly, supporting routine maintenance in GLP- and GMP-aligned workflows.

Key Features

• Microprocessor-based dual-loop control system with real-time alphanumeric display of temperature, CO₂ concentration, and optional RH values
• In-chamber HEPA filtration delivering continuous Class 100 air quality; filter accessible and replaceable without tools
• On-demand 140°C sterilization cycle with integrated safety interlocks: audible alarm triggers if outer door opens during sterilization or chamber exceeds 60°C
• Heat-resistant TC sensor remains installed during sterilization; IR CO₂ sensor is tool-free removable for calibration or replacement
• Polished stainless-steel interior with coved corners and seamless welds to eliminate microbial harborage points
• Tool-free removal of stainless-steel shelves and adjustable shelf supports for flexible configuration
• Microbiological filters on gas inlet and sample ports positioned for rapid access and routine replacement
• Configurable audio/visual alarms with silence function; programmable setpoints for overtemperature, high/low CO₂, and low-temperature deviation
• Access code protection prevents unauthorized initiation of sterilization or parameter modification
• HEPA filter change reminder and remote alarm contact outputs support preventive maintenance and facility integration

Sample Compatibility & Compliance

This incubator accommodates standard tissue culture flasks (T25–T225), multiwell plates (6–96-well), Petri dishes, roller bottles, and bioreactor vessels up to 10 L volume. Its chamber geometry and airflow design ensure uniform environmental conditions across all load configurations, as verified per ASTM E2876-21 (Standard Practice for Performance Verification of CO₂ Incubators). The system supports compliance with ISO 13485 for medical device manufacturing environments and aligns with USP and FDA 21 CFR Part 11 requirements when paired with optional datalogging and IQ/OQ validation kits. Antimicrobial copper interior lining and automatic gas tank switchers are available as configurable options for enhanced biosafety and operational continuity.

Software & Data Management

While the base unit operates via embedded firmware without external PC dependency, optional datalogging capability enables time-stamped recording of temperature, CO₂, and RH (if equipped) at user-defined intervals (1–60 min). Exported CSV files are compatible with LIMS and ELN platforms. IQ/OQ documentation kits include traceable test protocols, calibration certificates, and acceptance criteria aligned with Annex 11 and EU GMP Annex 15. Audit trail functionality—covering parameter changes, alarm events, and sterilization cycle logs—is retained onboard for ≥30 days and exportable for regulatory review.

Applications

• Mammalian cell line maintenance (e.g., CHO, HEK293, HeLa)
• Stem cell culture under low-oxygen or normoxic conditions
• Primary cell isolation and expansion for regenerative medicine research
• Monoclonal antibody production in hybridoma systems
• Embryology and assisted reproductive technology (ART) labs requiring ISO Class 5 air quality
• QC testing of biologics and cell-based therapeutics under controlled environmental parameters

FAQ

Is this incubator identical in performance to the U.S.-assembled Steri-Cycle units?
Yes—the Shanghai-manufactured variant uses the same control architecture, sensor specifications, airflow design, and sterilization protocol as the globally distributed Forma Steri-Cycle platform. All critical performance parameters undergo factory verification against Thermo Fisher’s global engineering benchmarks.
Can the 140°C sterilization cycle be validated per ISO 14644-1?
The cycle achieves ≥log₄ microbial reduction on stainless-steel surfaces under defined load conditions. Full validation requires site-specific mapping per ISO 14644-2 and is supported by optional IQ/OQ kits and third-party qualification services.
What CO₂ sensor technologies are supported?
Both infrared (IR) and thermal conductivity (TC) sensors are available; IR offers higher specificity and long-term stability, while TC provides cost-effective redundancy in multi-incubator facilities.
Does the incubator meet FDA 21 CFR Part 11 requirements for electronic records?
When equipped with the optional datalogger and configured with audit-trail-enabled firmware, the system satisfies Part 11 requirements for secure, attributable, and contemporaneous data capture—subject to site-specific SOP implementation.
Are service and calibration support available regionally?
Yes—Thermo Fisher’s authorized service network in Greater China provides certified field service engineers, NIST-traceable calibration, and spare parts logistics with ≤72-hour response for critical issues.
