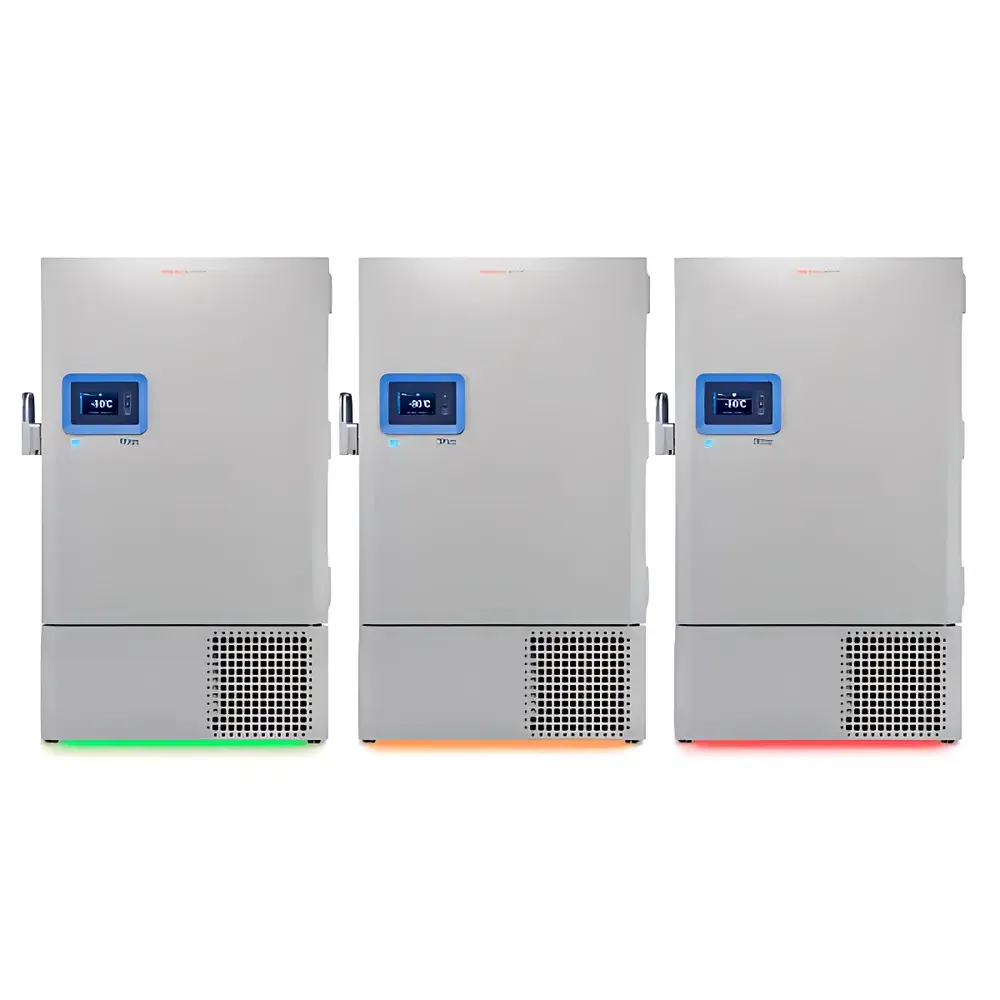

Thermo Fisher TSX Series Ultra-Low Temperature Freezer
| Brand | Thermo Fisher |
|---|---|
| Origin | USA |
| Manufacturer Type | Direct Manufacturer |
| Product Category | Imported Instrument |
| Model | TSX7/TSX6/TSX5/TSX4-0086V(A/D) |
| Form Factor | Upright |
| Effective Storage Capacity | Up to 700 × 2-inch cryoboxes |
| Inner Chamber Dimensions (mm) | 1300 × 719 × 1019 |
| External Dimensions (mm) | 1981 × 960 × 1148 |
| Power Supply | 230 V, 50 Hz |
| Rated Power Consumption | 400 W |
| Temperature Stability | ±1.5 °C uniformity across chamber |
| Recovery Time (after 30-sec door opening) | ≤12 min to return to −80 °C |
| Holdover Time (unloaded, power-off) | ≥339 min at ≤−50 °C |
| Daily Energy Consumption | <9 kWh (varies by model size) |
Overview
The Thermo Fisher TSX Series Ultra-Low Temperature Freezer is an engineered solution for long-term, high-integrity biobanking and clinical sample storage at −80 °C. Designed using dual-stage cascade refrigeration with environmentally optimized hydrocarbon refrigerants (R290/R170), the TSX platform delivers thermodynamic stability without reliance on ozone-depleting substances or high-global-warming-potential (GWP) alternatives. Its chamber architecture employs vacuum-insulated panels (VIPs) combined with polyurethane foam—achieving effective thermal resistance (R-value >35 m²·K/W) and minimizing heat ingress across all operational conditions. The system operates under continuous microprocessor-controlled monitoring of evaporator superheat, condenser subcooling, and chamber air distribution—ensuring reproducible temperature maintenance even during frequent access cycles typical in high-throughput laboratories.
Key Features
- Dual independent temperature sensors with real-time deviation tracking and automatic alarm threshold adjustment based on historical drift profiles
- Intelligent door management system: motorized latch with position feedback, integrated door-open duration logging, and adaptive compressor ramp-up to minimize thermal shock upon resealing
- Redundant cooling architecture with independent compressors per stage—enabling continued operation at −70 °C if primary cascade stage experiences fault
- Touchscreen HMI with multilingual interface (English, Spanish, French, German, Japanese, Simplified Chinese), GLP-compliant event logging, and configurable user roles with password-protected access levels
- Integrated Ethernet and USB ports supporting data export in CSV/Excel format; optional Wi-Fi module for remote status monitoring via Thermo Fisher Connect cloud platform
- Low-noise operation (<52 dB(A) at 1 m) achieved through asymmetric compressor mounting and resonant-frequency-dampened fan arrays
Sample Compatibility & Compliance
The TSX series accommodates standard ANSI/SLAS-format 2-inch cryoboxes (stored in aluminum or stainless-steel racks), with full compatibility for Nunc™, Corning® and Thermo Scientific™ branded storage systems. Internal airflow is validated per ISO 14644-1 Class 5 cleanroom specifications to prevent cross-contamination between rack zones. All models comply with IEC 61010-1:2012 for laboratory equipment safety, IEC 60335-2-24:2017 for refrigeration appliance requirements, and meet UL 471 and CSA C22.2 No. 120 standards. Data integrity features—including audit trail, electronic signature support, and time-stamped parameter change logs—align with FDA 21 CFR Part 11 and EU Annex 11 requirements for regulated biobanks and GMP-compliant manufacturing environments.
Software & Data Management
Embedded firmware supports local data retention for ≥12 months of continuous temperature, door event, alarm, and compressor runtime records. Exported datasets include ISO 8601 timestamps, sensor ID metadata, and calibrated uncertainty values traceable to NIST standards. Optional Thermo Fisher Connect integration enables automated report generation (daily/weekly/monthly), SMS/email alert escalation paths, and centralized fleet-wide performance benchmarking across multiple site deployments. Software update validation follows ASTM E2500-13 guidelines, with version-controlled firmware binaries signed using SHA-256 cryptographic hashing.
Applications
- Long-term preservation of primary human tissues, PBMCs, stem cells, and induced pluripotent stem cell (iPSC) lines under CAP/CLIA-accredited biorepository protocols
- Cold chain continuity for mRNA vaccine intermediates and viral vector lots requiring uninterrupted −80 °C exposure prior to fill-finish
- Storage of reference standards and certified reference materials (CRMs) used in ISO/IEC 17025-accredited analytical laboratories
- Backup cold storage for CRISPR-Cas9 gRNA libraries, shRNA plasmid collections, and synthetic oligonucleotide archives
- Supporting ISO 20387:2018 biobank accreditation through documented temperature mapping, alarm response validation, and preventive maintenance scheduling
FAQ
What is the minimum ambient temperature required for stable operation?
The TSX series is rated for installation in rooms maintained between +10 °C and +32 °C ambient, with relative humidity ≤80% non-condensing.
Does the freezer support external temperature monitoring integration?
Yes—via dry-contact relay outputs and Modbus RTU over RS-485, enabling connection to building management systems (BMS) or third-party environmental monitoring platforms.
How often must the condenser be cleaned to maintain specified holdover performance?
Under typical lab conditions (dust class ISO 8573-1 Class 4), cleaning every 6 months is recommended; the unit includes a service timer and filter clog indicator.
Is validation documentation provided with the instrument?
Factory-installed IQ/OQ documentation packages are available upon request, including as-shipped temperature mapping reports and alarm response verification records.
Can the freezer operate on 60 Hz power supply?
No—the TSX-0086V(A/D) variants are configured exclusively for 230 V / 50 Hz input; 60 Hz operation requires separate model designation (TSX-0086V60).
