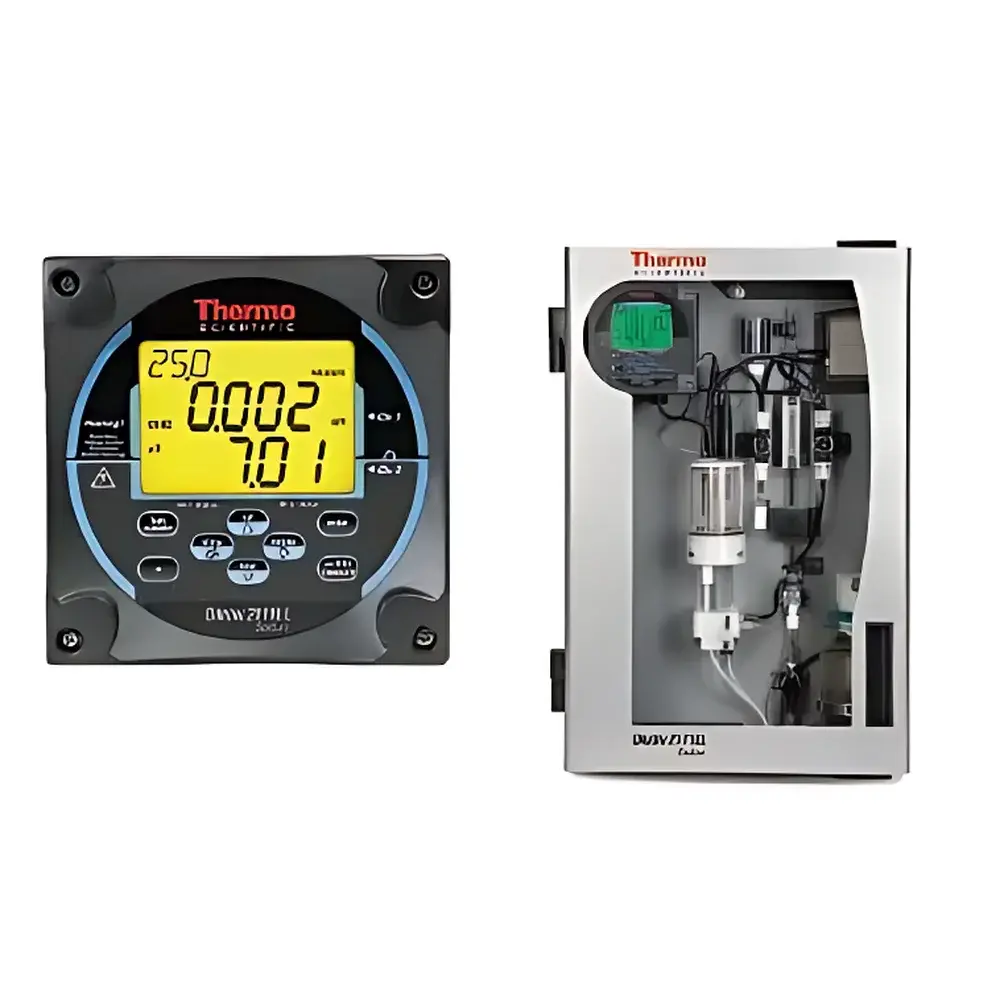

Thermo Scientific 2111EL Ultra-Low Range Online Sodium Analyzer

Overview

The Thermo Scientific 2111EL Ultra-Low Range Online Sodium Analyzer is an engineered solution for continuous, high-fidelity sodium ion monitoring in ultra-pure water streams—specifically designed for critical applications in power generation, semiconductor manufacturing, and high-purity process industries. It operates on the principle of potentiometric measurement using a highly selective sodium ion-selective electrode (ISE), coupled with a proprietary non-Ag/AgCl reference system and optimized sample conditioning chemistry. Unlike conventional sodium analyzers that rely on peristaltic pumps and aggressive alkalizing reagents, the 2111EL employs a passive diffusion-based reagent delivery method to elevate pH without introducing mechanical complexity or contamination risk. Its core architecture enables stable, drift-free operation at sub-part-per-trillion (ppt) levels—supporting compliance with ASTM D4582, ASTM D511, ISO 10523, and USP <645> for conductivity and ionic purity verification in pharmaceutical and power plant water cycles.

Key Features

• ROSS Ultra Sodium-Selective Electrode: Features patented glass membrane composition with exceptional Na⁺/H⁺ selectivity ratio (>10⁶:1), enabling reliable detection down to 0.001 ppb in low-conductivity matrices (e.g., <0.1 µS/cm).
• Drift-Compensated Reference System: Non-silver, double-junction reference design eliminates Ag⁺ leaching and minimizes thermal sensitivity—drift limited to ≤0.1 ppb/month across 0–100 °C ambient range.
• Pump-Free Alkalization: Utilizes controlled diffusion of tetraethylammonium hydroxide (TEAOH) to raise sample pH >10.5, suppressing H⁺ interference without moving parts or pulsation-induced noise.
• DKA (Direct Known Addition) Calibration: Enables two-point calibration directly in process stream using standard solutions at ppm-level concentrations—eliminating need for unstable, gravimetrically challenging ppb standards.
• Patented Flow-Through Cell: Chemically inert, optically transparent cell isolates sample from reference electrolyte; supports laminar flow mixing with <5-second response to step changes in [Na⁺].
• Modular Architecture: Supports optional second channel for pH or conductivity measurement; configurable with Ethernet/IP, Modbus TCP, or Profibus DP communication modules for integration into DCS/SCADA environments.

Sample Compatibility & Compliance

The 2111EL is validated for use with deionized water, reverse osmosis permeate, condensate, boiler feedwater, and ultrapure water (UPW) per SEMI F63 and ASTM D512-22 specifications. Its measurement integrity is maintained under conductivities as low as 0.055 µS/cm (equivalent to 18.2 MΩ·cm resistivity). The analyzer meets IEC 61326-1 (EMC for industrial environments), UL 61010-1, and CE marking requirements. Data handling complies with FDA 21 CFR Part 11 when paired with Thermo Scientific Orion Star™ Connect software, supporting audit trails, electronic signatures, and secure user access control for GLP/GMP-regulated facilities.

Software & Data Management

The 2111EL integrates with Thermo Scientific’s Orion Star™ Connect platform via RS-485 or Ethernet, enabling remote configuration, real-time trend visualization, alarm management (high/low, rate-of-change), and automated report generation (PDF/CSV). All calibration events, sensor diagnostics (impedance, asymmetry potential), and raw mV readings are timestamped and stored locally for ≥30 days. Optional cloud synchronization allows centralized fleet monitoring across multiple plant sites while preserving data sovereignty per ISO/IEC 27001-aligned security protocols.

Applications

• Power Industry: Continuous monitoring of steam cycle condensate and feedwater for early detection of sodium ingress from turbine blade deposits or heat exchanger leaks—critical for preventing corrosion under deposit (CUD) and stress corrosion cracking (SCC).
• Semiconductor Fab Water Loops: UPW quality assurance in point-of-use (POU) distribution systems where sodium contamination >0.05 ppb may induce gate oxide defects during wafer fabrication.
• Pharmaceutical Purified Water Systems: Support for USP <645> conductivity correlation and alerting against sodium breakthrough in mixed-bed polishing stages.
• Research Reactor Coolant Monitoring: Real-time tracking of coolant purity to meet NRC regulatory guidance on cation impurity limits.

FAQ

What is the minimum detectable sodium concentration, and how is it verified?
The instrument achieves a practical detection limit of 0.001 ppb, verified per IUPAC definition (3σ of blank signal measured over 24 h in certified 18.2 MΩ·cm water).
Can calibration be performed in situ without diverting the sample stream?
Yes—the DKA method permits direct addition of standard solution into the main flow path using calibrated pipettes; no bypass loop or isolation valve is required.
Does the analyzer require periodic replacement of the reference electrolyte?
No—the double-junction, gel-filled reference system is sealed and maintenance-free for ≥12 months under normal operating conditions.
How does temperature compensation function across the 5–45 °C operating range?
An integrated Pt1000 RTD measures sample temperature at the electrode tip; compensation follows the Nernst equation with empirically derived slope correction factors stored in firmware.
Is the flow-through cell compatible with hydrogen gas saturation for reducing oxygen interference?
Yes—the cell design accommodates optional H₂-sparging via dedicated inlet port, enabling measurement in reducing environments typical of nuclear primary coolant loops.
