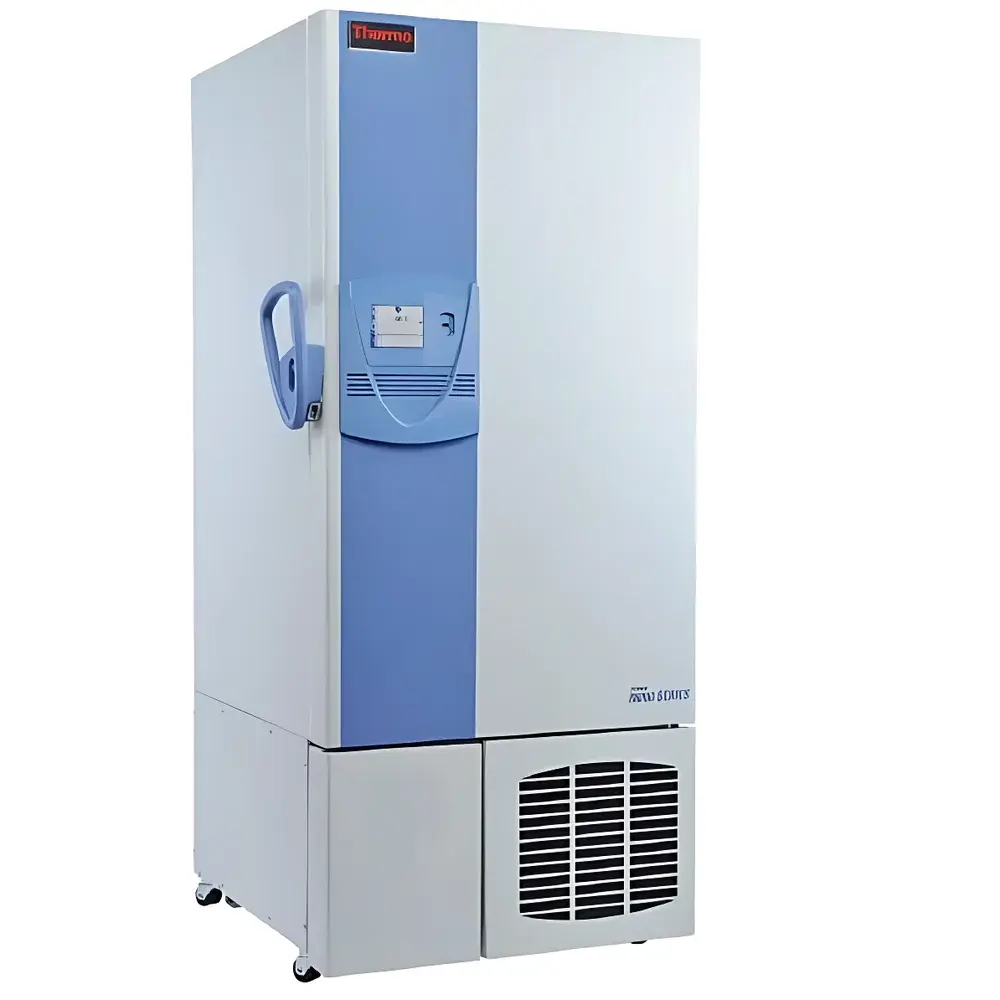

Thermo Scientific Forma 88000 Series -86°C Ultra-Low Temperature Freezer

Overview

The Thermo Scientific Forma 88000 Series -86°C Ultra-Low Temperature Freezer is an engineered solution for long-term, mission-critical biosample preservation in academic, clinical, and pharmaceutical laboratories. Designed around a dual-stage cascade refrigeration system with environmentally compliant hydrocarbon-based refrigerants (R-290/R-170), it achieves stable operation at –86°C with high thermal reproducibility across the entire storage chamber. Its architecture integrates vacuum insulated panels (VIPs) with low-global-warming-potential (GWP) water-blown polyurethane foam—reducing thermal bridging while maximizing internal volume efficiency. The unit complies with IEC 61010-1 for laboratory equipment safety and meets UL/CSA cULus and CE marking requirements for North American and European markets. With onboard data logging capability spanning up to 15 years of temperature and event history, the Forma 88000 supports GLP/GMP-aligned sample integrity management and audit readiness.

Key Features

• Dual-mode temperature control: High-Performance Mode ensures ±1.5°C uniformity (at 50% load, 25°C ambient) and minimal peak deviation; Energy-Saving Mode reduces power consumption by up to 15% while maintaining ±2.0°C uniformity—ideal for routine biobanking applications.
• Vacuum Insulated Panel (VIP) + water-blown polyurethane hybrid insulation: Increases usable interior volume by up to 76% compared to prior-generation TS-series units of identical footprint—enabling higher-density cryovial storage (e.g., 1 mL CryoBank tubes).
• Intuitive full-color touchscreen interface: Provides real-time temperature monitoring, alarm status visualization (via dedicated “heart” icon), access to system settings, and historical event log review.
• Robust mechanical design: Reinforced stainless steel shelves rated to 126 kg (278 lbs) per shelf; heated outer door gasket with four-point contact and seven-zone sealing zones to minimize frost ingress and maintain thermal stability during frequent access.
• Integrated power protection: Built-in voltage fluctuation management system safeguards compressor and control electronics under unstable grid conditions—accessible via touchscreen diagnostics.
• Expandable connectivity: Dual 25 mm (1″) access ports for external probe integration; 4–20 mA remote alarm output compatible with BMS or centralized lab monitoring platforms.
• Onboard data sovereignty: Internal flash memory stores timestamped temperature readings and operational events (door openings, alarms, mode changes) for ≥15 years without external hardware dependency.

Sample Compatibility & Compliance

The Forma 88000 accommodates standard cryogenic storage formats including 1–2 mL internally threaded cryovials, 96-well plates, and cryoboxes—optimized for compatibility with Thermo Scientific™ Nunc™ and Matrix™ storage systems. Its interior layout supports modular stainless steel rack configurations (optional), ensuring mechanical stability and traceability across high-throughput biorepositories. The unit conforms to ASTM F2607-22 (Standard Specification for Ultra-Low Temperature Freezers) and supports validation protocols aligned with ISO/IEC 17025 and FDA 21 CFR Part 11 when paired with optional password-enabled access control and electronic audit trail configuration. All refrigerants are CFC- and HCFC-free, meeting Montreal Protocol phase-out requirements and EU F-Gas Regulation (EU No. 517/2014).

Software & Data Management

Data capture and export are facilitated through a built-in USB 2.0 port: users may download CSV-formatted temperature logs, event histories, or replicate configuration profiles across multiple units. Optional accessories include a 6-inch (15.2 cm) chart recorder (compliant with USP and EU Annex 15 cold chain verification standards) and LN₂/CO₂ backup cooling modules with independent sensor-triggered activation logic. The embedded controller maintains tamper-resistant timestamps for all door-open events—including user ID (when RFID access cards are enabled), duration, and time-of-day—supporting 21 CFR Part 11-compliant electronic records when deployed with validated firmware and secure authentication workflows.

Applications

This freezer serves as a primary storage platform for sensitive biological materials requiring sustained ultra-low thermal stability, including primary human tissue specimens, induced pluripotent stem cells (iPSCs), mRNA vaccine intermediates, monoclonal antibody drug substance, and genomic DNA libraries. It is routinely deployed in biobanks accredited under ISBER Best Practices, clinical trial sample repositories governed by ICH-GCP, and QC/QA labs performing stability testing per ICH Q5C guidelines. Its rapid post-door-opening temperature recovery (<10 min to return within ±3°C of setpoint after 30-sec door opening at 25°C ambient) minimizes cumulative thermal stress on irreplaceable samples.

FAQ

What is the temperature recovery time after door opening?
Under standard test conditions (25°C ambient, 30-second door open), the cabinet recovers to within ±3°C of –86°C in less than 10 minutes.
Does the Forma 88000 support 21 CFR Part 11 compliance?
Yes—when configured with optional RFID access control, electronic audit trail logging, and validated firmware, it supports electronic signature and record retention requirements per 21 CFR Part 11.
Can external temperature probes be connected?
Yes—two 25 mm (1″) pass-through ports allow integration of calibrated external Pt100 or thermistor probes for independent validation.
Is the unit suitable for GMP environments?
It meets core design and documentation requirements for GMP-compliant cold storage; qualification packages (IQ/OQ/PQ) and calibration certificates are available upon request.
What refrigerant does it use?
Azeotropic blend of R-290 (propane) and R-170 (ethane), selected for zero ozone depletion potential (ODP = 0) and low global warming potential (GWP ≈ 3–5).
