Thermo Scientific MaxQ 8000 Orbital Shaker

Overview

The Thermo Scientific MaxQ 8000 Orbital Shaker is an engineered platform for precise, reproducible, and scalable cell culture agitation under controlled temperature conditions. Utilizing a robust orbital motion mechanism—characterized by a consistent 20 mm diameter circular trajectory—the instrument ensures uniform oxygen transfer, nutrient distribution, and suspension of sensitive biological samples including bacterial cultures, yeast, insect cells, and mammalian cell lines. Designed for continuous operation in demanding laboratory environments, the MaxQ 8000 integrates thermoregulation, mechanical stability, and user-centric engineering to support GLP-compliant workflows and long-term incubation protocols. Its architecture adheres to fundamental principles of fluid dynamics in bioreactor-scale mixing, enabling predictable shear profiles essential for maintaining cell viability and metabolic consistency across experiments.

Key Features

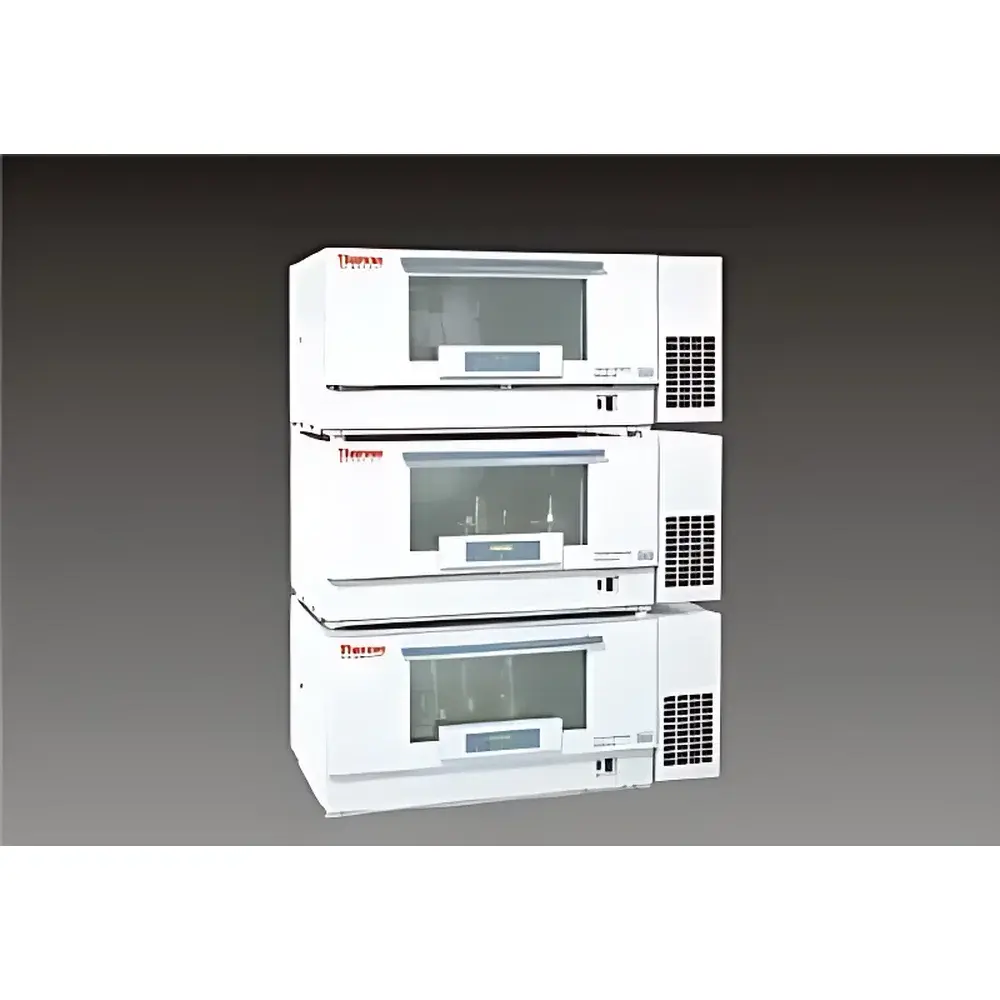

• Triple-stackable design with structural integrity validated for full-load stacking of three units—enabled by high-strength cold-rolled steel chassis and reinforced load-bearing supports.
• Patented dynamic balancing system comprising three independent counterbalance mechanisms, ensuring stable operation under asymmetric loading (e.g., single 2 L flask or heterogeneous vessel configurations) without vibration-induced resonance.
• Orbital speed range: 25–400 rpm with ±1 rpm accuracy; digitally regulated via microprocessor-controlled DC motor drive for repeatable kinetic control.
• Temperature control range: ambient +5°C to 60°C (standard configuration); uniformity maintained at ±0.3°C across chamber volume per ISO 17025-aligned validation protocols.
• HEPA-grade air filtration system with horizontal airflow path—certified to ISO 14644-1 Class 5—minimizes particulate ingress and cross-contamination risk during extended incubation cycles.
• Stainless steel 304 interior chamber with radius-rounded corners and integrated drain port for rapid decontamination and residue-free cleaning; electroplated aluminum platform resists corrosion and mechanical fatigue.
• Intuitive dual-line LCD interface (40-character capacity) displaying simultaneous setpoints and real-time values for speed, temperature, and elapsed time; tactile membrane keypad with protective overlay resists chemical splash damage.
• Gradual acceleration/deceleration profile prevents sample splashing during start-up and shutdown; magnetic door gasket ensures hermetic seal while ergonomic downward-swing handle facilitates ergonomic access.

Sample Compatibility & Compliance

The MaxQ 8000 accommodates vessels up to 2 L capacity—including Erlenmeyer flasks, baffled bottles, and multi-well plates—on its large-format sliding platform. Chamber dimensions (W × D × H: 45.7 × 45.7 × 20.3 cm) allow flexible configuration of heterogeneous vessel arrays. All materials contacting the sample environment comply with USP Class VI biocompatibility standards. The unit meets IEC 61010-1 safety requirements for laboratory equipment and supports audit-ready documentation for FDA 21 CFR Part 11 compliance when paired with validated data logging software. Optional RS232 serial output enables integration into centralized lab monitoring systems compliant with ISO/IEC 17025 quality management frameworks.

Software & Data Management

Standard RS232 interface permits bidirectional communication with host PCs for remote parameter adjustment, real-time telemetry, and event-triggered data capture. When used with Thermo Fisher’s optional data logger or third-party SCADA-compatible platforms, the shaker supports timestamped archival of operational logs—including temperature excursions, speed deviations, door-open events, and alarm triggers—for retrospective analysis and regulatory reporting. Alarm history retains the last 100 events with timestamps, accessible via front-panel navigation. Firmware supports user-defined calibration offsets for speed and temperature sensors, traceable to NIST-traceable references.

Applications

• Mammalian and insect cell expansion in serum-free or low-serum media under tightly controlled O₂/CO₂-balanced atmospheres.
• Bacterial growth curve analysis and antibiotic susceptibility testing requiring consistent aeration kinetics.
• Protein expression optimization in shake-flask bioreactors prior to scale-up in stirred-tank systems.
• Enzyme kinetics assays where substrate homogeneity and thermal stability directly impact reaction rate fidelity.
• Microbial fermentation screening across combinatorial strain libraries under standardized agitation profiles.
• Long-duration stability studies complying with ICH Q5C guidelines for biopharmaceutical product characterization.

FAQ

What is the maximum flask size supported on the MaxQ 8000 platform?

The chamber accommodates standard 2 L Erlenmeyer flasks; larger custom vessels may be evaluated subject to center-of-gravity and clearance constraints.
Does the MaxQ 8000 support programmable ramping profiles?

No—speed and temperature ramps are fixed-gradient and non-user-programmable; however, gradual acceleration/deceleration is inherent to motor control logic.
Is the HEPA filter replaceable by the end user?

Yes—filter cartridges are front-accessible and field-replaceable without tools; recommended replacement interval is every 6 months under continuous operation.
Can the unit retain settings after power loss?

Yes—non-volatile memory preserves all active parameters and resumes operation at pre-interruption setpoints upon power restoration.
Is GMP-compliant validation documentation available?

IQ/OQ protocol templates and factory-as-tested calibration certificates are provided; PQ execution requires site-specific environmental qualification per ASTM E2500.
