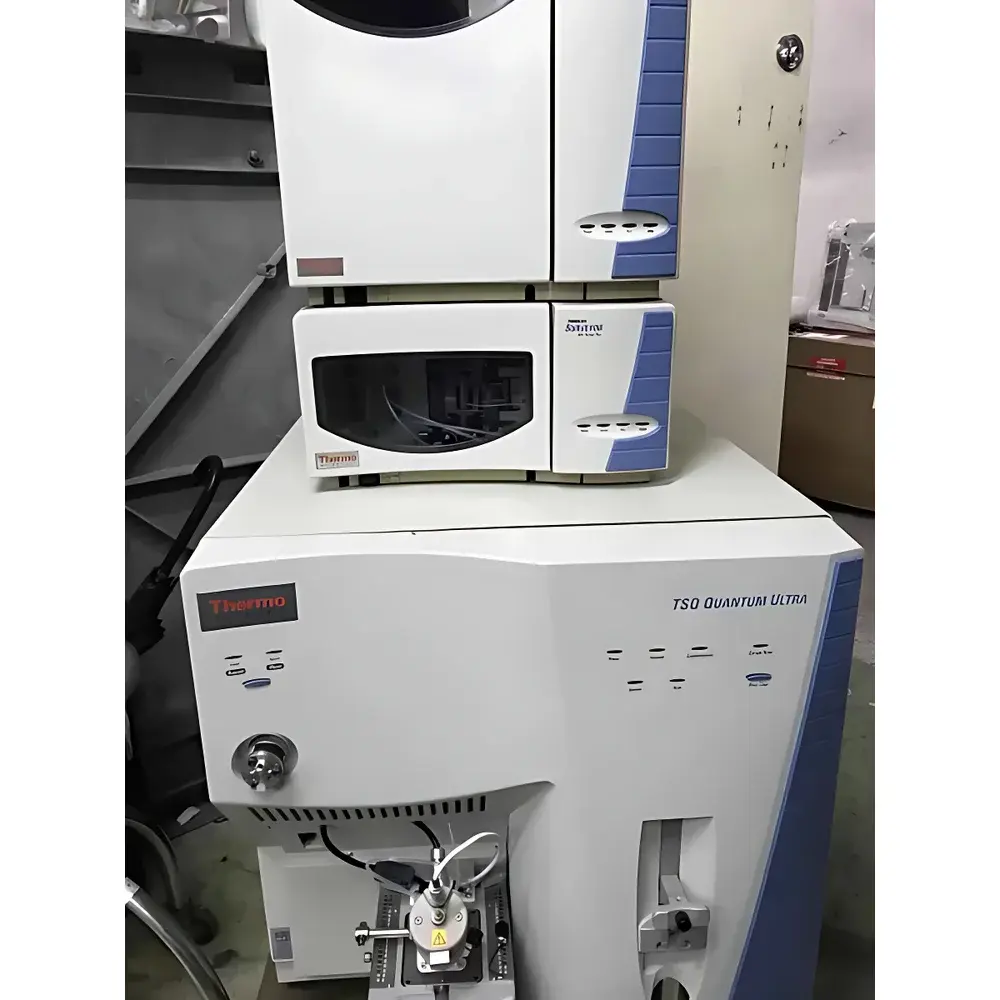

Thermo Scientific TSQ Quantum Ultra Triple Quadrupole LC-MS/MS Service Package (Maintenance, Repair, Rental & Refurbishment)

Overview

The Thermo Scientific TSQ Quantum Ultra is a high-performance triple quadrupole liquid chromatography–tandem mass spectrometer (LC-MS/MS) engineered for demanding quantitative and qualitative analysis in regulated and research environments. Its core architecture leverages proven TSQ platform electronics, dual-pressure RF-only collision cells, and advanced ion optics to deliver exceptional sensitivity, selectivity, and reproducibility across complex matrices. Key analytical capabilities include High-Selectivity Selected Reaction Monitoring (H-SRM), Quantitative Enhanced Data-dependent MS/MS (QED-MS/MS), and fast polarity switching—enabling simultaneous quantitation and structural confirmation without compromising throughput. This service package—developed and delivered by an authorized domestic distributor with over a decade of hands-on TSQ platform experience—supports sustained operational integrity, regulatory compliance readiness, and lifecycle extension for installed TSQ Quantum Ultra systems.

Key Features

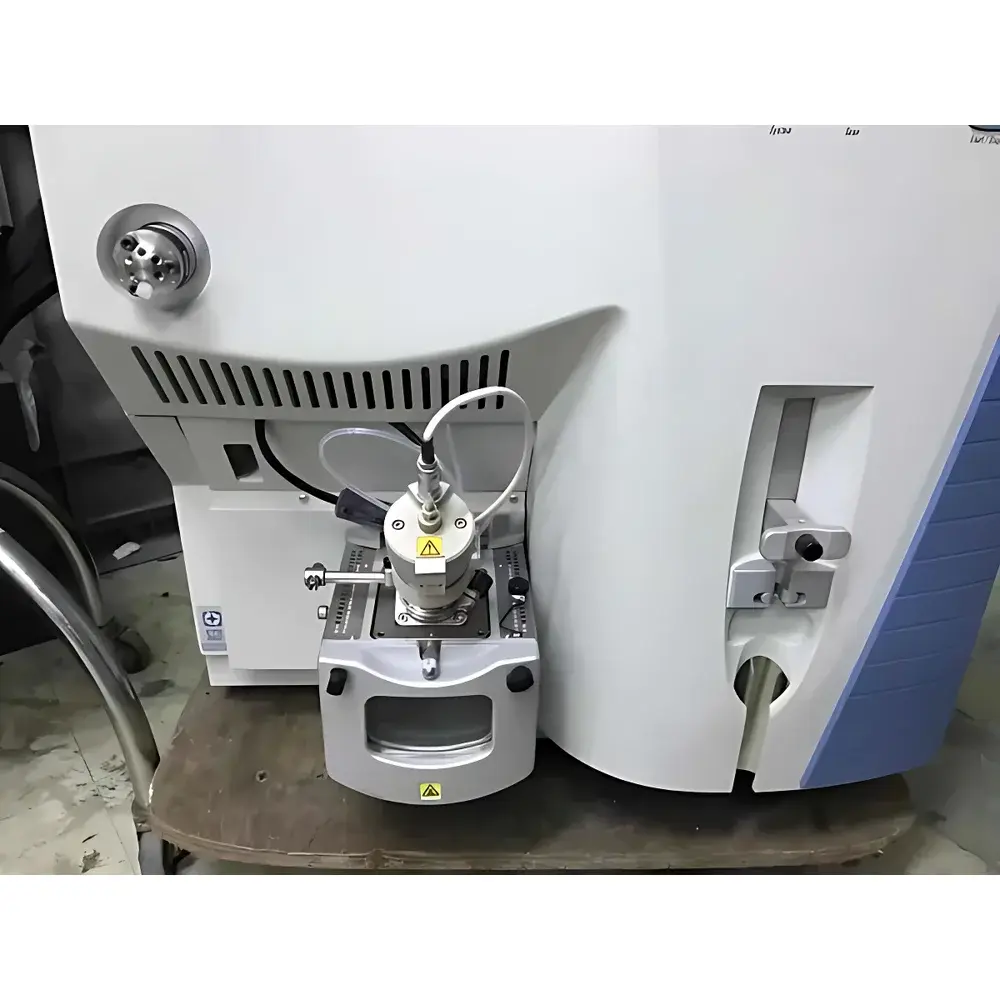

• Comprehensive technical support covering all major subsystems: electrospray ionization (ESI) and atmospheric pressure chemical ionization (APCI) sources, vacuum system diagnostics, RF/DC voltage calibration, detector gain optimization, and quadrupole mass filter alignment.
• Preventive maintenance protocols aligned with Thermo Fisher’s recommended service intervals—including source cleaning, lens decontamination, turbo pump oil replacement, and detector aging assessment.
• Rental program offering short-term (≥3 months) and medium-term (6–24 months) instrument access with full hardware warranty, on-site installation, operator training, and application-specific method transfer assistance.
• Refurbishment service includes full disassembly, component-level inspection, replacement of wear-prone parts (e.g., ion transfer tubes, skimmer cones, detector dynodes), firmware update verification, and full performance qualification against factory specifications (e.g., SRM sensitivity ≥5000:1 S/N at 1 pg on-column caffeine).
• Remote diagnostic capability via secure VNC-enabled connection to instrument control PC; supported by documented troubleshooting trees and real-time log file analysis.

Sample Compatibility & Compliance

The TSQ Quantum Ultra supports a broad range of sample types—from small-molecule pharmaceuticals and environmental contaminants to endogenous metabolites and clinical biomarkers—when coupled with compatible HPLC/UHPLC systems. All maintenance and calibration procedures adhere to internationally recognized laboratory quality standards. Documentation packages include service reports with traceable timestamps, technician certifications, replaced part serial numbers, and pre/post-service performance verification data. Where required, service records can be structured to support GLP/GMP audit trails, including electronic signatures compliant with FDA 21 CFR Part 11 requirements. All refurbished units undergo IQ/OQ documentation generation upon request, referencing ASTM E2500-13 and ISO/IEC 17025:2017 principles.

Software & Data Management

Service engagements include compatibility verification and configuration support for Xcalibur 2.2 or later, QuanBrowser, and TraceFinder software suites. Remote firmware updates are performed only after version validation and backup of existing method libraries and acquisition parameters. For rental instruments, data security protocols enforce local storage encryption, user-access role definition, and audit-log retention for all acquisition, processing, and export events. Optional integration with LIMS platforms (e.g., LabVantage, STARLIMS) is available via standard ODBC or REST API interfaces—subject to customer IT infrastructure review.

Applications

This service package directly supports mission-critical workflows in multiple regulated sectors: pharmacokinetic and toxicokinetic bioanalysis (per FDA Guidance for Industry, 2022); residue screening in food and agricultural commodities (aligned with EU Commission Regulation No. 2021/2075); targeted metabolomics in clinical research; forensic toxicology screening per SWGTOX best practices; and environmental monitoring of PFAS, pesticides, and pharmaceuticals in wastewater (EPA Method 1694). Each repair or maintenance event includes application-specific tuning recommendations—such as dwell time optimization for multi-analyte SRM methods or collision energy ramping for structural elucidation workflows.

FAQ

What is the typical turnaround time for on-site repair?
For confirmed hardware faults within Beijing municipality, on-site dispatch occurs within 12 business hours; average bench repair duration is 3–5 working days, depending on part availability.
Do rental instruments include original Thermo Fisher software licenses?
Yes—rental units are deployed with fully licensed Xcalibur and associated modules under a concurrent-use agreement managed by the customer’s IT department.
Can refurbished instruments be qualified for GMP use?
Yes—IQ/OQ documentation packages are available upon request, including test protocols, acceptance criteria, and executed reports compliant with Annex 15 and ICH Q5A guidelines.
Is remote support available outside regular business hours?
Emergency remote diagnostics are available 24/7 for critical system failures affecting ongoing studies; non-urgent requests are scheduled during standard operating hours (09:00–17:30 CST, Monday–Friday).
Are consumables and spare parts included in maintenance contracts?
Consumables (e.g., ESI needles, capillary tubing, pump seals) are billed separately unless explicitly included in a premium annual support plan; all replaced OEM parts carry a 90-day functional warranty.
