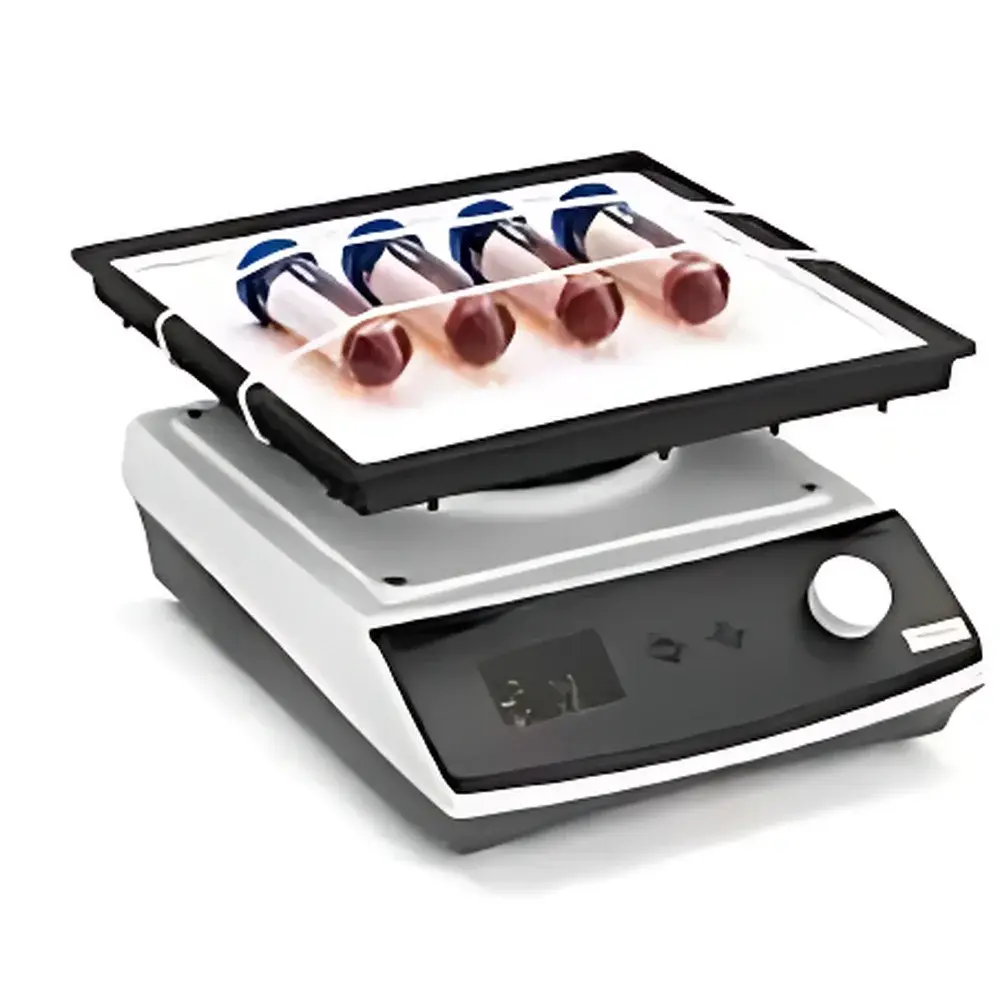

Thermo Scientific WaveMaster Optical-Sensing 3D Orbital Shaker
| Brand | Thermo Fisher Scientific |
|---|---|
| Origin | South Korea |
| Manufacturer | Thermo Fisher Scientific |
| Product Type | Imported Life Science Instrument |
| Model | Thermo Scientific WaveMaster Optical-Sensing 3D Orbital Shaker |
| Timing Range | 1 min – 99 hrs 59 min or Continuous Operation |
| Oscillation Speed | 8–100 rpm |
| Tilt Angle Adjustment | 0°–13° |
| Temperature Compatibility | Up to 60°C (non-CO₂ incubators only) |
| Platform Count | 1 |
| Standard Accessories | Universal platform, anti-slip silicone mat, two elastic retaining rings |
Overview
The Thermo Scientific WaveMaster Optical-Sensing 3D Orbital Shaker is an engineered solution for gentle, reproducible mixing of biological and biochemical samples under controlled environmental conditions. Unlike conventional orbital or linear shakers, the WaveMaster employs a patented 3D wave-motion mechanism—combining horizontal orbital rotation with synchronized vertical tilt oscillation—to generate uniform, low-shear fluid dynamics across multi-well plates, flasks, tubes, and petri dishes. This motion mimics natural convection patterns, minimizing bubble formation, cell shearing, and surface denaturation—critical for sensitive applications including cell culture maintenance, ELISA plate washing, antibody incubation, and enzymatic reaction equilibration. The optical sensing system continuously monitors motor position and load-induced torque fluctuations in real time, enabling closed-loop PID feedback control that maintains setpoint accuracy within ±1 rpm across the full 8–100 rpm range—even during temperature transitions or varying sample mass distributions.
Key Features
- Optical position-sensing feedback loop ensures high-speed stability and long-term repeatability without mechanical wear or encoder drift.
- Adjustable tilt angle (0°–13°) allows fine-tuning of mixing intensity to match viscosity, volume, and container geometry—optimized for both low-volume microplates and high-capacity culture flasks.
- Compact footprint (W × D × H: 290 × 340 × 145 mm) and front-access design enable seamless integration into standard refrigerated incubators (non-CO₂), cold rooms, and biosafety cabinets operating up to 60°C.
- Dual-mode timing interface supports either precise interval-based operation (1 minute to 99 hours 59 minutes) or uninterrupted continuous shaking—programmable via intuitive rotary dial and LED display with backlighting for low-light lab environments.
- Single-platform architecture features a rigid aluminum alloy deck with integrated anti-slip silicone mat and two reusable elastic retaining rings for secure positioning of diverse vessel types—including 96-well plates, 50 mL conical tubes, and 500 mL Erlenmeyer flasks.
- No external cooling or forced-air requirements; passive thermal management ensures stable performance during extended incubation protocols without condensation risk or ambient heat load.
Sample Compatibility & Compliance
The WaveMaster accommodates standard laboratory consumables used in molecular biology, immunology, and cell-based assays. Its motion profile has been validated for compatibility with polystyrene, polypropylene, glass, and silicone-coated surfaces—ensuring minimal adsorption loss during protein or nucleic acid handling. All electrical components comply with IEC 61010-1:2010 safety standards for laboratory equipment. The device meets EN 61326-1 electromagnetic compatibility (EMC) requirements and carries CE marking for use in EU-regulated research and quality control laboratories. While not certified for GMP manufacturing environments, its consistent motion output and audit-ready timer log support GLP-compliant documentation workflows when paired with laboratory information management systems (LIMS).
Software & Data Management
The WaveMaster operates as a standalone instrument with no proprietary software dependency. Timer settings and runtime logs are retained in non-volatile memory and accessible via front-panel display. For integration into automated workflows, optional RS-232 or USB-to-serial adapters (sold separately) allow remote command execution using ASCII protocol commands (e.g., “SPEED=45”, “TIME=7200”). Timestamped operational records—including start/stop events, speed changes, and error codes—are exportable for inclusion in electronic lab notebooks (ELN) or FDA 21 CFR Part 11–compliant audit trails when deployed with validated third-party data capture software.
Applications
- Cell suspension maintenance in hypothermic or ambient-temperature bioreactor staging.
- Uniform reagent distribution in high-throughput ELISA and lateral flow assay development.
- Gentle resuspension of cryopreserved primary cells and organoid fragments prior to passaging.
- Controlled hybridization kinetics in DNA/RNA blotting and probe binding steps.
- Stabilization of pH-sensitive buffers and enzyme cocktails during pre-incubation phases.
- Consistent mixing of viscous media formulations containing methylcellulose or hyaluronic acid derivatives.
FAQ
Can the WaveMaster be operated inside a CO₂ incubator?
No. The unit is rated for use in non-CO₂ environments only, with maximum ambient temperature tolerance of 60°C. CO₂ exposure may corrode internal optical sensors and compromise PID calibration.
Is the tilt angle digitally adjustable or manually set?
Tilt angle is manually calibrated using a precision micrometer screw on the rear mounting bracket—requiring a single setup per application type. No digital actuation or motorized adjustment is provided.
Does the shaker include vibration isolation feet?
Yes. Integrated silicone-damped leveling feet minimize transmission of oscillatory energy to adjacent instrumentation and benchtop surfaces.
What is the maximum load capacity per platform?
The platform supports up to 3 kg distributed evenly across the surface, verified per ISO 8573-1:2010 static load testing protocols.
Are replacement silicone mats and retaining rings available as spare parts?
Yes. Genuine Thermo Fisher Scientific part numbers WAVE-MAT-01 (mat) and WAVE-RING-02 (pair) are stocked globally through authorized distributors and supported by 24-month warranty coverage.
