Tianfeng SFD-5m² Stoppering Freeze Dryer for Biopharmaceutical R&D and Pilot-Scale Lyophilization

Overview

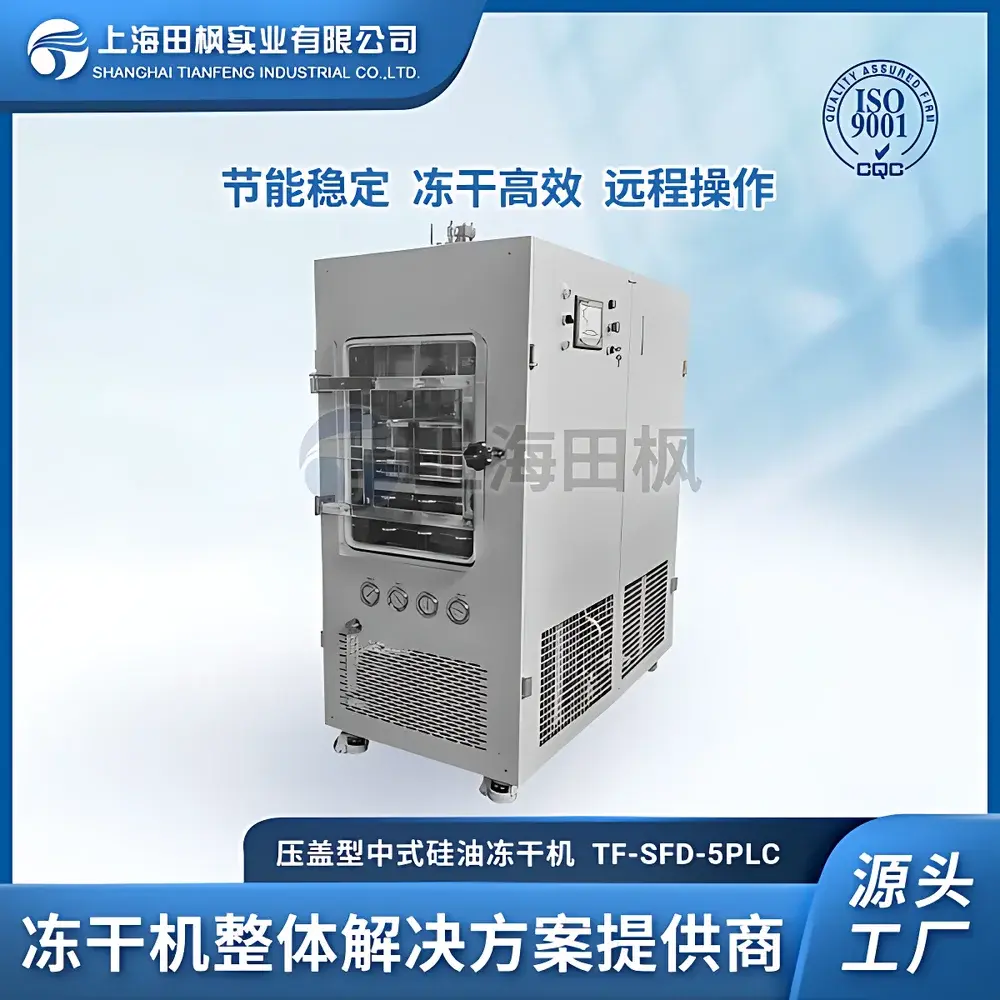

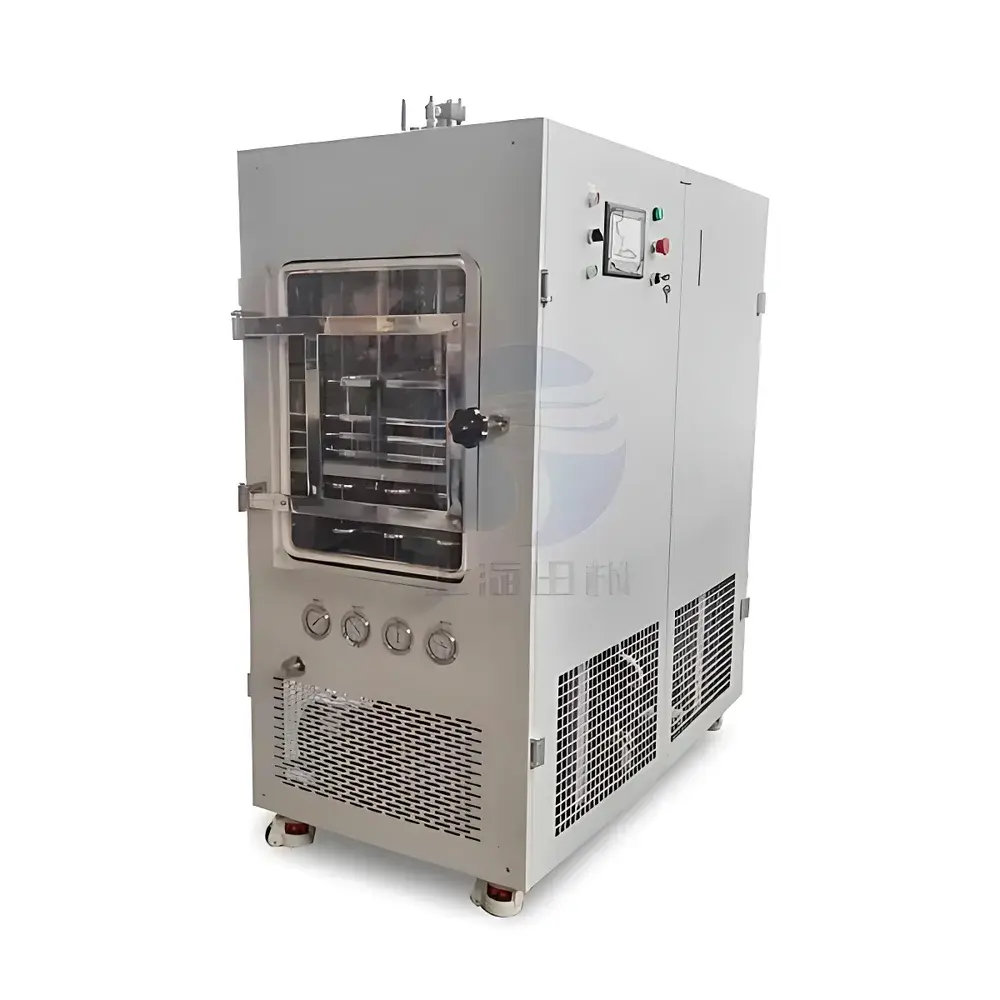

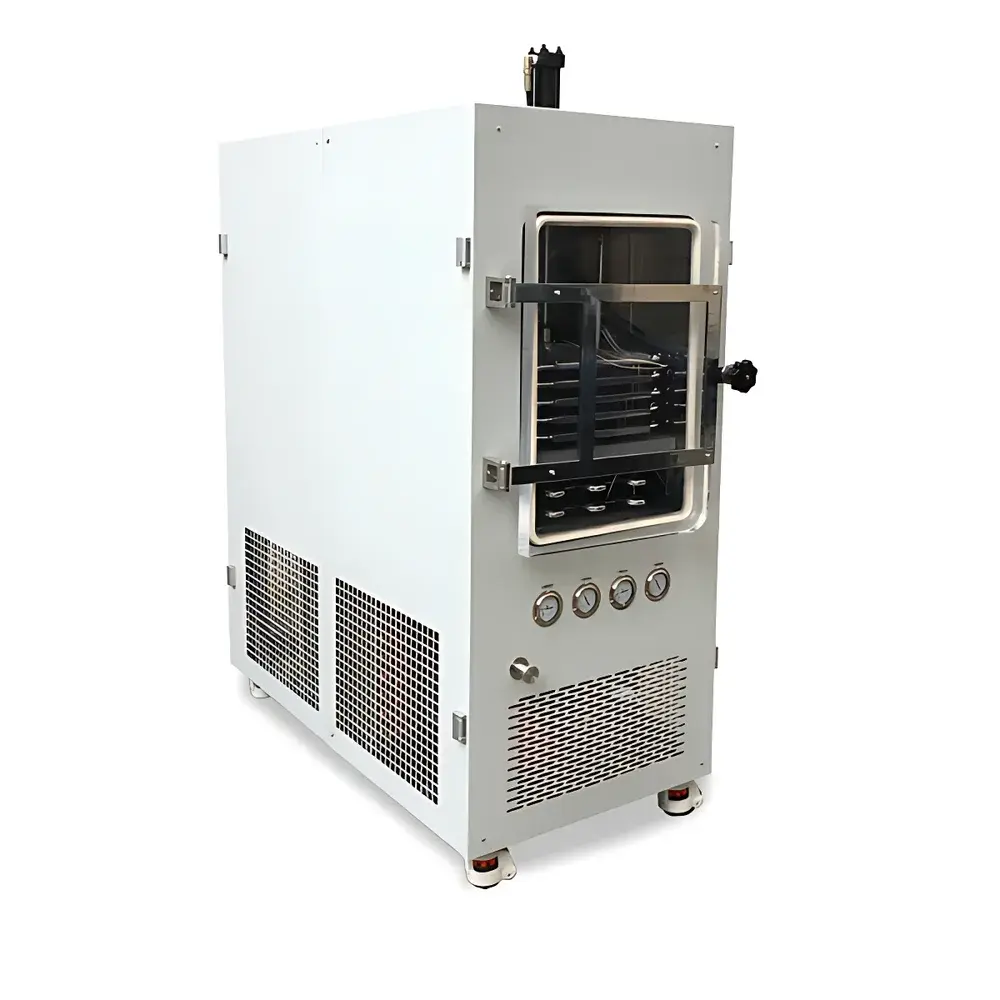

The Tianfeng SFD-5m² Stoppering Freeze Dryer is an in-situ lyophilization system engineered for reproducible, scalable freeze-drying of heat-sensitive biological reagents, vaccines, monoclonal antibodies, and diagnostic enzyme formulations. Operating on the principle of sublimation under controlled low-pressure (<5 Pa) and deep-cold condensation (≤−70 °C), it removes water from frozen samples without phase transition through liquid—preserving structural integrity, bioactivity, and long-term stability. Unlike manifold or tray-based systems, this unit integrates primary freezing, secondary drying, and sterile stoppering within a single chamber, eliminating cross-contamination risk and enabling direct transfer to vial storage. Its 0.51 m² effective shelf area supports pilot-scale batch processing (up to 2112 × Φ16 mm vials), bridging the critical gap between lab-scale feasibility studies and GMP-compliant process validation.

Key Features

• In-situ pre-freezing and drying: Eliminates manual transfer, ensuring consistent nucleation and minimizing thermal shock to biologics.
• Silicone oil-heated shelves with ±0.5 °C temperature uniformity (≤1 °C inter-shelf delta) and programmable ramp/soak profiles across −50 °C to +80 °C.
• Hydraulic stoppering mechanism with adjustable force control—enabling reliable, repeatable crimping of rubber stoppers under vacuum for aseptic closure.
• PLC-based control architecture with 7-inch industrial touchscreen interface; supports up to five user-defined programs, each with 24 customizable segments.
• Real-time data acquisition: Continuous logging of shelf temperature, chamber pressure, condenser temperature, and time-stamped operational events—including parameter modifications during active cycles.
• Integrated inert gas purge valve (N₂ or argon compatible) for oxygen-sensitive formulations and residual moisture control during backfilling.
• Optically clear, high-transmittance acrylic door for non-invasive visual monitoring of cake morphology, collapse onset, and drying front progression.
• Robust condenser design rated for 8 L/24 h ice load capacity at ≤−70 °C—optimized for high-moisture-content biological matrices including egg yolk suspensions, serum-based media, and cell lysates.

Sample Compatibility & Compliance

The SFD-5 accommodates standard pharmaceutical vials (Φ16 mm, Φ20 mm), serum bottles, and custom trays up to 278 × 460 mm footprint. Its shelf geometry (4+1 configuration, 70 mm spacing) ensures compatibility with multi-layer loading while maintaining convective heat transfer efficiency. The system meets foundational requirements for Good Laboratory Practice (GLP) and early-phase Good Manufacturing Practice (GMP) environments: full audit trail capability, password-protected access levels, electronic signature support, and exportable CSV/Excel process logs. Though not certified to 21 CFR Part 11 out-of-the-box, its firmware architecture allows integration with validated third-party electronic record systems compliant with FDA and EMA regulatory expectations.

Software & Data Management

Embedded firmware records all critical process variables at user-selectable intervals (1–60 sec resolution), generating time-synchronized vacuum vs. temperature plots and shelf heating curves. All operator actions—including login/logout timestamps, program edits, alarm acknowledgments, and emergency stops—are immutably logged with ISO 8601 timestamps. Data exports are encrypted and structured for direct import into LIMS or statistical process control platforms (e.g., JMP, Minitab). Optional Ethernet/IP connectivity enables remote diagnostics and centralized fleet monitoring via SCADA-compatible protocols.

Applications

This system is routinely deployed in academic research labs for lyophilization optimization of novel adjuvants and mRNA-LNP formulations; in QC/QA departments for stability-indicating method development per ICH Q5C; and in biotech pilot facilities for cycle mapping prior to tech transfer to production-scale freeze dryers. Proven use cases include: lyophilization of avian egg yolk immunoglobulins (IgY), bacterial lysates for ELISA standards, lysozyme reference materials, and lyophilized CRISPR-Cas9 ribonucleoprotein complexes. Its precise shelf temperature control and low ultimate vacuum make it especially suitable for low-eutectic-point formulations requiring extended primary drying phases.

FAQ

Does the SFD-5 support real-time co-lyophilization endpoint detection?
Yes—optional integrated resistance temperature detector (RTD)-based product temperature monitoring and optional capacitance-based moisture sensors enable empirical determination of primary drying completion.
Can shelf temperature be ramped independently during primary and secondary drying?
Yes—each program segment allows independent setpoint, ramp rate, hold duration, and PID tuning parameters for granular thermal control.
Is the system compatible with IQ/OQ/PQ documentation packages?
Tianfeng provides standard factory acceptance test (FAT) reports and calibration certificates for key sensors; site-specific qualification protocols require collaboration with qualified third-party vendors.
What maintenance intervals are recommended for the vacuum pump and refrigeration system?
Oil-sealed rotary vane pumps require oil replacement every 500 operating hours; the cascade refrigeration system undergoes annual leak inspection and refrigerant charge verification per ASHRAE Guideline 3.
Can the unit be validated for use with human clinical trial materials?
While the SFD-5 meets mechanical and functional specifications for Phase I/II material processing, final regulatory acceptability depends on site-specific risk assessment, change control history, and documented performance qualification under actual load conditions.
