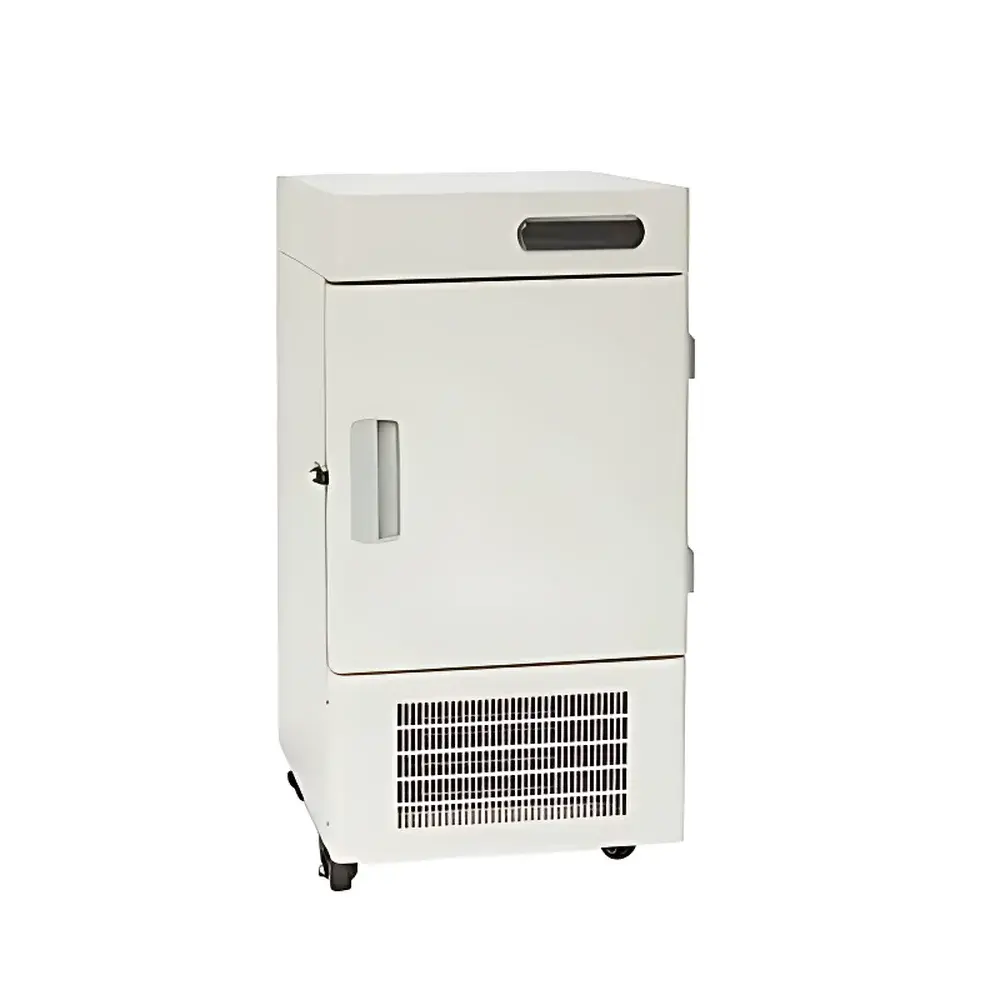

Tianfeng TF-40-598-LA Ultra Low Temperature Freezer

Overview

The Tianfeng TF-40-598-LA Ultra Low Temperature Freezer is an engineered solution for long-term cryogenic storage of temperature-sensitive biological and chemical specimens at a stable −40 °C operating point. Unlike deep-cold freezers targeting −80 °C or lower, this model occupies a critical niche in the −15 °C to −40 °C range—optimized for applications where ultra-deep freezing is unnecessary but precise, energy-efficient, and reliable sub-zero preservation is essential. It employs a dual-mode condensation system combining natural convection and forced-air cooling, enhancing thermal stability under variable ambient conditions (up to 32 °C ambient, 60% RH). The unit integrates a high-efficiency, low-GWP hydrocarbon refrigerant blend (R290/R170), compliant with the Kigali Amendment and EU F-Gas Regulation, eliminating ozone-depleting substances while maintaining thermodynamic performance. Its robust architecture—featuring a 304 stainless steel interior, rounded internal corners, and reinforced door seals—ensures mechanical durability, contamination resistance, and ease of decontamination in GLP- and GMP-aligned environments.

Key Features

• Stable −40 °C operation with ±1.5 °C uniformity across all shelf levels (measured per IEC 60068-3-5)
• Dual-mode heat dissipation: hybrid natural convection + fan-assisted condenser—reduces risk of compressor overload during dust accumulation or high-ambient operation
• Energy-optimized design: average power consumption of 1600 W at rated load; achieves <1.8 kWh/24h energy efficiency ratio (EER) under standard test conditions (ISO 8561-1)
• Acoustic optimization: sound pressure level ≤57 dB(A) at 1 m distance—suitable for shared laboratory spaces without acoustic isolation
• Four independent inner doors minimize cold air loss during partial access; each door equipped with magnetic gasket and visual seal integrity indicator
• Three adjustable stainless steel shelves (load capacity: 25 kg/shelf); fully removable for cleaning or reconfiguration
• RS-232 serial interface (optional) enables integration with laboratory information management systems (LIMS) for audit-trail-capable temperature logging
• Integrated mechanical lock + power switch lock prevents unauthorized access and accidental power interruption
• Vacuum-insulated panel (VIP) core combined with ≥120 mm polyurethane foam walls ensures thermal resistance (R-value > 4.2 m²·K/W)

Sample Compatibility & Compliance

The TF-40-598-LA is validated for storage of human plasma, serum, vaccine intermediates, microbial cultures (e.g., E. coli, S. cerevisiae), cryopreserved tissues (skin, bone), semen and oocyte samples, and reference standards for clinical chemistry. Its interior geometry (700 × 680 × 1255 mm) accommodates standard ISO 15189-compliant specimen racks, 2 mL cryovial boxes (up to 144 per shelf), and stacked 50 mL conical tubes. All wetted surfaces meet USP Class VI biocompatibility requirements. The freezer complies with IEC 61010-1 (Safety Requirements for Electrical Equipment for Measurement, Control, and Laboratory Use), EN 60335-2-24 (Household and Similar Electrical Appliances – Safety – Particular Requirements for Refrigerating Appliances), and ISO 13485:2016 (Medical Devices – Quality Management Systems) for manufacturing controls. Optional RS-232 output supports FDA 21 CFR Part 11–compliant electronic record generation when paired with validated data acquisition software.

Software & Data Management

While the base unit operates via a microprocessor-based PID controller with digital LED display (temperature setpoint, actual chamber temp, alarm status), optional firmware upgrades enable time-stamped temperature logging at 1-minute intervals for up to 30 days onboard memory. When connected via RS-232 to a host PC running Tianfeng’s TLogView™ software (Windows 10/11 compatible), users can generate PDF reports compliant with ISO/IEC 17025 clause 7.7 (Results Reporting), including calibration traceability metadata, operator ID, and deviation flags. Audit trails are immutable and timestamped to UTC; export formats include CSV and XML for LIMS ingestion. Firmware updates follow secure signed-package protocols, and configuration changes require dual-authentication (supervisor PIN + physical key switch).

Applications

• Blood bank operations: storage of fresh frozen plasma (FFP), cryoprecipitate, and platelet-rich plasma prior to lyophilization
• Vaccine manufacturing: intermediate storage of adjuvanted antigen formulations requiring strict thermal history control
• Biobanking: archival storage of primary cell isolates, PBMCs, and tissue lysates under ISO 20387:2018 (Biobanking – General Requirements)
• QC/QA laboratories: retention sample storage for pharmaceutical excipients, stability-indicating assays, and raw material testing per ICH Q5C
• Academic research: long-term preservation of CRISPR-Cas9 plasmid libraries, lentiviral vectors, and synthetic oligonucleotides
• Electronics R&D: low-temperature aging of semiconductor components and photonic materials

FAQ

What is the recommended ambient operating environment?
Optimal operation requires ambient temperatures between 10 °C and 32 °C, relative humidity ≤60% non-condensing. Installation clearance: ≥100 mm rear, ≥50 mm sides, unobstructed top airflow.

How often should the condenser filter be cleaned?
The front-accessible dust filter must be inspected weekly in dusty environments and cleaned with compressed air or soft brush every 2 weeks. Clogged filters increase compressor runtime by up to 35%, reducing mean time between failures (MTBF).

Does the unit support remote monitoring?
Yes—via optional RS-232 to Ethernet gateway (Tianfeng TM-GW-ETH), enabling SNMP traps, Modbus TCP polling, and integration with building management systems (BMS) or centralized cold chain dashboards.

Is validation documentation available?
Factory-installed IQ/OQ documentation per ASTM E2500-13 is provided with each unit. PQ protocol templates aligned with WHO TRS 961 Annex 9 and EU GDP Annex 9 are available upon request.

What maintenance is required during the first year?
No scheduled lubrication or refrigerant servicing is required. Annual verification includes door seal compression testing, temperature uniformity mapping (9-point grid), and alarm response validation (high-temp, door-open, power-fail).
