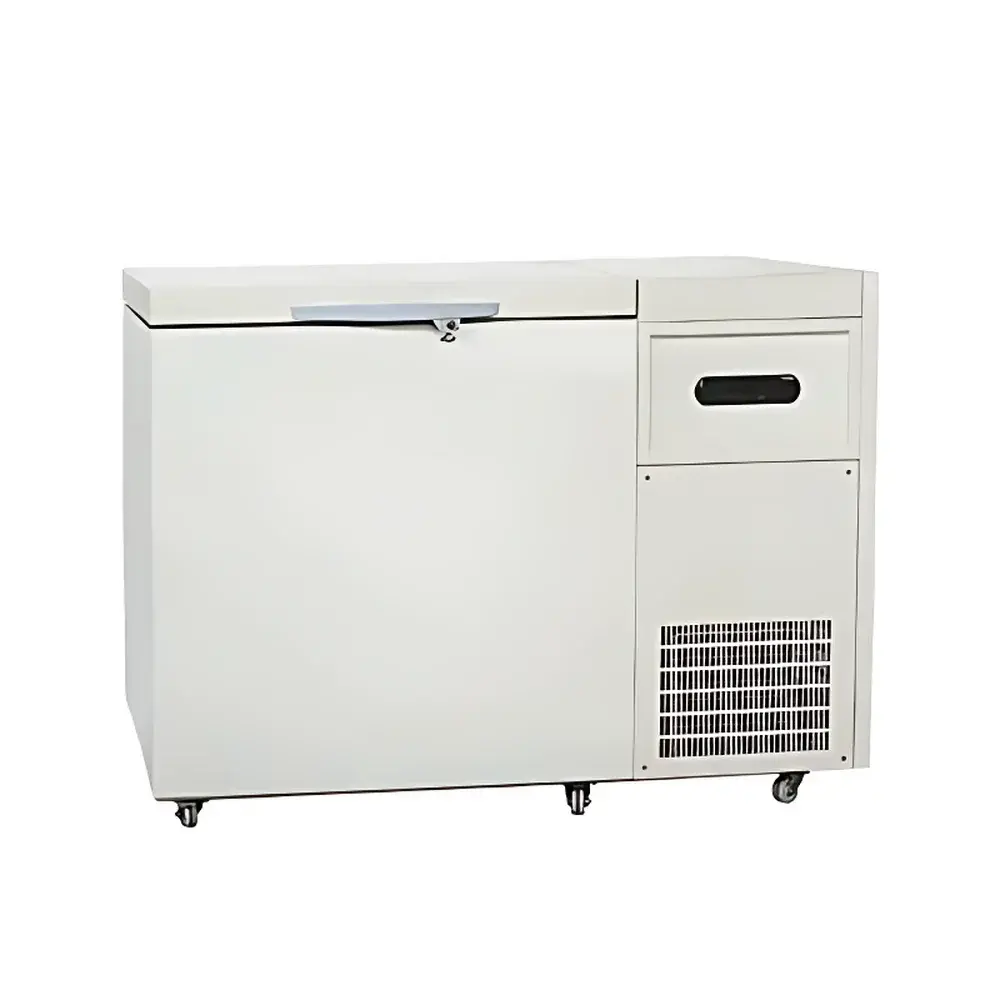

Tianfeng TF-40-60B-WA Medical Ultra-Low Temperature Freezer

Overview

The Tianfeng TF-40-60B-WA Medical Ultra-Low Temperature Freezer is an engineered solution for stable, energy-efficient long-term storage of temperature-sensitive biological materials at controlled sub-zero conditions ranging from –15 °C to –40 °C. Designed specifically for clinical, diagnostic, and research-grade applications, this unit employs a dual-mode heat dissipation architecture—combining passive natural convection with active fan-assisted condensation—to maintain thermal stability under variable ambient loads (up to 32 °C ambient, 60% RH). Its refrigeration system integrates high-reliability compressors and internationally sourced critical components—including expansion valves, evaporator coils, and pressure regulators—ensuring consistent cold chain integrity across extended operational cycles. Unlike conventional ultra-low freezers that rely exclusively on forced-air cooling, the TF-40-60B-WA’s hybrid thermal management mitigates performance degradation in dusty or high-temperature laboratory environments, reducing compressor cycling stress and extending service life.

Key Features

• Stainless-steel (AISI 304) interior liner and inner doors—corrosion-resistant, non-porous, and compliant with ISO 13485-informed cleaning protocols for biomedical storage.
• Four independently sealed inner doors minimize cold air loss during frequent access, preserving setpoint stability and reducing energy consumption per retrieval event.
• Three-tier adjustable shelving system enables flexible configuration for vial racks, cryoboxes, sample trays, and bulk containers up to 568 L effective volume.
• Rounded internal corners and smooth-welded seams facilitate GMP-aligned cleaning procedures using neutral pH detergents and purified water—no disassembly required.
• RS-232 serial interface (optional) supports integration with laboratory information management systems (LIMS) for time-stamped temperature logging and alarm event capture.
• Integrated mechanical door lock and power switch lock prevent unauthorized access and accidental power interruption—critical for regulated biobanking workflows.
• Low-noise operation (≤57 dB[A]) achieved through vibration-dampened compressor mounting, acoustic insulation layers, and optimized airflow ducting—suitable for shared lab spaces.

Sample Compatibility & Compliance

The TF-40-60B-WA is validated for storage of human plasma, serum, vaccines (including mRNA and viral vector formulations), primary cell isolates, microbial cultures, tissue lysates, and nucleic acid extracts requiring sustained stabilization between –15 °C and –40 °C. Its thermal uniformity profile meets ASTM F745-22 requirements for medical refrigerator performance verification, with zone-to-zone deviation < ±2.5 °C at steady state. The unit complies with IEC 61010-1:2010 safety standards for laboratory equipment and incorporates fail-safe features including high/low temperature alarms, door ajar detection, and compressor overheat protection. While not FDA 21 CFR Part 11–certified out-of-the-box, its optional RS-232 output enables third-party validation for GLP/GMP environments when paired with compliant data acquisition software.

Software & Data Management

This freezer operates via a microprocessor-based digital controller with LED display showing real-time cabinet temperature, setpoint, and alarm status. All operational parameters—including compressor runtime, defrost cycle frequency, and voltage fluctuation history—are logged internally for up to 30 days. When equipped with the RS-232 interface, users may export timestamped CSV logs for audit trail generation. No proprietary software installation is required; raw serial data can be parsed using standard terminal emulators or integrated into existing LIMS platforms via Modbus RTU-compatible middleware. Audit-ready records support ISO/IEC 17025 accreditation requirements for calibration traceability and environmental monitoring compliance.

Applications

• Clinical laboratories: Long-term archiving of residual diagnostic specimens, PBMCs, and frozen serum panels.
• Vaccine distribution hubs: Intermediate cold storage prior to deep-frozen transport (-70 °C or lower).
• Blood banks: Segregated storage of thawed plasma units awaiting transfusion or further processing.
• Academic research cores: Preservation of CRISPR-edited cell lines, organoid cultures, and xenograft tissues.
• Pharmaceutical QC labs: Stability testing of excipient-blended APIs stored under accelerated low-temperature conditions.
• Biobanks: Secondary storage tier for samples awaiting transfer to liquid nitrogen vapor-phase freezers.

FAQ

What is the recommended maintenance schedule for optimal performance?
Perform visual inspection of condenser fins and dust filter every 30 days; clean with compressed air or soft brush. Verify door gasket integrity quarterly. Calibrate temperature sensor annually using NIST-traceable reference probe.
Can this unit be validated for ISO 13485 or GMP use?
Yes—its stainless-steel construction, alarm logging capability, and RS-232 interface support IQ/OQ/PQ protocol development. Validation documentation templates are available upon request.
Is remote monitoring supported?
Not natively—but the RS-232 port allows connection to external SNMP gateways or IoT edge devices for cloud-based alerting and dashboard visualization.
How does the hybrid cooling system improve reliability in tropical climates?
By decoupling condenser efficiency from ambient airflow, the system maintains stable discharge pressure even when fan intake is partially obstructed—a common failure mode in humid, particulate-rich environments.
Does the unit include a defrost cycle?
Yes—automatic adaptive defrost activates based on cumulative compressor run time and evaporator frost accumulation sensors, minimizing thermal disturbance to stored samples.
