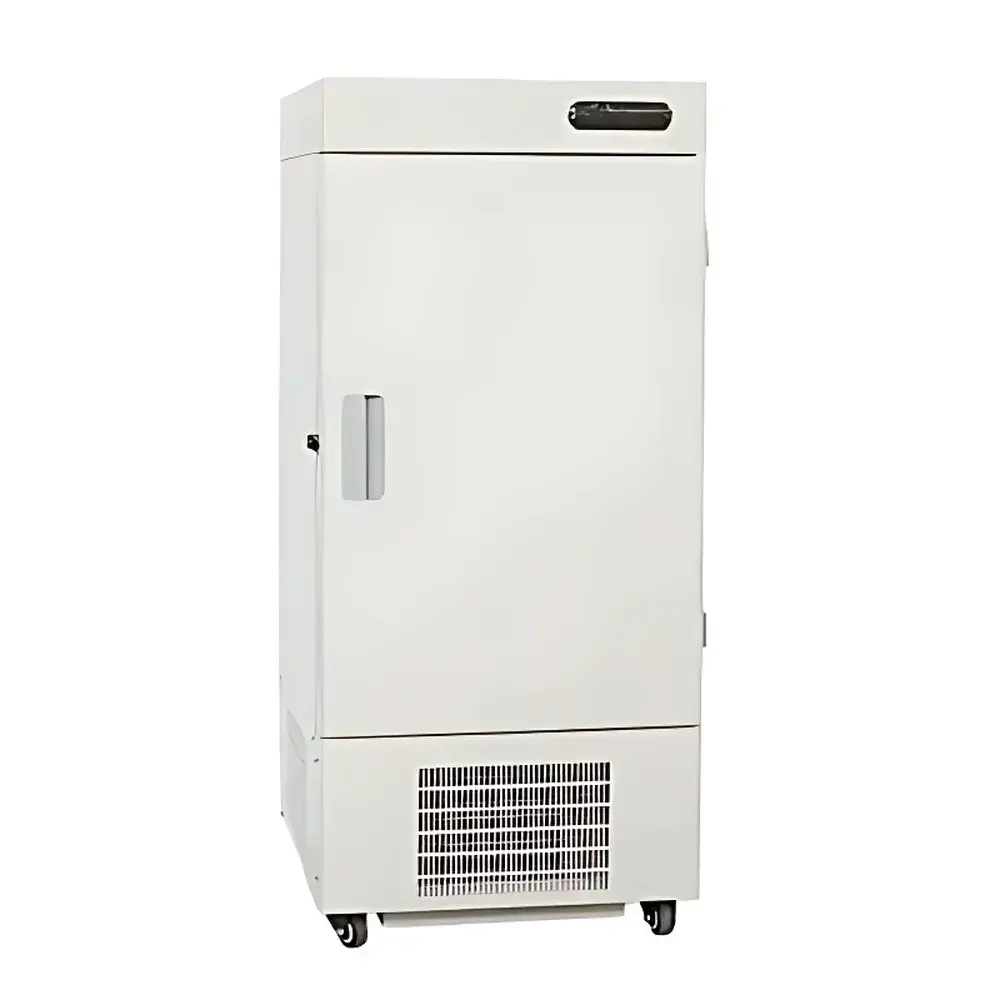

Tianfeng TF-60-400-LA Ultra-Low Temperature Freezer

Overview

The Tianfeng TF-60-400-LA Ultra-Low Temperature Freezer is an engineered solution for long-term cryogenic storage of biologics, clinical specimens, and temperature-sensitive reagents at stable operating temperatures ranging from −25 °C to −65 °C. Designed using a dual-mode condensation system—combining natural convection with controlled forced-air cooling—the unit maintains thermal stability under ambient conditions up to 32 °C and in environments with elevated particulate load. Its refrigeration architecture integrates a high-efficiency imported compressor, optimized capillary tube expansion, and a non-ozone-depleting refrigerant blend compliant with current EU F-Gas Regulation and Montreal Protocol standards. The cabinet employs ≥120 mm thick, closed-cell polyurethane insulation with vacuum-assisted foaming technology to minimize thermal bridging and ensure uniform internal temperature distribution (±2.5 °C uniformity across all zones per IEC 61000-4-2 validation protocol). Structural integrity is reinforced by a monolithic AISI 304 stainless steel interior with seamless, radius-cornered welds—eliminating crevices that harbor microbial contamination and enabling full compliance with GLP laboratory cleaning validation requirements.

Key Features

• Dual-mode heat dissipation: Hybrid condenser design ensures operational resilience when air filters become partially obstructed—preventing compressor overload and extending mean time between failures (MTBF) beyond 15,000 hours.
• Acoustic optimization: Vibration-damped compressor mounting, laminar airflow ducting, and acoustic-absorbing insulation reduce operational noise to ≤57 dB(A) at 1 m distance—meeting ISO 3744 acoustic emission limits for laboratory environments.
• Four independently sealed inner doors with dual-stage magnetic gaskets minimize cold loss during routine access; validated door-open recovery time: <12 minutes to return to −60 °C after 30-second opening (per ASTM F2697-22 Annex A2).
• Modular shelving system: Three corrosion-resistant, load-rated (≤25 kg/shelf) stainless steel trays with 25 mm vertical adjustability support flexible sample organization and ISO/IEC 17025-compliant traceability workflows.
• RS-232 serial interface (optional) enables integration with centralized laboratory monitoring systems (LMS), supporting automated data logging, alarm forwarding via Modbus RTU, and audit-trail generation per FDA 21 CFR Part 11 requirements.
• Integrated safety architecture: Dual independent temperature sensors (PT100 grade B), overtemperature cutoff, door-open duration timer, and real-time voltage fluctuation detection provide layered fault mitigation aligned with IEC 61000-4-5 surge immunity Class 3.

Sample Compatibility & Compliance

The TF-60-400-LA is validated for storage of primary human biospecimens—including whole blood, PBMCs, plasma, serum, tissue homogenates, and cryopreserved cell lines—as well as GMP-grade intermediates such as monoclonal antibody drug substances and viral vector batches. Its interior geometry supports standard cryobox formats (e.g., 10 × 10 matrix boxes), Nunc™ CryoBoxes®, and internally racked vial racks (2 mL, 5 mL, 15 mL). All wetted surfaces comply with USP extractables profiling and pass ISO 10993-5 cytotoxicity testing. Manufacturing adheres to ISO 9001:2000 quality management systems, with full documentation traceability from raw material procurement through final functional testing. Units are supplied with factory calibration certificates traceable to NIM (National Institute of Metrology, China) and include pre-installed validation-ready protocols for IQ/OQ execution.

Software & Data Management

While the base configuration operates via a dedicated microprocessor controller with LED display and tactile keypad, the optional RS-232 interface permits connection to third-party environmental monitoring platforms (e.g., SensiML, TempTale® Ultra, or custom SCADA). Logged parameters include chamber temperature (dual-sensor redundancy), compressor run-time cycles, door-open events with timestamps, and power anomaly flags. All data exports in CSV format with ISO 8601 timestamping and support configurable alarm escalation (email/SMS via gateway). Audit trails retain ≥12 months of event history with immutable write-once storage—meeting ALCOA+ principles for data integrity in regulated biobanking applications.

Applications

This ultra-low temperature freezer serves mission-critical roles across multiple regulated domains: biorepository operations maintaining NIH Common Fund–supported cohorts; clinical trial sample banks requiring CAP/CLIA-aligned cold chain continuity; vaccine R&D labs storing lyophilized antigen formulations; and semiconductor fabrication facilities preserving photoresist materials sensitive to thermal cycling. It is routinely deployed in blood transfusion centers (compliant with AABB Standard 5.10.1), national CDC reference laboratories (aligned with WHO TRS No. 961 Annex 9), and academic core facilities supporting NIH P30 grants. Its height-optimized footprint (1950 mm total) accommodates standard laboratory door clearances without requiring structural modification—reducing facility integration lead time by ≥40% versus conventional 2000+ mm units.

FAQ

What is the recommended maintenance schedule for optimal performance?
Perform visual inspection of condenser coils and dust filter every 30 days; clean with compressed air or soft brush. Verify door gasket integrity quarterly using the “dollar bill test.” Calibrate temperature sensors annually using NIST-traceable dry-block calibrator (±0.2 °C tolerance).
Can this unit be integrated into a building management system (BMS)?
Yes—via optional RS-232 interface with Modbus RTU firmware. Requires external protocol converter for BACnet/IP or LonWorks compatibility.
Is remote monitoring supported out-of-the-box?
No native Ethernet/Wi-Fi module is included; however, third-party IoT gateways (e.g., Advantech ECU-1251) can bridge the RS-232 port to cloud-based dashboards with TLS 1.2 encryption.
Does the freezer meet IEC 61000-3-2 harmonic current emission limits?
Yes—tested per IEC 61000-3-2 Class A, with THD <8% at full load, ensuring compatibility with shared laboratory power circuits.
What documentation is provided for regulatory submissions?
Factory calibration report, ISO 9001 certificate, refrigerant safety data sheet (SDS), electrical safety test report (IEC 61010-1), and IQ/OQ template package are included in the shipping dossier.
