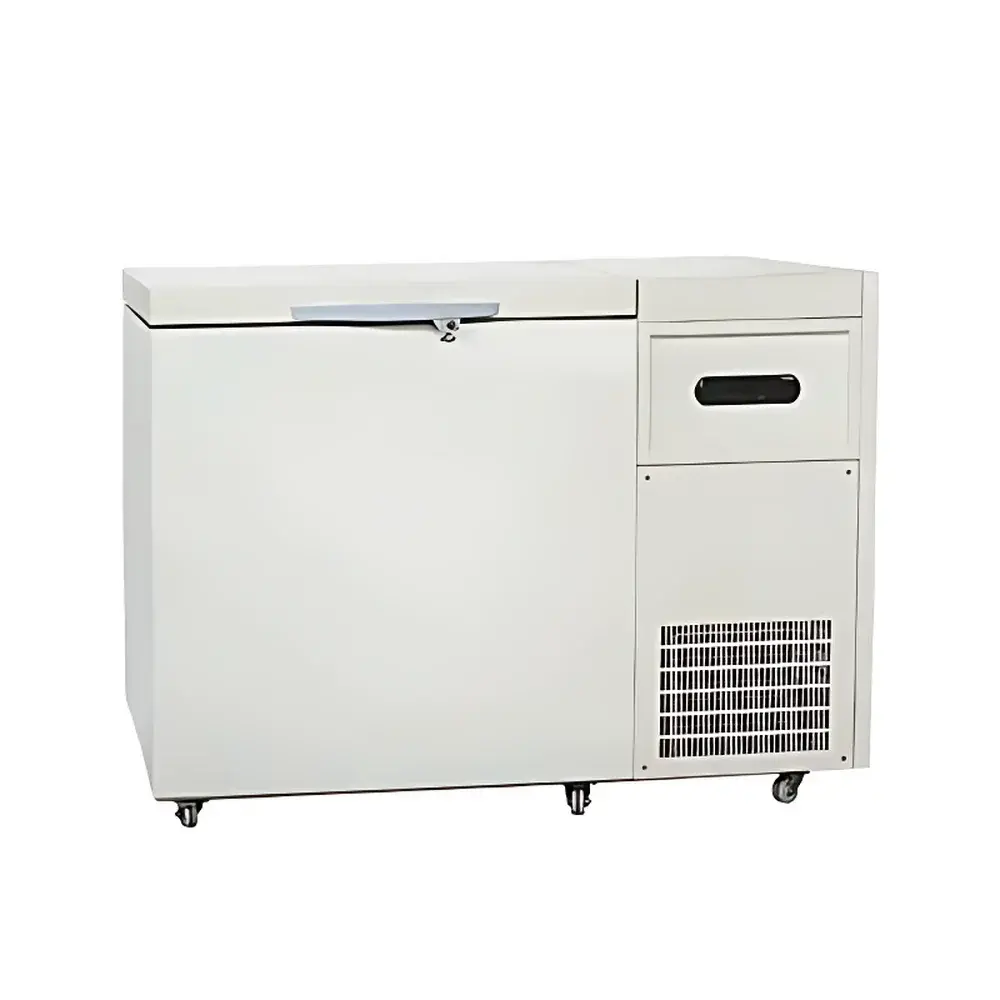

Tianfeng TF-86-118D-WA Ultra Low Temperature Freezer

Overview

The Tianfeng TF-86-118D-WA Ultra Low Temperature Freezer is an engineered solution for long-term cryogenic storage of biologics, clinical specimens, and temperature-sensitive reagents at stable operating temperatures between −40 °C and −86 °C. Designed in accordance with ISO 13485-aligned manufacturing practices and compliant with IEC 61010-1 safety standards for laboratory equipment, this freezer employs a dual-stage cascade refrigeration system utilizing environmentally responsible R23/R508B refrigerant blends—fully compliant with the Montreal Protocol and EU F-Gas Regulation (EU No. 517/2014). Its thermally optimized cabinet architecture integrates ≥120 mm thick high-density polyurethane insulation, vacuum-insulated door panels, and a sealed inner chamber constructed from electropolished 304 stainless steel—ensuring structural integrity, corrosion resistance, and ease of decontamination under GLP and GMP-aligned workflows.

Key Features

• Dual-mode condensation system: 50% natural convection + 50% forced-air cooling—enabling reliable operation in ambient temperatures up to 35 °C and dusty environments without compressor overload or premature failure.
• Four independently sealed inner doors with magnetic gaskets minimize cold air loss during frequent access, maintaining thermal stability across all storage zones.
• Three adjustable stainless-steel shelves with reinforced load-bearing capacity (up to 25 kg per shelf) support standardized cryoboxes, vial racks, and custom sample carriers.
• Smooth-radius interior corners and seamless welds eliminate crevices, facilitating validated cleaning protocols per ISO 15883 and CDC-recommended disinfection guidelines.
• Acoustically damped compressor housing and vibration-isolated mounting reduce operational noise to ≤57 dB(A), suitable for shared laboratory spaces requiring low acoustic emission.
• Integrated mechanical lock and power switch lock prevent unauthorized access and accidental power interruption—critical for chain-of-custody compliance in clinical biobanking and regulated research.
• RS-232 serial interface (optional) supports integration with laboratory information management systems (LIMS) for time-stamped temperature logging and remote alarm notification via external controllers.

Sample Compatibility & Compliance

This ultra-low temperature freezer accommodates standard cryogenic storage formats including 2 mL cryovials (Nunc, Corning), 10 mL cryotubes, 50 mL conical tubes, 96-well plates (sealed), and stacked cryoboxes (e.g., 10×10 format). It meets ASTM F2697–21 requirements for performance verification of ultra-low temperature freezers used in biomedical specimen preservation. All materials in contact with stored samples conform to USP Class VI biocompatibility testing. The unit’s temperature uniformity (±2.5 °C at −80 °C, measured per ICH Q5C Annex 2) and recovery time (<3 hours after 30-second door opening at 25 °C ambient) support adherence to ISO 20387:2018 (biobanking) and AABB accreditation criteria. Optional data loggers with NIST-traceable calibration enable 21 CFR Part 11-compliant audit trails when paired with validated software platforms.

Software & Data Management

While the TF-86-118D-WA operates via a microprocessor-based controller with LED display (no embedded OS), its RS-232 port enables bidirectional communication with third-party environmental monitoring systems (e.g., DicksonOne, SensiNet, or custom Python/Node-RED scripts). Temperature setpoints, real-time chamber readings, alarm status (door open, high-temp, power failure), and compressor runtime are exportable as CSV or Modbus RTU frames. When deployed in regulated environments, users may configure external validation protocols—including IQ/OQ documentation templates aligned with GAMP 5 guidance—to satisfy FDA, EMA, and MHRA expectations for equipment qualification. Firmware updates are performed manually via USB-to-serial adapter; no over-the-air connectivity is implemented to preserve cybersecurity integrity.

Applications

• Long-term archival storage of primary human tissues, PBMCs, stem cells, and induced pluripotent stem cell (iPSC) lines at −80 °C for genomic stability preservation.
• Cryopreservation of viral vectors (AAV, lentivirus), monoclonal antibodies, and mRNA-LNP formulations prior to analytical characterization or fill-finish operations.
• Storage of reference standards and certified reference materials (CRMs) for clinical chemistry assays requiring traceable temperature history.
• Field-deployable backup storage for marine biobanks (e.g., deep-sea microbial isolates) and polar research stations where grid reliability is constrained.
• Supporting ISO/IEC 17025-accredited testing laboratories performing stability studies per ICH Q1A(R2) and Q5C guidelines.

FAQ

What is the recommended maintenance schedule for optimal performance?
Perform visual inspection of door gaskets and condenser dust filters every 30 days; clean condenser coils quarterly using compressed air or soft brush; verify temperature uniformity annually using calibrated PT100 probes per ISO/IEC 17025 procedures.
Can this freezer be validated for GxP environments?
Yes—its mechanical design, material certifications, and RS-232 data export capability support full IQ/OQ/PQ execution. Validation packages include protocol templates, acceptance criteria aligned with ASTM F2697, and raw data capture logs.
Is remote monitoring supported out-of-the-box?
No native Ethernet/WiFi module is included; however, RS-232 output allows integration with industrial gateways (e.g., Advantech ECU-1251) for SNMP or MQTT-based cloud telemetry when configured by qualified IT personnel.
Does the unit comply with energy efficiency regulations in the EU or USA?
It meets EU Energy Label Class F (2023) and qualifies for ENERGY STAR® recognition under EPA Category “Laboratory Ultra-Low Freezers” when operated within specified ambient conditions (18–25 °C, ≤60% RH).
What is the warranty coverage and service response time?
Standard 12-month parts-and-labor warranty; extended service contracts available. Field service response time is ≤72 business hours within mainland China; international customers receive remote diagnostics and authorized distributor support.
