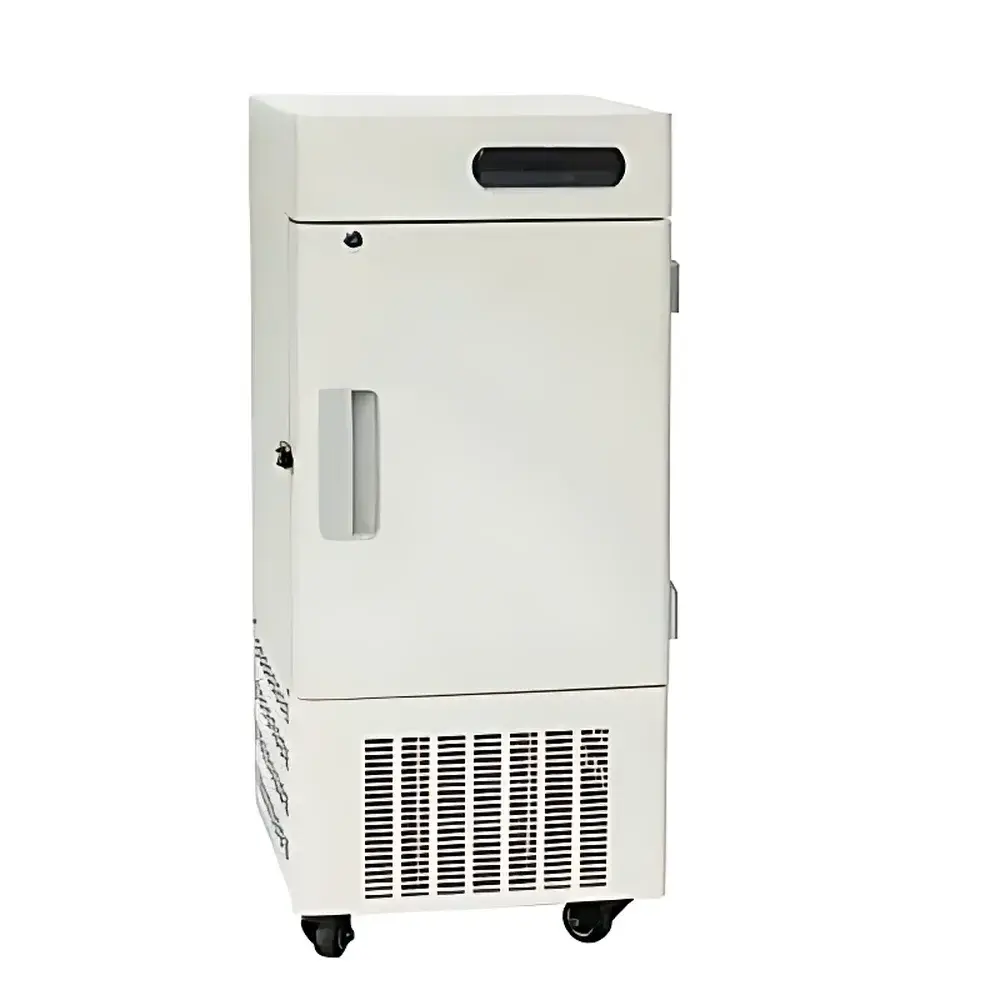

Tianfeng TF-86-598D-LA Digital Display Ultra-Low Temperature Freezer

Overview

The Tianfeng TF-86-598D-LA Digital Display Ultra-Low Temperature Freezer is engineered for long-term cryogenic storage of temperature-sensitive biological materials at stable, precisely controlled temperatures ranging from –40 °C to –86 °C. Utilizing a dual-stage cascade refrigeration system with internationally certified compressors and a non-ozone-depleting refrigerant blend (R23/R508B), the unit achieves high thermal efficiency and operational reliability under ambient conditions up to 32 °C. Its thermally optimized cabinet architecture features double-layer vacuum-insulated panels combined with high-density polyurethane foam (≥150 mm thickness), minimizing heat ingress and reducing energy consumption. The freezer operates without requiring external water cooling or dedicated ventilation ducts—enabling flexible placement in standard laboratory or clinical environments. Designed to meet ISO 13485-aligned manufacturing protocols and compliant with IEC 61000-6-3 (EMC) and IEC 61000-6-2 (immunity) standards, it supports GLP-compliant workflows where traceable temperature integrity is essential.

Key Features

• Stainless steel (AISI 304) interior chamber and inner doors—corrosion-resistant, non-porous, and compatible with routine decontamination using ethanol or neutral detergents
• Four independently sealed inner doors—minimizing cold air loss during frequent access and maintaining thermal stability across storage zones
• Hybrid condenser design: 50% natural convection + 50% forced-air cooling—ensures sustained compressor protection even under dusty or high-ambient-temperature conditions
• Adjustable three-tier stainless steel shelving system—enabling customizable load distribution and optimal airflow management
• Smooth, radius-rounded internal corners—facilitating complete cleaning and eliminating microbial harborage points
• Digital microprocessor controller with LED display—providing real-time monitoring of setpoint, actual chamber temperature, compressor status, and alarm history
• Acoustic noise level ≤57 dB(A) at 1 m distance—suitable for shared laboratory spaces without acoustic isolation requirements
• Integrated mechanical door lock and power switch lock—preventing unauthorized access or accidental power interruption
• RS-232 communication interface (optional)—supporting integration with laboratory information management systems (LIMS) or centralized environmental monitoring platforms
• Removable front dust filter—designed for tool-free cleaning and extended service intervals without disassembly

Sample Compatibility & Compliance

The TF-86-598D-LA is validated for storage of primary human biospecimens—including peripheral blood mononuclear cells (PBMCs), cord blood units, plasma fractions, cryopreserved tissue sections, and microbial cultures—as well as diagnostic reagents, monoclonal antibodies, and reference standards requiring continuous sub–80 °C stabilization. It conforms to key regulatory expectations for biobanking infrastructure, including ISO 20387:2018 (Biobanking—General requirements for biobank operations) and supports audit readiness for CAP, CLIA, and AABB accreditation. While not FDA 21 CFR Part 11–validated out-of-the-box, its data logging capability (via optional RS-232 output) enables implementation of electronic record controls meeting ALCOA+ principles when paired with validated third-party software. All electrical safety certifications comply with GB 4706.1–2005 (equivalent to IEC 60335-1) and EMC performance meets EN 61326-1:2013 Class B requirements.

Software & Data Management

The freezer includes an embedded temperature logging function with onboard memory retaining up to 30 days of 1-minute interval data (timestamped, uneditable). When equipped with the optional RS-232 interface, users may export raw temperature logs in CSV format for post-processing in Excel or import into validated LIMS environments. No proprietary software installation is required; ASCII-based serial protocol ensures compatibility with existing building management systems (BMS) or custom Python/Node-RED automation scripts. Alarm events—including door-open duration >30 s, temperature deviation >±3 °C from setpoint, or power failure—are timestamped and retained in non-volatile memory. Audit trail functionality (user-defined event tagging, operator ID entry) requires external middleware integration and is not natively supported by the base controller firmware.

Applications

This ultra-low temperature freezer serves critical roles across academic research, clinical diagnostics, and industrial biomanufacturing. Typical use cases include: cryopreservation of induced pluripotent stem cell (iPSC) lines prior to differentiation assays; long-term archiving of clinical trial biospecimens under chain-of-custody protocols; storage of viral vectors and mRNA-LNP formulations during preclinical development; stabilization of thermolabile enzyme preparations used in next-generation sequencing library construction; and retention of quality control samples for pharmaceutical stability studies per ICH Q5C guidelines. Its footprint (940 mm wide × 1920 mm tall) accommodates standard laboratory doorways and elevator dimensions, making it suitable for multi-floor installations in hospitals, regional blood banks, and contract research organizations (CROs).

FAQ

What is the recommended ambient operating temperature range?
The unit is rated for continuous operation in ambient environments between +10 °C and +32 °C, with relative humidity ≤80% non-condensing.
How often should the condenser dust filter be cleaned?
Under typical laboratory conditions, inspect and clean the removable front filter every 3 months; increase frequency to monthly in high-dust environments such as animal facilities or manufacturing cleanrooms.
Can the freezer maintain –80 °C if the door is opened frequently?
Yes—four independent inner doors limit cold air loss; however, cumulative door-open time exceeding 90 seconds per hour will delay recovery to setpoint and increase compressor duty cycle.
Is remote monitoring possible without RS-232?
No native Ethernet or Wi-Fi capability exists; analog voltage outputs (0–5 V) for temperature and alarm status are not provided. RS-232 is the sole digital interface option.
Does the unit support temperature mapping validation per ISO 14644-3?
While not supplied with mapping hardware, the freezer’s uniform internal airflow design and calibrated PT100 sensor array (±0.3 °C accuracy) make it suitable for user-performed IQ/OQ/PQ qualification using third-party thermocouple loggers.
