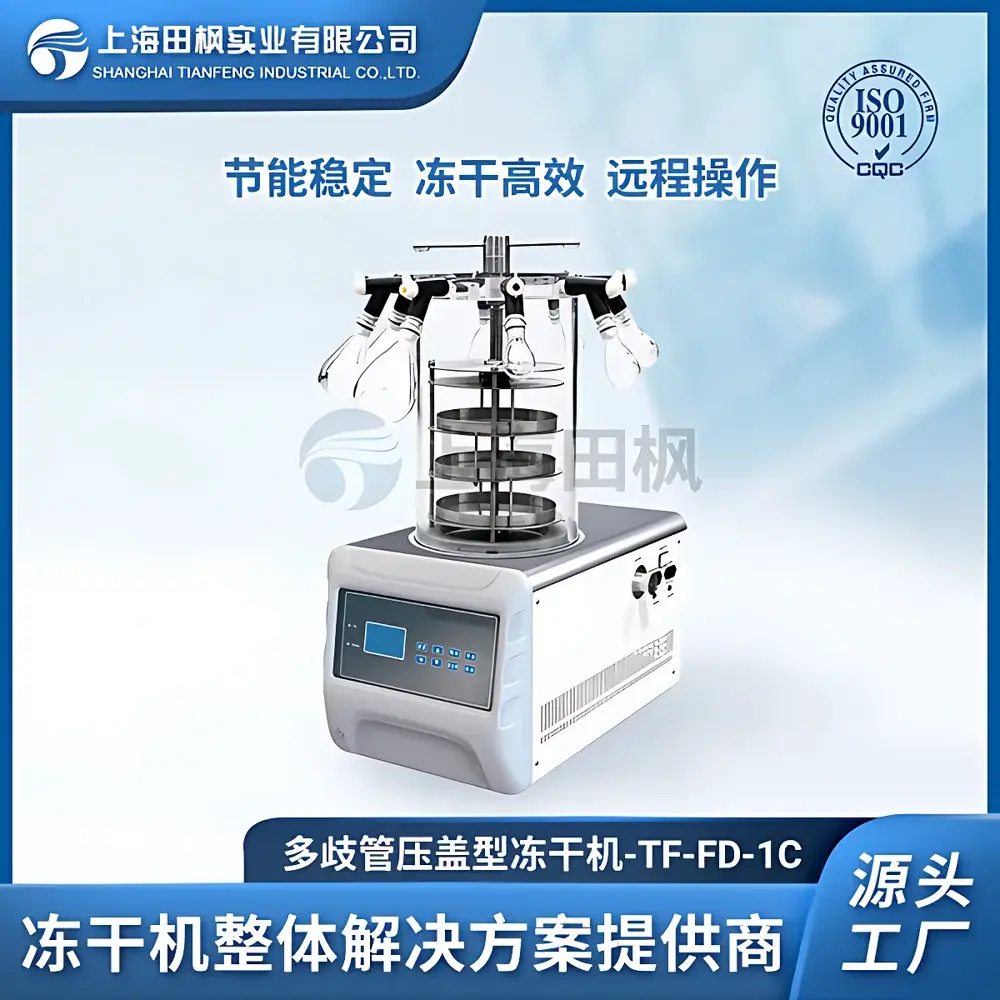

Tianfeng TF-FD-1 Multi-Manifold Stoppering Freeze Dryer

Overview

The Tianfeng TF-FD-1 Multi-Manifold Stoppering Freeze Dryer is a laboratory-scale lyophilization system engineered for precise, reproducible freeze drying of heat-sensitive biological and pharmaceutical samples—including vaccines, antibiotics, enzymes, sera, and monoclonal antibodies. It operates on the fundamental principle of sublimation: samples are first frozen solid at low temperature, then subjected to high vacuum to allow ice to transition directly from solid to vapor phase without passing through liquid—preserving structural integrity, bioactivity, and reconstitution fidelity. Unlike conventional thermal drying methods that induce denaturation, oxidation, or collapse, this process maintains the native conformation of labile biomolecules and yields porous, highly soluble cakes with minimal shrinkage or morphological distortion. The TF-FD-1 integrates a multi-manifold configuration with stoppering capability, enabling simultaneous independent drying of up to eight vials (50–1000 mL) under controlled vacuum, followed by in-situ sealing to ensure sterility and long-term stability—critical for GMP-aligned preclinical and QC workflows.

Key Features

• Multi-manifold stoppering architecture: Eight independent stainless-steel ports with manual or optional automatic stopper actuation; supports heterogeneous sample batches with individual pressure monitoring and controlled backfilling.
• Cascade refrigeration system: Dual-compressor design achieves condenser temperatures below −50 °C, ensuring efficient capture of water vapor and enhanced trapping of volatile solvents (e.g., ethanol, acetone) commonly used in biopharmaceutical formulations.
• High-fidelity process control: 7-inch color touchscreen interface with real-time graphical display of chamber pressure, condenser temperature, shelf temperature (via optional silicon oil bath), and drying progress curves; PID-based regulation ensures ±1 °C thermal stability.
• Robust construction: All-welded 304 stainless steel cold trap and drying chamber; transparent acrylic observation door with anti-fog coating; corrosion-resistant internal surfaces compliant with ISO 14644-1 Class 8 cleanroom compatibility.
• Flexible operation modes: Supports both pre-freezing in external ultra-low temperature freezers (<−70 °C) and in-chamber pre-freezing via integrated cooling plates; optional inert gas (N₂ or Ar) backfill valve enables oxygen-sensitive processing.
• Compliance-ready infrastructure: Optional temperature data logger (21 CFR Part 11 compliant with audit trail, electronic signatures, and user access levels); optional eutectic point detection module for formulation-specific cycle development.

Sample Compatibility & Compliance

The TF-FD-1 accommodates a broad spectrum of biological matrices: aqueous protein solutions, cell lysates, viral vectors, bacterial suspensions, and small-molecule APIs dissolved in mixed solvent systems. Its −50 °C condenser and 3 kg/24 h ice capacity support routine lyophilization of standard vaccine candidates (e.g., inactivated whole-virus or subunit antigens), therapeutic antibodies, and diagnostic reagents. The system meets essential design and performance criteria aligned with ISO 22042:2016 (freeze-drying equipment specifications), ASTM F2375-04 (standard guide for lyophilization cycle development), and USP (packaging integrity for sterile products). While not certified as GMP-grade out-of-the-box, its modular architecture, traceable calibration points, and documentation-ready outputs facilitate qualification per ICH Q5C, Q5D, and Annex 1 requirements when deployed within validated laboratory environments.

Software & Data Management

The embedded control software records time-stamped process parameters at configurable intervals (1–60 s), exporting CSV-formatted datasets compatible with LIMS integration and statistical process analysis (e.g., JMP, Minitab). Optional upgrade includes GLP-compliant data archiving with role-based permissions, electronic signature enforcement, and immutable audit logs meeting FDA 21 CFR Part 11 and EU Annex 11 expectations. Remote monitoring via Ethernet/Wi-Fi (with TLS 1.2 encryption) allows centralized oversight across multiple instruments in core facilities. All firmware updates are digitally signed and version-controlled to maintain regulatory continuity.

Applications

• Stabilization of live-attenuated and recombinant vaccines for extended cold-chain independence
• Lyophilization of reference standards and calibrators used in ELISA, PCR, and mass spectrometry assays
• Preparation of sterile, pyrogen-free excipients and buffer components for aseptic fill-finish operations
• Rapid prototyping of lyophilization cycles during formulation development (QbD-driven design space exploration)
• Long-term cryopreservation of primary cells, stem cell derivatives, and tissue-engineered constructs
• Processing of botanical extracts and nutraceuticals requiring retention of thermolabile polyphenols and terpenoids

FAQ

What is the maximum vial size supported by the multi-manifold port configuration?
The TF-FD-1 accepts standard glass vials ranging from 50 mL to 1000 mL; eight ports accommodate up to eight 500 mL vials simultaneously.
Can the system be validated for use in regulated pharmaceutical development?
Yes—when equipped with optional IQ/OQ documentation packages, calibrated PT100 sensors, and 21 CFR Part 11-compliant data logging, it supports qualification per ASTM E2500 and ISPE Baseline Guide Vol. 5.
Is in-chamber pre-freezing available on this model?
The base TF-FD-1 does not include shelf heating or in-situ freezing capability; pre-freezing must be performed externally. For integrated freezing, consider the TF-FD-1L or TF-FD-18S series.
What maintenance intervals are recommended for optimal vacuum performance?
Oil-sealed rotary vane pumps require oil replacement every 500 operating hours; cold trap cleaning is advised after each 10–15 drying cycles involving high-solvent loads.
Does the system support automated pressure rise testing (PRT) for leak detection?
Manual PRT can be performed using the built-in vacuum gauge; automated PRT functionality is available via optional software add-on with programmable hold-and-measure sequences.
