Tianfeng TF-FD-1 Standard Benchtop Freeze Dryer

Overview

The Tianfeng TF-FD-1 Standard Benchtop Freeze Dryer is a compact, air-cooled laboratory freeze dryer engineered for reliable primary drying of thermolabile biological and pharmaceutical materials under controlled low-temperature and high-vacuum conditions. It operates on the fundamental principle of lyophilization—sublimation of ice from frozen samples under vacuum without passing through the liquid phase—preserving structural integrity, bioactivity, and long-term stability of sensitive compounds. Designed for research laboratories, QC/QA units, and pilot-scale formulation development, the TF-FD-1 integrates a robust refrigeration system with precise vacuum regulation to deliver reproducible drying cycles across diverse sample matrices including antibiotics, vaccines, serum, enzymes, hormones, and herbal extracts. Its modular architecture supports GLP-compliant documentation workflows when paired with optional data logging accessories.

Key Features

• High-efficiency air-cooled condensing system with dual-stage hermetic compressor, achieving stable condenser temperatures ≤ −50 °C for efficient water vapor capture.
• ISO-KF standardized vacuum interface ensures leak-tight connections, rapid assembly/disassembly, and compatibility with auxiliary vacuum gauges or gas dosing modules.

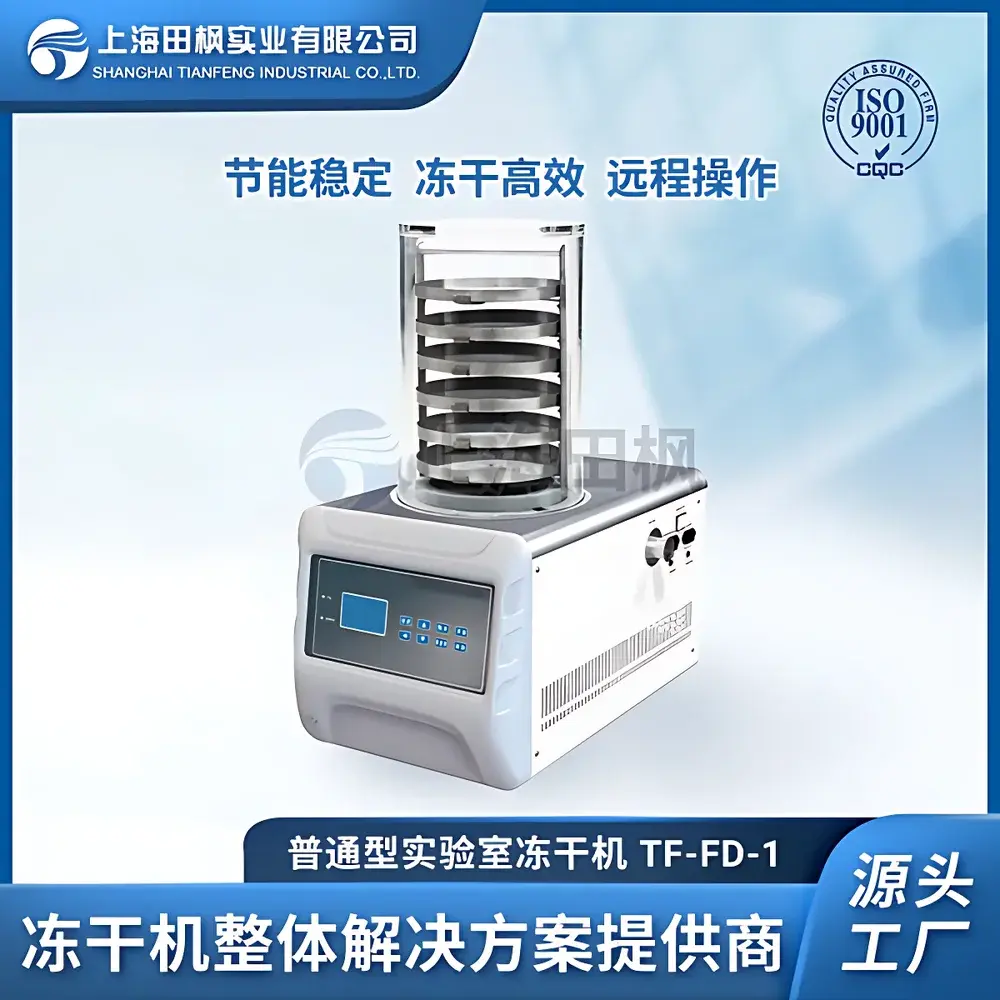

• Four-tier adjustable stainless steel sample shelf structure (Φ200 mm per tray), enabling customizable vertical spacing to accommodate vials, petri dishes, or bulk containers.
• Transparent acrylic bell jar chamber provides full visual monitoring of sublimation progress, ice formation, and cake morphology throughout the entire drying cycle.
• LED digital display panel simultaneously monitors real-time condenser temperature and chamber pressure, supporting manual process optimization and troubleshooting.
• Intuitive soft-touch control panel with dedicated function keys allows rapid configuration of vacuum hold times, shelf heating (ambient-only), and pump-down sequences.
• 304 stainless steel cold trap and baseplate ensure corrosion resistance, ease of cleaning, and compliance with hygiene requirements in regulated environments.

Sample Compatibility & Compliance

The TF-FD-1 accommodates aqueous-based formulations commonly used in biopharmaceutical R&D, including monoclonal antibody solutions, recombinant proteins, cell lysates, and botanical extracts. Its 0.12 m² drying area and 3 kg/24 h ice capacity support batch processing of up to 48 × 20 mL vials or equivalent surface-area loads. The system meets baseline mechanical and operational criteria referenced in ISO 22042:2016 (freeze-drying equipment — performance testing) and aligns with general design expectations outlined in USP (Packaging—Sterile Products) for lyophilization process validation support. While not pre-certified for GMP manufacturing, its construction, material traceability, and vacuum stability make it suitable for Stage 1–2 process development under FDA 21 CFR Part 11–compliant data management configurations (when integrated with external validated software).

Software & Data Management

The TF-FD-1 operates as a standalone unit with manual cycle control; however, it features analog signal outputs (0–5 V or 4–20 mA) for condenser temperature and vacuum pressure, enabling integration with third-party data acquisition systems (e.g., LabVIEW, DeltaV, or custom SCADA platforms). Users may record time-stamped parameter logs for audit trails, batch documentation, and comparative method studies. For laboratories requiring electronic records with ALCOA+ attributes (Attributable, Legible, Contemporaneous, Original, Accurate, Complete, Consistent, Enduring, Available), pairing the TF-FD-1 with a validated USB/RS485 data logger and compliant software satisfies foundational data integrity requirements per Annex 11 and ICH GCP guidelines.

Applications

• Stabilization of heat-sensitive biologics: monoclonal antibodies, cytokines, viral vectors, and diagnostic enzyme reagents.
• Preservation of clinical specimens: human serum, plasma, tissue homogenates, and microbial cultures for biobanking and assay standardization.
• Development of lyophilized dosage forms: sterile injectables, nasal sprays, and oral dissolving tablets containing peptides or nucleic acids.
• Material science research: cryo-structuring of magnetic nanoparticle dispersions, porous ceramic precursors, and aerogel templates.
• Traditional medicine modernization: freeze-drying of active fractions from Panax ginseng, Ophiocordyceps sinensis, and Dioscorea opposita to retain glycosidic and polysaccharide bioactivity.
• Academic teaching: hands-on demonstration of phase diagrams, mass transfer kinetics, and collapse temperature determination in food and pharma engineering curricula.

FAQ

Is the TF-FD-1 suitable for GMP production environments?
No—it is designed for laboratory-scale R&D, method development, and small-batch pilot work. For commercial manufacturing, users should consider fully automated, steam-sterilizable freeze dryers with SIP capability and integrated PAT sensors.
Can the shelf temperature be actively controlled or heated?
The standard TF-FD-1 model provides ambient-temperature shelf exposure only; it does not include electric shelf heating. Optional heated shelf variants (e.g., TF-FD-1PF series) are available upon request.
What vacuum pump is recommended for optimal performance?
A two-stage oil-sealed rotary vane pump with ultimate vacuum ≤ 0.1 Pa and pumping speed ≥ 8 m³/h is recommended to achieve and maintain <15 Pa chamber pressure with minimal backstreaming.
Does the unit comply with CE or UL safety standards?
The TF-FD-1 conforms to IEC 61010-1:2010 for laboratory electrical equipment safety. CE marking is available upon request for EU-bound shipments, subject to end-user declaration of conformity.
How often does the refrigerant require servicing?
Under normal operation and proper ventilation, the sealed refrigeration circuit requires no routine refrigerant replenishment over its service life. Annual inspection of condenser coil cleanliness and compressor current draw is advised.
