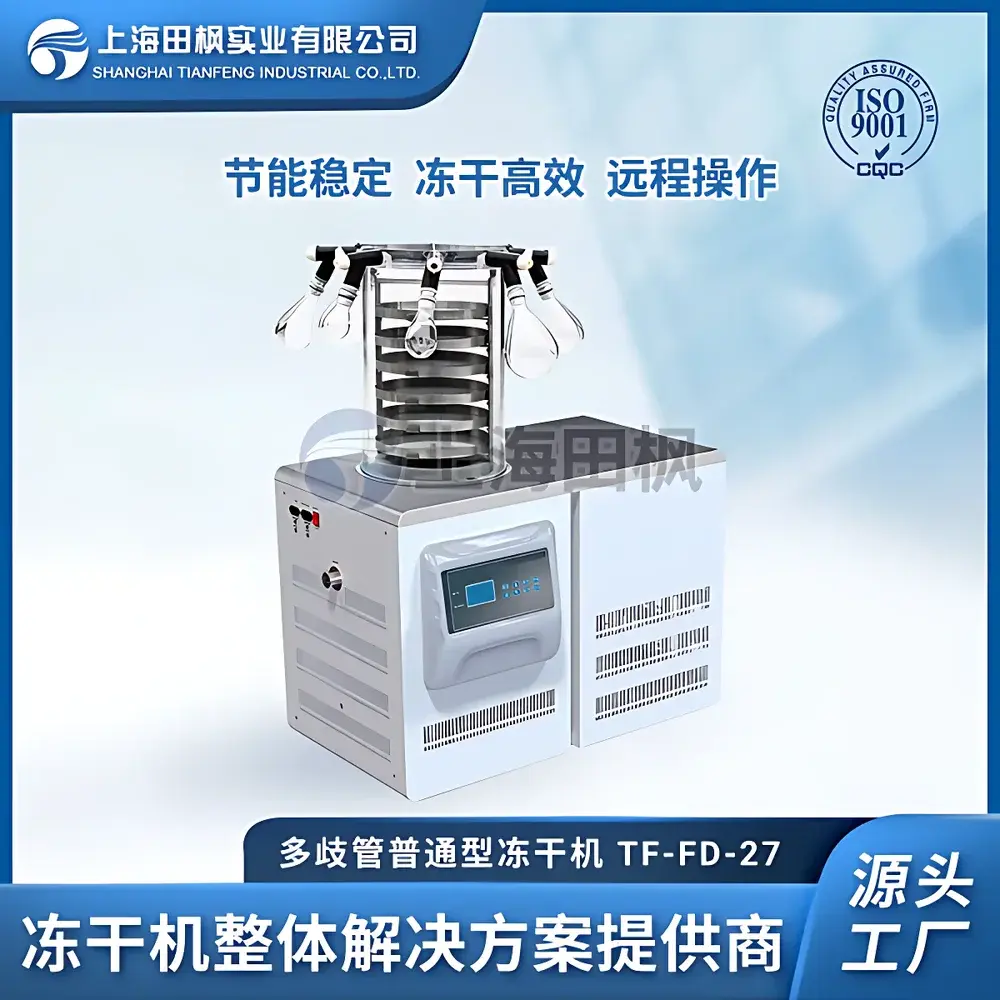

Tianfeng TF-FD-27 Multi-Manifold Laboratory Freeze Dryer

Overview

The Tianfeng TF-FD-27 is a benchtop multi-manifold laboratory freeze dryer engineered for precise, reproducible lyophilization of heat-sensitive biologics—including vaccines, monoclonal antibodies, diagnostic reagents, and live attenuated viral preparations. It operates on the fundamental principle of sublimation: frozen aqueous samples are subjected to deep vacuum (<15 Pa), enabling ice to transition directly from solid to vapor without passing through the liquid phase. This low-temperature, low-pressure process preserves labile tertiary structures, enzymatic activity, immunogenicity, and biological potency—critical attributes for regulatory compliance in pharmaceutical development and QC testing. Unlike conventional thermal drying methods, lyophilization minimizes protein denaturation, oxidation, and aggregation. The TF-FD-27 integrates a cascade dual-compressor refrigeration system capable of sustaining condenser temperatures below –80 °C, ensuring efficient capture of volatile solvents (e.g., ethanol, acetone) and high-moisture loads up to 6 kg per 24-hour cycle. Its stainless steel construction, in-situ pre-freezing capability, and transparent acrylic drying chamber support full-process visual monitoring—essential for method development, process validation, and GLP-compliant documentation.

Key Features

• Multi-manifold configuration with eight independently controllable ports (compatible with 50–1000 mL glass vials) for parallel sample processing and comparative lyophilization studies.
• Cascade refrigeration architecture delivering stable condenser temperatures ≤ –80 °C—optimized for low-eutectic-point formulations and organic solvent-containing matrices.
• Touchscreen HMI with real-time graphical display of shelf temperature, chamber pressure, and condenser load; supports user-defined ramp-hold profiles and automatic data logging.
• In-situ pre-freezing function eliminates need for external ultra-low temperature freezers—reducing cross-contamination risk and improving workflow continuity.
• 304 stainless steel condenser and chamber interior ensure corrosion resistance, cleanability, and long-term structural integrity under repeated sterilization cycles.
• Integrated inert gas purge valve (N₂ or argon compatible) enables controlled reconstitution atmosphere and oxygen-sensitive product handling.
• PID-controlled shelf heating (±1 °C uniformity) with programmable ramp rates supports primary and secondary drying optimization per ICH Q5C guidelines.

Sample Compatibility & Compliance

The TF-FD-27 accommodates diverse sample formats including serum vials, ampoules, scintillation vials, and custom containers across volumes from 50 mL to 1 L. Its 0.27 m² shelf area and high-capacity condenser support batch processing of clinical trial materials, reference standards, and stability study samples. The system meets core design requirements for ISO 22042 (lyophilizer performance qualification), ASTM F2476 (freeze-dryer validation), and USP (package integrity testing of lyophilized products). When equipped with optional audit-trail-enabled data loggers and electronic signatures, it supports 21 CFR Part 11 compliance for regulated environments. All wetted surfaces conform to FDA-approved materials of construction (304 SS, medical-grade silicone gaskets, borosilicate glass compatibility), and the unit is designed for integration into GMP-aligned facility workflows—including cleanroom-compatible installation and HEPA-filtered exhaust options.

Software & Data Management

The embedded control software provides intuitive graphical interface navigation, real-time curve overlay (shelf temp vs. chamber pressure), and exportable CSV datasets timestamped to millisecond resolution. Users can store up to 50 custom drying protocols with password-protected access levels (operator, supervisor, administrator). Data integrity safeguards include automatic backup to internal flash memory and USB export with SHA-256 hash verification. Optional upgrade paths include Ethernet connectivity for remote monitoring via SCADA systems, integration with LIMS platforms using OPC UA protocol, and automated report generation compliant with ALCOA+ principles (Attributable, Legible, Contemporaneous, Original, Accurate, Complete, Consistent, Enduring, Available).

Applications

This freeze dryer serves critical roles across preclinical and early-phase biopharmaceutical development: vaccine stabilization (e.g., mRNA-LNP, viral vector, and adjuvanted formulations), QC release testing of sterile injectables, lyophilized enzyme stock preparation for assay development, long-term storage of cell lines and microbial cultures, and formulation screening for excipient compatibility. It is widely deployed in academic virology labs, CMC departments of biotech startups, contract development and manufacturing organizations (CDMOs), and national regulatory authority reference laboratories conducting comparability studies and biosimilar characterization.

FAQ

Can the TF-FD-27 be used for lyophilizing samples containing organic solvents such as ethanol or acetonitrile?
Yes—the condenser temperature of <–80 °C and high ice-capture capacity (6 kg/24 h) enable effective trapping of common polar organic solvents, provided vapor pressure considerations are incorporated into cycle design.
Is in-situ pre-freezing supported without external cryogenic equipment?
Yes—the condenser doubles as a pre-freezing surface; samples placed directly on the shelf can be frozen to –50 °C or lower prior to vacuum application.
Does the system support validation documentation packages for GMP audits?
Standard configurations include IQ/OQ templates; PQ support is available with optional calibrated thermocouples, pressure transducers, and 21 CFR Part 11–compliant data logger modules.
What maintenance intervals are recommended for the dual-compressor refrigeration system?
Compressor oil and filter replacement every 3,000 operating hours; annual calibration of pressure and temperature sensors per ISO/IEC 17025 recommendations.
Can the multi-manifold ports be isolated individually during operation?
No—ports operate under shared vacuum; however, each vial’s drying progress can be monitored visually and inferred via pressure rise tests or comparative weight loss analysis.
