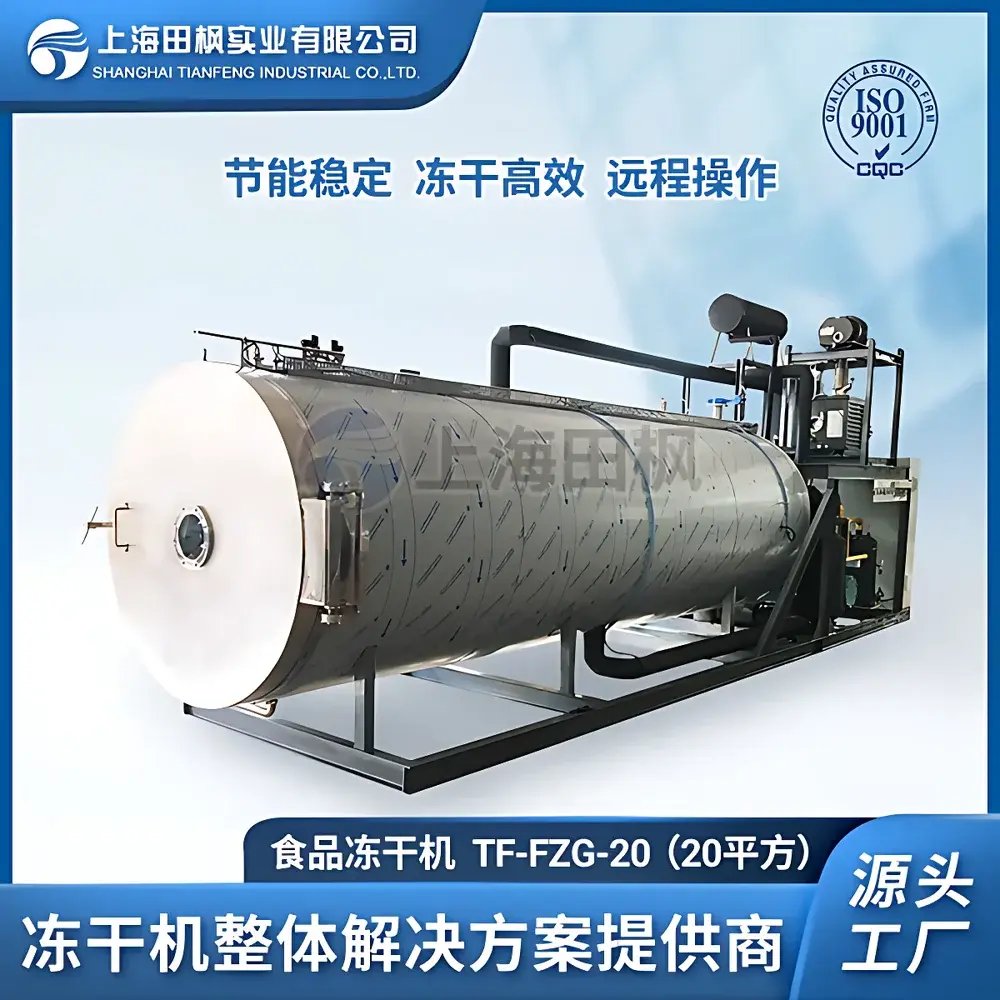

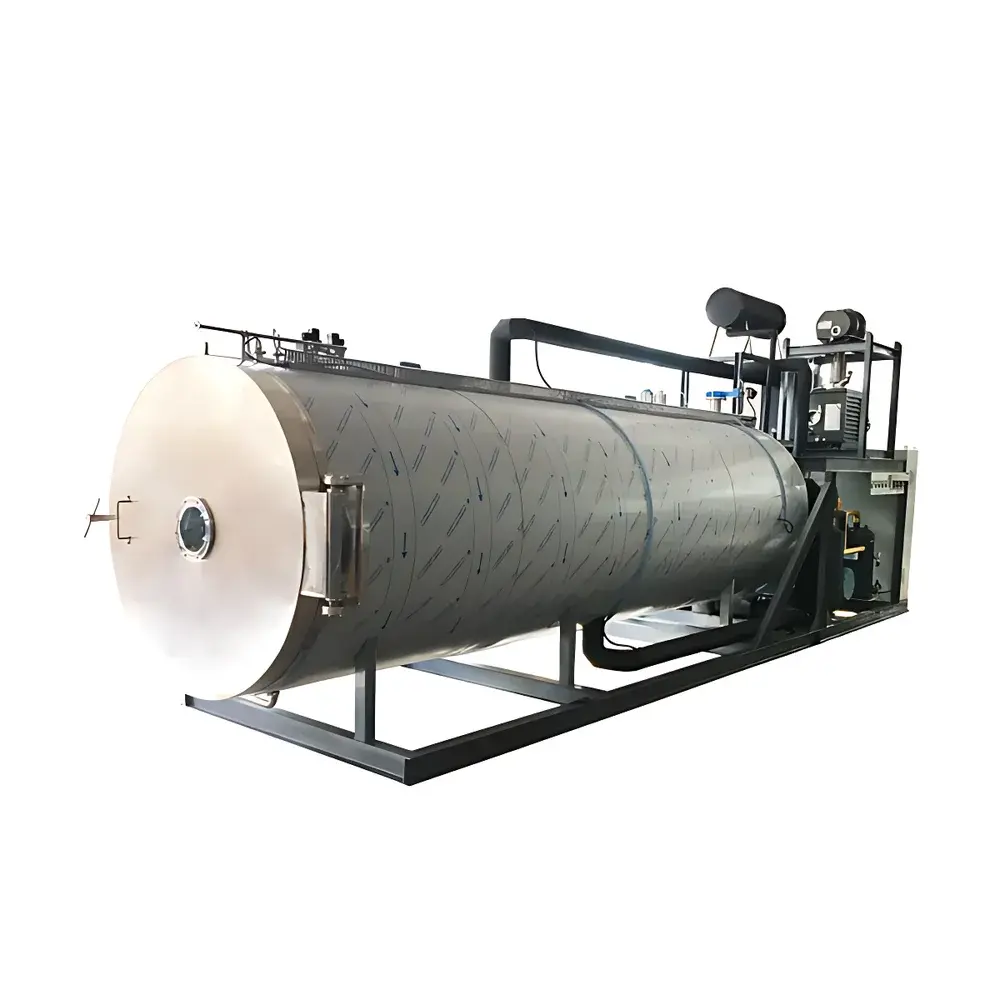

Tianfeng TF-FD20 Industrial-Scale Food Freeze Dryer

Overview

The Tianfeng TF-FD20 Industrial-Scale Food Freeze Dryer is a vacuum-based lyophilization system engineered for continuous, high-capacity processing of heat-sensitive biological and food materials. It operates on the principle of sublimation—removing water from frozen samples under deep vacuum while maintaining temperatures below the eutectic point—thereby preserving structural integrity, enzymatic activity, volatile compounds, and thermolabile nutrients. Unlike conventional thermal drying methods (e.g., hot-air or spray drying), which induce denaturation, oxidation, and shrinkage, this system maintains sample morphology and reconstitution fidelity. The TF-FD20 is designed for GMP-aligned production environments where batch consistency, scalability, and regulatory traceability are critical—particularly in seafood (e.g., sea cucumber, oysters, shrimp), fruits, vegetables, meat (e.g., chicken breast), functional foods, herbal extracts, and pet nutrition applications.

Key Features

• 20 m² stainless steel shelf area with uniform temperature distribution (±1.5 °C across all shelves) and independent shelf temperature control for multi-stage drying protocols
• High-efficiency dual-stage oil-lubricated vacuum pump system achieving stable ultimate vacuum ≤2.7 Pa, compliant with ISO 27893 for process reproducibility
• Cryogenic cold trap operating at −60 °C with 400 kg/24 h condensation capacity, minimizing vapor load on the vacuum system and extending pump service intervals
• Robust structural architecture: AISI 304 stainless steel chamber, reinforced viewport, and IP54-rated electrical cabinet for industrial hygiene and operational safety
• PLC-based control system with real-time monitoring of shelf temperature, chamber pressure, condenser temperature, and elapsed cycle time
• Integrated alarm logging and emergency shutdown protocol per IEC 61508 SIL 2 requirements

Sample Compatibility & Compliance

The TF-FD20 accommodates heterogeneous sample loads—including whole seafood cuts, sliced fruits/vegetables, minced poultry, powdered botanicals, and pelleted pet feed—without requiring pre-formulation or excipients. Its design supports compliance with food-grade manufacturing standards (FDA 21 CFR Part 110, EC No. 178/2002), and its documentation package includes IQ/OQ templates aligned with ASTM F2699-21 for freeze dryer qualification. While not certified for sterile pharmaceutical use out-of-the-box, the system’s materials of construction, surface finish (Ra ≤ 0.8 µm), and clean-in-place (CIP)-ready geometry enable validation for low-end biopharmaceutical intermediates or nutraceutical actives under GLP/GMP conditions.

Software & Data Management

Equipped with Tianfeng’s proprietary LyoControl™ v3.2 HMI interface, the system records time-stamped process data (shelf temp, chamber pressure, condenser load) at 1-second intervals and stores logs internally for ≥12 months. Data export is supported via USB 2.0 and Ethernet (Modbus TCP), enabling integration into MES platforms such as Siemens SIMATIC IT or Rockwell FactoryTalk. Audit trail functionality complies with FDA 21 CFR Part 11 requirements, including electronic signatures, user-level access control (admin/operator/technician roles), and immutable record retention. Raw data files are saved in CSV and PDF formats with embedded metadata (batch ID, operator ID, timestamp, version stamp).

Applications

• Seafood preservation: Sea cucumber, scallops, abalone, and fish fillets retain native texture, umami profile, and bioactive peptides (e.g., fucoidan, collagen hydrolysates) post-lyophilization
• Meat processing: Chicken breast retains myofibrillar protein structure and moisture reabsorption kinetics; suitable for ready-to-eat meal components and protein supplement matrices
• Fruit & vegetable stabilization: Anthocyanins (blueberries), vitamin C (kiwi), and glucosinolates (broccoli) demonstrate >92% retention versus hot-air drying (per AOAC 995.12)
• Herbal & nutraceutical production: Enables low-temperature dehydration of ginseng saponins, turmeric curcuminoids, and probiotic cultures without viability loss
• Pet food manufacturing: Supports shelf-stable, high-protein treats with controlled water activity (a_w < 0.3) meeting AAFCO moisture limits

FAQ

What is the maximum allowable loading height per shelf?
The standard shelf spacing allows for 120 mm vertical clearance; optimal loading depth is 30–50 mm for uniform sublimation front progression.
Can the system be validated for ISO 13485 medical device component drying?
Yes—provided additional qualification documentation (DQ/IQ/OQ/PQ) is commissioned and chamber sterilization (VHP or steam) is integrated externally.
Is remote monitoring supported via SCADA or cloud platforms?
Native Modbus TCP enables connection to third-party SCADA systems; cloud telemetry requires optional IoT gateway (Tianfeng Part #TF-IOG-2024).
Does the unit include pre-freezing capability?
No—the TF-FD20 is a lyophilizer only; pre-freezing must be performed externally using blast freezers or cryogenic plate freezers prior to chamber loading.
What maintenance intervals are recommended for the vacuum pump and refrigeration system?
Vacuum pump oil change every 500 operating hours; refrigerant circuit inspection annually per ASHRAE Standard 15 guidelines.
