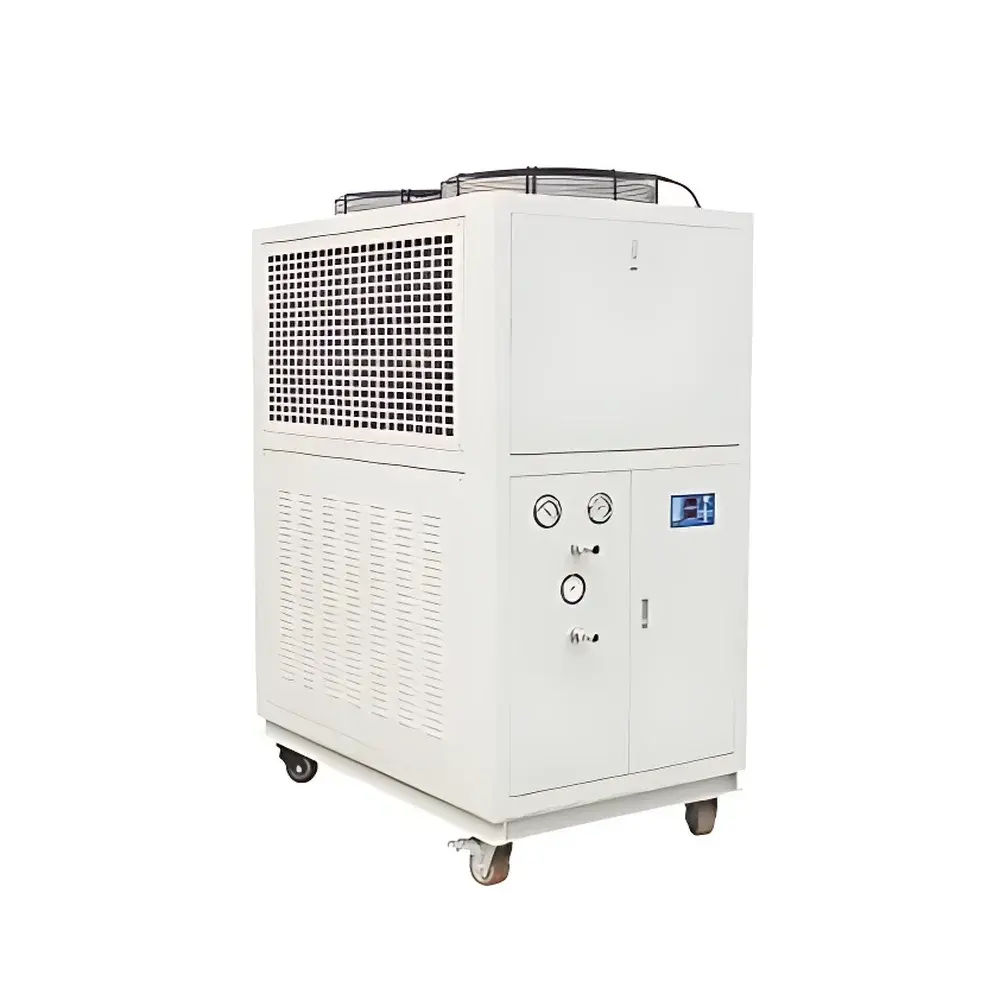

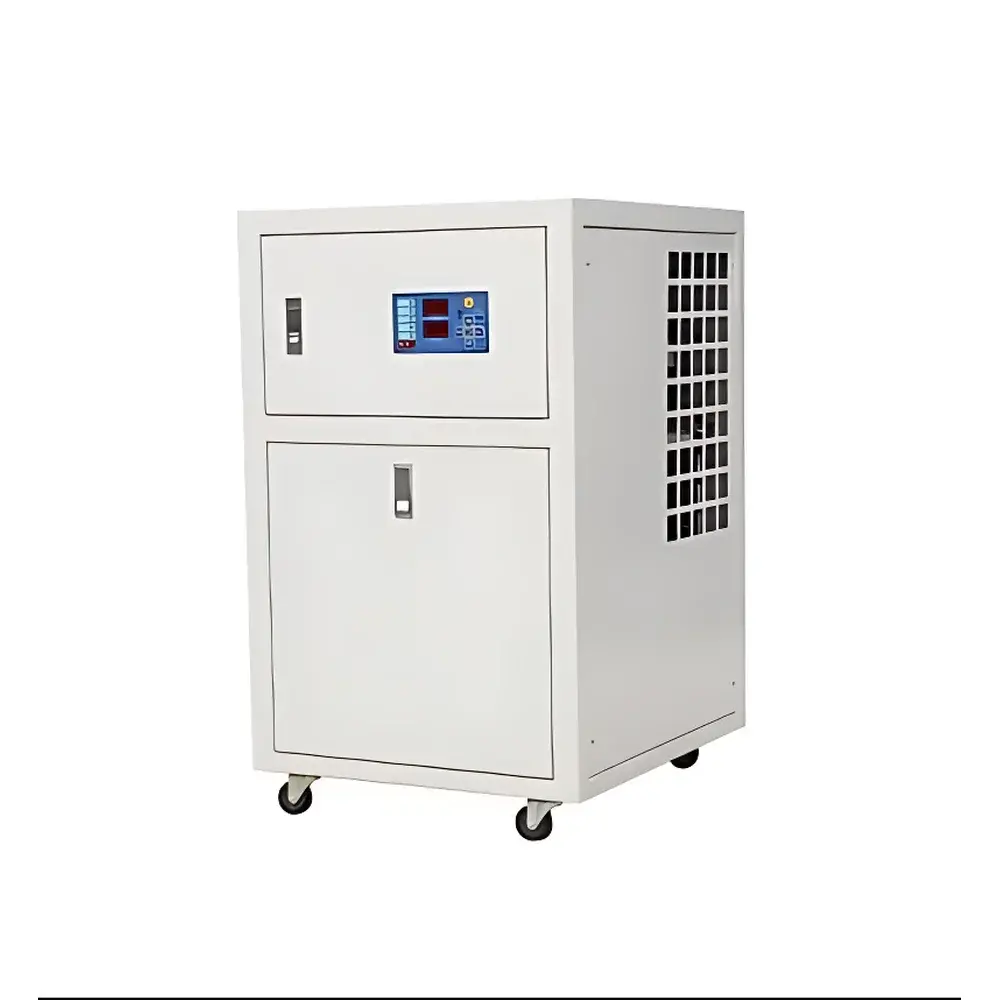

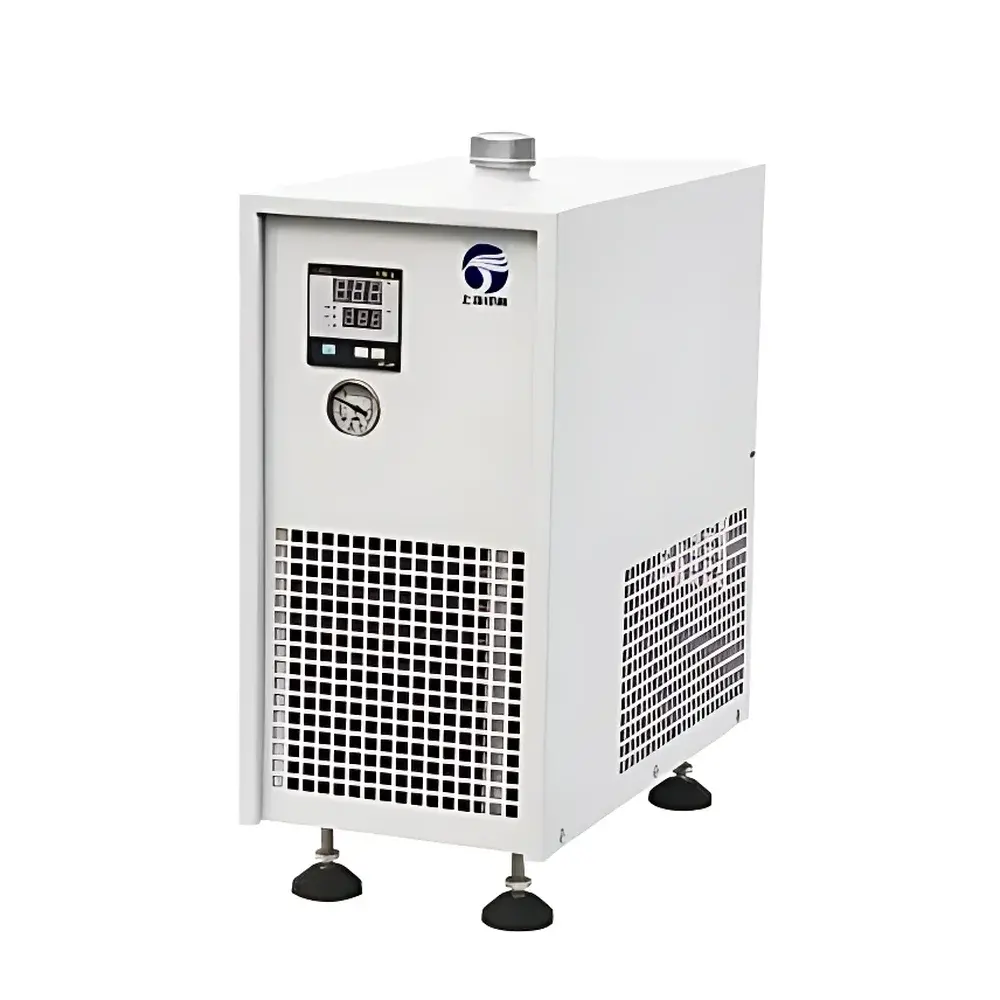

Tianfeng TF-LS-15HP Modular Air-Cooled Circulating Chiller

Overview

The Tianfeng TF-LS-15HP Modular Air-Cooled Circulating Chiller is an engineered thermal management solution designed for precision temperature stabilization of heat-generating laboratory and industrial equipment. Operating on the vapor-compression refrigeration cycle, it utilizes R22 refrigerant in conjunction with a hermetic scroll compressor and optimized copper-aluminum microchannel condenser to deliver consistent cooling capacity of 48.6 kW at standard conditions (chilled water inlet 12 °C / outlet 7 °C; ambient air inlet 30 °C / outlet 40 °C). Its modular architecture enables flexible integration into diverse workflows — from analytical instrumentation requiring tight thermal control (e.g., graphite furnace atomic absorption spectrometers, ICP-OES/MS systems, XRF and XRD diffractometers, SEM/TEM electron columns) to high-heat-load industrial processes including laser material processing, CNC spindle cooling, vacuum deposition, and semiconductor fabrication tools. Unlike water-cooled chillers, this unit eliminates dependency on facility cooling towers or closed-loop glycol systems, making it suitable for laboratories with limited infrastructure or variable site constraints.

Key Features

• Hermetic scroll compressor (13.4 kW) ensures long-term reliability, low vibration, and high volumetric efficiency under continuous operation.
• Air-cooled condenser with high-surface-area copper tubing and aluminum fins, coupled with dual low-noise external-rotor fans (total airflow 15,000 m³/h), maintains stable head pressure across ambient temperatures up to 35 °C.
• Stainless steel evaporator coil and 300 L insulated reservoir resist corrosion and support long-term compatibility with deionized water or inhibited glycol mixtures.
• Digital PID temperature controller provides real-time monitoring and setpoint adjustment within –10 °C to +35 °C range, with typical stability of ±0.3 °C under steady-state load conditions.
• Integrated circulation pump (8.35 m³/h flow, 25.5 m head) delivers sufficient pressure and flow for multi-point distribution to instruments with varying hydraulic resistance.
• Comprehensive safety suite includes compressor overheat detection, high/low refrigerant pressure cutoffs, phase sequence and phase loss monitoring, water flow interlock, overtemperature alarm, and motor overload protection.
• Compact footprint (1800 × 800 × 1800 mm) and castor-mounted base enable straightforward repositioning within lab or production environments without structural modification.

Sample Compatibility & Compliance

The TF-LS-15HP is compatible with a broad spectrum of heat-sensitive analytical platforms where precise thermal regulation directly impacts data fidelity and system longevity. It supports instruments requiring chilled water supply at stable flow and temperature — including but not limited to plasma-based spectrometers (ICP-OES, ICP-MS), X-ray fluorescence analyzers, scanning and transmission electron microscopes, and high-power laser sources used in ablation or spectroscopy applications. All electrical components meet CE-marked industrial safety standards, and the unit is manufactured under an ISO 9001:2000–certified quality management system. While not pre-certified to UL 61010-1 or IEC 61000-6-3 for North American or EU electromagnetic compatibility compliance, its design accommodates third-party validation per customer requirements. For GLP/GMP-regulated labs, optional audit-trail-capable controllers (e.g., RKC models with event logging) may be integrated upon request.

Software & Data Management

The standard control interface features a backlit LCD display with intuitive menu navigation for setting temperature, viewing real-time water inlet/outlet temperatures, pump status, and active alarms. Though the base model lacks native Ethernet or USB connectivity, analog 4–20 mA and digital relay outputs are provided for integration into building management systems (BMS) or centralized SCADA platforms. Optional upgrades include RS-485 Modbus RTU communication for remote parameter readout and setpoint adjustment, enabling synchronization with instrument control software such as LabVIEW or custom Python-based monitoring dashboards. Data logging functionality (temperature history, runtime hours, fault codes) is available via optional SD card module or external PLC interfacing — supporting traceability needs in regulated environments.

Applications

• Laboratory Instrument Cooling: Stabilizes thermal drift in X-ray optics, detector housings, RF generators, and plasma torches — critical for achieving sub-ppb detection limits and reproducible peak resolution.
• Laser Systems: Maintains diode-pumped solid-state (DPSS) and fiber laser head temperatures within ±0.5 °C to prevent wavelength shift and mode instability during extended acquisition cycles.
• Electron Microscopy: Supplies regulated coolant to TEM/SEM column chillers and energy-filtered imaging systems, minimizing thermal lensing and beam drift.
• Industrial Process Support: Used in injection molding for mold temperature control (–10 °C to +35 °C range), CNC machine tool lubrication oil cooling, and vacuum coating chamber thermal management.
• Pharmaceutical & Biotech: Supports controlled-temperature fermentation vessels, lyophilizer condensers, and chromatography column ovens requiring stable thermal environments per USP and FDA 21 CFR Part 11 guidelines.

FAQ

What is the maximum allowable return water temperature?
The unit is rated for continuous operation with return water temperatures up to 40 °C. Exceeding this threshold may reduce compressor lifespan and trigger high-pressure cutouts.
Can this chiller operate with ethylene glycol solutions?
Yes — up to 30% (v/v) inhibited ethylene glycol/water mixtures are supported; however, heat transfer efficiency decreases by ~12% at full concentration, and pump head must be verified against system resistance.
Is remote monitoring supported out-of-the-box?
No — standard configuration includes only local display and relay outputs. RS-485 Modbus or 4–20 mA analog interfaces are available as factory-installed options.
Does the chiller meet FDA 21 CFR Part 11 requirements?
The base unit does not include electronic signature or audit trail capabilities. These functions require integration with validated third-party controllers or supervisory software compliant with Part 11 Annex 11 principles.
What maintenance intervals are recommended?
Condenser coil cleaning every 3 months in dusty environments; refrigerant charge verification annually; pump seal inspection every 2 years; and full system performance validation per ISO 5149 every 5 years or after major component replacement.
