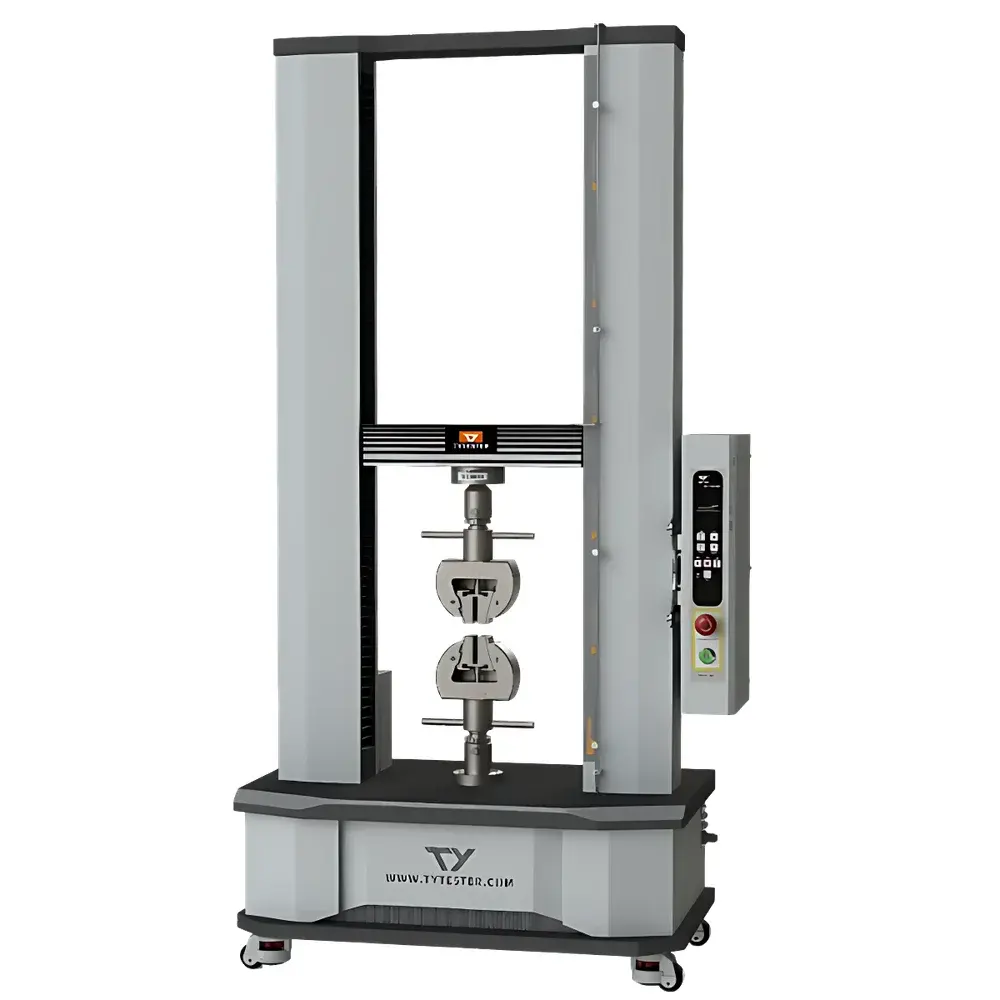

TianYuan TY8000-A50KN Electronic Universal Tensile Testing Machine

Overview

The TianYuan TY8000-A50KN is a high-precision electronic universal tensile testing machine engineered for static mechanical property evaluation of metallic and non-metallic materials under controlled loading conditions. It operates on the principle of servo-controlled electromechanical actuation, delivering repeatable force application and displacement tracking across a wide spectrum of test modes—including tensile, compression, flexural, shear, peel, tear, and puncture testing. Designed for compliance with international mechanical testing standards, the system supports closed-loop control of load, displacement, and strain rates, enabling advanced protocols such as constant-rate loading, constant-strain-rate deformation, and cyclic testing (load, displacement, or strain-controlled low-cycle fatigue). Its modular architecture accommodates optional extensometers—both clip-on metal extensometers (resolution: 1/1000, accuracy: ≤ ±0.5%) and large-deformation video or tape-based systems (accuracy: ±1 mm)—to meet ASTM E8, ISO 6892-1, and GB/T 228.1 requirements for true strain measurement.

Key Features

• Servo-motor-driven crosshead with precision ball-screw transmission ensures smooth, low-noise operation and long-term mechanical stability.
• Seven-range automatic force amplification switching enables seamless transition between low-force and high-force measurements without manual recalibration.
• High-resolution force transducer (up to 1/300,000 internal resolution) and displacement encoder (1/100,000 resolution) support traceable metrology in accordance with ISO/IEC 17025 guidelines.
• Real-time closed-loop control algorithms maintain target test parameters within defined tolerances throughout the entire test duration.
• Rugged structural frame (600 kg mass) minimizes vibration-induced noise and enhances measurement reproducibility during high-load testing.
• Modular grip interface compatible with pneumatic, hydraulic, wedge, and custom fixtures for diverse specimen geometries and clamping requirements.

Sample Compatibility & Compliance

The TY8000-A50KN accommodates specimens ranging from thin polymer films (<0.1 mm) to structural steel coupons (up to 40 mm thickness), provided within its 400 mm test width and 950 mm usable vertical travel (extendable per OEM specification). It fully supports standardized test methods including ASTM D638 (tensile plastics), ASTM D790 (flexural properties), ISO 178 (flexure), ISO 527 (tensile), ISO 34 (tear), ISO 37 (tensile strength of vulcanized rubber), and GB/T 528–1998 / GB/T 529–1999 (rubber and elastomer testing). The system’s software embeds over 200 preconfigured test templates aligned with ASTM, ISO, GB, and JIS standards, ensuring direct mapping to reporting requirements for quality assurance, R&D validation, and regulatory submissions (e.g., FDA device material qualification under 21 CFR Part 820).

Software & Data Management

Controlled via Windows-based VISIT software, the TY8000-A50KN provides comprehensive data acquisition, real-time visualization, and post-test analysis. All raw channel data—including load, displacement, extensometer strain, time stamps, and environmental metadata—are logged at user-defined sampling rates (up to 1 kHz) and stored in vendor-neutral ASCII or XML formats. Audit-trail functionality complies with GLP/GMP documentation practices, recording operator ID, calibration history, test parameter changes, and result modifications. Curve replay, overlay comparison, and mathematical derivation (e.g., modulus calculation via secant/tangent methods, yield point detection per ISO 6892-1 Annex B) are performed without data reacquisition. Reports export directly to PDF or Excel, embedding calibrated curves, statistical summaries, and pass/fail status against user-defined acceptance criteria.

Applications

• Quality control of incoming raw materials (e.g., aluminum alloys, carbon fiber composites, thermoplastic sheets).
• Mechanical validation of medical device components (catheter shafts, suture materials, orthopedic polymer implants).
• Research-grade characterization of viscoelastic behavior in elastomers and hydrogels under multi-step loading protocols.
• Failure analysis labs performing root-cause investigation of bolt fracture, weld joint delamination, or adhesive bond separation.
• Academic laboratories conducting fundamental studies on strain-rate sensitivity, ductile-to-brittle transitions, or creep compliance.

FAQ

What standards does the TY8000-A50KN support out-of-the-box?

The system includes built-in test templates for ASTM D638, D790, D412, ISO 527, ISO 178, ISO 37, ISO 34, GB/T 228.1, GB/T 528, and over 190 additional methods—all accessible via the VISIT software interface.
Can the machine perform cyclic loading tests?

Yes—it supports programmable low-cycle fatigue testing with user-defined waveforms (sine, triangle, trapezoidal), amplitude limits, and stop conditions based on cycles, energy dissipation, or crack initiation thresholds.
Is third-party calibration certification available?

TianYuan provides NIST-traceable factory calibration certificates; optional UKAS-accredited calibration services can be arranged through authorized regional partners.
What extensometer options integrate natively with this model?

Standard configurations include a bi-directional clip-on extensometer (0–25 mm gauge length, ±0.5% accuracy) and a non-contact digital image correlation (DIC) module for full-field strain mapping (available as an upgrade).
Does the software comply with FDA 21 CFR Part 11 requirements?

VISIT software supports electronic signatures, role-based access control, and immutable audit trails—fully configurable to meet Part 11 compliance when deployed on validated IT infrastructure.
