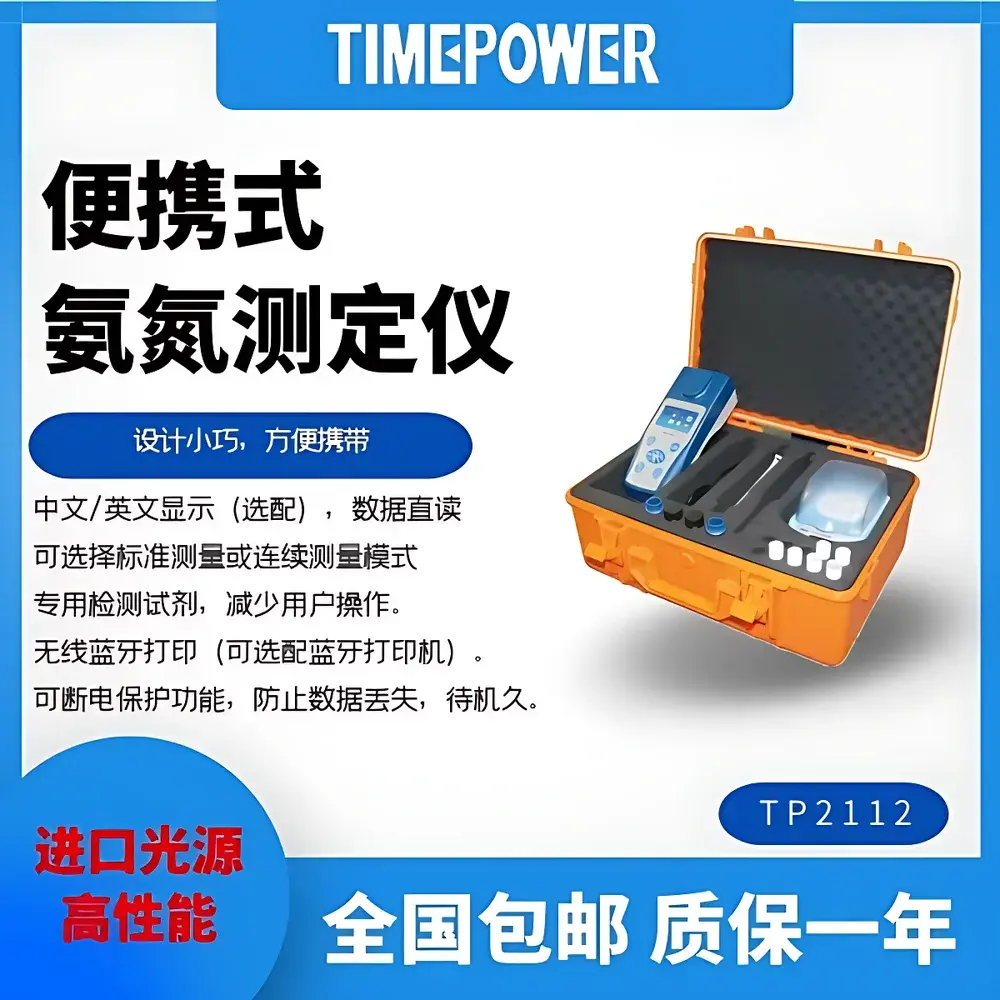

TimePower TP-2112 Portable Ammonia Nitrogen Analyzer
| Brand | TimePower |
|---|---|
| Origin | Beijing, China |
| Manufacturer Type | Direct Manufacturer |
| Product Category | Domestic |
| Model | TP-2112 |
| Instrument Type | Portable |
| Measurement Principle | Colorimetric Method (Nessler’s Reagent Spectrophotometry) |
| Measurement Range | 0.02–60 mg/L NH₃–N |
| Accuracy | ≤ ±5% of reading |
| Detection Limit | 0.01 mg/L |
| Measurement Time | 10–15 minutes per sample |
| Batch Capacity | 10 samples per run |
| Display Language | English/Chinese (configurable) |
| Data Storage | 4000 measurement records |
| Power Supply | Rechargeable Li-ion battery with state-of-charge indicator |
| Connectivity | USB, Ethernet, Bluetooth (optional printer support) |
| Compliance | HJ/T 535–2009 |
Overview
The TimePower TP-2112 Portable Ammonia Nitrogen Analyzer is a field-deployable, laboratory-grade instrument engineered for quantitative determination of ammonia nitrogen (NH₃–N) in aqueous matrices using Nessler’s reagent spectrophotometry—a standardized colorimetric method defined in China’s environmental monitoring protocol HJ/T 535–2009. This principle relies on the formation of a yellow-brown colloidal complex between ammonium ions and alkaline iodomercuric potassium iodide (Nessler’s reagent), with absorbance measured at 420 nm. The analyzer integrates a high-stability cold light source (rated lifetime ≥100,000 hours), precision optical path design, and temperature-compensated photometric detection to ensure consistent performance across variable ambient conditions. Designed explicitly for on-site deployment—whether at wastewater treatment plant perimeters, industrial discharge points, or emergency response sites—the TP-2112 delivers laboratory-comparable data without requiring fixed infrastructure or AC mains power.
Key Features
- Compact, ruggedized chassis with integrated carrying case—total unit weight <1.8 kg for true field portability.
- Optical system based on imported cold LED light source, eliminating thermal drift and enabling stable baseline performance over extended operation cycles.
- Dual-mode operation: Standard single-point measurement for regulatory compliance or continuous sequential analysis for trend monitoring.
- Intuitive touchscreen interface with context-sensitive prompts; supports both English and Chinese language firmware (user-selectable at startup).
- Onboard calibration verification using certified reference standards; automatic zero-point correction prior to each batch run.
- Low-power architecture: Fully charged battery supports ≥12 hours of continuous operation or >300 measurements per charge.
- Minimal consumables footprint—pre-packaged, stabilized Nessler reagent kits reduce handling errors and extend shelf life under ambient storage.
Sample Compatibility & Compliance
The TP-2112 is validated for use with raw surface water, treated effluent, municipal wastewater, industrial process streams (e.g., pharmaceutical, food processing, dyeing), and hospital wastewater. It accommodates turbid or colored samples within specified matrix interference limits when pretreated per HJ/T 535–2009 guidelines (e.g., flocculation–filtration for suspended solids >50 mg/L). All measurement protocols align with national standard HJ/T 535–2009 and are compatible with ISO 7150-1:1984 (Water quality — Determination of ammonia nitrogen — Part 1: Spectrometric method using Nessler’s reagent). While not FDA 21 CFR Part 11–certified out-of-the-box, audit-trail-capable data export formats (CSV, PDF reports with timestamped metadata) support GLP/GMP-aligned documentation workflows.
Software & Data Management
Instrument firmware includes embedded data management logic supporting up to 4000 timestamped records, each storing sample ID, concentration result, operator code, calibration status, and environmental temperature. Data export occurs via USB mass storage mode (no driver required), Ethernet TCP/IP socket (for integration into SCADA or LIMS), or Bluetooth 4.2 LE (with optional thermal printers). PC software (Windows/macOS compatible) enables report generation compliant with CNAS/ISO/IEC 17025 documentation requirements—including uncertainty estimation per GUM principles. All stored entries include immutable timestamps and battery-level logging to satisfy traceability requirements during regulatory audits.
Applications
- Rapid assessment of ammonia nitrogen load during environmental incident response (e.g., agricultural runoff, fish kill investigations).
- Process control monitoring at decentralized wastewater treatment units where lab access is limited.
- Verification of nitrification/denitrification efficiency in activated sludge systems.
- Compliance screening for discharge permits under local ecological bureaus’ reporting frameworks.
- Field validation of online ammonia analyzers during commissioning or maintenance intervals.
- Undergraduate and graduate-level water chemistry laboratories requiring portable, curriculum-aligned instrumentation.
FAQ
What regulatory standard does the TP-2112 comply with?
It conforms to HJ/T 535–2009, China’s national standard for ammonia nitrogen determination by Nessler’s reagent spectrophotometry.
Can the instrument measure samples with high turbidity?
Yes—provided turbidity is reduced to <50 NTU via filtration or coagulation-flocculation pretreatment as specified in HJ/T 535–2009.
Is calibration traceable to national metrological standards?
Calibration solutions are prepared from GBW(E)080253 certified reference material (ammonium chloride, 1000 mg/L NH₃–N), traceable to China National Institute of Metrology (CNIM).
Does the device support multi-user access control?
No—user authentication is not implemented; however, operator ID fields are included in all data exports to support procedural accountability.
What is the recommended maintenance interval?
Optical path cleaning every 200 measurements; annual verification of photometric linearity using neutral density filters is advised for long-term accuracy assurance.
