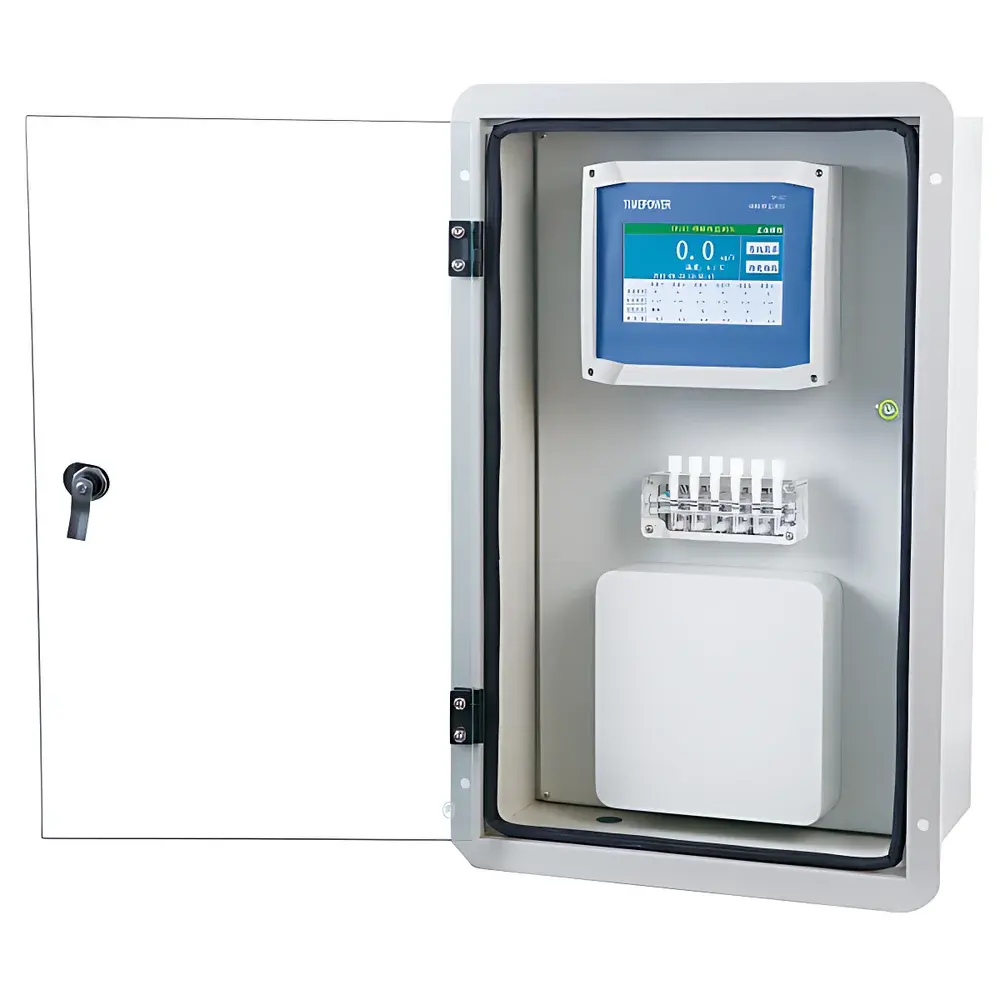

TimePower TP107 Online Orthophosphate Monitor (Photometric Colorimetric Analyzer)

Overview

The TimePower TP107 Online Orthophosphate Monitor is a dedicated photometric colorimetric analyzer engineered for continuous, real-time quantification of orthophosphate (PO₄³⁻) in aqueous process streams. It operates on the well-established vanadomolybdophosphoric acid (VMPA) reaction—where orthophosphate reacts with ammonium metavanadate and ammonium molybdate under acidic conditions to form a stable yellow heteropolyacid complex. The absorbance of this chromophore at ~400 nm is measured via a precision optical path using a monochromatic cold LED light source and high-stability photodetector assembly. Adhering strictly to the methodology specified in GB/T 6913–2008 (equivalent in principle to ISO 6878 and ASTM D515-89), the TP107 delivers trace-level phosphate monitoring with full metrological traceability in industrial water quality control applications.

Key Features

• Modular multi-channel architecture supporting 1–6 independent measurement paths—enabling cost-effective monitoring across multiple sample points without redundant instrumentation.
• High-reliability fluidic system incorporating imported solenoid valves with >1 million cycle lifetime, ensuring precise reagent dosing, consistent sample aspiration, and long-term volumetric accuracy.
• Automated two-point calibration sequence scheduled per user-defined intervals (e.g., every 6/12/24 hours), minimizing manual intervention while maintaining measurement integrity over extended unattended operation.
• Integrated data logger retaining 30 days of timestamped concentration values, event logs (calibrations, alarms, flow faults), and trend curves—facilitating root-cause analysis during regulatory audits or process deviation investigations.
• Industrial-grade 7.0-inch capacitive touchscreen interface with Chinese-language UI, supporting simultaneous visualization of real-time concentration trends and historical overlays across all active channels.
• Configurable analog outputs (0–20 mA / 4–20 mA / 0–10 mA) with galvanic isolation, enabling seamless integration into PLCs, DCS systems, or automated phosphate dosing controllers for closed-loop treatment optimization.
• Panel-mount design with standardized cutout dimensions (670 × 410 mm), facilitating rapid retrofitting into existing control rooms or analyzer shelters without structural modification.

Sample Compatibility & Compliance

The TP107 is validated for use with low-turbidity, non-colloidal water samples meeting the following specifications: suspended solids < 5 µm, absence of gelling agents or polymer-based coagulants, and temperature stability within 5–50 °C. It complies with GB/T 6913–2008 for boiler feedwater and cooling water analysis—a national standard aligned with international practices for orthophosphate determination in power generation and industrial water treatment. While not certified to IEC 61508 or SIL standards, its hardware architecture supports GLP-aligned operational protocols, including audit-trail-capable calibration logging and alarm event timestamping. For regulated environments (e.g., pharmaceutical water systems), users may implement supplementary procedural controls to satisfy FDA 21 CFR Part 11 requirements for electronic records.

Software & Data Management

The embedded firmware provides local configuration, diagnostics, and data review without external PC dependency. All measurement events—including calibration initiations, reagent level warnings, flow interruption alerts, and upper/lower limit breaches—are time-stamped and stored in non-volatile memory. Historical datasets can be exported via USB port in CSV format for offline statistical evaluation (e.g., Shewhart control charts, trend regression). No cloud connectivity or remote access functionality is included; data sovereignty remains fully on-site. Firmware updates are performed manually via USB stick, ensuring version control and cybersecurity compliance in air-gapped facilities.

Applications

The TP107 serves critical monitoring roles across sectors requiring strict orthophosphate control: boiler feedwater protection in thermal power plants (to prevent scale formation and corrosion); phosphate dosing verification in municipal drinking water treatment; effluent compliance tracking in chemical manufacturing and fertilizer production; nutrient balance management in biochemical reactors; and quality assurance in ultra-pure water loops for semiconductor and pharmaceutical manufacturing. Its robustness against moderate particulate load and ambient temperature fluctuations makes it suitable for both indoor analyzer rooms and semi-outdoor mounting in chemical metering stations.

FAQ

What is the recommended maintenance interval for the TP107?
Routine maintenance includes monthly inspection of tubing integrity, quarterly cleaning of the optical cuvette chamber, and biannual replacement of reagent filters and peristaltic pump tubing—per the maintenance log embedded in the device UI.
Can the TP107 be integrated with a SCADA system?
Yes—via its isolated 4–20 mA analog outputs and discrete alarm relay contacts, the TP107 interfaces directly with industry-standard SCADA I/O modules without signal conditioning.
Is third-party certification (e.g., ISO/IEC 17025) available for factory calibration?
Calibration certificates traceable to NIM (National Institute of Metrology, China) standards are provided upon request; however, field recalibration must be performed using NIST-traceable orthophosphate reference standards.
Does the instrument support automatic temperature compensation?
No—the TP107 assumes sample temperature remains within the validated range (5–50 °C); external thermostatic control of the sample line is recommended if ambient fluctuations exceed ±3 °C/h.
What reagents are required for daily operation?
Three-component reagent kit: acidic vanadomolybdate solution, sulfuric acid matrix, and orthophosphate-free deionized water for blanking—supplied separately; consumption averages ~3 L/month at standard 3-minute cycle intervals.
