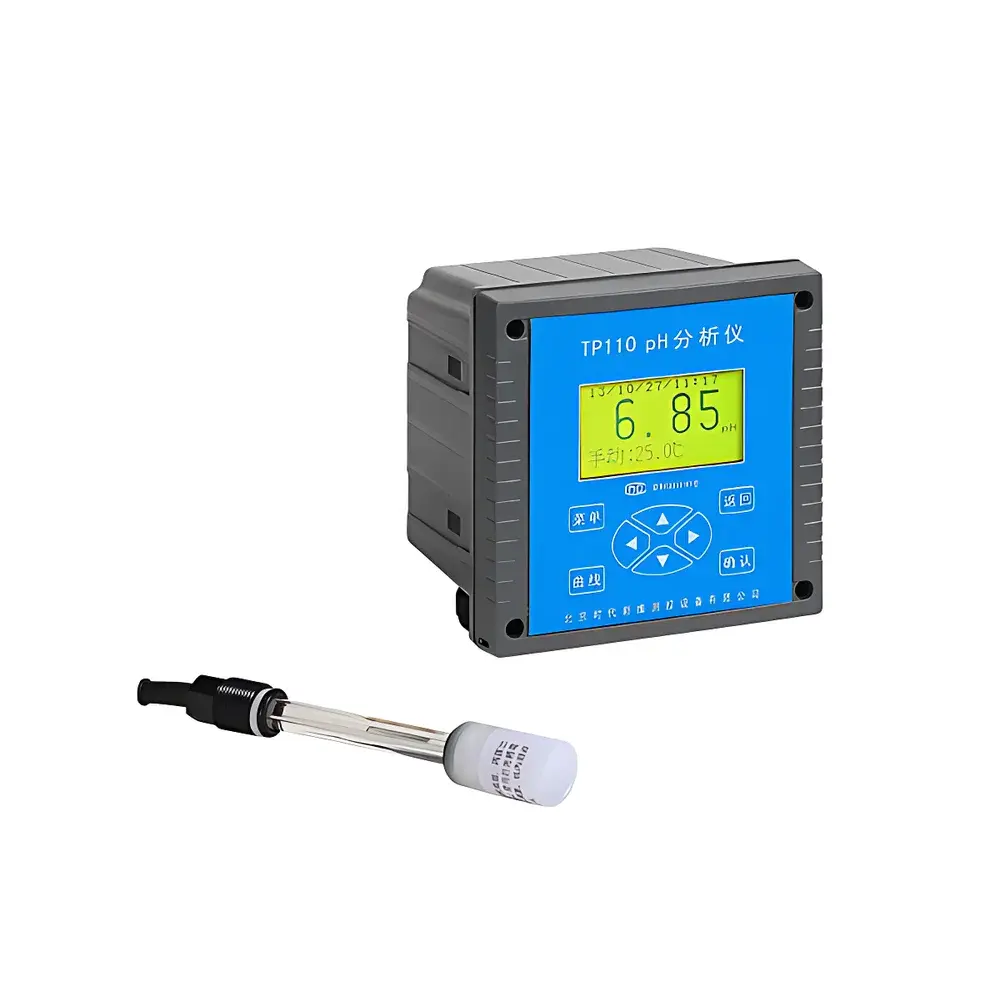

Timepower TP110 Online pH Analyzer

Overview

The Timepower TP110 Online pH Analyzer is a microprocessor-based, industrial-grade process analytical instrument engineered for continuous, high-stability measurement of hydrogen ion activity (pH) and temperature in aqueous solutions. It operates on the potentiometric principle—measuring the electrochemical potential difference between a pH-sensitive glass electrode and a stable reference electrode—converted into a calibrated pH value via Nernst equation computation. Designed for permanent installation in water treatment plants, chemical processing lines, pharmaceutical clean utilities, food & beverage production, and environmental monitoring stations, the TP110 delivers reliable real-time data under varying flow, pressure, and ambient conditions. Its robust architecture supports long-term unattended operation with minimal drift, while its integrated Pt1000 temperature sensor enables automatic temperature compensation (ATC) across 0.1–60.0 °C, ensuring accuracy compliance with ISO 7888, ASTM D1293, and USP pH measurement guidelines.

Key Features

• High-precision triple-junction composite pH electrode options—including low-conductivity pure water, general-purpose, wastewater, high-temperature (up to 100 °C), planar surface, and standalone reference electrodes—selected per application matrix and sample chemistry
• 24-bit analog-to-digital signal conversion with input impedance >1 × 10¹² Ω, minimizing loading error and enabling stable readings in ultrapure water (resistivity >10 MΩ·cm)
• Embedded single-chip microcontroller architecture optimized for low power consumption (<5 W) and thermal stability, supporting continuous operation in ambient temperatures from 5–45 °C
• Backlit 128 × 64 dot-matrix LCD with full Chinese character interface—menu navigation, calibration prompts, alarm status, and historical data review are all accessible without external software
• Dual programmable relay outputs (AC220V/3A or DC30V/3A), configurable for high/low pH thresholds, maintenance alerts, or system interlock signaling
• Isolated current output (0–10 mA, 0–20 mA, or 4–20 mA selectable) compliant with IEC 61000-6-2/4 for electromagnetic immunity in industrial control cabinets
• IP65-rated front panel enclosure with stainless-steel mounting hardware; compatible with panel cutout (138 mm × 138 mm), wall-mount, or rack-mount configurations

Sample Compatibility & Compliance

The TP110 accommodates diverse liquid matrices through modular electrode selection: standard composite electrodes for municipal water and process streams; specialized high-resistance electrodes for low-ionic-strength ultrapure water (e.g., semiconductor rinse water or WFI); chemically resistant variants for aggressive wastewater containing sulfides, heavy metals, or oxidants; and high-temperature electrodes rated up to 100 °C for boiler feedwater or sterilization loop monitoring. All configurations maintain compliance with GLP and GMP documentation requirements—calibration events, sensor diagnostics, and user actions are timestamped and retained in non-volatile memory (>10 years retention). The device meets CE marking directives (EMC and LVD), RoHS 2011/65/EU, and supports audit-ready records per FDA 21 CFR Part 11 when paired with optional data logging firmware.

Software & Data Management

While the TP110 operates autonomously via its embedded interface, it supports seamless integration into SCADA and DCS systems via analog output or optional RS485 Modbus RTU protocol (firmware upgrade required). Internal cyclic memory stores up to 10,000 timestamped pH and temperature readings; overflow management automatically overwrites oldest entries without data loss or manual intervention. Calibration history—including date/time, buffer values used (4.00, 6.86, 9.18 pH), slope (%), and offset (mV)—is permanently archived. No proprietary PC software is required for basic operation; however, optional configuration utilities enable batch parameter export, firmware updates, and PDF report generation for QA/QC traceability.

Applications

• Drinking water disinfection control (chlorine/pH coupling in clearwells and distribution networks)
• Pharmaceutical purified water (PW) and water for injection (WFI) system validation and continuous monitoring
• Chemical dosing feedback loops—neutralization reactors, lime softening, and coagulant control
• Food processing CIP (clean-in-place) rinse cycle verification and acid wash endpoint detection
• Wastewater biological treatment basins (activated sludge, anaerobic digesters) where pH stability indicates microbial health
• Power plant condensate polishing and steam cycle chemistry control

FAQ

What electrode types are supported—and how do I select the correct one for my application?
The TP110 accepts five dedicated composite electrode models (110-001 to 110-005) and one standalone reference electrode (110-006), each optimized for conductivity range, fouling resistance, temperature, and surface geometry. Selection depends on sample resistivity, suspended solids content, operating temperature, and installation method (flow cell, submersion, or inline flange).

Does the analyzer support automatic temperature compensation—and what is its valid range?
Yes. Integrated Pt1000 sensing provides ATC from 0.1–60.0 °C, with NIST-traceable calibration. For samples outside this range, external temperature input via 4–20 mA loop is supported.

How is calibration data stored—and can it be exported for regulatory review?
All calibrations are logged with date, time, buffers used, slope, and offset. Data resides in non-volatile flash memory and can be reviewed locally or extracted via optional Modbus polling for inclusion in electronic batch records.

Is the TP110 suitable for hazardous area installations?
The base unit is rated for general-purpose indoor use (IP65). For Class I Div 1 or ATEX Zone 1 environments, explosion-proof enclosures or intrinsically safe barrier kits must be deployed upstream of the transmitter output.

What maintenance intervals are recommended for long-term accuracy?
Electrode cleaning and recalibration frequency depend on process conditions—typically every 7–30 days in clean water; weekly in wastewater. Electrolyte refills (for refillable models) and junction inspection should occur per manufacturer’s maintenance schedule in the technical manual.
