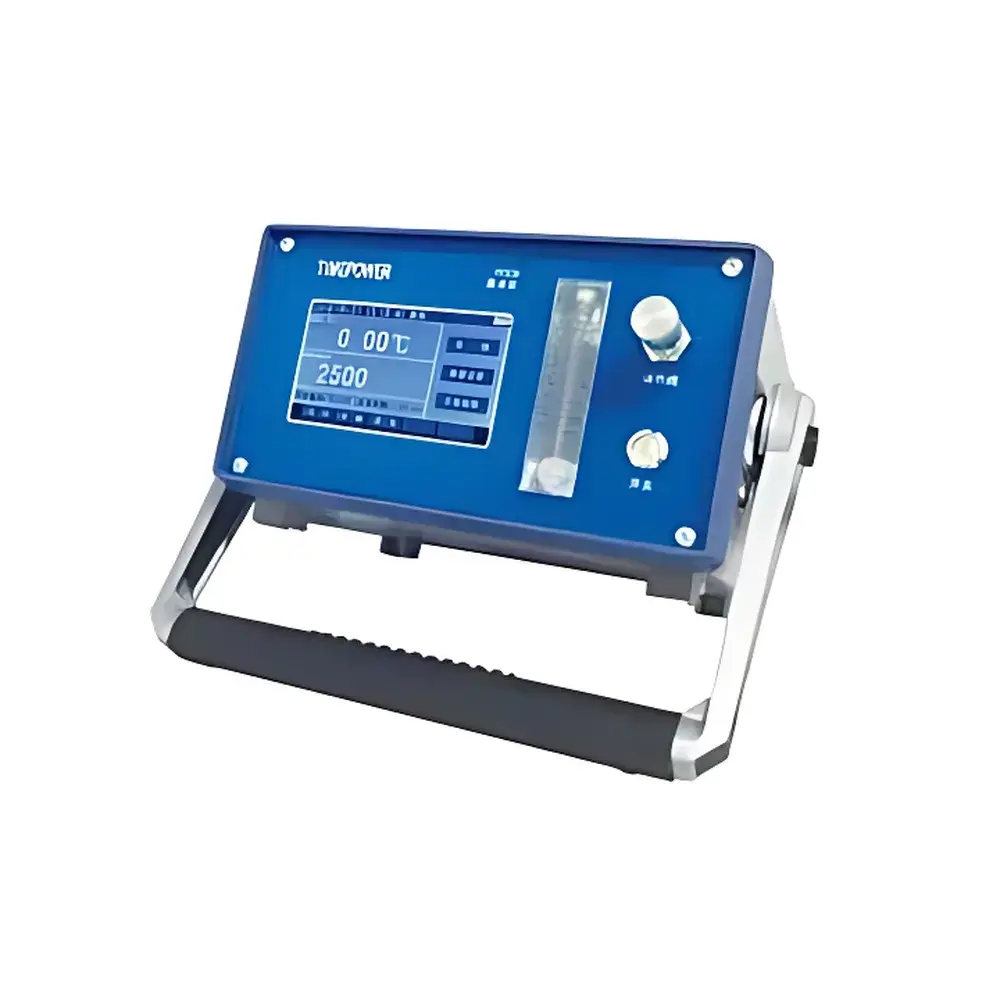

Timepower TP205 Precision Portable Dew Point Analyzer for Gas Moisture Measurement

Overview

The Timepower TP205 Precision Portable Dew Point Analyzer is a field-deployable, electrochemical-optical hybrid moisture measurement system engineered for trace water quantification in industrial process gases. At its core lies a calibrated Vaisala CARBOCAP®-based chilled-mirror dew point sensor — a reference-grade transducer validated for high reproducibility under low-humidity and chemically aggressive conditions. Unlike capacitive or aluminum oxide sensors, the TP205 employs dynamic gain regression and zero-point auto-calibration algorithms to compensate for thermal drift, condensate hysteresis, and surface contamination effects. This architecture enables stable dew point measurements down to −100 °C in inert and reactive gas matrices, including SF₆, H₂, N₂, O₂, Ar, CO₂, and compressed air. The instrument operates on the physical principle of dew point thermometry: precise thermoelectric cooling of a polished mirror surface until condensation initiates, with optical detection of the phase transition via integrated photodiode reflectance monitoring. Its measurement uncertainty remains within ±2 °C for dew points above −60 °C — conforming to ISO 8573-3:2010 Annex B requirements for Class 2 compressed air quality verification.

Key Features

• Reference-grade Vaisala dew point sensor with integrated temperature-controlled mirror and optical condensation detection
• Real-time gain regression and automated zero-point calibration — eliminating manual recalibration during extended field deployment
• Stainless steel sintered probe filter (ISO 4406 Class 17/14 compliant) for particulate and oil mist resistance in dirty gas streams
• Full-color 5.7-inch TFT resistive touch display with intuitive GUI navigation and on-screen data trend visualization
• Onboard non-volatile memory storing >10,000 timestamped dew point readings with pressure, flow, and ambient condition metadata
• Dual-power architecture: seamless auto-switching between 11.1 V lithium-ion battery (≥8 h runtime) and AC 220 V input with integrated overvoltage/overcurrent protection
• Configurable gas-specific flow control (H₂: 0.1–0.4 L/min; SF₆: 0.5–0.9 L/min) to maintain laminar boundary layer stability at the sensing surface
• RS232/RS485 serial interface supporting Modbus RTU protocol for integration into SCADA, DCS, or LIMS environments

Sample Compatibility & Compliance

The TP205 is validated for continuous moisture monitoring in non-corrosive and mildly corrosive dry gases encountered across critical infrastructure sectors. It meets ASTM D2045-21 (Standard Test Method for Determination of Water Vapor Content of Gases by Chilled Mirror Hygrometry) and aligns with IEC 60480 (re-use of SF₆) moisture specification thresholds for high-voltage switchgear commissioning. Its stainless steel wetted path and sintered filtration enable reliable operation in hydrogen systems per ISO 14687-2:2019 (hydrogen fuel quality), and in pharmaceutical-grade nitrogen lines compliant with USP . While not intrinsically safe certified, the unit adheres to EN 61000-6-2 (immunity) and EN 61000-6-4 (emissions) for industrial electromagnetic environments. All firmware and data logging functions support audit-ready traceability per FDA 21 CFR Part 11 when paired with validated external software.

Software & Data Management

Field data are stored in binary .CSV-compatible format with embedded UTC timestamps, sensor ID, pressure, flow rate, and dew point values. The internal memory retains full-resolution readings (0.01 °C resolution) without interpolation or averaging. Optional PC software provides GLP-compliant reporting: automatic generation of calibration logs, drift analysis charts, and deviation alerts against user-defined moisture limits (e.g., ≤−40 °C dp for transformer SF₆). Data export supports direct integration with LabWare LIMS and Siemens Desigo CC via OPC UA gateway adapters. Firmware updates are performed via USB mass storage mode — no proprietary drivers required. All configuration parameters (gas type, flow setpoint, alarm thresholds) are password-protected and logged in the audit trail.

Applications

• Pre-commissioning moisture verification of SF₆-insulated GIS and circuit breakers per IEEE C37.122.1
• In-line monitoring of hydrogen purity in PEM electrolyzer purge streams and fuel cell feed lines
• Quality assurance of instrument air and nitrogen blanketing gases in pharmaceutical cleanrooms (ISO 14644-1 Class 5–8)
• Maintenance diagnostics of adsorption dryers and membrane dehumidifiers in petrochemical refineries
• Moisture mapping in aerospace-grade argon purge environments for titanium welding qualification (AWS D17.1)
• Validation of vacuum drying cycles in lithium-ion battery electrode manufacturing (IEC 62660-1)

FAQ

What is the recommended calibration interval for the TP205 in routine industrial use?
Annual calibration against a NIST-traceable chilled mirror standard is advised; however, the built-in zero-point auto-calibration maintains baseline stability for ≥6 months under controlled storage conditions.
Can the TP205 measure moisture in natural gas containing H₂S or mercaptans?
No — the Vaisala sensor is not chemically resistant to sulfur compounds; use only with purified, desulfurized gas streams or install an inline chemical scrubber upstream.
Does the instrument compensate for sample pressure variations during measurement?
Yes — integrated absolute pressure transducer (0–1 MPa range) feeds real-time compensation into the dew point algorithm per Magnus formula revision per ISO 6580.
Is the battery replaceable by the end user?
Yes — the 11.1 V lithium-ion pack is field-replaceable using standard Torx T8 tools; replacement modules include embedded capacity calibration EEPROM.
How does the TP205 handle condensate carryover during rapid depressurization?
The sintered stainless steel filter (5 µm pore size) and hydrophobic membrane pre-filter retain liquid droplets; internal condensate drain path directs residual moisture away from the optical chamber.
