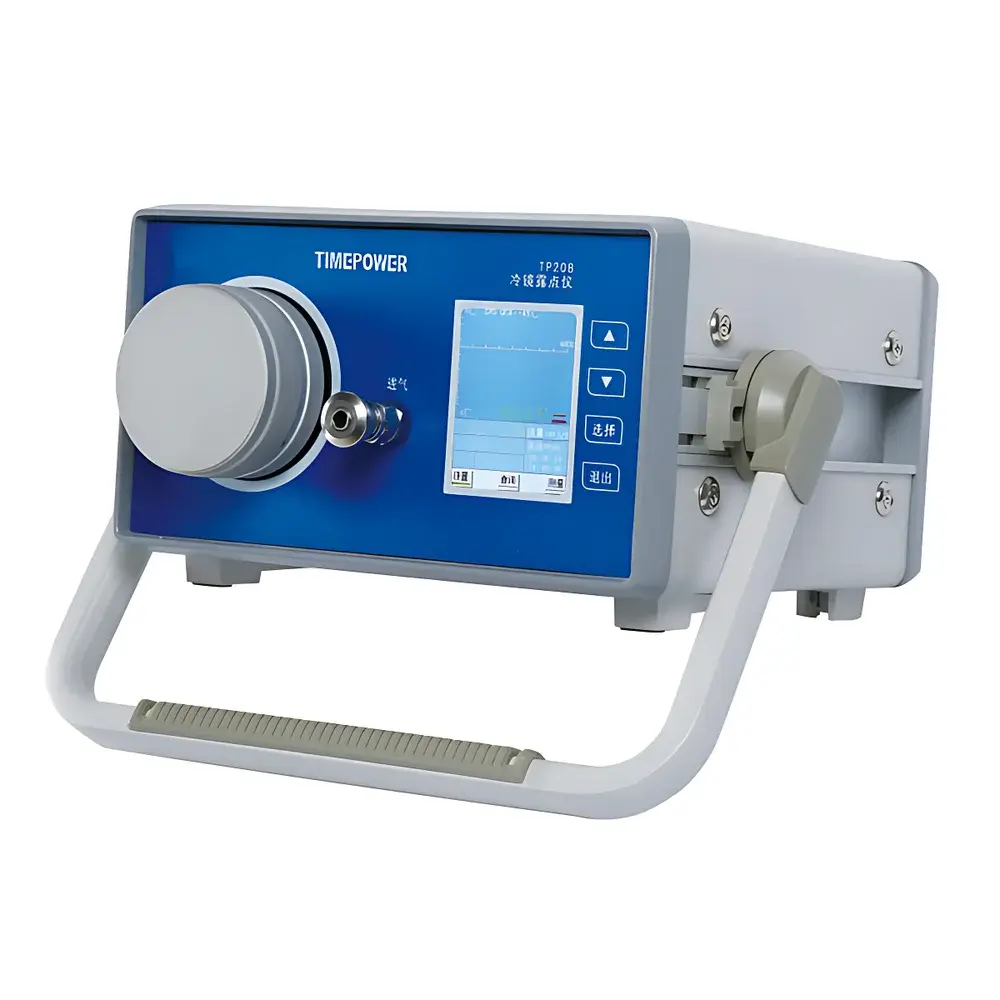

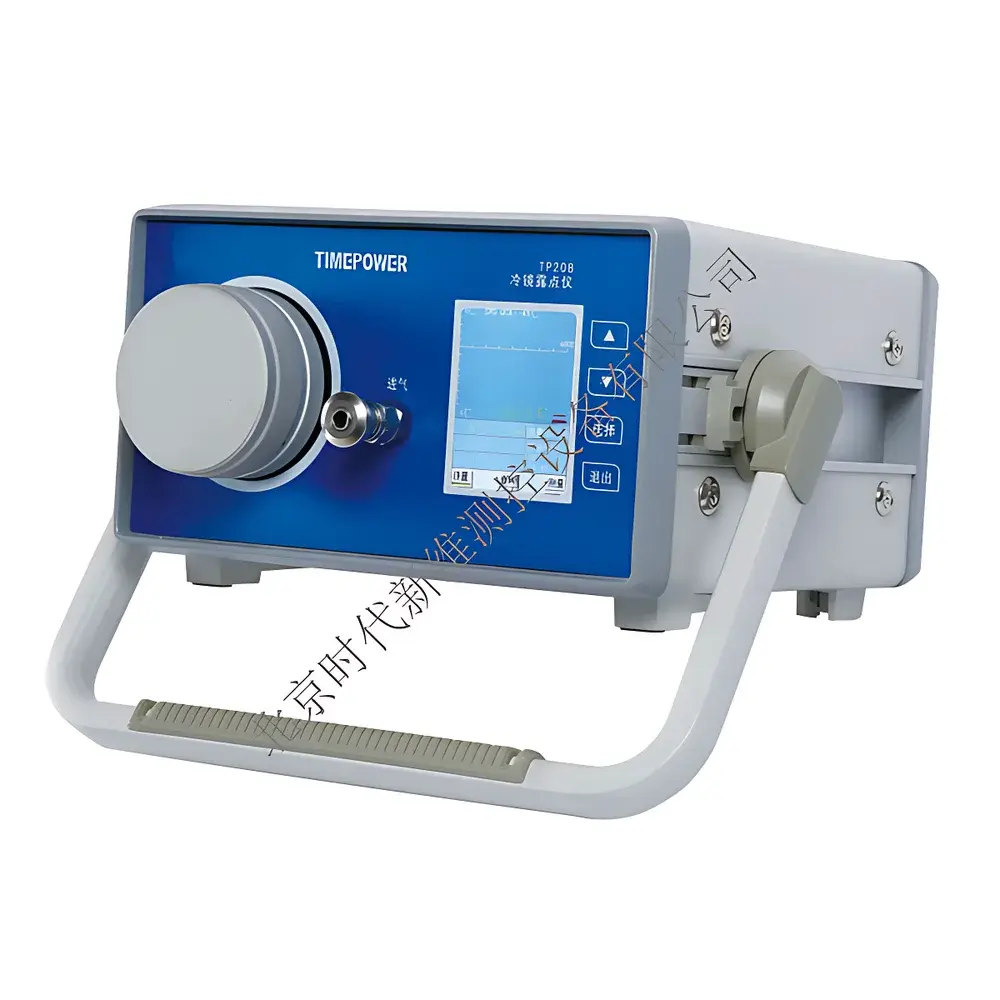

Timepower TP208 Precision Chilled-Mirror Dew Point Meter

Overview

The Timepower TP208 Precision Chilled-Mirror Dew Point Meter is a laboratory-grade hygrometric instrument engineered for trace moisture analysis in industrial and research-grade gas streams. It operates on the fundamental thermodynamic principle of chilled-mirror condensation: when a sample gas is cooled across a highly polished, temperature-controlled mirror surface, water vapor reaches saturation and forms a detectable dew layer at the precise thermodynamic dew point temperature. This primary measurement method—defined in ISO 8503-2, ASTM D1193, and IEC 60068-2-30—is recognized as the reference standard for dew point determination due to its direct physical basis and minimal calibration drift. The TP208 implements this principle with a four-stage Peltier cooling system capable of reaching −60 °C under controlled ambient conditions (10 °C), enabling high-fidelity quantification of moisture in inert and reactive gases—including nitrogen, sulfur hexafluoride (SF₆), and process-grade argon—commonly used in power transmission, semiconductor fabrication, and pharmaceutical purge applications.

Key Features

• Chilled-mirror sensor with corrosion-resistant quartz substrate and sputter-coated reflective surface, suitable for mildly corrosive gas matrices including SF₆ and HCl-doped carrier streams.
• Four-stage thermoelectric (Peltier) cooling architecture delivering stable sub-zero mirror temperatures down to −60 °C, with wind-cooled heat dissipation ensuring compact footprint and low acoustic emission.
• High-sensitivity photoelectric detection system continuously monitors mirror reflectance; real-time dew-layer identification ensures unambiguous phase-transition detection without hysteresis or lag.
• Digital fuzzy logic temperature control algorithm minimizes thermal overshoot and reduces equilibration time to 3–5 minutes per measurement cycle—critical for high-throughput QC labs.
• Color LCD interface displays dew point temperature (°C), volumetric moisture concentration (µL/L), real-time condensation curve, gas flow rate (L/h), and system diagnostic status.
• Integrated self-diagnostic suite provides audible/visual alerts for out-of-spec conditions: low optical energy (1 MPa or <1 kPa), or incomplete condensation equilibrium.

Sample Compatibility & Compliance

The TP208 supports dry gas analysis across a wide operational pressure range (1 kPa–1 MPa) and flow regime (15–60 L/h), accommodating both pressurized pipeline sampling and ambient-pressure purging protocols. Its chemically inert wetted path—constructed from electropolished stainless steel and fluoropolymer-sealed fittings—meets material compatibility requirements for SF₆, N₂, Ar, He, and CO₂ per ASTM D2712 and IEC 60480. All firmware and hardware design elements adhere to electromagnetic compatibility (EMC) standards IEC 61326-1 and safety standard IEC 61010-1. While not inherently 21 CFR Part 11 compliant, audit-ready data export (CSV via USB) and full measurement metadata logging support GLP/GMP-aligned documentation workflows when integrated into validated lab information management systems (LIMS).

Software & Data Management

The TP208 operates autonomously without PC dependency but includes USB 2.0 interface for periodic firmware updates and batch data retrieval. Each measurement record contains timestamp, dew point value, µL/L conversion (calculated using ideal gas law at user-defined pressure/temperature), mirror temperature history, optical energy percentage, and diagnostic flags. Exported CSV files are structured for direct import into Excel, MATLAB, or statistical process control (SPC) platforms. No proprietary software installation is required; raw data retains full traceability to NIST-traceable calibration certificates (provided with instrument shipment). Optional RS-232 output enables integration into SCADA or PLC-based monitoring networks for continuous process dew point surveillance.

Applications

• Quality assurance of SF₆ insulation gas in high-voltage switchgear (per IEEE C37.122.1 and IEC 60480).
• Moisture validation in nitrogen blanketing systems for API synthesis and lyophilization chambers.
• Trace water verification in electronic-grade carrier gases (N₂, Ar) prior to CVD/PVD deposition steps.
• Environmental chamber humidity profiling and HVAC system commissioning per ASHRAE Standard 110.
• Research-grade dew point mapping in cryogenic storage and aerospace propulsion test stands.

FAQ

What pre-conditioning steps are required before first use or after extended idle periods?

Prior to measurement, flush the sample path with high-purity nitrogen (≥99.999%) at 30 L/h for ≥15 minutes to remove adsorbed moisture from internal surfaces and stabilize optical energy at 99–100%.
Can the TP208 measure dew point in compressed air systems operating above 10 bar?

No—the maximum rated inlet pressure is 10 bar (1 MPa); operation beyond this limit risks diaphragm seal failure and invalidates metrological traceability.
Is mirror cleaning possible in-field, and what solvents are approved?

Yes—mirror cleaning is performed using spectroscopic-grade methanol applied with lint-free optical tissue; acetone and IPA are prohibited due to residue risk and coating degradation.
Does the instrument require annual recalibration, and what standards are used?

Annual calibration against NIST-traceable chilled-mirror reference standards (e.g., Michell Instruments Optidew) is recommended; certificate includes as-found/as-left data per ISO/IEC 17025 requirements.
How does ambient temperature affect measurement uncertainty below −40 °C?

At ambient temperatures <10 °C, cooling capacity decreases; the specified −60 °C lower limit assumes stabilized 10 °C lab environment—operation at −20 °C ambient reduces effective range to approximately −45 °C.
