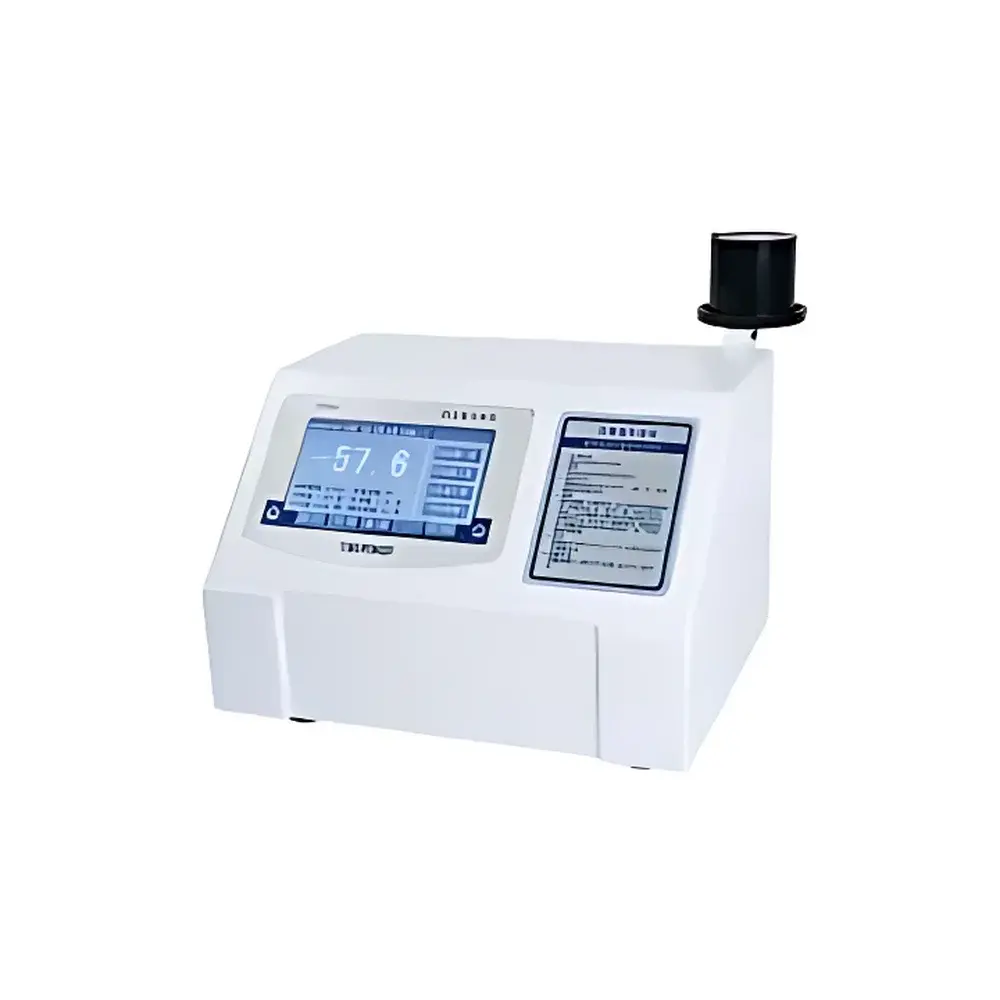

Timepower TP304 Iron Content Analyzer for Laboratory Water Quality Testing

Overview

The Timepower TP304 Iron Content Analyzer is a dedicated benchtop photometric instrument engineered for precise, trace-level quantification of dissolved ferrous (Fe²⁺) and total iron in low-conductivity water matrices. It operates on the fundamental principle of spectrophotometric colorimetry, applying the Lambert-Beer Law to correlate absorbance at 510 nm with iron concentration. The analyzer employs the nationally standardized o-phenanthroline method (GB/T 12149–2019), in which Fe²⁺ forms a stable, highly colored orange-red complex with 1,10-phenanthroline under controlled pH and reducing conditions. This method ensures high selectivity for iron over common interferents such as copper, manganese, and chromium, particularly critical in ultra-pure water applications where sub-ppb detection fidelity is required. Designed specifically for thermal power plants and research laboratories, the TP304 delivers reliable performance in monitoring boiler feedwater, condensate, turbine steam, generator stator cooling water, drum boiler water, and natural surface waters—environments where iron deposition directly impacts heat transfer efficiency and corrosion risk.

Key Features

• High-stability optical architecture featuring an imported monochromatic cold light source, delivering consistent spectral output with minimal thermal drift and extended service life (>10,000 hours).
• Integrated microcontroller platform based on advanced single-chip architecture, enabling low-power operation (<30 W), real-time signal processing, and deterministic timing control for reaction incubation.
• 5.0-inch capacitive touchscreen with native Chinese GUI—optimized for lab technicians performing routine QC checks without software training overhead.
• Onboard blank calibration routine that compensates for zero-point offset caused by cuvette variability, reagent background, and electronic baseline drift—critical for maintaining long-term measurement integrity.
• Automated timing protocol with audible/visual alerts for key procedural milestones (e.g., color development duration), minimizing operator dependency and inter-user variability.
• Robust mechanical design incorporating surface-mount technology (SMT) PCBs and unified chassis construction, ensuring vibration resistance and thermal stability across ambient conditions (5–45 °C).

Sample Compatibility & Compliance

The TP304 is validated for use with deionized water, mixed-bed resin effluent, and low-TDS natural waters where iron concentrations fall within the 0.00–200 μg/L range. Sample introduction is manual via supplied sample cups; no peristaltic pump or autosampler is integrated. All analytical procedures adhere strictly to GB/T 12149–2019, which aligns methodologically with ISO 8585 and ASTM D1068 for iron in water. While not FDA 21 CFR Part 11–compliant out-of-the-box (lacking electronic signature and audit trail functionality), the device supports GLP-aligned workflows when paired with external lab notebooks and calibrated reference standards traceable to NIM (National Institute of Metrology, China). Users must employ Class I or II reagent water (per GB/T 6682) and store o-phenanthroline, hydroxylamine hydrochloride, and acetate buffer in certified polyethylene containers to prevent metal leaching.

Software & Data Management

The embedded firmware provides local data handling only—no USB export, network connectivity, or PC synchronization capability. Stored results (max. 256 entries) include timestamp, sample ID (user-input alphanumeric tag), measured absorbance, and calculated concentration. Overflow management follows FIFO logic: oldest record is overwritten upon capacity saturation. No password protection, user role assignment, or audit trail logging is implemented. For regulated environments requiring full data integrity, laboratories are advised to document calibration events, blank checks, and daily verification runs manually in bound logbooks compliant with ISO/IEC 17025 documentation requirements.

Applications

• Monitoring iron carryover in high-pressure boiler feedwater circuits to prevent magnetite scale formation in superheater tubes.
• Verifying iron removal efficiency of condensate polisher resins and mixed-bed demineralizers.
• Assessing corrosion activity in closed-loop generator cooling systems via trending of stator water iron levels.
• Supporting compliance testing for iron limits in utility-grade makeup water per DL/T 912–2016 (Supercritical Unit Water Chemistry Guidelines).
• Field-deployable verification of iron speciation during plant commissioning or post-maintenance flush validation.

FAQ

What water purity grade is required for reagent preparation?
Class II reagent water per GB/T 6682–2008 is mandatory; preferably generated by a high-efficiency mixed-bed ion exchange system to avoid interference from residual cations.
How often must blank calibration be performed?
Daily blank calibration is required before first use; curve calibration using certified iron standards is recommended every two weeks or after any optical module maintenance.
Can the TP304 measure Fe³⁺ directly?
No—it quantifies total iron after reduction of Fe³⁺ to Fe²⁺ using hydroxylamine hydrochloride; the method does not distinguish oxidation states without prior separation.
Is the instrument suitable for wastewater or seawater analysis?
Not recommended—high chloride, suspended solids, or organic load causes matrix interference and violates the scope of GB/T 12149–2019, which applies exclusively to low-conductivity thermal cycle waters.
Does the device support external data transfer?
No—data retrieval is limited to on-screen review and manual transcription; no serial, USB, or Ethernet interface is provided.
