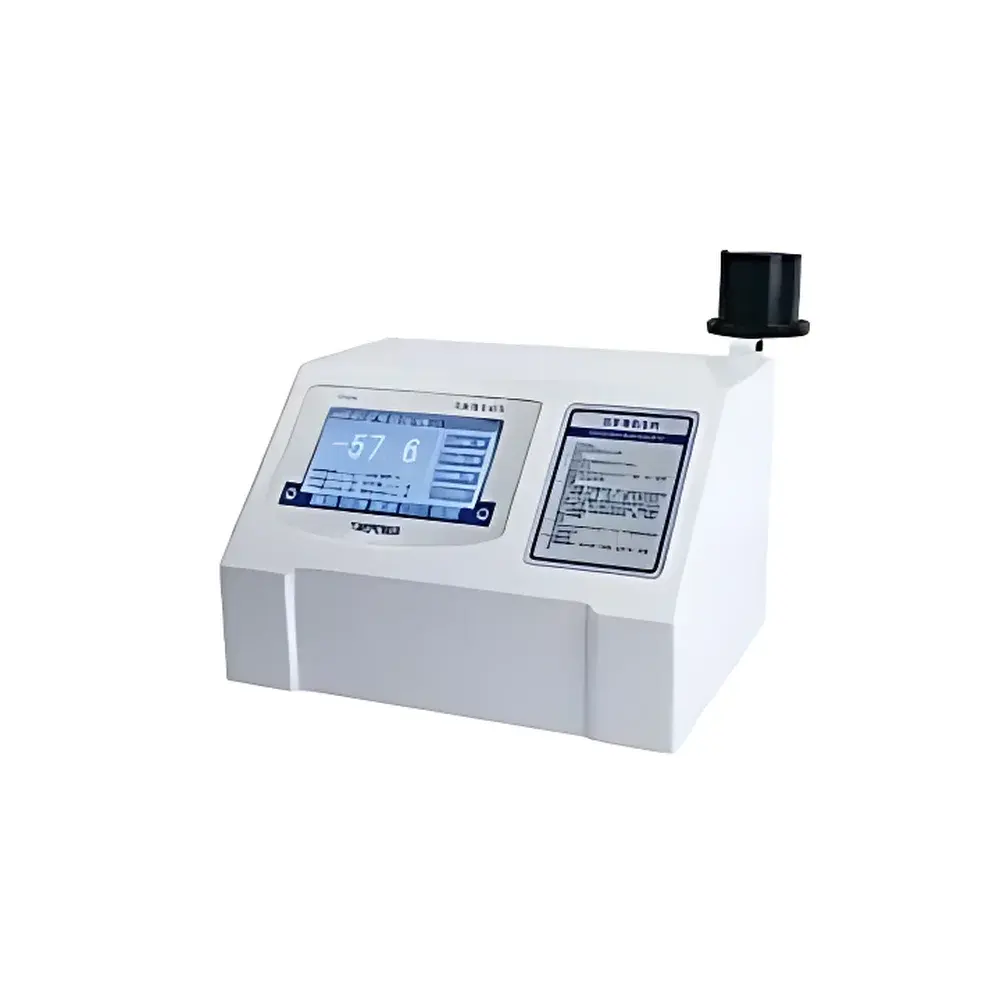

TimePower TP306 Silica Analyzer for Laboratory Use
| Brand | TimePower |
|---|---|
| Origin | Beijing, China |
| Manufacturer Type | Direct Manufacturer |
| Country of Origin | China |
| Model | TP306 |
| Pricing | Upon Request |
| Display | 5.0-inch color touchscreen (Chinese UI) |
| Measurement Principle | Photometric colorimetry based on molybdenum blue reduction method |
| Measuring Range | 0–200 µg/L and 0–2000 µg/L (selectable) |
| Accuracy | ±2% FS |
| Resolution | 0.1 µg/L |
| Repeatability | ≤1% |
| Stability | ±1% FS/4h |
| Light Source | Imported monochromatic cold LED |
| Environmental Operating Temperature | 5–45 °C |
| Humidity Limit | ≤90% RH (non-condensing) |
| Power Supply | AC 85–265 V, 45–65 Hz |
| Power Consumption | ≤30 W |
| Dimensions | 260 × 200 × 180 mm |
| Weight | 3.2 kg |
| Data Storage | Cyclic memory for up to 256 records |
| Calibration | Blank calibration + optional curve calibration |
| Compliance | Implements national standard silica determination method (molybdenum blue spectrophotometry) |
Overview
The TimePower TP306 Silica Analyzer is a dedicated laboratory-grade photometric instrument engineered for precise quantification of dissolved silica (as SiO₂) and soluble silicates in ultrapure water matrices. It operates on the internationally recognized molybdenum blue colorimetric principle: under controlled acidic conditions (pH 1.1–1.3), orthosilicic acid reacts with ammonium molybdate to form a yellow heteropoly acid complex; subsequent reduction by 1-amino-2-naphthol-4-sulfonic acid (1-2-4 acid) yields an intensely colored blue chromophore—silicomolybdenum blue—whose absorbance at ~630 nm is directly proportional to silica concentration per the Lambert-Beer law. Designed specifically for high-stakes water quality monitoring, the TP306 delivers trace-level sensitivity (detection down to 0.1 µg/L) and robust performance in environments where sub-ppb silica interference can compromise steam purity, boiler integrity, or semiconductor wafer fabrication.
Key Features
- High-stability optical system featuring an imported monochromatic cold LED light source—ensuring minimal thermal drift, low power consumption, and extended service life (>10,000 hours).
- Integrated microcontroller architecture with advanced SMT (surface-mount technology) circuitry, delivering low-power operation, high noise immunity, and long-term signal stability.
- 5.0-inch capacitive color touchscreen with intuitive Chinese-language interface—enabling rapid method selection, real-time graphing, and guided calibration workflows.
- Dedicated baseline compensation algorithm to correct for residual color, turbidity, or reagent blank variability—critical for accurate sub-50 µg/L silica measurement.
- Automated timing control for digestion and reduction steps, eliminating manual stopwatch dependency and improving inter-operator reproducibility.
- Zero-point stabilization via programmable blank calibration—performed daily per operational best practices—to offset electronic, optical, and temperature-induced zero drift.
- Cyclic data storage supporting up to 256 measurement records with automatic overwrite logic—facilitating routine QA/QC review without external data transfer.
Sample Compatibility & Compliance
The TP306 is validated for use with deionized water, condensate, boiler feedwater, and process streams across power generation, pharmaceutical manufacturing (WFI/PW systems), fine chemical synthesis, and semiconductor front-end fabrication. Its analytical protocol aligns with the fundamental chemistry described in GB/T 12149–2019 (“Industrial Circulating Cooling Water and Boiler Water — Determination of Silica”) and is technically compatible with ASTM D859 (Standard Test Method for Silica in Water) and ISO 10523 (Water Quality — Determination of pH). While not inherently 21 CFR Part 11 compliant out-of-the-box, its audit-ready calibration logs, timestamped results, and user-accessible calibration history support GLP/GMP-aligned documentation when deployed within validated laboratory workflows.
Software & Data Management
The embedded firmware supports full method parameterization—including range selection (0–200 µg/L or 0–2000 µg/L), calibration point definition, and alarm thresholds. All measurements are time-stamped and stored locally with operator ID tagging (via manual entry). Data export is enabled via USB host interface for CSV file retrieval—compatible with LIMS integration through third-party middleware. Firmware updates are performed offline using FAT32-formatted USB drives, ensuring secure version control in regulated environments. No cloud connectivity or remote access capabilities are included—maintaining data sovereignty and network isolation per industrial cybersecurity standards.
Applications
- Monitoring silica breakthrough in mixed-bed ion exchange and EDI units within power plant makeup water treatment trains.
- Verifying silica carryover in turbine condensate and steam-cycle sampling points to prevent quartz deposition on HP/LP blades.
- Qualifying ultrapure water (UPW) used in 300mm wafer cleaning processes, where silica >10 µg/L risks pattern collapse and gate oxide defects.
- Supporting USP purified water specifications and EP 2.2.42 silica limits in pharmaceutical water systems.
- Tracking silicate leaching from glass containers or stainless-steel wetted surfaces during bioprocess buffer preparation.
FAQ
What reagents are required for daily operation?
Ammonium molybdate solution (analytical grade), 1-2-4 acid reducing agent (stabilized formulation), sulfuric acid (for pH adjustment), and certified silica standard solutions (e.g., 100 µg/L and 1000 µg/L SiO₂ in dilute HCl matrix).
How often must calibration be performed?
Blank calibration is recommended before each analytical session; full multi-point calibration (minimum 3 points) should be conducted every 14 days or after reagent lot change, per internal SOPs aligned with ISO/IEC 17025 Clause 7.7.
Can the TP306 measure total silica (including particulate)?
No—the method quantifies only dissolved (filterable) silica. Total silica requires acid digestion pretreatment (e.g., autoclaving with HNO₃/HF), which is outside the instrument’s scope and safety design.
Is the instrument suitable for field use?
It is designed exclusively for benchtop laboratory deployment. Its AC-powered architecture, non-sealed optical path, and reliance on temperature-sensitive color development make it unsuitable for uncontrolled ambient environments.
What maintenance intervals are advised?
Optical path cleaning (cuvette chamber and LED lens) every 3 months; annual verification of photometric linearity using NIST-traceable neutral density filters; replacement of aging reagent bottles per expiration date—not device runtime.
