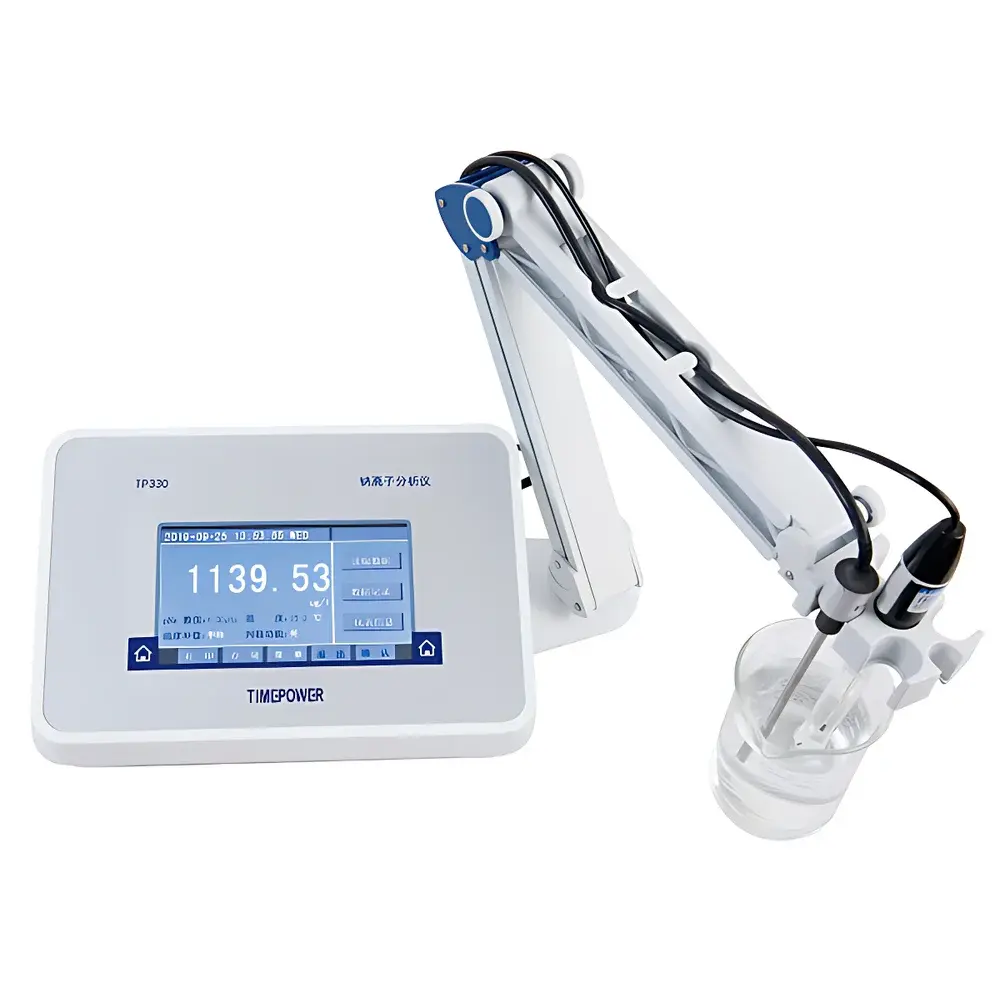

TimePower TP330 Benchtop Sodium Ion Analyzer

Overview

The TimePower TP330 Benchtop Sodium Ion Analyzer is a precision electrochemical measurement instrument engineered for reliable, trace-level sodium ion (Na⁺) quantification in laboratory and quality control environments. It operates on the potentiometric principle based on the Nernst equation, utilizing a selective sodium ion electrode to generate a voltage signal proportional to the logarithm of Na⁺ activity in aqueous solution. At 25 °C, the theoretical electrode slope is 59.16 mV per decade change in Na⁺ concentration; however, real-world electrode performance deviates due to membrane composition, hydration state, and junction potential effects. The TP330 compensates for this through two-point calibration using certified sodium standard solutions, enabling accurate determination of both electrode slope and asymmetry potential (zero point). Designed for compliance with GB 12156–1989 (“Methods for analysis of boiler and cooling water — Determination of sodium — Static method”), the analyzer delivers stable, reproducible measurements across a wide dynamic range—critical for applications demanding strict regulatory adherence in power generation, pharmaceutical manufacturing, and high-purity water systems.

Key Features

• 5.0-inch capacitive touchscreen display with intuitive Chinese-language GUI, supporting menu-driven operation without external PC dependency
• High-impedance input circuitry (≥1 × 10¹² Ω) optimized for low-current ion-selective electrode signals, minimizing loading error and drift
• 24-bit analog-to-digital conversion ensuring high-resolution signal acquisition and sub-microgram-per-liter sensitivity
• Integrated Pt1000 temperature sensor with automatic temperature compensation (0–60 °C), correcting for thermal dependence of electrode response
• Embedded microcontroller architecture featuring low-power consumption (<5 W) and robust noise immunity via advanced SMT PCB design
• Circular data storage buffer retaining up to 1,000 measurement records; overflow management ensures continuous logging without manual intervention
• Non-volatile memory preserving calibration coefficients and historical data for ≥10 years after power loss

Sample Compatibility & Compliance

The TP330 is validated for use with aqueous samples having temperatures between 5 °C and 60 °C and total dissolved solids (TDS) levels typical of boiler feedwater, ultrapure water (UPW), condensate, and process streams in pharmaceutical clean utilities. It accommodates both direct measurement mode (for low-sodium samples <100 μg/L) and alkalized sample mode (with diisopropylamine or similar reagents to suppress H⁺ interference). The instrument meets mechanical and electrical safety requirements per GB/T 13978–2008 (General specifications for ion meters) and supports traceability under GLP-compliant workflows when paired with documented calibration procedures and certified reference materials. While not pre-certified for FDA 21 CFR Part 11, its audit-ready data logging architecture—including timestamped entries, operator ID fields (via optional configuration), and immutable record storage—facilitates validation for GMP-regulated environments.

Software & Data Management

No external software installation is required: all configuration, calibration, and reporting functions are executed locally via the embedded firmware interface. Calibration routines include single-point verification and dual-point slope/intercept adjustment with real-time slope calculation and acceptance criteria feedback. Measurement data export is supported via USB flash drive (FAT32 formatted) in CSV format, enabling downstream analysis in Excel or LIMS platforms. Each stored entry contains pNa value, corresponding μg/L concentration, temperature reading, date/time stamp, and calibration status flag. The system enforces data integrity by prohibiting post-hoc editing; deleted records are irrecoverable, satisfying basic ALCOA+ principles (Attributable, Legible, Contemporaneous, Original, Accurate).

Applications

• Boiler water and steam cycle monitoring in thermal power plants per DL/T 912–2016 and ASTM D4582
• Final rinse water testing in sterile pharmaceutical manufacturing (e.g., WFI distribution loops)
• Monitoring sodium breakthrough in mixed-bed deionization systems and EDI units
• Research-scale studies of ion exchange kinetics and membrane selectivity in academic laboratories
• Quality assurance of food-grade cleaning agents and process additives where sodium contamination affects product stability
• Environmental water analysis for low-level sodium detection in groundwater and surface water baseline surveys

FAQ

What is the minimum detectable sodium concentration with the TP330?
The lower limit of quantitation is 0.01 μg/L (equivalent to 9.36 pNa), achievable under optimal conditions including proper electrode conditioning, low-noise grounding, and use of high-purity calibration standards.
Can the TP330 measure sodium in high-alkalinity samples such as boiler blowdown?
Yes—when used with appropriate alkalizing agents (e.g., diisopropylamine) and a dedicated high-pH sodium electrode, the instrument mitigates hydrogen ion interference and maintains accuracy up to pH 13.
Is the electrode included with the base unit?
The TP330 is supplied as a complete system including a composite sodium-selective electrode, Pt1000 temperature probe, universal electrode stand, and set of sodium standard solutions (e.g., 0.1 mg/L and 10 mg/L Na⁺); optional accessories include carrying case and calibration verification kits.
How often should calibration be performed?
Daily calibration is recommended for routine QC use; for infrequent or research applications, calibration before each analytical session—and verification against a mid-range check standard—is sufficient to ensure traceability.
Does the TP330 support RS-232 or Ethernet connectivity?
No—the device features USB host port only; serial or network output requires third-party hardware converters compatible with CDC ACM class enumeration.
