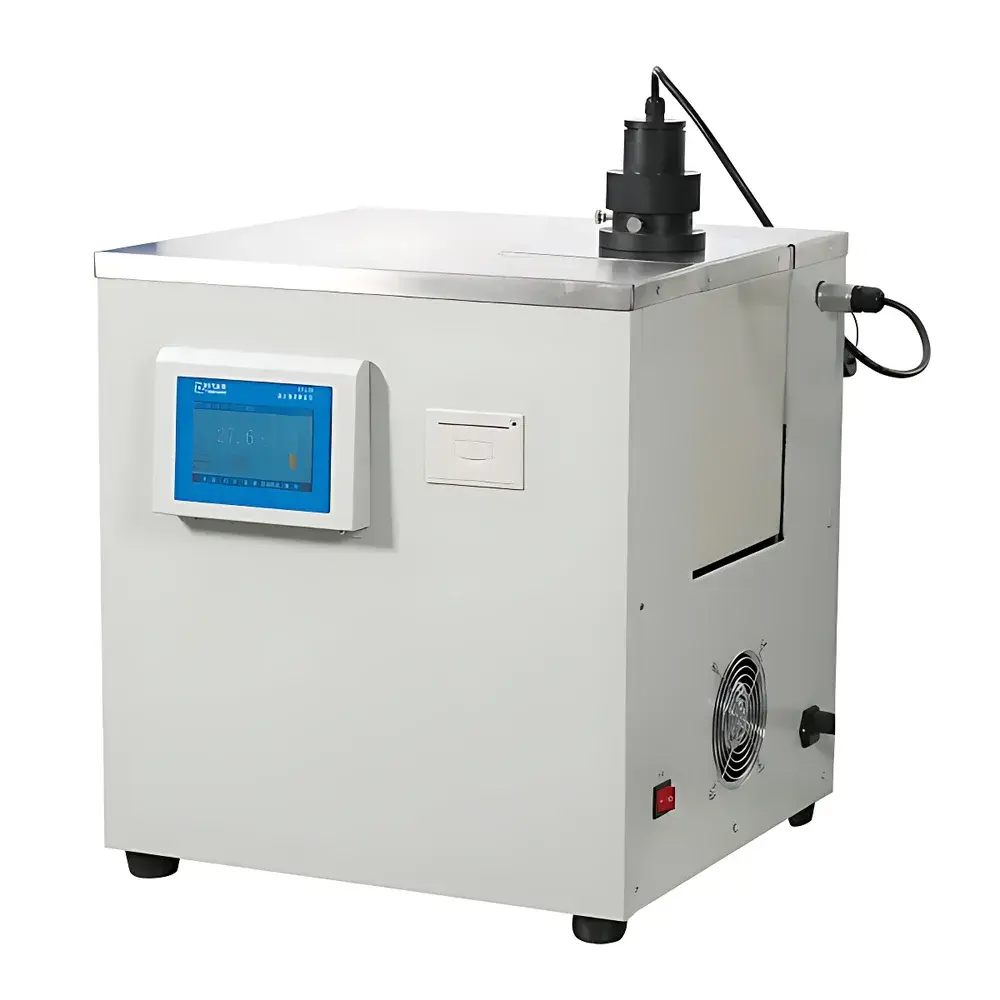

Timepower TP526 Automatic Pour Point and Cloud Point Tester

Overview

The Timepower TP526 Automatic Pour Point and Cloud Point Tester is an engineered solution for the precise, repeatable determination of pour point and cloud point in petroleum products—including lubricating oils, diesel fuels, transformer oils, and light distillates. Based on standardized thermodynamic phase transition detection, the instrument employs a dual-CPU microcontroller architecture coupled with high-stability semiconductor (Peltier) cooling to achieve controlled, stepwise temperature reduction at defined rates. Unlike conventional bath-based systems, the TP526 eliminates reliance on cryogenic liquids or mechanical compressors, delivering consistent thermal gradients across the sample cell while minimizing ambient interference. Its operation adheres to core international test methodologies—primarily GB/T 510 (pour point of petroleum products), GB/T 3535 (cloud point), ASTM D97 (standard test method for pour point of petroleum products), ASTM D2500 (cloud point), and ISO 3016/ISO 2084—ensuring data compatibility for quality control, regulatory reporting, and interlaboratory comparison.

Key Features

• Dual-CPU microprocessor control system enabling synchronized temperature ramping, optical detection, and real-time status monitoring
• Peltier-based solid-state cooling module delivering stable, low-noise thermal control from ambient down to –60 °C with ±1 °C accuracy and 0.1 °C resolution
• Automated test sequence execution—including sample cooling, hold periods, manual or automatic tilt detection, and endpoint validation—reducing operator dependency
• Integrated thermal printer supporting 36-character Chinese/English alphanumeric output for immediate hard-copy reporting with date/time stamping
• Self-diagnostic firmware that continuously monitors sensor integrity, cooling performance, and power stability, alerting users to out-of-spec conditions prior to test initiation
• Ergonomic benchtop design (475 × 360 × 495 mm; 21.3 kg) with reinforced housing, splash-resistant front panel, and optimized airflow management for continuous operation in QC laboratories

Sample Compatibility & Compliance

The TP526 is validated for use with low-to-medium viscosity, transparent to pale-yellow petroleum liquids—such as mineral-based lubricants, hydraulic oils, insulating oils, kerosene, and light fuel oils. It is not intended for heavy crudes, asphaltic blends, or highly opaque suspensions where optical detection of cloud formation or flow cessation becomes unreliable. All operational parameters and software logic are aligned with statutory requirements for traceability and audit readiness: test logs include operator ID, sample ID, environmental conditions (recorded automatically), start/stop timestamps, and raw temperature vs. time profiles. The system supports GLP-compliant documentation practices and may be configured to meet internal SOPs referencing ASTM, ISO, and GB standards. While the instrument itself does not provide FDA 21 CFR Part 11 electronic signature capability, its data export functionality (via RS232 or optional USB) enables integration into validated LIMS environments requiring full audit trails.

Software & Data Management

The TP526 operates via embedded firmware with no external PC dependency. All test parameters—including cooling rate, hold duration, tilt angle threshold, and pass/fail criteria—are programmable through the intuitive LCD menu interface. Each test generates a structured result record containing initial temperature, final pour/cloud point value, elapsed time, and diagnostic flags. Results are stored internally (capacity: ≥200 tests) and simultaneously printed in human-readable format. Data export is supported via standard RS232 serial interface (cable included); optional USB-to-serial adapters allow direct transfer to laboratory PCs for CSV-based archiving or statistical analysis in Excel or Minitab. Firmware updates are performed offline using manufacturer-provided utility software and a dedicated programming port—ensuring version control and calibration traceability during instrument lifecycle management.

Applications

• Quality assurance of finished lubricants in manufacturing facilities, verifying conformance to OEM specifications (e.g., SAE J300, API categories)
• Condition monitoring of in-service transformer oil in electric utilities, detecting wax crystallization onset that compromises dielectric strength
• Routine testing of diesel fuel batches per EN 590 or ASTM D97 to ensure cold-weather operability in transportation fleets
• Research and development of synthetic base stocks and additive packages, where precise low-temperature behavior informs formulation decisions
• Third-party inspection and certification by commercial testing laboratories serving petrochemical exporters and importers under CIQ or SGS protocols

FAQ

What standards does the TP526 comply with?
The instrument implements test logic and thermal profiles aligned with GB/T 510, GB/T 3535, ASTM D97, ASTM D2500, ISO 3016, and ISO 2084.
Can the TP526 measure both pour point and cloud point in a single run?
No—it performs one test type per cycle; users must select either pour point or cloud point mode prior to initiation based on sample characteristics and applicable standard.
Is external calibration required?
The unit includes factory-calibrated platinum resistance thermometer (PT100) and undergoes verification against NIST-traceable reference fluids; annual recalibration is recommended per ISO/IEC 17025 laboratory accreditation requirements.
Does the instrument support network connectivity or remote monitoring?
It features RS232 communication only; Ethernet or Wi-Fi modules are not available, but serial-to-Ethernet gateways may be deployed externally for centralized data aggregation.
What maintenance is needed for the Peltier cooling system?
No consumables or refrigerant recharging is required; periodic cleaning of heatsink fins and verification of fan operation every six months ensures optimal thermal efficiency.
