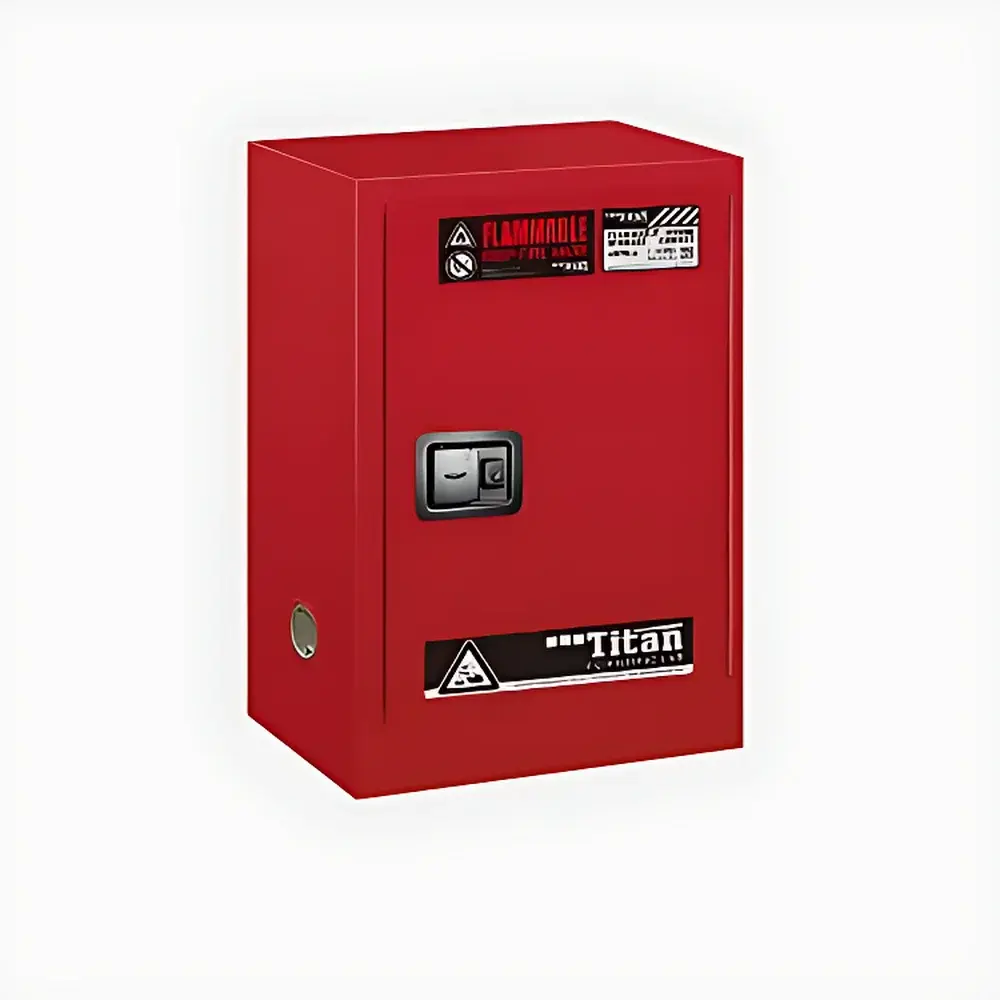

Titan SCR-12 12-Gallon (45 L) Flammable Liquid Safety Cabinet
| Brand | Titan |
|---|---|
| Origin | Shanghai, China |
| Manufacturer Type | Direct Manufacturer |
| Country of Origin | China |
| Model | SCR-12 |
| Capacity | 12 US gal (45 L) |
| Compliance | Meets ANSI/SFIA Z120.1–2022 and OSHA 1910.106 requirements for flammable liquid storage |
Overview
The Titan SCR-12 is a UL-listed (or UL-equivalent certified per ANSI/SFIA Z120.1–2022) flammable liquid safety cabinet engineered for secure, code-compliant storage of Class I, II, and IIIA flammable and combustible liquids in laboratory, pharmaceutical, chemical processing, and industrial maintenance environments. Designed using double-walled 18-gauge steel construction with a 1.5-inch (38 mm) air gap between walls, the cabinet provides passive thermal insulation and structural integrity to delay heat transfer during fire exposure. The self-closing, three-point latching door features a 2-inch (51 mm) wide hinge-mounted flame baffle and automatic closure mechanism activated by fusible links rated at 165 °F (74 °C), ensuring containment integrity under emergency conditions. Internal spill containment sump—rated for full cabinet capacity (45 L)—is welded seamless and sloped toward a central drain plug (plug included), facilitating safe cleanup and secondary containment verification.
Key Features
- Double-wall 18-gauge steel construction with 38 mm air gap for enhanced fire-resistance performance
- Self-closing, three-point latched door with fusible link (74 °C) activation and flame baffle
- Integrated 45 L spill containment sump with sloped floor and threaded drain plug
- Two adjustable, powder-coated steel shelves with rear retaining lips (load-rated to 50 kg per shelf)
- High-visibility, photoluminescent warning labels compliant with NFPA 30 and OSHA hazard communication standards
- Grounding lug pre-installed for mandatory static dissipation per NFPA 77 and IEC 61340-4-1
- Front-access ventilation slots with built-in flame arrestors (optional ducting-ready configuration available)
Sample Compatibility & Compliance
The SCR-12 is intended exclusively for storage of approved flammable and combustible liquids—including acetone, ethanol, methanol, toluene, xylene, mineral spirits, and diesel fuel—in accordance with local fire codes and national standards. It conforms to ANSI/SFIA Z120.1–2022 (Standard for Safety Cabinets), OSHA 29 CFR 1910.106 (Flammable Liquids), and NFPA 30 (Flammable and Combustible Liquids Code). While not inherently explosion-proof, the cabinet’s design supports compliance with facility-level hazardous location classifications when installed per manufacturer instructions and integrated into an overall site safety management system. It is suitable for GLP- and GMP-regulated environments where documented storage controls, audit-ready labeling, and traceable maintenance logs are required.
Software & Data Management
As a passive mechanical storage solution, the SCR-12 does not incorporate embedded electronics, firmware, or software. However, it is fully compatible with enterprise asset management (EAM) and laboratory information management systems (LIMS) via standardized barcode/QR label integration. Each unit ships with a unique serial-numbered compliance tag supporting digital record linkage for inspection scheduling, calibration tracking (e.g., door closure verification, grounding continuity test logs), and regulatory audit trails. Optional accessories—including RFID-enabled inventory tags and wall-mounted digital inspection checklists—enable alignment with ISO/IEC 17025 Clause 6.4.8 (equipment control) and FDA 21 CFR Part 11–aligned documentation practices when deployed within validated workflows.
Applications
- Secure point-of-use storage of solvents near fume hoods, analytical instruments, or synthesis workstations
- Intermediate holding of flammable reagents in QC/QA laboratories operating under cGMP or ISO 17025 accreditation
- On-site fuel and thinner storage for maintenance workshops in pharmaceutical manufacturing facilities
- Compliant staging of hazardous materials during transportation preparation per DOT 49 CFR 173.120
- Integration into fire risk mitigation plans for academic research labs subject to NFPA 45 enforcement
FAQ
Does the SCR-12 meet UL 1275 certification requirements?
No — UL 1275 applies to explosion-proof electrical equipment. The SCR-12 complies with ANSI/SFIA Z120.1–2022 and is tested to equivalent fire resistance protocols; third-party validation reports are available upon request.
Can this cabinet be anchored to the floor or wall?
Yes — pre-drilled anchor holes are provided at the base and rear panel. Anchoring is recommended for seismic zones or high-traffic areas per ASCE 7 and local building codes.
Is grounding mandatory, and how is it implemented?
Yes — grounding is required by NFPA 77 and OSHA 1910.106. A 10 AWG copper wire must connect the supplied grounding lug to a verified earth ground point before first use.
What maintenance is required to sustain compliance?
Quarterly visual inspection of door seal integrity, latch operation, and sump cleanliness; annual verification of grounding continuity (≤25 ohms) and fusible link functionality per manufacturer guidelines.
