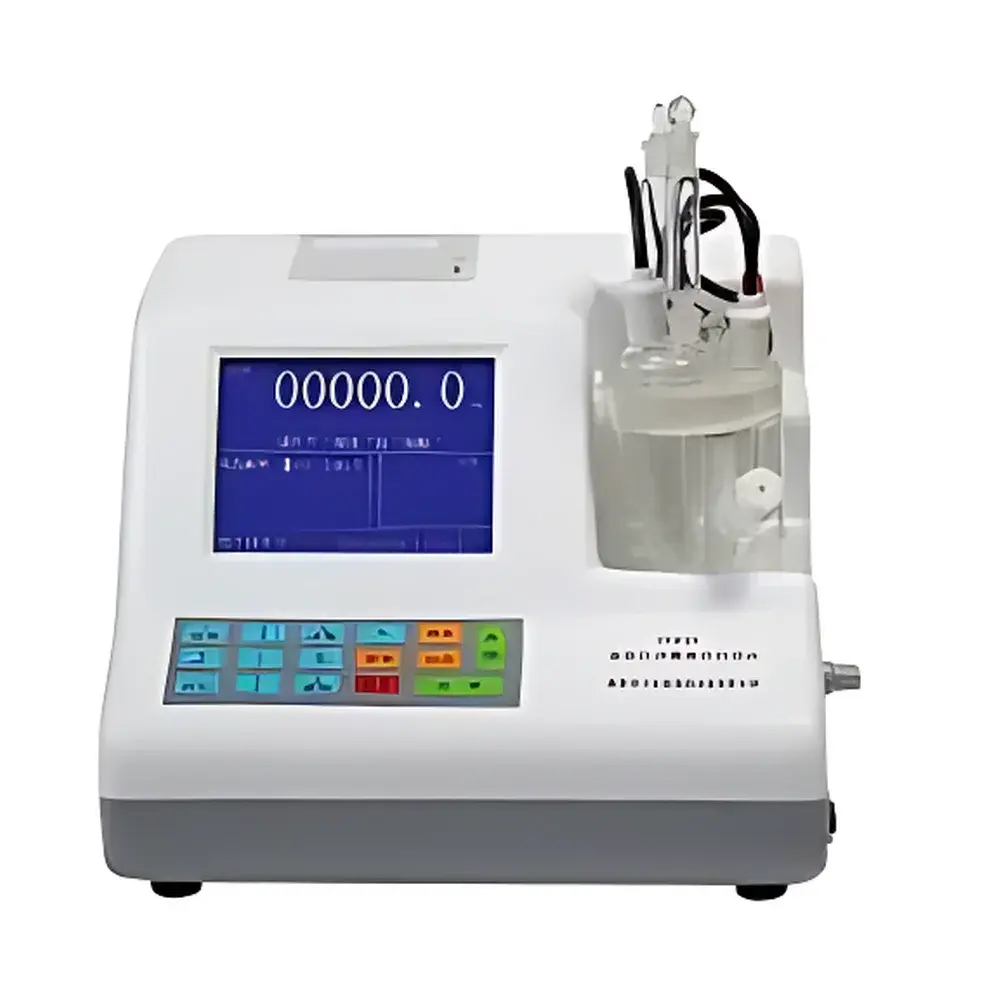

TimePower TP653 Automated Coulometric Karl Fischer Moisture Analyzer
| Brand | TimePower |
|---|---|
| Origin | Beijing, China |
| Manufacturer | TimePower Measurement & Control Co., Ltd. |
| Instrument Type | Coulometric Karl Fischer Titrator |
| Water Content Range | 1 ppm to 100% (w/w) |
| Measurement Accuracy | ≤0.3% (for samples ≥1000 µg H₂O) |
| Minimum Dispensing Increment | 1/2000 of burette volume |
| Detection Range | 3 µg – 100 mg H₂O |
| Resolution | 0.1 µg H₂O |
| Accuracy Specification | ±20% at 3 µg, ±10% at 10 µg, ±5% at 100 µg, ±0.5% at ≥100 µg (excluding sampling error) |
| Display | Chinese LCD |
| Printer | Thermal, 36-character Chinese/ASCII support |
| Operating Temperature | 5–40 °C |
| Power Supply | AC 220 V ±10%, 50 Hz ±10% |
| Power Consumption | <40 W |
| Dimensions | 300 × 290 × 200 mm |
| Weight | 3.7 kg |
Overview
The TimePower TP653 Automated Coulometric Karl Fischer Moisture Analyzer is a precision laboratory instrument engineered for trace-level water quantification in liquid and soluble solid samples using the coulometric Karl Fischer titration principle. Unlike volumetric KF systems, the TP653 generates iodine electrochemically at the anode via controlled current application—ensuring stoichiometric accuracy without manual reagent dispensing. This method delivers exceptional sensitivity down to 0.1 µg H₂O detection resolution and enables reliable quantification across a dynamic range from 1 ppm to 100% water content (w/w). Designed for compliance with international standard test methods—including ASTM D6304, ISO 760, and IEC 60814—the TP653 serves as a primary moisture measurement platform in regulated environments where repeatability, auditability, and method traceability are critical.
Key Features
- 32-bit embedded microprocessor with real-time operating system for deterministic control and low-latency response
- Coulometric titration architecture with constant-current electrolysis, eliminating burette calibration drift and reagent aging variability
- Dual-circuit balanced titration design minimizing polarization effects and improving endpoint reproducibility
- Hermetically sealed, waterproof electrolytic cell with optimized electrode geometry—reducing equilibration time by up to 40% and extending electrolyte service life
- Integrated automated reagent fill/drain system reducing operator exposure to hygroscopic solvents and minimizing ambient moisture ingress
- Real-time electrochemical curve visualization on high-contrast LCD display for immediate assessment of reagent activity and titration kinetics
- Full numeric keypad with six preprogrammed calculation formulas supporting % H₂O, ppm, mg/kg, µg/g, and custom normalization against sample mass or volume
- Non-metallic engineering plastic chassis providing ESD-safe operation, chemical resistance, and mechanical stability in multi-user lab environments
- Onboard non-volatile memory storing ≥1000 measurement records with timestamp, sample ID, operator code, and raw titration data
Sample Compatibility & Compliance
The TP653 accommodates a broad spectrum of organic and inorganic matrices including alcohols, hydrocarbons, esters, ethers, ketones, amines, organic acids, pharmaceutical intermediates, agrochemical formulations, transformer oils, and polymer precursors. Its coulometric mode is especially suited for low-water-content samples (<1000 µg H₂O per analysis), where volumetric methods suffer from pipetting uncertainty and reagent blank contributions. The instrument conforms to GB/T 7600 (electrical insulating oils), GB/T 6283 (general chemical products), SH/T 0246 (light petroleum fractions), and SH/T 0255 (lubricating oils). For GLP/GMP laboratories, the system supports user-defined audit trails, electronic signature protocols, and data export in CSV format compatible with LIMS integration. While not natively 21 CFR Part 11 compliant, its logging architecture meets foundational ALCOA+ principles (Attributable, Legible, Contemporaneous, Original, Accurate) when operated within documented SOPs.
Software & Data Management
The TP653 operates autonomously without external PC dependency. All firmware logic—including endpoint detection algorithms, background current compensation, and drift correction—is executed onboard. Measurement data includes absolute water mass (µg), calculated concentration (% or ppm), titration curve metadata (peak time, current plateau duration, cumulative charge), and environmental parameters (ambient temperature). Stored records are retrievable via scrollable menu interface and printable via integrated thermal printer with bilingual (Chinese/English) character support. Export-ready data files can be transferred via USB flash drive (not included) in plain-text CSV format—enabling post-acquisition statistical analysis in Excel, JMP, or Python-based QA workflows. Firmware updates are performed via USB, with version checksum verification ensuring integrity.
Applications
This analyzer is routinely deployed in quality control laboratories across petrochemical refineries (e.g., monitoring moisture in jet fuel per ASTM D6304), pharmaceutical manufacturing (residual solvent analysis in APIs per ICH Q5C), power generation (moisture in turbine lubricants per ASTM D1533), and fine chemical synthesis (water content validation in catalyst slurries or monomer batches). Its speed and precision make it ideal for high-throughput screening of hygroscopic excipients, lyophilized biologics, and battery electrolyte formulations where sub-10 ppm moisture levels directly impact shelf-life and electrochemical performance.
FAQ
What sample types require pretreatment prior to TP653 analysis?
Samples containing reactive carbonyls (e.g., aldehydes, ketones), strong oxidizers, or free halogens may interfere with the KF reaction and necessitate derivatization or solvent exchange. Solid samples must be fully soluble in KF anolyte/catholyte mixtures (e.g., methanol–chloroform blends) or homogenized in compatible dispersion media.
Can the TP653 perform direct analysis of gases or compressed air?
No—this is a liquid-phase coulometric system requiring dissolution or extraction of water into the electrolyte. For gas-phase moisture, dedicated chilled-mirror hygrometers or tunable diode laser analyzers are recommended.
How often must the electrolyte be replaced?
Under typical usage (5–10 analyses/day), the dual-compartment electrolyte lasts 2–4 weeks. Replacement frequency increases with high-water-load samples or elevated ambient humidity; real-time curve monitoring helps identify declining reagent activity before accuracy degradation occurs.
Is method validation documentation available?
Yes—TimePower provides instrument-specific IQ/OQ protocols aligned with ISO/IEC 17025 requirements, including linearity assessment (3–100 µg H₂O), repeatability (RSD ≤1.5% at 10 µg level), and intermediate precision testing across operators and days.
Does the TP653 support remote diagnostics or network connectivity?
Not natively. Communication is limited to USB host interface for data export and firmware updates. Ethernet or Wi-Fi modules are not supported; integration into centralized lab networks requires third-party middleware or serial-to-Ethernet converters configured externally.
