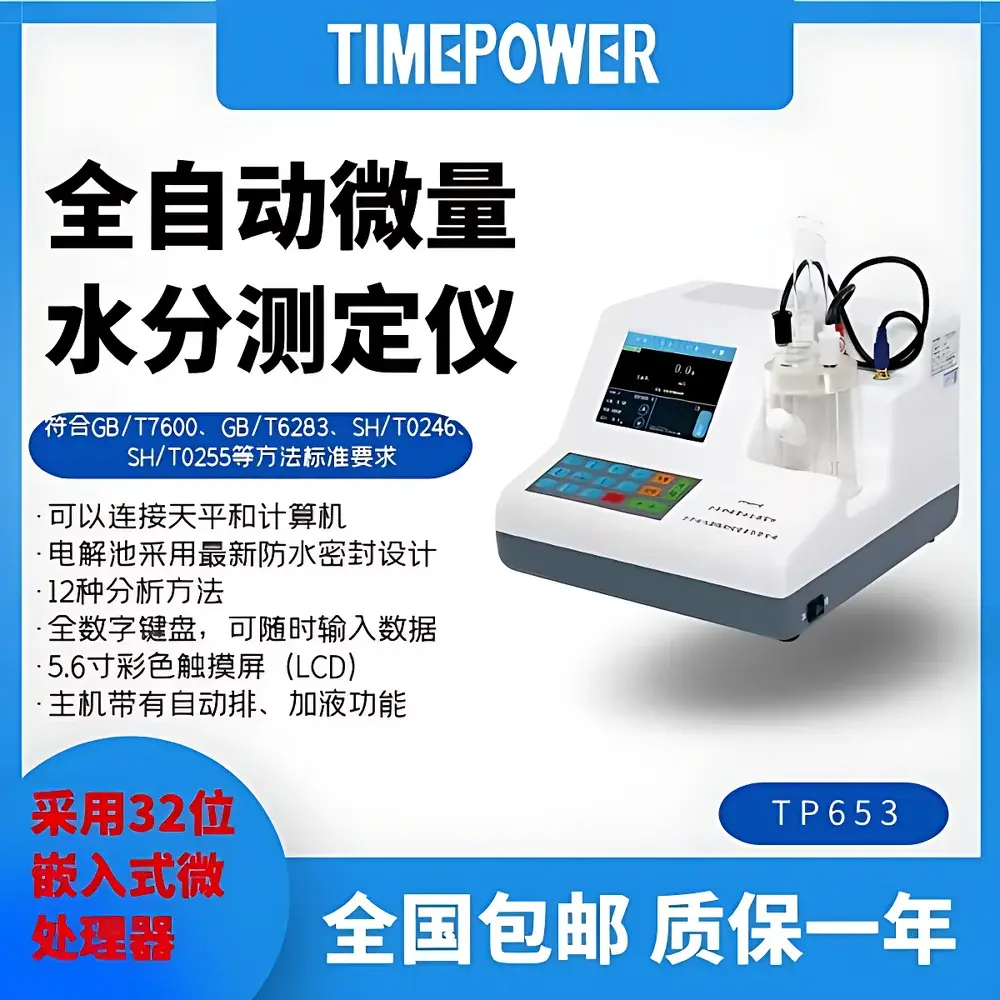

TimePower TP653 Automated Coulometric Karl Fischer Moisture Analyzer

Overview

The TimePower TP653 Automated Coulometric Karl Fischer Moisture Analyzer is a precision laboratory instrument engineered for trace-level water quantification in diverse matrices—liquids, solids, and gases—using the electrochemical principle of coulometric Karl Fischer titration. Unlike volumetric KF systems, this analyzer generates iodine electrochemically at the anode in real time, enabling direct, stoichiometric quantification of water without manual reagent dispensing. The method relies on the classic KF reaction: I₂ + SO₂ + H₂O + 3RN + CH₃OH → 2RN·HI + RN·HSO₄CH₃, where water consumption is measured via integrated current-time (Q = I × t) calculation under Faraday’s law. Designed for high reproducibility in regulated environments, the TP653 delivers sub-microgram resolution and is routinely deployed in quality control laboratories across power generation (e.g., transformer oil analysis), petrochemical refining, pharmaceutical excipient release testing, agrochemical formulation, and food-grade solvent certification.

Key Features

• 32-bit embedded microprocessor with real-time mini-OS architecture ensures deterministic response, low-latency control, and stable system uptime.
• Coulometric electrolysis cell with dual-circuit balanced titration design minimizes drift and improves signal-to-noise ratio during low-water determinations (<10 µg).
• Integrated background compensation algorithm dynamically corrects for ambient moisture ingress and reagent degradation, enhancing long-term baseline stability.
• 12 programmable analytical methods—including endpoint detection modes (fixed potential, dynamic slope, and adaptive threshold)—with capacity to store six frequently used protocols locally.
• Automatic reagent filling and waste evacuation reduce operator exposure to hygroscopic KF reagents and eliminate manual handling errors.
• Real-time electrochemical curve display (current vs. time) enables immediate assessment of reagent activity, electrode passivation, and endpoint sharpness.
• Water-tight, modular electrolytic cell with optimized electrode geometry achieves <60-second equilibration after reagent replacement and extends electrolyte service life by up to 40% versus conventional designs.
• Dual-input interface supports simultaneous connection to analytical balances (RS-232 or USB HID) and host PCs (Ethernet or USB-C), enabling GLP-compliant data capture.

Sample Compatibility & Compliance

The TP653 accommodates a broad spectrum of sample types—including polar solvents (methanol, ethanol), non-polar hydrocarbons (mineral oils, naphthas), viscous materials (polymer melts, greases), and volatile gases (via gas sampling valve)—through optional accessories such as oven samplers, headspace injectors, and solid sample adapters. All measurements adhere to internationally recognized standard test methods: ASTM D6304 (coulometric KF for petroleum products), ISO 10337 (water in crude oil), USP (moisture content in pharmaceuticals), and ICH Q5C (stability-indicating assays). Instrument firmware supports audit trail logging, user access levels, and electronic signature capability in alignment with FDA 21 CFR Part 11 requirements when operated with compliant LIMS or ELN software.

Software & Data Management

Data acquisition and reporting are managed via TimePower’s proprietary PC-based software suite, compatible with Windows 10/11 (64-bit). The software provides full traceability: each analysis record includes timestamped metadata (operator ID, balance serial number, environmental temperature/humidity if logged), raw current-time curves, calculated water mass (µg), concentration (ppm or %), relative standard deviation across replicates, and pass/fail flags against user-defined specification limits. Export formats include CSV, PDF (with digital signature), and XML for seamless integration into enterprise quality management systems (QMS). All data modifications are immutably logged with operator ID and reason code, satisfying GLP/GMP documentation integrity requirements.

Applications

• Transformer oil moisture monitoring per IEEE C57.106 and IEC 60814 to prevent dielectric breakdown.
• Residual solvent analysis in API manufacturing per ICH Q3C guidelines (e.g., acetone, dichloromethane, ethyl acetate).
• Water content verification in lithium battery electrolytes (LiPF₆ solutions) where <20 ppm H₂O is critical for SEI formation.
• Quality release testing of silicone fluids, epoxy resins, and polyurethane prepolymers where hydrolysis sensitivity dictates shelf-life.
• Moisture determination in edible oils (e.g., palm, soybean) to assess refining efficiency and oxidative stability.
• Gas-phase moisture measurement in compressed air, nitrogen blanketing streams, and SF₆ insulation gas using heated gas sampling modules.

FAQ

What distinguishes coulometric from volumetric Karl Fischer titration?
Coulometric KF generates iodine electrochemically in situ, making it ideal for samples containing 1000 µg).
Can the TP653 analyze solid samples directly?
Yes—when equipped with a dedicated solid sample kit (heated oven + quartz boat), it quantifies moisture in powders, tablets, and granules via thermally driven vapor extraction.
Is the instrument compliant with 21 CFR Part 11 for electronic records?
The hardware and firmware support Part 11 requirements; full compliance requires deployment with validated third-party LIMS/ELN software and documented administrative controls.
How often must the electrolyte be replaced?
Under typical use (≤5 analyses/day), the dual-compartment coulometric cell maintains stable performance for ≥30 days; replacement frequency increases with high-salt or acidic sample loads.
Does the system support method validation per ICH Q2(R2)?
Yes—the instrument enables systematic evaluation of specificity, linearity (1–1000 µg), accuracy (spike recovery), precision (repeatability & intermediate precision), and robustness (flow rate, temperature, stirring speed variations).
