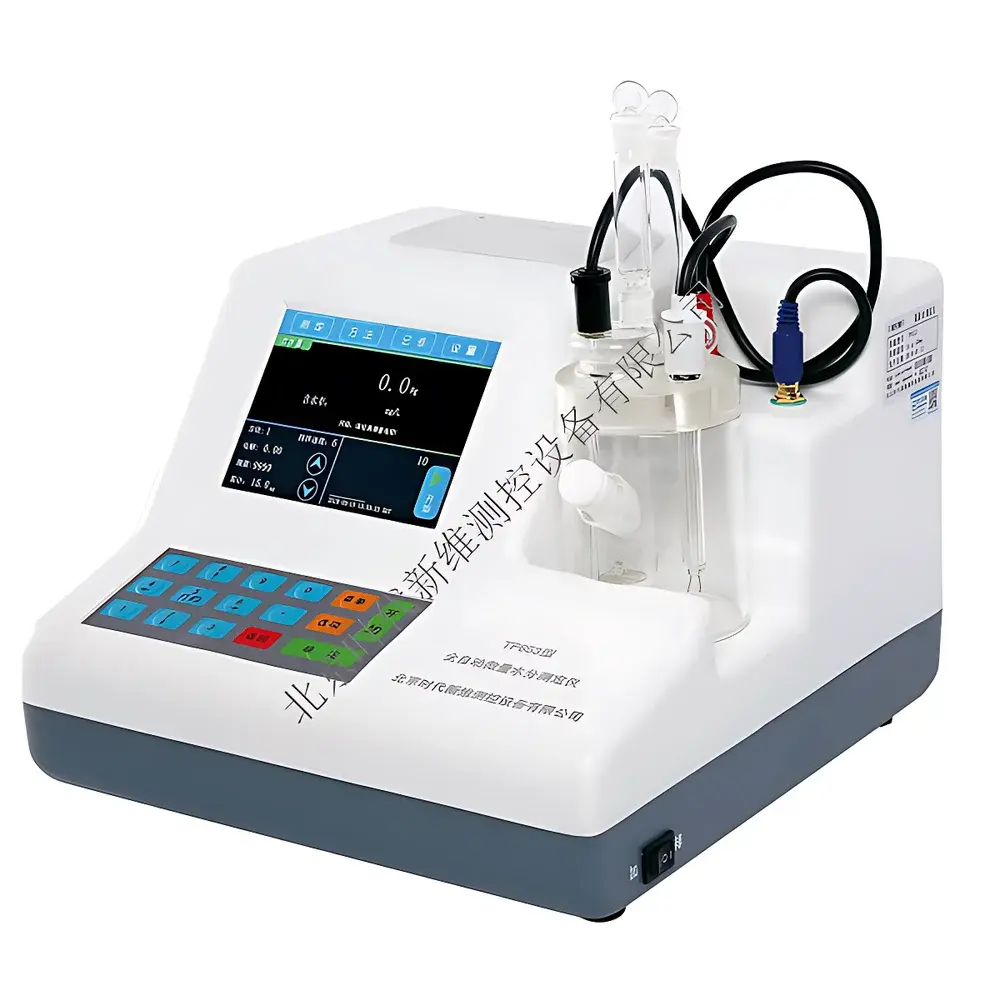

TimePower TP653 Karl Fischer Coulometric Moisture Analyzer
| Brand | TimePower |
|---|---|
| Origin | Beijing, China |
| Manufacturer Type | Direct Manufacturer |
| Instrument Type | Coulometric Karl Fischer Moisture Analyzer |
| Titration Method | Fully Automatic Coulometric Titration |
| Measurement Resolution | 0.1 µg |
| Water Content Range | 3 µg – 100 mg (H₂O) |
| Accuracy | < 0.3% RSD |
| Minimum Dispensing Increment | 1/2000 |
| Titration Control Precision | ±3 µg for 3–1000 µg |
| Display | 5.6-inch color TFT-LCD touchscreen |
| Electrolysis Current Control | 0–400 mA, auto-regulated |
| Operating Temperature | 20–30 °C |
| Relative Humidity Limit | ≤85% RH |
| Power Supply | AC 220 V ±10%, 50 Hz ±10% |
| Max. Power Consumption | ≤40 W |
| Dimensions (W×D×H) | 300 × 290 × 200 mm |
| Weight | 3.7 kg |
Overview
The TimePower TP653 Karl Fischer Coulometric Moisture Analyzer is an engineered solution for trace-level water quantification in laboratory and industrial quality control environments. It operates on the fundamental electrochemical principle of coulometric Karl Fischer titration—where iodine is generated *in situ* via controlled electrolysis at the anode, and stoichiometrically reacts with water according to the classic Karls-Fischer reaction: H₂O + I₂ + SO₂ + 3RN + CH₃OH → 2RN·HI + RN·HSO₄CH₃. The instrument measures the total charge (coulombs) required to generate the iodine consumed by water in the sample, enabling direct calculation of water mass using Faraday’s law (1 mole H₂O ≡ 2 × 96,485 C). This method eliminates reagent standardization and delivers inherently high accuracy and repeatability for samples containing water in the sub-microgram to milligram range—making it especially suitable for hygroscopic, low-water-content, or solvent-rich matrices where volumetric KF methods lack sensitivity.
Key Features
- 32-bit embedded microprocessor with real-time operating system for deterministic response and stable control loop execution.
- Auto-balancing dual-platinum electrode cell with hermetic hydrophobic seal design—reducing equilibration time by >40% and extending electrolyte service life up to 200 assays under typical conditions.
- Dynamic current regulation (0–400 mA) with adaptive feedback ensures optimal iodine generation across the full measurement range, minimizing over-titration and drift.
- Real-time electrochemical curve visualization on the 5.6-inch color LCD—enabling immediate assessment of reagent activity, endpoint sharpness, and baseline stability.
- Dual-input operation: capacitive touchscreen + tactile mechanical keys—designed for glove-compatible use and long-term reliability in regulated labs.
- Integrated fluid handling module with automatic electrolyte replenishment and waste evacuation—reducing operator exposure and eliminating manual syringe-based maintenance steps.
- Twelve programmable analysis methods, with six user-accessible slots for rapid recall—supporting method-specific parameters including drift compensation thresholds, endpoint delay, and current ramp profiles.
- Full bidirectional communication via RS-232 and USB—compatible with analytical balances (Sartorius, Mettler Toledo), LIMS, and validated PC-based data acquisition software compliant with 21 CFR Part 11 audit trail requirements.
Sample Compatibility & Compliance
The TP653 accommodates a broad spectrum of sample types—including volatile liquids (e.g., methanol, acetone, THF), viscous oils (transformer oil, lubricants), solid powders (APIs, excipients, catalysts), and dissolved gases (via headspace injection)—without modification to core hardware. Its coulometric architecture avoids volumetric dilution errors common in complex matrices and provides consistent performance across solvents with varying dielectric constants (εr = 5–40). The analyzer meets essential regulatory alignment criteria: ASTM D6304 (Standard Test Method for Determination of Water in Petroleum Products, Lubricating Oils, and Additives by Coulometric Karl Fischer Titration), ISO 12937 (Petroleum products — Determination of water — Coulometric Karl Fischer titration method), and USP <921> (Water Determination). When deployed with documented SOPs and electronic signature-enabled software, it supports GLP and GMP audit readiness per FDA and EMA expectations.
Software & Data Management
Data integrity is maintained through built-in timestamped event logging—including method selection, sample ID entry, start/stop times, electrode status, cumulative charge, and final water mass—with immutable storage in non-volatile memory. Export formats include CSV and PDF reports with embedded metadata (operator ID, instrument serial number, calibration history). Optional PC software provides advanced features: multi-user role-based access control, electronic signatures, automated report generation with configurable templates, and integration with enterprise LIMS via HL7 or ASTM E1384 protocols. All electronic records comply with ALCOA+ principles (Attributable, Legible, Contemporaneous, Original, Accurate, Complete, Consistent, Enduring, Available) and support retrospective review during regulatory inspections.
Applications
- Pharmaceutical manufacturing: Quantification of residual moisture in lyophilized biologics, active pharmaceutical ingredients (APIs), and tablet granulations per ICH Q5C and Q6A guidelines.
- Power industry: Monitoring water content in insulating oils (IEC 60814, ASTM D1533) to prevent dielectric breakdown and transformer aging.
- Petrochemical QC: Trace water analysis in jet fuels (ASTM D6304), biodiesel (EN 14971), and polymer-grade monomers (ethylene, propylene) where ppm-level H₂O induces catalyst poisoning.
- Chemical R&D: Stability testing of organometallic reagents, Grignard compounds, and lithium battery electrolytes—where water content directly impacts reaction yield and shelf life.
- Food & flavor chemistry: Verification of anhydrous conditions in essential oil distillation, emulsifier synthesis, and low-moisture snack formulations.
FAQ
What sample volume or mass is recommended for optimal accuracy?
For liquids, 1–50 µL (via calibrated microsyringe); for solids, 1–500 mg—adjusted to ensure total water content falls within the 10–80% span of the 3 µg–100 mg dynamic range.
How often must the electrolyte be replaced?
Replacement is triggered when the cumulative charge approaches 95% of the pre-configured reagent capacity or when baseline drift exceeds 0.5 µA for >60 s—typically after 150–200 analyses under standard operating conditions.
Is ventilation required during operation?
Yes. The KF reagent contains pyridine and methanol—both toxic and flammable. All sample introductions and electrolyte handling must occur inside a certified fume hood meeting EN 14175 standards.
Can the instrument be validated for GMP use?
Yes. IQ/OQ/PQ protocols are available upon request, including system suitability tests (e.g., 1.0 mg water standard recovery ≥97.5–102.5%), linearity verification (R² ≥0.999), and precision assessment (n=6, RSD ≤0.25% at 100 µg level).
Does the TP653 support remote diagnostics or firmware updates?
Firmware updates are performed via USB drive with cryptographic signature verification; remote diagnostic access is disabled by default and only enabled under secure, authenticated VPN sessions per customer IT policy.
