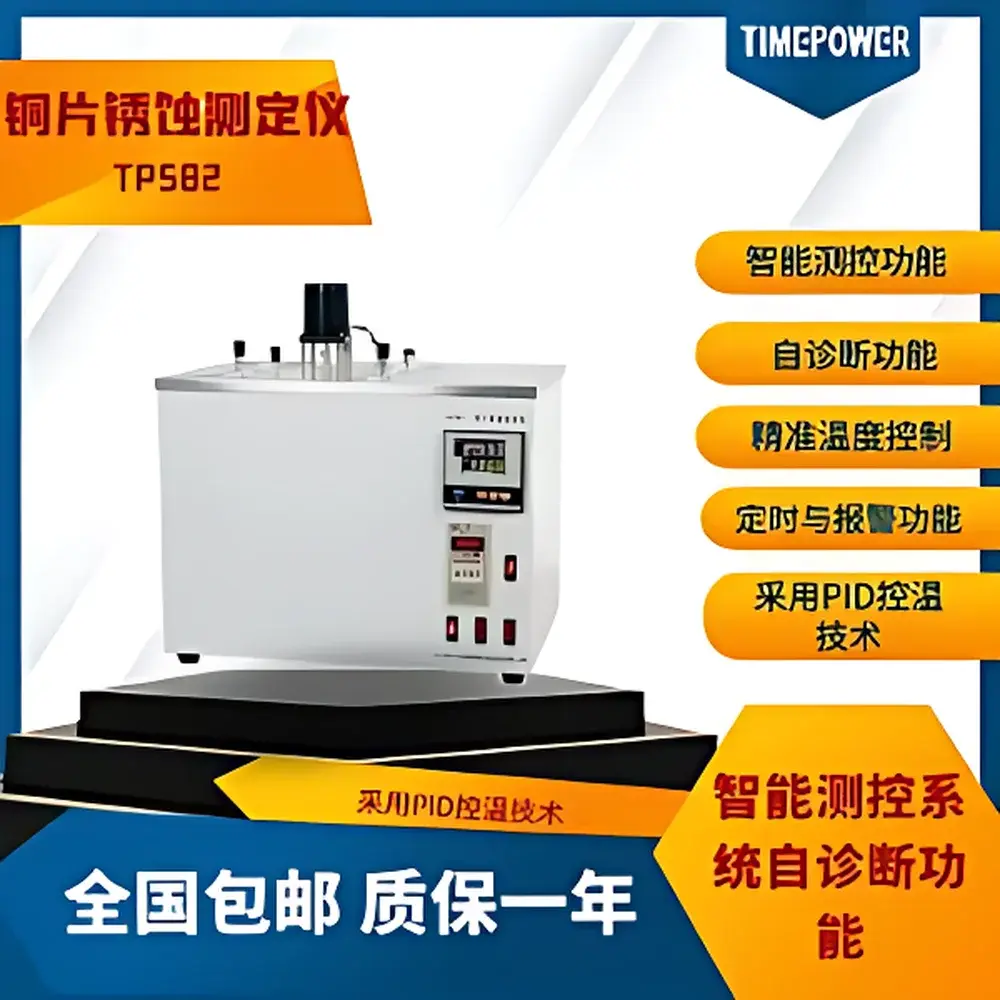

TIMEPOWER582 Copper Strip Corrosion Tester for Petroleum Products

Overview

The TIMEPOWER582 Copper Strip Corrosion Tester is a precision-engineered laboratory instrument designed to evaluate the corrosive tendency of petroleum-based hydrocarbon liquids toward copper surfaces under standardized thermal exposure conditions. It operates on the principle of controlled immersion testing: polished copper strips are immersed in the test sample and heated for a defined duration at a precisely regulated temperature. Following exposure, the strips are visually compared against standardized ASTM or ISO color charts to assign a corrosion rating—ranging from Class 1a (no discoloration) to Class 4 (severe darkening or pitting). This method is grounded in well-established electrochemical surface interaction principles and reflects real-world compatibility concerns in fuel handling, storage, and engine systems where copper-containing components (e.g., fuel lines, heat exchangers, sensors) are exposed to refined products.

Key Features

• Four independently isolated sample chambers enable parallel testing of up to four specimens per cycle, minimizing inter-sample thermal cross-talk and improving reproducibility.
• Dual-stage heating architecture: primary 600 W resistive heating for stable baseline temperature maintenance, supplemented by 1000 W auxiliary power for rapid ramp-up and recovery after sample insertion.
• High-fidelity temperature control system utilizing industrial-grade Pt100 platinum resistance thermometers with 0.01 °C resolution and ±0.1 °C accuracy across the full 0–150 °C operating range.
• Digitally programmable timer (1 minute to 24 hours) with automatic cut-off and audible alert, ensuring strict adherence to test duration requirements specified in ASTM D130 and GB/T 5096.
• Robust stainless-steel housing with insulated chamber walls and forced-air ventilation design to maintain ambient thermal stability and prevent external heat radiation interference.
• Compliant with international safety standards including IEC 61010-1 for electrical equipment used in laboratory environments.

Sample Compatibility & Compliance

The TIMEPOWER582 supports testing of a broad spectrum of volatile and non-volatile petroleum derivatives, including aviation gasoline, jet fuels (Jet A-1, JP-5), automotive gasoline, naphthas, solvent oils, diesel fuels (EN 590, ASTM D975), distillate fuel oils, lubricating oils, greases, and biodiesel blends (B5–B20). Its design conforms rigorously to the procedural and apparatus requirements of ASTM D130 (Standard Test Method for Corrosivity of Petroleum Products to Copper), ASTM D4048 (for natural gas liquids), ISO 6251 (petroleum products — determination of copper strip corrosion), GB/T 5096 (Chinese national standard), GB/T 7326 (lubricant corrosion testing), SH/T 0232 (liquefied petroleum gas), and SH/T 0023 (diesel fuel corrosion assessment). All critical operational parameters—including temperature uniformity, immersion depth, and bath geometry—are validated against these standards to ensure regulatory acceptability in QC laboratories conducting GLP-compliant or ISO/IEC 17025-accredited testing.

Software & Data Management

While the TIMEPOWER582 operates as a standalone benchtop unit with front-panel digital interface, its operational logs—including setpoint temperature, actual bath temperature (recorded at 10-second intervals), elapsed time, and user-defined test ID—can be exported via optional RS-232 or USB-to-serial interface to external data acquisition software. When integrated into a LIMS environment, the device supports audit-trail generation for temperature and timing events, fulfilling traceability requirements under FDA 21 CFR Part 11 for electronic records in regulated petroleum refining and distribution facilities. Calibration certificates for the Pt100 sensor and temperature verification reports are provided with each unit and may be renewed annually per ISO/IEC 17025 calibration protocols.

Applications

• Quality assurance in refinery final product release, especially for jet fuel batches destined for aviation certification (ASTM D1655 Annex A2).
• Monitoring sulfur compound degradation and mercaptan oxidation during fuel storage and pipeline transport.
• Evaluating additive package stability in lubricants exposed to elevated temperatures over extended periods.
• Investigating copper corrosion mechanisms in biofuel blends where organic acids or oxidation byproducts may accelerate surface attack.
• Supporting root-cause analysis in field failures involving copper-alloy fuel system components.
• Research and development of low-corrosivity alternative fuels and synthetic hydrocarbons.

FAQ

What standards does the TIMEPOWER582 fully comply with?
It meets all apparatus and procedural specifications outlined in ASTM D130, ASTM D4048, ISO 6251, GB/T 5096, GB/T 7326, SH/T 0232, and SH/T 0023.
Can the instrument test samples with high vapor pressure?
Yes — it is routinely used for aviation gasoline and other hydrocarbons with Reid Vapor Pressure (RVP) ≤ 93 kPa (700 mmHg), provided sealed test cells and proper ventilation protocols are followed.
Is calibration documentation included?
Each unit ships with a factory calibration certificate for the Pt100 sensor, traceable to NIM (National Institute of Metrology, China), and includes instructions for periodic verification using certified reference thermometers.
How many copper strips can be evaluated per day?
With four chambers and programmable cycle times as short as 1 hour, up to 96 strips can be processed in a 24-hour period using sequential batch loading and manual strip replacement.
Does the system support remote monitoring or network integration?
Native Ethernet or Wi-Fi capability is not built-in, but third-party SCADA or LabVIEW integration is feasible via its serial communication port and documented ASCII command protocol.
