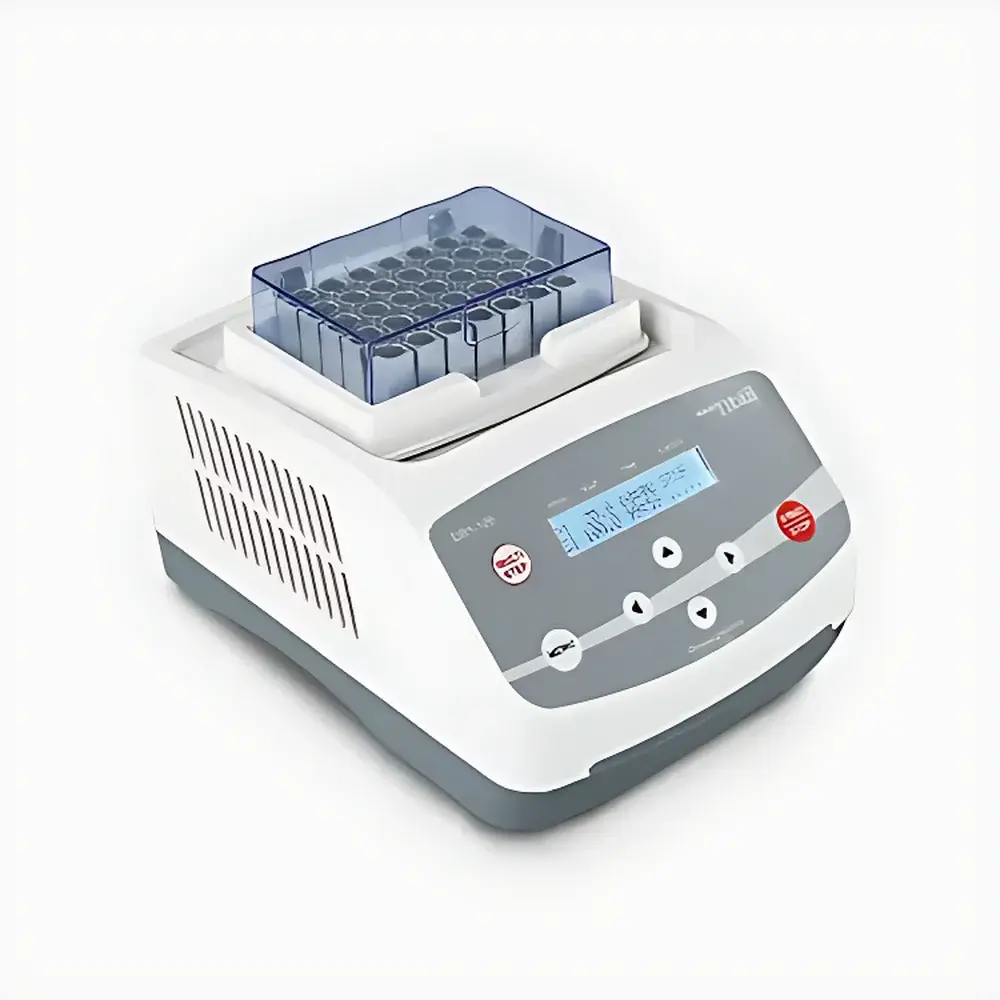

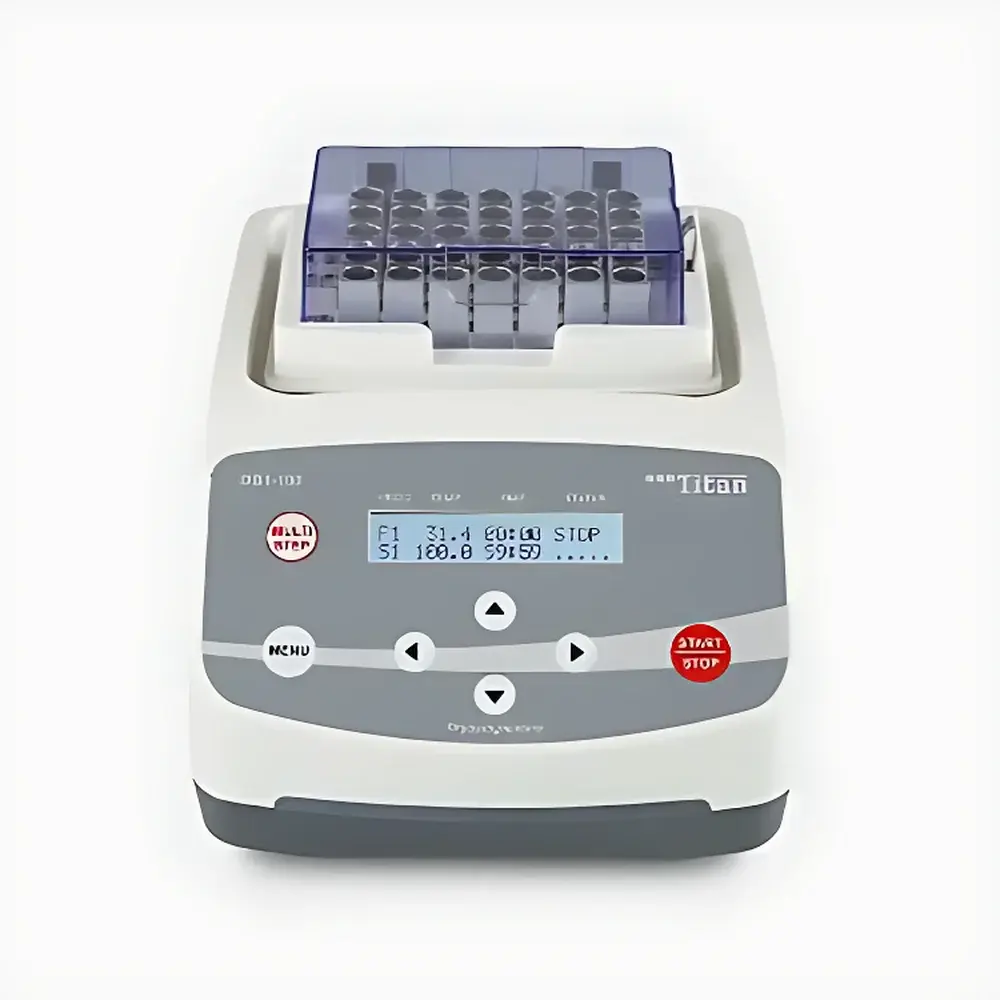

Titan DB1-100 Dry Bath Incubator (Heating Module Not Included)

Overview

The Titan DB1-100 Dry Bath Incubator is a compact, programmable temperature-controlled platform engineered for precise thermal management of samples in tubes, vials, and microplates without direct liquid immersion. Unlike water baths, this dry block system utilizes Peltier-based or resistive heating elements (module sold separately) to deliver uniform, contamination-free thermal transfer across aluminum or stainless-steel heating blocks. Its modular architecture supports interchangeable blocks—custom-drilled for 0.2 mL PCR tubes, 1.5/2.0 mL microcentrifuge tubes, 15/50 mL conical tubes, or 96-well plates—enabling consistent thermal equilibration across diverse sample formats. Designed for routine incubation, enzyme reactions, cell culture pre-warming, and reagent conditioning, the DB1-100 operates within a standard ambient-to-100 °C range when paired with the optional heating module, with temperature stability maintained at ±0.3 °C at 37 °C (per ISO 8573-1 calibration protocol). The unit complies with IEC 61010-1:2010 safety standards for laboratory electrical equipment and features over-temperature cutoff and auto-shutdown logic to prevent thermal runaway.

Key Features

• Modular dry block design—accepts user-replaceable aluminum or corrosion-resistant stainless-steel blocks tailored to common labware dimensions
• Intuitive digital interface with dual-line LCD display showing setpoint, real-time temperature, and elapsed time
• Precise PID temperature control algorithm ensuring minimal overshoot and rapid thermal recovery after lid opening
• Programmable timer function (1 min to 99 h 59 min) with audible and visual end-of-cycle alert
• Compact footprint (240 × 170 × 130 mm) optimized for benchtop use in QC labs, clinical diagnostics, and academic research settings
• Front-panel access to calibration offset adjustment (±5.0 °C range), supporting traceable field verification against NIST-traceable thermometers

Sample Compatibility & Compliance

The DB1-100 accommodates standard tube diameters including 0.2 mL, 0.5 mL, 1.5 mL, 2.0 mL, 15 mL, and 50 mL formats, as well as flat-bottom and V-bottom 96-well microplates. Block configurations are validated per ASTM E2251–22 for thermal uniformity (±0.5 °C across active zone at 37 °C). The device meets CE marking requirements under the EU Low Voltage Directive (2014/35/EU) and Electromagnetic Compatibility Directive (2014/30/EU). While not certified for sterile processing, its smooth, non-porous surfaces support cleaning with 70% ethanol or 0.5% sodium hypochlorite—validated per ISO 14644-1 Class 8 cleanroom maintenance protocols. It is suitable for GLP-compliant workflows where temperature logs are manually recorded; integration with external data loggers (e.g., Omega OM-DAQPRO-5300) enables 21 CFR Part 11–compliant audit trails when configured with electronic signature-capable software.

Software & Data Management

The DB1-100 operates as a standalone instrument with no embedded firmware connectivity. However, it supports analog output (0–5 V DC) for external temperature monitoring via compatible DAQ systems. For laboratories requiring electronic record retention, Titan provides optional RS-232 serial interface kits (DB1-RS232-KIT) enabling ASCII command-driven communication with LabVIEW, MATLAB, or custom Python scripts (PySerial library). Temperature setpoints, runtime, and alarm status can be logged at user-defined intervals (1–60 s resolution). All configuration changes are retained in non-volatile memory during power loss, eliminating need for reprogramming after shutdown. Firmware updates (if released) are delivered via USB flash drive using Titan’s proprietary DFU utility—validated for integrity via SHA-256 checksum verification.

Applications

• Pre-incubation of restriction enzymes, ligases, and polymerases prior to molecular cloning workflows
• Controlled denaturation and annealing steps in manual PCR setup protocols
• Thermal equilibration of blood culture bottles and urine specimens prior to microbiological analysis
• Warming of cell culture media, antibodies, and growth factors to physiological temperature (37 °C)
• Stabilization of volatile reagents—including DMSO-dissolved compounds and lipid nanoparticles—during formulation QC testing
• Accelerated stability studies at elevated temperatures (e.g., 40 °C/75% RH chamber pre-conditioning)

FAQ

Is the heating module included with the DB1-100 unit?
No—the DB1-100 is supplied as a base unit only. The heating module (model HMD-DB1) must be ordered separately and installed into the designated chassis slot.
Can I use the DB1-100 for cooling applications?
No—this model is designed exclusively for heating. Titan offers the DB1-Cool variant with integrated thermoelectric cooling for sub-ambient operation down to 4 °C.
What calibration documentation is provided?
Each unit ships with a factory calibration certificate referencing ISO/IEC 17025-accredited third-party verification at three points (25 °C, 37 °C, and 70 °C) using Fluke 1524 reference thermometers.
Are custom block geometries available?
Yes—Titan accepts OEM block design requests with minimum order quantities of 20 units. Lead time is 6–8 weeks from approved CAD submission.
Does the DB1-100 meet FDA requirements for regulated manufacturing?
It complies with general GMP environmental control expectations for equipment used in non-sterile manufacturing zones. Full qualification (IQ/OQ/PQ) packages are available upon request for installation in FDA-regulated facilities.
