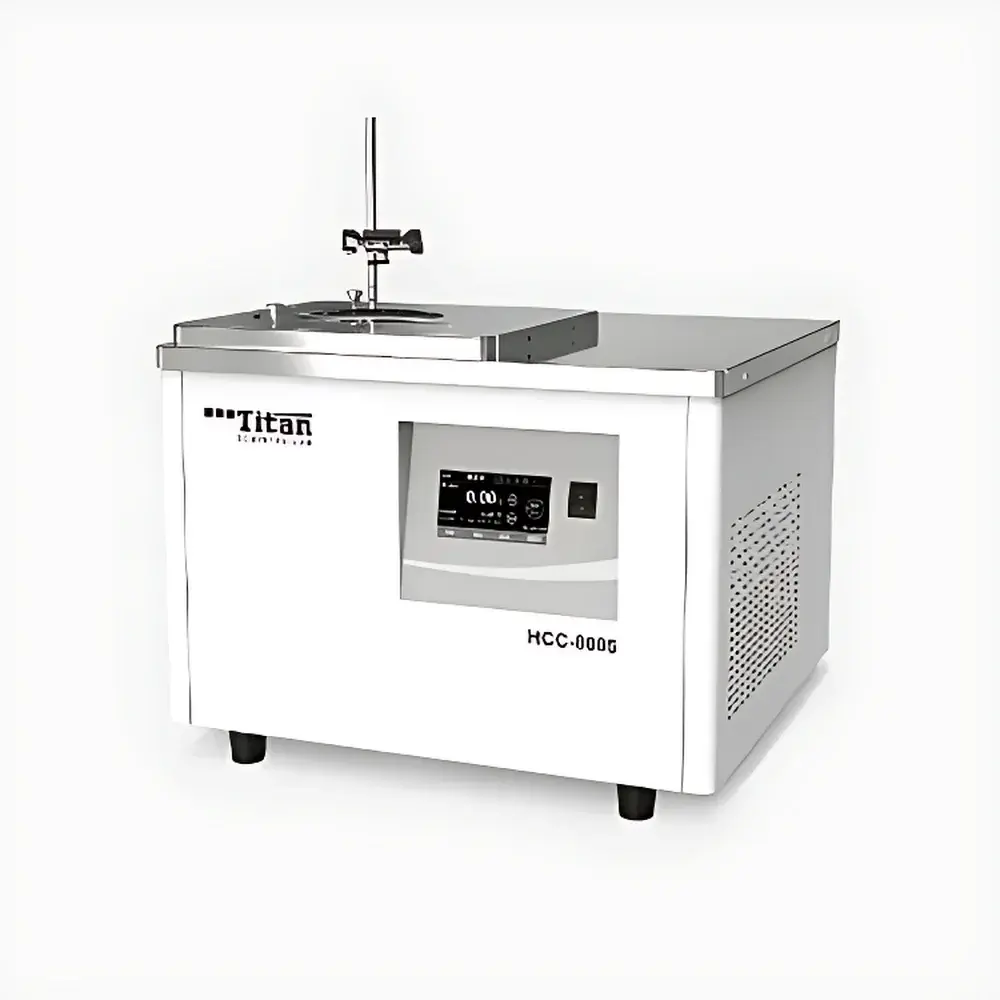

Titan HCC-8005 Precision Temperature-Controlled Magnetic Stirring Cryo-Bath

Overview

The Titan HCC-8005 Precision Temperature-Controlled Magnetic Stirring Cryo-Bath is an integrated laboratory platform engineered for simultaneous low-temperature control, precise magnetic agitation, and long-duration thermal stability in demanding reaction and sample conditioning workflows. Unlike conventional water or oil baths, the HCC-8005 employs a closed-loop refrigeration system with cascade compressor architecture—capable of achieving and maintaining temperatures from −80 °C to +20 °C without external coolant circulation. Its core operation relies on Peltier-assisted pre-cooling combined with high-efficiency vapor-compression refrigeration, enabling rapid thermal equilibration and minimal temperature overshoot. The built-in dual-mode stirring mechanism features a digitally regulated DC motor driving a corrosion-resistant ceramic-coated stir bar via magnetic coupling, delivering consistent torque across the full temperature range—including at sub-zero conditions where viscosity and thermal contraction pose mechanical challenges. Designed for use in synthetic chemistry, low-temperature enzymology, cryo-crystallization, and QC stability testing, the HCC-8005 meets functional requirements aligned with ISO/IEC 17025-compliant laboratories performing method validation under controlled environmental parameters.

Key Features

• Wide operational temperature span: −80 °C to +20 °C, validated per IEC 61000-4-30 for thermal stability under load (±0.1 °C typical deviation at steady state)
• Selectably high-resolution temperature display and control: user-configurable resolution of 0.1 °C, 0.01 °C, or 0.001 °C—enabling fine-tuning for kinetic studies requiring sub-millidegree repeatability
• Programmable timer with extended duration capability: 0–999 h 59 min, supporting unattended overnight or multi-day reaction protocols with automatic shutdown or hold mode
• Rugged stainless-steel bath chamber with reinforced silicone-sealed lid and integrated condensation management channel to prevent ice accumulation on controls and sensors
• Dual-sensor feedback architecture: Pt1000 resistance thermometer (primary) and redundant thermistor (secondary), both calibrated traceably to NIST standards
• EMI-hardened magnetic drive system with brushless DC motor and real-time RPM monitoring—ensuring consistent stirring performance even at −60 °C in high-viscosity media

Sample Compatibility & Compliance

The HCC-8005 accommodates standard laboratory vessels including jacketed reactors (up to 5 L volume), cylindrical glass beakers (Ø50–120 mm), and custom cryo-vials mounted in aluminum block inserts. Its bath depth (120 mm) and uniformity profile (±0.3 °C across 100 mm diameter zone at −40 °C) support reproducible heat transfer for ASTM E2847-21 thermal validation protocols. The unit complies with CE marking directives (2014/30/EU EMC, 2014/35/EU LVD), RoHS 2015/863/EU, and carries factory calibration certificates compliant with ISO/IEC 17025:2017 Clause 6.5. All firmware and hardware design follow GLP principles—audit trails for temperature setpoint changes, timer activation, and error logs are retained internally for ≥30 days and exportable via USB-C interface.

Software & Data Management

While the HCC-8005 operates autonomously via its front-panel touchscreen interface, optional PC connectivity (USB-C or RS-485) enables integration into centralized lab data systems. Titan’s free LabLink™ software (Windows/macOS) provides real-time graphing, configurable alarm thresholds, and CSV export of timestamped temperature/stirring/RPM datasets. All logged data includes embedded metadata: operator ID (optional login), instrument serial number, firmware version, and UTC timestamps synchronized via NTP upon network connection. For regulated environments, optional 21 CFR Part 11-compliant add-on modules provide electronic signatures, role-based access control, and immutable audit trail generation—fully compatible with LIMS and ELN platforms.

Applications

• Low-temperature Grignard and organolithium reactions requiring strict thermal control below −50 °C
• Controlled crystallization of pharmaceutical intermediates under isothermal supersaturation conditions
• Stability assessment of biologics and mRNA-lipid nanoparticles at accelerated cold-chain storage temperatures
• Calibration of cryogenic reference sensors and thermocouples per ISO/IEC 17025 Annex A.4
• In-process monitoring of polymerization exotherms in batch reactors using external PT100 probes immersed in the bath medium
• Pre-conditioning of gas chromatography inlet liners and detectors prior to low-ppb VOC analysis

FAQ

What refrigerant is used in the HCC-8005 cooling system?

R-513A (azeotropic blend of R-1234yf and R-134a), classified as low-GWP (GWP = 631) and non-ozone-depleting per Montreal Protocol Annex A, Group II.
Can the unit maintain −80 °C with a 500 mL glass beaker containing ethanol?

Yes—tested with 500 mL anhydrous ethanol under ambient 25 °C conditions; achieves −78.5 °C within 112 minutes and sustains ±0.15 °C stability over 8 hours.
Is external ventilation required for continuous operation at −80 °C?

Yes. Minimum 300 cm² unobstructed rear grille clearance and ambient room temperature ≤25 °C recommended for sustained sub−70 °C operation.
Does the magnetic stirring function remain active during ramp-down to −80 °C?

Yes—the drive electronics dynamically adjust current to compensate for increased magnetic reluctance at low temperatures; stirring remains uninterrupted throughout the entire thermal cycle.
What calibration documentation is supplied with the unit?

Factory calibration report (traceable to NIST SRM 1750a), certificate of conformance (EN ISO 9001:2015), and user-accessible calibration adjustment utility for field verification of temperature and timer accuracy.
