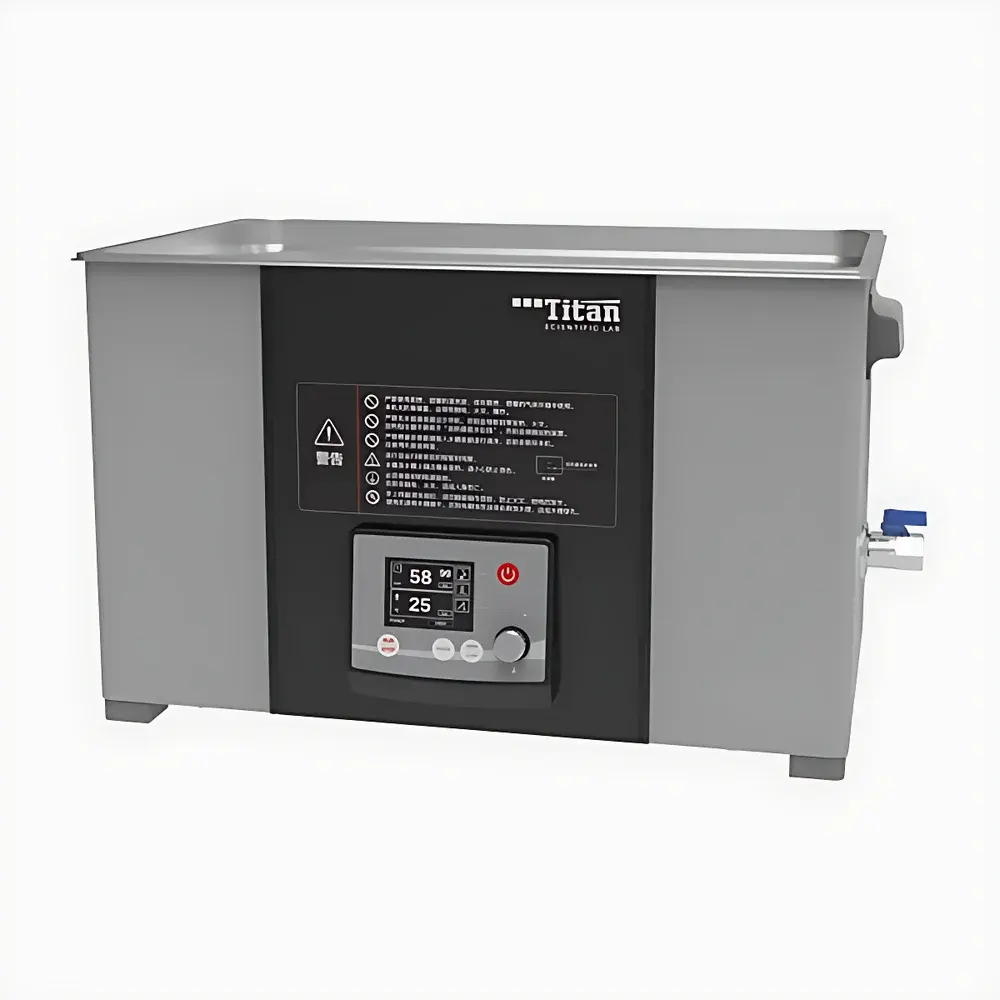

Titan SUC-20 General-Purpose Ultrasonic Cleaner

Overview

The Titan SUC-20 is a robust, entry-level general-purpose ultrasonic cleaner engineered for routine laboratory and light industrial cleaning applications. It operates on the principle of acoustic cavitation—where high-frequency sound waves (37 kHz) generate microscopic vacuum bubbles in the cleaning solution; upon collapse, these bubbles release localized energy sufficient to dislodge particulate contaminants, oils, and loosely adhered residues from submerged surfaces. Designed for reliability and ease of operation, the SUC-20 delivers consistent cleaning performance across standard aqueous or mild solvent-based solutions without requiring temperature control or variable power modulation. Its fixed-frequency, fixed-power architecture ensures mechanical stability and long-term repeatability under continuous use in QC labs, electronics assembly support areas, and academic teaching laboratories.

Key Features

• Stainless steel tank (304 grade) with 22.5 L usable volume, optimized for batch processing of glassware, metal parts, printed circuit boards, and small instrumentation components.
• 37 kHz ultrasonic transducer array bonded to the tank bottom, delivering uniform energy distribution across the entire bath—minimizing dead zones and ensuring reproducible cleaning efficiency.
• Digital timer with precise 1-minute resolution (1–99 min), enabling strict adherence to standardized cleaning protocols and supporting traceable process documentation.
• Integrated drain valve and fill port facilitate rapid solution exchange and residue removal—critical for maintaining bath integrity when switching between cleaning chemistries or performing maintenance.
• Compact footprint (W × D × H ≈ 520 × 300 × 320 mm) allows seamless integration into benchtop workflows without compromising accessibility or ventilation requirements.
• No built-in heating element or lid—intentionally designed for ambient-temperature operation with external thermal management where required, reducing electrical complexity and enhancing safety compliance in non-sterile environments.

Sample Compatibility & Compliance

The SUC-20 accommodates a broad range of sample geometries and materials, including borosilicate glassware (vials, beakers, pipettes), stainless steel tools, aluminum fixtures, and ceramic substrates. It is not intended for sterilization or bio-decontamination but supports pre-cleaning steps aligned with ISO 15883-1 (washer-disinfectors) and ASTM D4169 (performance testing of cleaning processes). As a Class I electrical appliance per IEC 61010-1, it meets basic safety requirements for laboratory equipment. While lacking integrated temperature regulation or data logging, its mechanical simplicity supports GLP-aligned manual recordkeeping when used within defined SOPs—particularly in non-regulated R&D or educational settings.

Software & Data Management

The SUC-20 operates via a standalone front-panel interface with no embedded microprocessor, network connectivity, or software dependency. All operational parameters are set manually using physical controls: timer dial and on/off switch. This architecture eliminates firmware vulnerabilities, reduces calibration overhead, and ensures full operational transparency—ideal for environments where audit trails rely on operator logs rather than electronic records. For laboratories implementing 21 CFR Part 11–compliant workflows, the unit may be incorporated into broader cleaning validation protocols via external time-stamped logbooks or integrated into automated lab systems via relay-controlled external timers (not supplied).

Applications

• Routine decontamination of analytical glassware prior to spectrophotometric or chromatographic analysis.
• Removal of flux residues and solder particles from PCB assemblies in electronics prototyping labs.
• Pre-cleaning of metal calibration standards, reference weights, and metrology tools before surface inspection.
• Supporting sample preparation in environmental testing labs—including filter housings, sampling bottles, and extraction vessels.
• Basic instrument maintenance—cleaning ultrasonic probe housings, electrode holders, and reusable sensor mounts.
• Teaching laboratory use for demonstrating cavitation physics, cleaning kinetics, and solvent compatibility principles.

FAQ

Is the SUC-20 suitable for cleaning delicate optical components?

No—its fixed 37 kHz frequency and absence of degassing or sweep modes limit suitability for fragile optics, thin films, or MEMS devices. For such applications, a swept-frequency or multi-frequency system with adjustable power is recommended.
Can this unit be used with flammable solvents?

Not without external explosion-proof modifications. The SUC-20 lacks intrinsically safe design certification (e.g., ATEX or UL 60079) and must only be operated with aqueous or flash-point–safe solutions in well-ventilated areas.
Does the tank include a basket or rack?

A standard stainless steel mesh basket is included as standard equipment to elevate samples above sediment and ensure unobstructed cavitation exposure.
What is the expected service life of the transducers?

Under normal usage (≤6 h/day, regular solution changes, and avoidance of dry operation), the bonded piezoelectric transducers typically maintain >95% nominal output for 5+ years—consistent with industry benchmarks for fixed-frequency industrial cleaners.
Is technical support available outside mainland China?

Yes—Titan provides English-language documentation, remote troubleshooting guidance, and authorized distributor networks across Southeast Asia, the Middle East, and Latin America. Firmware updates are not applicable; mechanical service manuals and spare parts lists are available upon request.
