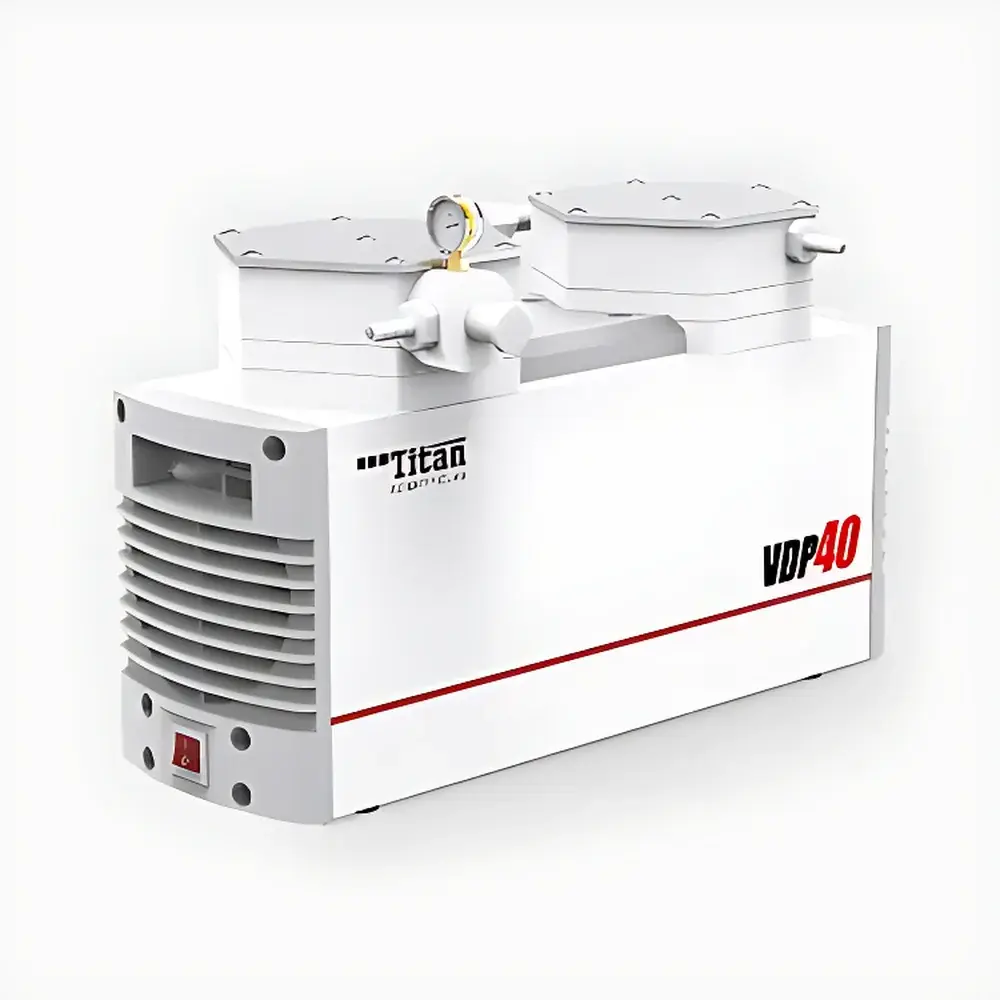

Titan VDP-40 Chemical-Resistant Diaphragm Vacuum Pump

Overview

The Titan VDP-40 is an oil-free, chemically resistant diaphragm vacuum pump engineered for continuous, reliable operation in demanding laboratory environments. Designed around a corrosion-resistant PTFE-coated diaphragm and stainless steel (316 SS) valve assembly, it delivers stable vacuum performance without lubricating oils—eliminating risk of sample contamination, oil backstreaming, or maintenance downtime associated with traditional rotary vane pumps. Its core operating principle relies on reciprocating motion of the elastomeric diaphragm driven by an eccentric cam mechanism, generating suction and exhaust cycles that evacuate gas from connected systems. With an ultimate vacuum level of 8 mbar under no-load conditions and a nominal pumping speed of 40 L/min at atmospheric pressure, the VDP-40 is optimized for applications requiring moderate vacuum levels and chemical inertness—including solvent evaporation, filtration under reduced pressure, vacuum drying, and inert atmosphere purging.

Key Features

• Chemical resistance engineered into critical wetted components: PTFE-coated diaphragm, FKM (Viton®) seals, and 316 stainless steel pump head and valves—ensuring compatibility with aggressive solvents (e.g., acetone, dichloromethane, ethanol, HCl fumes) and acidic/basic vapors.
• Oil-free operation eliminates need for oil changes, filter replacements, or vapor traps—reducing total cost of ownership and supporting ISO/IEC 17025-compliant lab workflows where trace hydrocarbon interference must be avoided.
• Compact, low-noise architecture (≤52 dB(A) at 1 m) with integrated anti-vibration feet enables benchtop deployment in shared analytical labs, QC suites, and teaching laboratories without acoustic disruption.
• Thermally protected 120 W induction motor ensures stable torque delivery across voltage fluctuations (220–240 V AC, 50 Hz), with automatic thermal cutoff to prevent coil damage during extended duty cycles.
• Modular design supports field-replaceable diaphragms and valve kits—enabling rapid maintenance without specialized tools or external service technicians.

Sample Compatibility & Compliance

The VDP-40 is validated for use with non-explosive, non-particulate, and non-condensable gas streams typical of preparative chemistry, pharmaceutical QA/QC, and environmental sample preparation. It is not rated for explosive atmospheres (ATEX), high-humidity condensable vapors (>30% relative humidity without cold trap), or abrasive particulates. While not certified to UL/CSA or CE for medical device manufacturing, its construction complies with general-purpose laboratory equipment safety standards (IEC 61010-1). When integrated into GLP- or GMP-regulated processes, users should validate pump performance per SOPs aligned with USP Analytical Instrument Qualification and maintain calibration records for vacuum level verification using traceable digital gauges.

Software & Data Management

As a standalone mechanical vacuum source, the VDP-40 does not incorporate embedded firmware, digital interfaces (e.g., RS-232, USB, or Ethernet), or software control. It operates via simple on/off switch actuation and is compatible with external vacuum controllers (e.g., Vacuubrand VACUU·SELECT or KNF N860.3T) when programmable pressure setpoints or staged evacuation profiles are required. For audit-trail compliance in regulated environments, integration with PLC-based lab automation systems is achievable through dry-contact relay output (optional accessory) and analog 0–10 V vacuum feedback signal (requires external transducer).

Applications

• Routine rotary evaporation of organic solvents in synthetic chemistry labs
• Vacuum-assisted gravity and pressure filtration in analytical sample prep (e.g., EPA Method 1664B, ASTM D892)
• Drying of moisture-sensitive reagents and hygroscopic solids in inert gloveboxes or desiccators
• Gas sampling and purge-and-trap concentration in environmental testing (e.g., VOC analysis per EPA TO-17)
• Support vacuum for HPLC degassers, mass spectrometer inlets, and lyophilizer primary condensers (within specified vacuum range)

FAQ

Is the VDP-40 suitable for pumping corrosive acid vapors such as HCl or HF?
Yes—when operated within its specified temperature and concentration limits, the PTFE/FKM/316SS wetted path provides robust resistance to HCl vapor; however, HF requires additional evaluation due to potential etching of glass components downstream and is not recommended without inline scrubbing.

Can this pump achieve high vacuum (<0.1 mbar)?
No—the VDP-40 is a roughing pump with an ultimate vacuum of 8 mbar; it cannot replace diffusion, turbomolecular, or cryogenic pumps for high- or ultra-high-vacuum applications.

Does it require regular oil changes or lubrication?
No—this is an oil-free diaphragm pump; no internal lubricants are used, and no scheduled oil maintenance is necessary.

What is the expected service life of the diaphragm under continuous operation?
Under typical lab usage (≤8 h/day, ambient temperature ≤35°C, non-condensing loads), the PTFE-coated diaphragm maintains functional integrity for ≥10,000 hours; replacement intervals should be verified by visual inspection and performance drift monitoring.

Is the pump compatible with 110 V / 60 Hz power supplies?
No—the VDP-40 is configured for 220–240 V AC, 50 Hz input only; operation on 110 V systems requires an appropriately rated step-up transformer meeting IEC 61558-2-6 isolation requirements.
