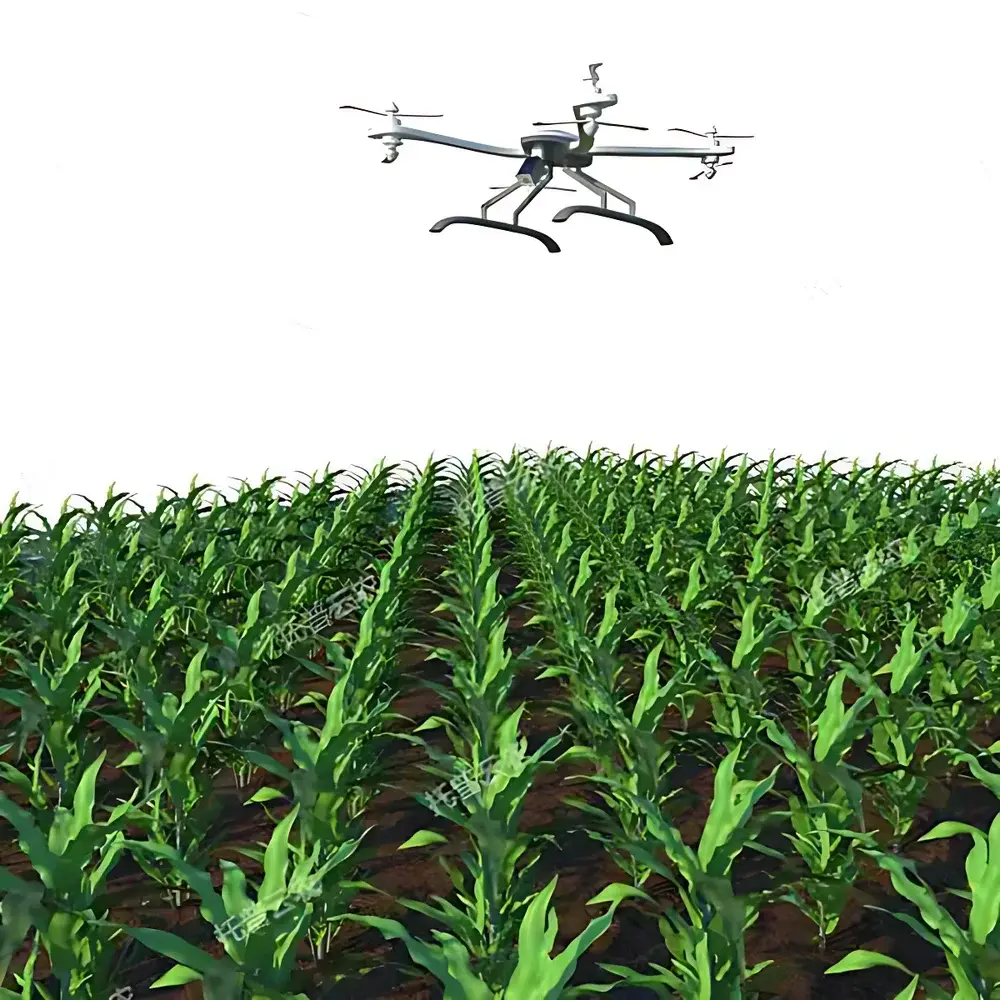

TopCloud-agri UAS-PhenoPro High-Throughput Field Phenotyping System

Overview

The TopCloud-agri UAS-PhenoPro High-Throughput Field Phenotyping System is an integrated unmanned aerial platform engineered for scalable, non-destructive plant phenotyping in open-field agricultural environments. Built upon a robust multi-rotor UAV chassis, the system implements passive optical remote sensing principles—including reflectance spectroscopy across visible (RGB), near-infrared (NIR), short-wave infrared (SWIR), and thermal infrared (TIR) spectral bands—to quantify morphological, physiological, and biochemical traits at canopy and sub-canopy levels. Unlike lab-based or ground-based phenotyping rigs, the UAS-PhenoPro enables rapid spatial sampling across hectares per flight hour, supporting time-series monitoring of dynamic agronomic traits such as emergence rate, tillering density, canopy cover, leaf area index (LAI), chlorophyll content (via NDVI, PRI, and other vegetation indices), stomatal conductance proxies (via thermal imaging), and stress-induced spectral shifts. Its design aligns with FAO’s framework for digital agriculture data interoperability and supports traceable field trials under GLP-aligned experimental protocols.

Key Features

• Multi-sensor modular payload architecture: Interchangeable, calibrated imaging units including RGB (12 MP global shutter), multispectral (5-band Parrot Sequoia+ or equivalent, 360–940 nm), hyperspectral (VNIR range, 400–1000 nm, 5 nm FWHM resolution), and thermal infrared (640 × 512 microbolometer, ±2°C accuracy at 30°C)
• Autonomous flight control: Predefined mission planning via georeferenced KML/GeoJSON import; real-time GNSS-RTK positioning (horizontal accuracy ≤ 2 cm); obstacle detection using stereo vision + ultrasonic sensors (forward & downward)
• Onboard edge processing: ARM Cortex-A72-based computing module running embedded Linux; real-time computation of 12+ standardized vegetation indices (e.g., NDVI, GNDVI, OSAVI, MCARI2) and thermal anomaly maps
• Fault-resilient operation: Dual-battery redundancy, low-voltage fail-safe landing, RF interference mitigation (2.4/5.8 GHz adaptive frequency hopping), and automatic RTL (Return-to-Launch) triggered by signal loss or critical sensor fault
• Regulatory-compliant telemetry: Encrypted MAVLink v2 communication; flight logs timestamped with UTC/GPS sync; audit-ready metadata embedding (EXIF + XMP) for each image frame

Sample Compatibility & Compliance

The UAS-PhenoPro is validated for use across major cereal, legume, oilseed, and horticultural crops—including rice, wheat, maize, soybean, rapeseed, tomato, and lettuce—under field conditions ranging from early seedling emergence to late reproductive stages. It supports organ-level identification (panicles, buds, fruits) via deep learning inference models trained on >200k annotated field images (publicly documented in Crop Ontology v3.2). All optical modules comply with IEC 62471 (photobiological safety) and ISO 17321-1 (spectral reflectance measurement standards). Data acquisition workflows are compatible with ISA-Tab metadata standards and support export to BreedBase, BrAPI, and MIAPPE-compliant repositories. The system meets China’s CAAC Part 92 regulations for civil UAS operations and includes documentation packages suitable for USDA APHIS and EU EFSA risk assessment submissions.

Software & Data Management

• Cloud-native analytics suite (PhenoCloud™): Web-based dashboard with role-based access control (RBAC), versioned dataset management, and collaborative annotation tools
• Automated orthomosaic generation: Structure-from-Motion (SfM) pipeline with GCP-assisted georegistration (RMSE < 5 cm)
• Time-series trait extraction: Daily/weekly change detection algorithms for canopy height models (CHM), fractional cover, and thermal heterogeneity metrics
• Compliance-ready data governance: Full audit trail (user actions, processing parameters, firmware versions); optional 21 CFR Part 11 electronic signature module for regulated breeding programs
• API-first integration: RESTful endpoints for ingestion into LIMS, ELN, or enterprise ERP systems (e.g., SAP S/4HANA Agri)

Applications

The UAS-PhenoPro serves as a field-deployable phenotyping infrastructure for academic research institutions, national agricultural research systems (NARS), and commercial seed companies. Primary use cases include: high-resolution mapping of quantitative trait loci (QTL) validation trials; longitudinal monitoring of drought, heat, or nutrient stress responses; early detection of fungal/bacterial pathogen outbreaks (e.g., Fusarium head blight in wheat via spectral anomalies at 720–740 nm); precision irrigation scheduling based on crop water stress index (CWSI); nitrogen use efficiency (NUE) modeling using chlorophyll/carotenoid ratio dynamics; and automated yield component estimation (e.g., panicle count per m² in rice via YOLOv8-based detection).

FAQ

What regulatory certifications does the UAS-PhenoPro hold for international deployment?

The platform carries CE marking (EMC Directive 2014/30/EU and RED Directive 2014/53/EU), RoHS 2011/65/EU compliance, and factory-calibration certificates traceable to NIM (China National Institute of Metrology). Export configurations include FAA Part 107–compatible firmware and EASA SAIL Level 2 operational documentation.
Can raw hyperspectral data be exported in ENVI or BIL format for third-party analysis?

Yes—raw radiance cubes (with dark current and flat-field correction applied) are exportable in IEEE BSQ/BIL formats, accompanied by full sensor geometry metadata (viewing angle, solar zenith, atmospheric pressure, humidity) per acquisition.
Is offline operation supported for remote field sites with no cellular connectivity?

All flight planning, onboard processing, and local storage (up to 1 TB NVMe SSD) function without internet; cloud sync occurs automatically upon reconnection.
How frequently are firmware and algorithm updates released?

Bi-monthly firmware patches (security and stability) and quarterly algorithm updates (new indices, model retraining) are distributed via secure OTA channel with SHA-256 integrity verification.
Does the system support integration with ground-based sensor networks (e.g., soil moisture probes)?

Yes—PhenoCloud™ accepts time-synchronized CSV/JSON feeds from LoRaWAN, NB-IoT, or Modbus-enabled field sensors, enabling fused analysis of aboveground phenotypes and belowground environmental drivers.
