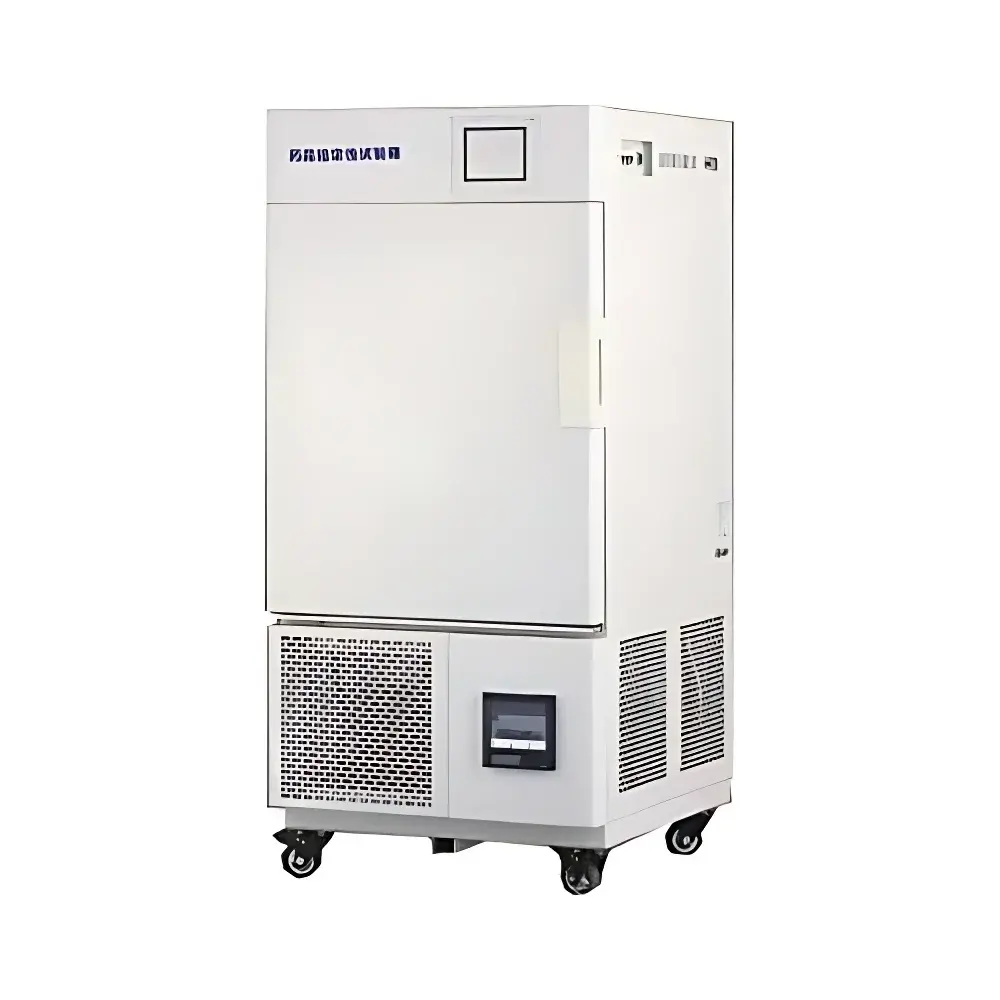

Truelab LHH-800SD Pharmaceutical Stability Testing Chamber

Overview

The Truelab LHH-800SD Pharmaceutical Stability Testing Chamber is a precision-engineered environmental test system designed to meet the stringent regulatory requirements of ICH Q1–Q5 guidelines for drug stability assessment. It provides tightly controlled, long-term exposure conditions—specifically temperature (0–65 °C), relative humidity (40–90 %RH), and optional photometric irradiance (0–6000 lx)—to support accelerated, long-term, intermediate, and stress testing protocols mandated by regulatory agencies including the FDA, EMA, PMDA, and NMPA. Unlike general-purpose climate chambers, the LHH-800SD integrates pharmaceutical-grade hardware architecture—including dual redundant refrigeration circuits, non-frosting evaporator design, and corrosion-resistant electropolished stainless-steel interior—to ensure uninterrupted operation over extended test durations (up to 12 months per ICH Q1A(R2)). Its measurement traceability framework supports GLP-compliant data integrity, with all thermal and hygric sensors calibrated against NIST-traceable references.

Key Features

• Dual independent hermetic compressors with intelligent auto-switching logic ensure continuous operation without interruption—even during maintenance or failure of one unit—eliminating downtime risk in critical stability studies.
• Electropolished 304 stainless-steel inner chamber with radius-corner geometry minimizes microbial retention and simplifies cleaning validation; compliant with ISO 14644-1 Class 7 cleanroom-compatible surface finish.
• Programmable touchscreen controller (SDP series) supports up to 100 user-defined test profiles, each containing 1000 segments and 999 cycles; real-time graphical display of temperature/humidity trends enables immediate deviation detection.
• Capacitive humidity sensor replaces legacy wet-bulb/dry-bulb systems—eliminating wick replacement, drift correction, and calibration drift associated with mechanical hygrometers.
• PID-based adaptive control algorithm dynamically adjusts heating/cooling output in response to load changes, maintaining ±0.5 °C uniformity and ±2 °C fluctuation across the full working volume (800 L).
• No-defrost operation mode prevents thermal transients during prolonged runs—critical for maintaining ICH-defined “constant condition” requirements in long-term storage studies.
• Integrated safety architecture includes independent high-limit thermostat, compressor overpressure/overheat protection, fan motor thermal cutoff, low-water alarm, and configurable audible/visual alert outputs.

Sample Compatibility & Compliance

The LHH-800SD accommodates standard pharmaceutical packaging configurations—including blister packs, HDPE bottles, glass vials, and secondary cartons—on four adjustable stainless-steel shelves (included). Its internal airflow pattern is validated per ISO 14159 and ASTM E2874 to ensure laminar, low-velocity circulation (≤0.2 m/s) that prevents sample desiccation or condensation artifacts. The chamber meets key compliance prerequisites for GMP-regulated environments: it supports 21 CFR Part 11–compliant electronic records when paired with optional audit-trail-enabled software; delivers documented IQ/OQ/PQ protocols aligned with Annex 15 and EU GMP Chapter 3; and accepts third-party calibration certificates from CNAS-accredited laboratories (e.g., Shanghai Institute of Measurement and Testing Technology).

Software & Data Management

Standard RS-485/RS-232 interfaces enable integration with laboratory information management systems (LIMS) and SCADA platforms. Optional data logging modules provide time-stamped, encrypted CSV exports with digital signatures, supporting ALCOA+ principles (Attributable, Legible, Contemporaneous, Original, Accurate, Complete, Consistent, Enduring, Available). The embedded controller stores ≥30 days of minute-interval data locally; external USB export allows seamless transfer to validated review workstations. Firmware supports multi-language UI (English/Chinese), password-protected parameter locking, and event-driven alarm notifications via relay outputs or email gateways (with add-on module).

Applications

• ICH Q1A(R2) accelerated stability testing (40 °C/75 %RH, 30 °C/65 %RH)
• ICH Q1B photostability testing (Option GSD/GSP with UV-A/visible spectral output)
• Long-term storage simulation (25 °C/60 %RH, 30 °C/65 %RH)
• Forced degradation studies under thermal/hygrosopic stress
• Excipient compatibility screening and formulation robustness evaluation
• Reference standard storage under certified environmental conditions
• Stability-indicating method development support

FAQ

Does the LHH-800SD comply with ICH Q1 guidelines for stability testing?
Yes—the chamber’s temperature uniformity (±0.5 °C), humidity accuracy (±3 %RH), and operational stability are validated to satisfy ICH Q1A(R2) and Q1B requirements for both accelerated and long-term protocols.

Can this chamber be used for photostability testing per ICH Q1B?
Only models equipped with the GSD or GSP controller option include integrated, spectrally balanced light sources (320–400 nm UV-A + visible) meeting ICH-specified irradiance thresholds (≥1.2 MJ/m² UV, ≥200 W·hr/m² visible).

Is 3Q validation documentation included with purchase?
IQ/OQ/PQ templates are provided as part of the standard delivery package; execution requires on-site service by Truelab-certified engineers or qualified third parties. Full validation reports incur additional service fees.

What is the expected calibration interval for temperature and humidity sensors?
Per ISO/IEC 17025 recommendations, annual recalibration is advised; however, pharmaceutical QA departments may enforce shorter intervals (e.g., every 6 months) based on internal risk assessments and historical performance data.

How does the dual-compressor system improve reliability compared to single-unit designs?
Redundant refrigeration eliminates single-point failure risk during multi-month stability trials; automatic failover ensures uninterrupted setpoint maintenance without manual intervention or process interruption.
