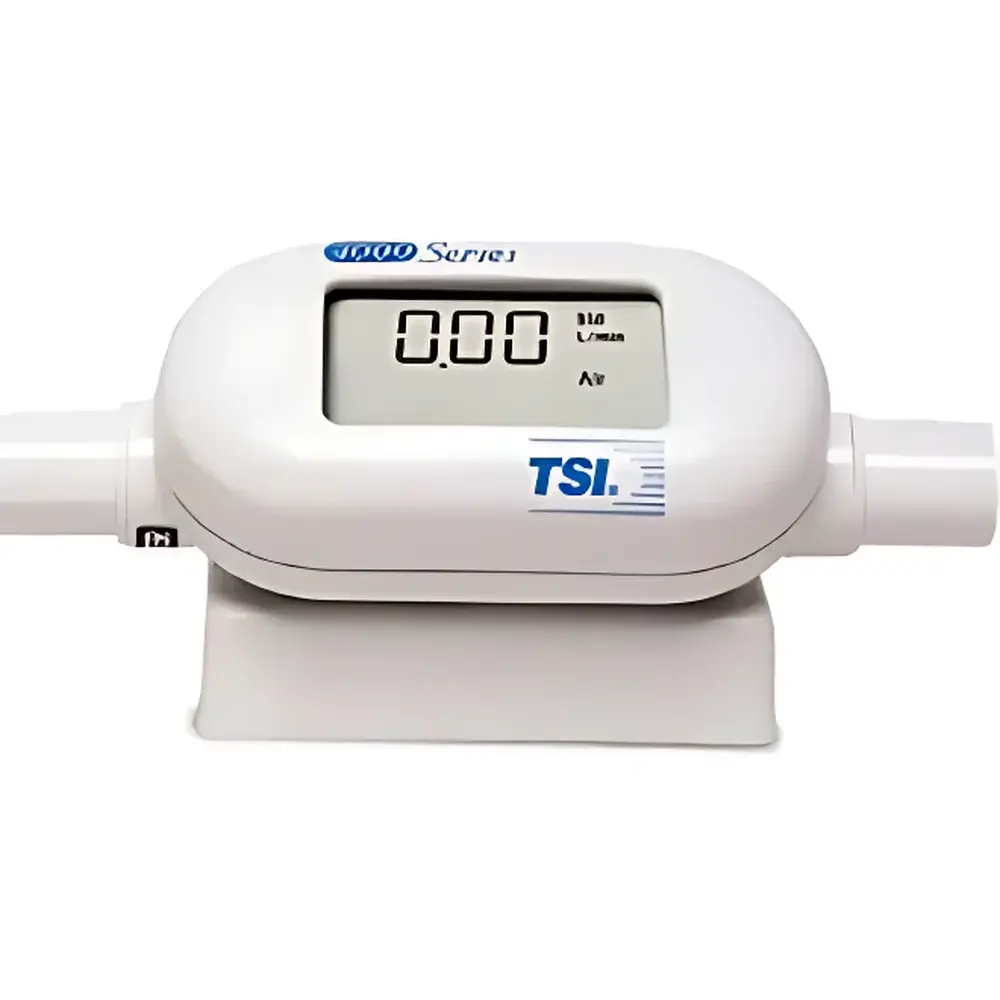

TSI Model 4146 Thermal Mass Flowmeter
| Brand | TSI |
|---|---|
| Origin | USA |
| Model | 4146 |
| Flow Range | 0.01–20 L/min |
| Accuracy | ±2% of reading or ±0.05 STD L/min (whichever is greater) |
| Response Time | 4 ms |
| Dimensions | 127 mm × 50 mm × 32 mm |
| Weight | 0.8 kg |
| Power Supply | 7.5 VDC ±1.5 V, peak current 300 mA |
| Warm-up Time | 1 min |
| Temperature Compensation | Yes |
| Pressure Correction | Yes |
| NIST-Traceable Calibration Certificate | Included |
| NIOSH-Approved Primary Reference Standard | Yes |
Overview
The TSI Model 4146 Thermal Mass Flowmeter is a portable, battery-powered primary calibration standard designed for field and laboratory verification of active air sampling pumps used in occupational hygiene, environmental monitoring, and industrial hygiene applications. Engineered on the principle of thermal dispersion, the instrument measures mass flow rate of gases—primarily ambient air—by detecting heat transfer between a heated sensor element and the flowing gas stream. Unlike volumetric displacement or differential pressure-based devices, thermal mass flow measurement inherently compensates for variations in temperature and barometric pressure, enabling direct reporting of standardized volume flow (STD L/min) without external correction calculations. Its compact form factor, rapid 4 ms response time, and real-time digital display support dynamic flow adjustment during pump calibration—a critical requirement for compliance with OSHA, NIOSH, and ISO 13137 protocols governing personal exposure assessment.
Key Features
- Primary reference-grade calibration performance validated by NIOSH as a Class I reference instrument for air sampling pump verification
- Thermal mass flow sensing technology with integrated temperature compensation and barometric pressure correction algorithms
- High-speed 4 ms response time ensures accurate capture of transient flow fluctuations during pump start-up, shutdown, or variable-rate operation
- Continuous real-time display of volumetric flow in STD L/min (at 25°C, 760 torr), eliminating manual correction steps
- Battery-operated design (7.5 VDC input) enables fully portable use in remote locations, mobile labs, or confined workspaces
- Compact dimensions (127 × 50 × 32 mm) and lightweight construction (0.8 kg) facilitate one-handed operation and integration into field calibration kits
- Includes NIST-traceable calibration certificate with documented uncertainty budget per ISO/IEC 17025 requirements
- 1-minute warm-up time minimizes downtime between sequential calibrations
Sample Compatibility & Compliance
The Model 4146 is optimized for clean, dry, non-corrosive air and inert gases (e.g., nitrogen, argon) within ambient temperature and pressure ranges typical of indoor and outdoor occupational settings. It is not intended for use with condensing vapors, particulate-laden streams, or reactive/hazardous gases without appropriate inlet filtration or conditioning. The device meets NIOSH Manual of Analytical Methods (NMAM) Chapter 2.1.1 requirements for primary flow calibration standards and supports full compliance with OSHA 29 CFR 1910.1200 (HCS), ISO 13137:2013 (Air quality — Requirements for instruments used to sample airborne particles), and EU Directive 2004/108/EC (EMC). Its documented metrological traceability to NIST standards satisfies internal audit and regulatory inspection requirements under GLP and ISO/IEC 17025-accredited laboratories.
Software & Data Management
While the Model 4146 operates as a standalone, self-contained instrument with no embedded data logging or PC interface, its analog output (0–5 V DC proportional to flow) allows seamless integration with third-party data acquisition systems for automated calibration records. Users may pair it with TSI’s TrakPro™ Lite software (via optional analog-to-USB converter) to generate compliant calibration logs including date/time stamps, operator ID, pump model, pre- and post-calibration readings, and pass/fail status against defined tolerances. All measurements adhere to FDA 21 CFR Part 11 principles when used in conjunction with validated electronic record systems—supporting audit trails, electronic signatures, and secure data archiving for QA/QC documentation.
Applications
- Pre- and post-sampling calibration of personal air sampling pumps (e.g., SKC, Gilian, Casella, Sensidyne models)
- Verification of constant-flow performance during extended-duration industrial hygiene surveys
- Field validation of low-flow sampling systems used for VOC, aldehyde, or metal aerosol collection
- Calibration of multi-port samplers and area monitoring stations prior to deployment
- Training and competency assessment for industrial hygienists and EHS personnel per AIHA RP-001 guidelines
- Supporting method validation studies required by EPA Method TO-17, NIOSH Methods 5515, 7300, and ISO 16000-22
FAQ
Is the Model 4146 suitable for calibrating high-flow sampling systems (>20 L/min)?
No—the instrument’s certified measurement range is strictly limited to 0.01–20 L/min. For higher flows, TSI recommends the Model 4040 or 4045 series flow calibrators.
Does the unit require periodic recalibration by the user?
Yes—NIOSH and ISO 13137 recommend annual recalibration by an accredited laboratory. Field verification before and after each sampling shift remains mandatory.
Can the Model 4146 measure humid air without error?
It provides compensated readings for relative humidity up to 95% RH at 25°C; however, condensation must be prevented upstream using desiccant or membrane filters.
What does “STD L/min” mean on the display?
It indicates liters per minute referenced to standard conditions: 25°C and 760 torr (101.325 kPa), enabling direct comparison across sampling events regardless of ambient conditions.
Is the NIST certificate included with every unit?
Yes—each shipped Model 4146 includes a unique, factory-issued NIST-traceable calibration certificate with full uncertainty analysis and measurement data.
