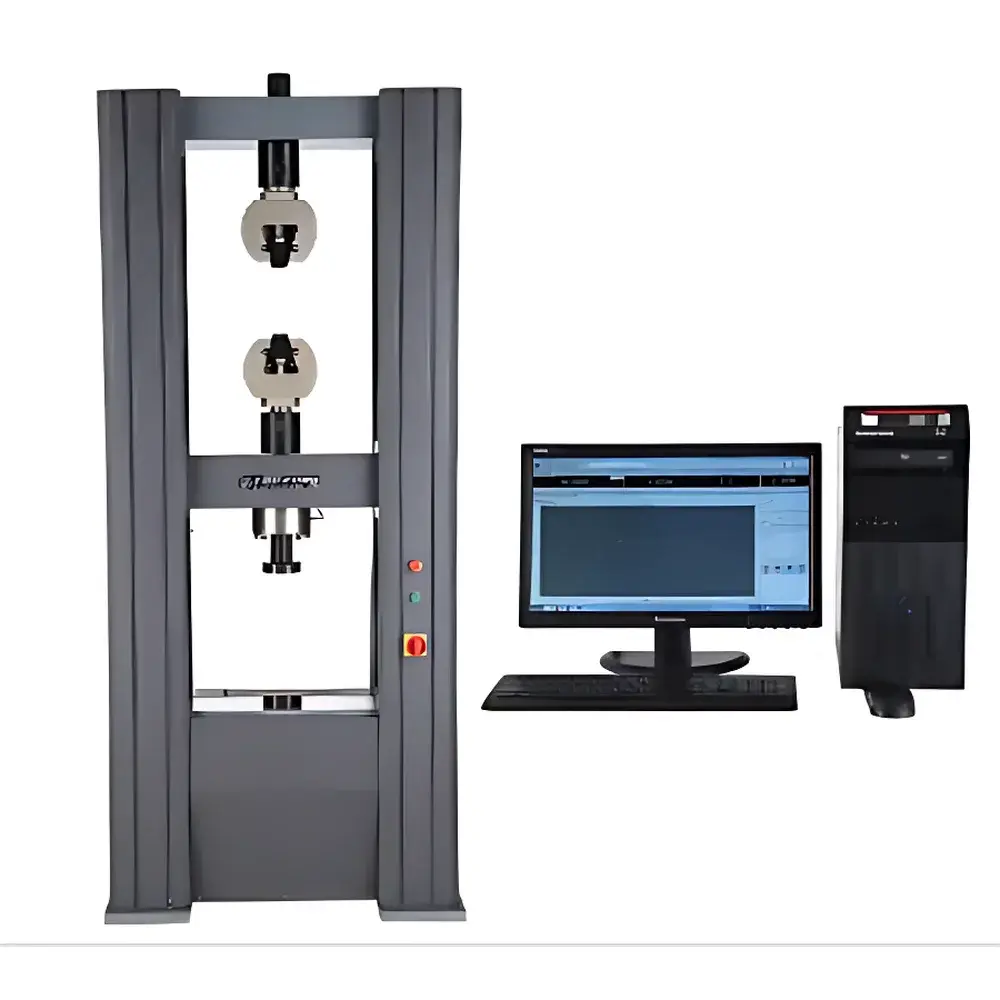

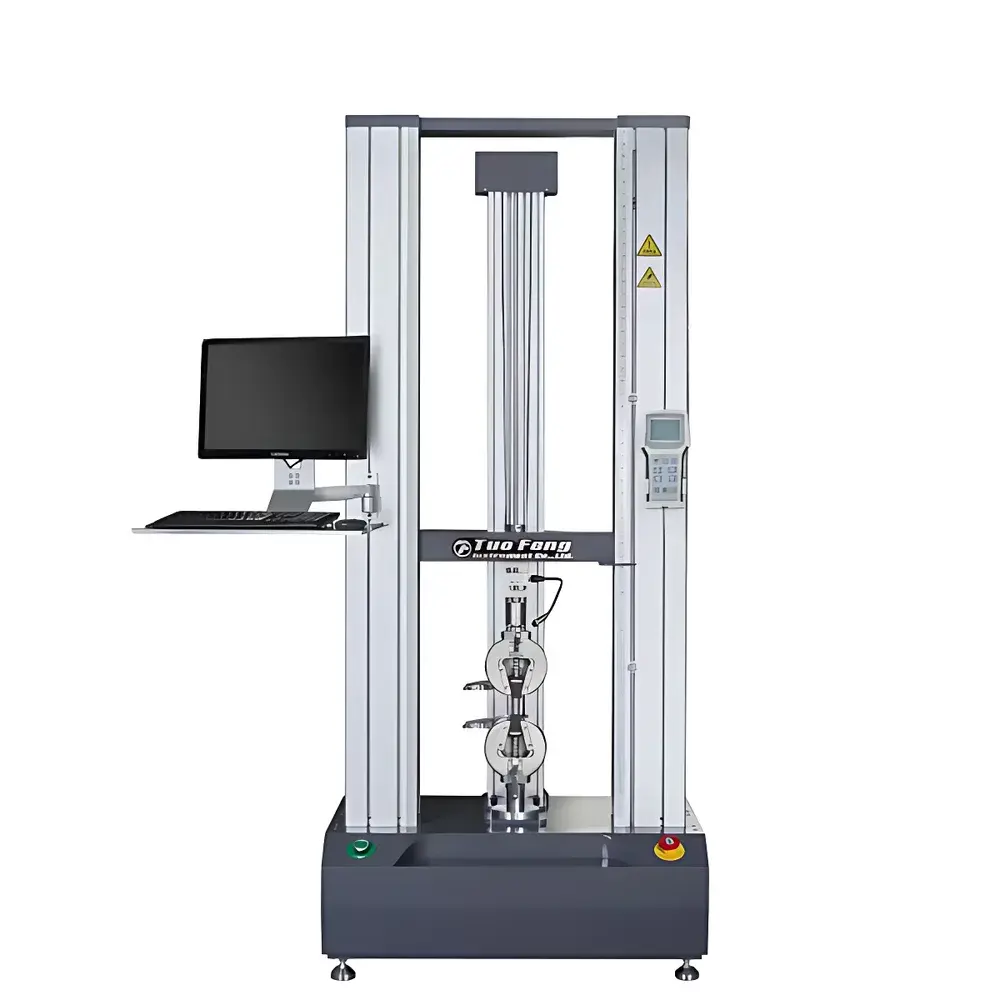

Tuofeng TFW-181 High-Performance Electromechanical Universal Testing Machine for Polymeric Materials

Overview

The Tuofeng TFW-181 is a high-precision electromechanical universal testing machine engineered for rigorous mechanical characterization of polymeric materials, composites, elastomers, thermoplastics, thermosets, and fiber-reinforced systems. Based on closed-loop servo-controlled force and displacement actuation, the system implements standardized uniaxial loading protocols—tensile, compression, flexural, shear, tear, peel, and puncture—according to ISO, ASTM, DIN, JIS, GB, and BS methodologies. Its core architecture integrates a high-stiffness load frame, zero-backlash preloaded ball screw transmission, and a high-resolution force transducer calibrated to ISO 376 Class 0.5 accuracy. Designed for laboratory-grade repeatability and long-term stability, the TFW-181 meets GB/T 16491–2008 (Chinese national standard for UTM design) and JJG 475–2008 (metrological verification regulation), ensuring traceable performance across global quality assurance environments.

Key Features

• Modular load capacity configuration: Standard 180 kN maximum force (scalable from 5 kN to 200 kN across TFW-S series variants)
• Single-range, high-resolution force measurement: 1/±500,000 full-scale resolution with no internal range switching—maintaining consistent sensitivity across the entire dynamic range
• Precision motion control: Servo-driven system with 0.001–500 mm/min infinitely variable speed, enabling quasi-static creep tests and high-rate impact simulations (within mechanical limits)
• Dual-mode strain acquisition: Integrated support for clip-on extensometers (ISO 9513 Class 1) and non-contact video extensometry (optional upgrade) for accurate modulus and elongation-at-break determination
• Intelligent safety architecture: Triple-layer protection including programmable electronic end stops, hardware emergency cutoff, and real-time overload detection (>110% FS triggers immediate drive shutdown)
• Motorized crosshead with dual-speed positioning: Independent fast/slow control for rapid setup and fine alignment; programmable return-to-start function post-test
• Thermally stable load frame: Heavy-duty cast-iron base and reinforced upright columns minimize deflection under load, critical for low-modulus polymer testing

Sample Compatibility & Compliance

The TFW-181 accommodates specimens ranging from thin films (≥0.05 mm thickness) to structural composite laminates (up to 600 mm wide × 800 mm stroke). Customizable grips—including pneumatic, wedge-action, hydraulic, and specialized polymer-specific jaws (e.g., serrated rubber-faced, low-clamp-pressure soft-material holders)—ensure secure, slippage-free loading without premature failure. The system complies with mechanical testing standards for polymers including ASTM D638 (tensile), D790 (flexural), D3039 (composite tension), ISO 527-2 (plastics tensile), ISO 178 (flexural), and GB/T 1040. All calibration and verification procedures align with ISO/IEC 17025 requirements. Optional configurations support GLP/GMP workflows with 21 CFR Part 11-compliant user access control, electronic signatures, and immutable audit trails.

Software & Data Management

Tuofeng TestSuite™ v5.2 is a Windows-based, multilingual (English, Simplified/Traditional Chinese) testing platform supporting ISO/ASTM-compliant test method templates. It enables load-, displacement-, and strain-controlled test profiles—including ramp-hold, cyclic loading, creep, and stress relaxation sequences. Real-time plotting includes synchronized force–time, force–displacement, stress–strain, and extension–time curves, with on-the-fly parameter calculation (e.g., tensile strength, yield point per ISO 6892-1, Young’s modulus, elongation at break, secant modulus, tear strength per ASTM D624). Data export supports CSV, XML, and PDF report generation with embedded metadata (operator ID, timestamp, environmental conditions, calibration status). The software architecture allows third-party API integration and modular expansion—for instance, fatigue analysis modules or DMA-correlated viscoelastic modeling interfaces.

Applications

The TFW-181 serves as a primary mechanical validation tool across R&D, QC, and regulatory submission labs. Typical use cases include: tensile property mapping of injection-molded PP/PE blends under varying melt-flow indices; compression testing of PU foams per ASTM D3574; flexural evaluation of carbon-fiber epoxy laminates (ASTM D7264); peel adhesion quantification of pressure-sensitive acrylic tapes (ASTM D903); tear resistance assessment of TPU membranes (ASTM D624); and creep compliance measurement of PEEK orthopedic implants per ISO 10993-12. Its metrological integrity supports ISO 17025-accredited testing reports required by automotive OEMs (e.g., VW TL 52202), medical device Notified Bodies, and aerospace material suppliers (e.g., Nadcap AC7101).

FAQ

What standards does the TFW-181 natively support?
It ships with preconfigured test methods for ASTM D638, D790, D3039, ISO 527, ISO 178, ISO 6892, GB/T 1040, and GB/T 16491—with additional standards available via firmware update.
Can the system perform creep and stress relaxation tests?
Yes—via displacement- or load-controlled hold segments within customizable multi-step test profiles, with data logging intervals down to 10 ms.
Is third-party calibration certification included?
Each unit is supplied with a factory calibration certificate traceable to NIM (China National Institute of Metrology); UKAS or DAkkS-certified calibration is available upon request.
How is data integrity ensured for regulated environments?
TestSuite™ supports role-based access control, electronic signatures, and tamper-evident audit logs compliant with FDA 21 CFR Part 11 and EU Annex 11 requirements.
What is the lead time for custom fixture design?
Standard polymer grips ship with the system; application-specific fixtures (e.g., ASTM D1876 T-peel jigs or ISO 11338-2 puncture fixtures) are typically delivered within 15 business days.
