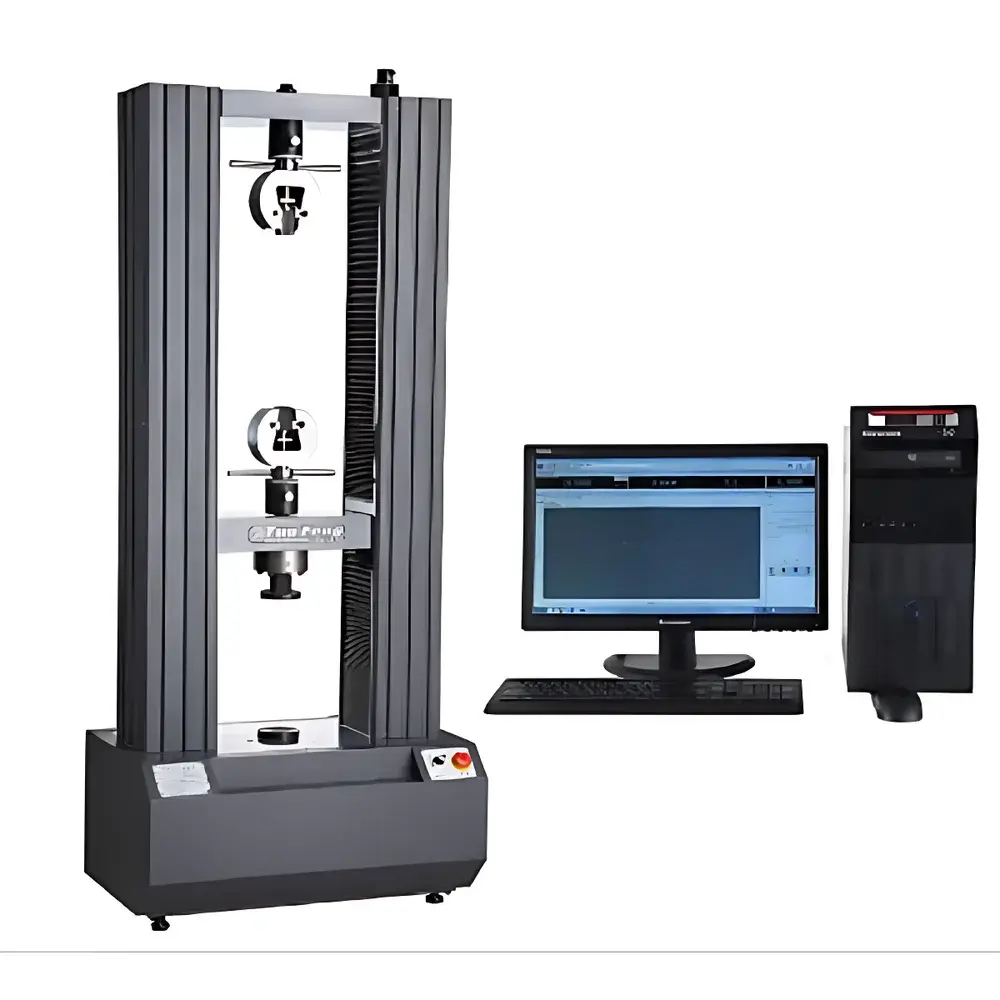

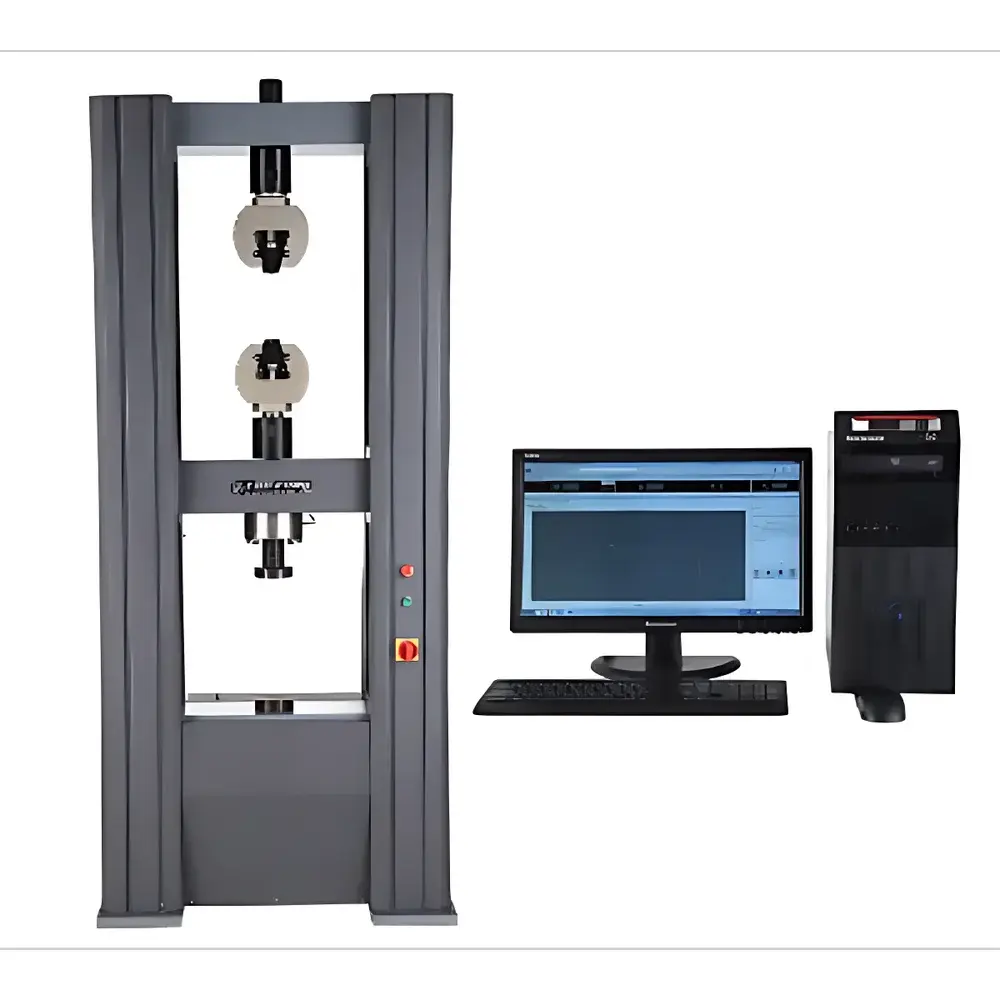

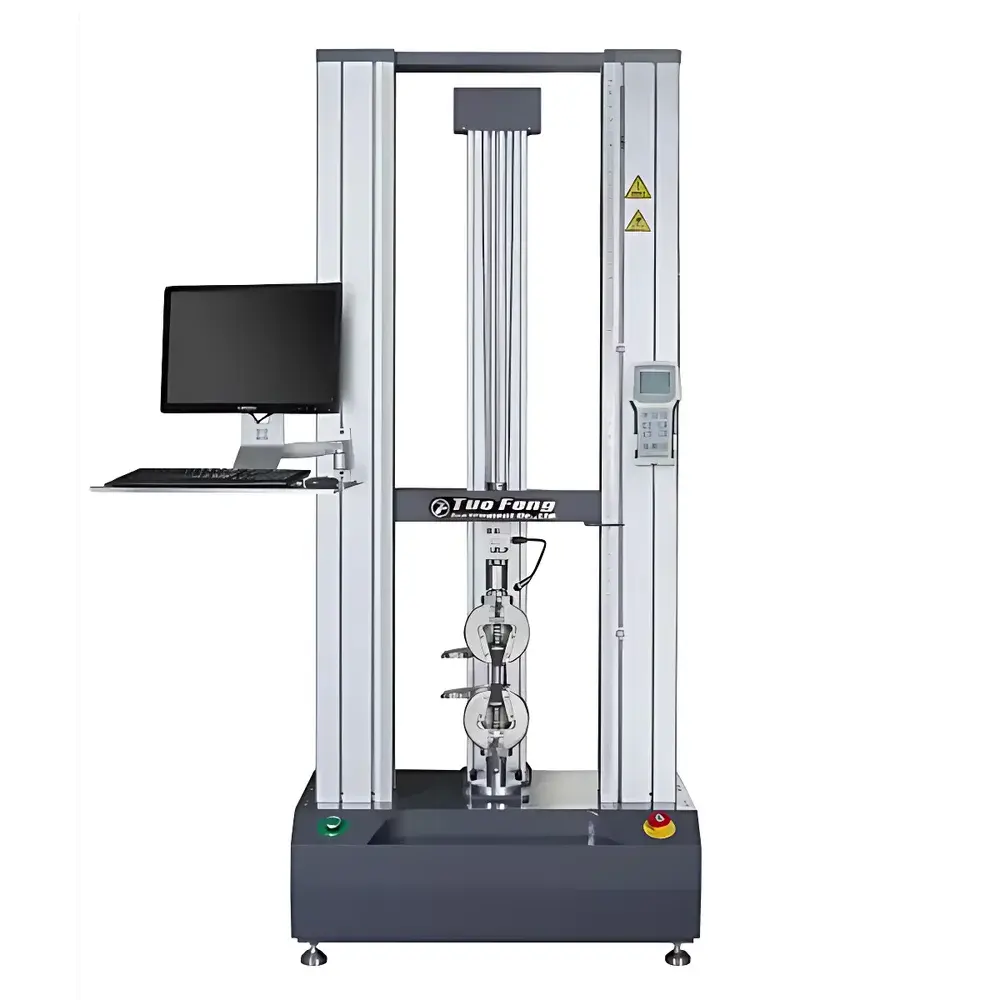

Tuofeng TFW-230 Aluminum Extrusion Universal Testing Machine

Overview

The Tuofeng TFW-230 Aluminum Extrusion Universal Testing Machine is a high-precision electromechanical system engineered for static mechanical characterization of structural and semi-structural materials under uniaxial loading conditions. Based on the fundamental principles of Hooke’s law and stress–strain continuum mechanics, it delivers traceable force, displacement, and strain measurements across tension, compression, bending, shear, peel, tear, and puncture modes. Its modular architecture integrates a rigid dual-column frame, high-resolution servo-controlled actuation, and synchronized multi-channel data acquisition to ensure repeatability ≤0.5% RSD in routine QC environments and ≤0.3% RSD in metrology-grade calibration labs. Designed specifically for aluminum extrusion profiles — including 6000-series alloys, anodized finishes, thermally broken sections, and composite-reinforced variants — the system meets the dimensional stability, surface sensitivity, and clamping integrity requirements unique to non-ferrous architectural and transportation-grade extrusions.

Key Features

• 0.5-class accuracy certified per GB/T 16491–2008 and JJG 475–2008, with force transducer linearity verified over 0.2–100% FS
• Constant-resolution force measurement at 1/±500,000 full-scale codes — eliminates range-switching artifacts during low-load creep or high-force rupture events
• Ball-screw-driven crosshead with imported servo motor and worm-gear reduction ensures smooth, backlash-free motion control from 0.001 to 500 mm/min
• Dual-speed motorized crosshead positioning (fast return + fine approach) enables rapid specimen setup and repeatable gauge-length alignment
• Integrated electronic limit switches, hardware-based emergency stop, and programmable overload cutoff (10% above rated capacity) comply with ISO 12100 functional safety requirements
• Modular fixture interface supports standardized wedge-action grips, pneumatic clamps, and custom-designed profile cradles for hollow or asymmetrical extrusions

Sample Compatibility & Compliance

The TFW-230 accommodates standard aluminum extrusion test specimens per ASTM B557M (tension), ASTM C1176 (bending), and EN 755-2 (compression), including flat tensile bars, rectangular section coupons, and full-profile bend beams up to 200 mm depth. Its 600 mm effective test width and 800 mm vertical stroke accommodate oversized curtain wall mullions and transit rail components. All measurement outputs are traceable to national standards via factory calibration certificates (NIST-traceable load cells and encoder verification). The system conforms to ISO/IEC 17025 documentation requirements for accredited testing laboratories and supports audit-ready records compliant with FDA 21 CFR Part 11 when configured with electronic signature and audit trail modules.

Software & Data Management

Tuofeng’s TFW-ControlSuite v4.x is a Windows-based, multi-language platform supporting English, Simplified Chinese, and Traditional Chinese UI. It implements real-time closed-loop control for load, displacement, strain, and time-based protocols — including hold, ramp-hold, cyclic loading, and creep testing. Raw data streams (force, displacement, extensometer output) are acquired at ≥1 kHz sampling rate and stored in open-format ASCII/CSV files for third-party analysis. The software embeds built-in calculation engines for tensile strength, yield offset (0.2%), modulus of elasticity, elongation at break, compressive yield, flexural modulus, peel adhesion energy, and tear propagation resistance — all auto-calculated upon specimen geometry input (cross-section, gauge length, thickness). Data export includes PDF reports with embedded metadata (operator ID, timestamp, environmental conditions, calibration status), batch comparison overlays, and statistical summaries (mean, SD, CV, min/max) for inter-lot validation.

Applications

• Mechanical qualification of 6060, 6061, and 6063 aluminum extrusions for architectural glazing systems
• Validation of thermal break integrity under combined axial and torsional loading
• Interfacial bond strength assessment of polymer-coated or anodized surfaces via peel and scratch adhesion tests
• Structural performance benchmarking of hollow extrusions under 3-point and 4-point bending per EN 12050
• Quality assurance of friction-stir welded joints in railcar body panels
• Material certification for ASME BPVC Section II, ASTM A924, and EN 755 compliance reporting

FAQ

What standards does the TFW-230 support out-of-the-box?
It natively implements test method templates for GB/T 228.1, ASTM E8/E9, ISO 6892-1, EN 10002-1, and JIS Z 2241 — with user-definable parameter sets for proprietary specifications.
Can the system perform cyclic fatigue testing?
Yes, when equipped with optional high-cycle load cell conditioning and waveform generator firmware, it supports sinusoidal, trapezoidal, and block-loading profiles up to 5 Hz (with appropriate fixturing and thermal management).
Is third-party calibration support available?
Tuofeng provides ISO/IEC 17025-accredited calibration services globally through authorized partners, with certificate validity aligned to ISO 9001 internal audit cycles.
How is data integrity ensured for regulated industries?
With optional 21 CFR Part 11 module enabled, the system enforces role-based access control, electronic signatures, immutable audit logs, and automatic backup to network-attached storage — meeting ALCOA+ data governance criteria.
What maintenance intervals are recommended?
Preventive maintenance is scheduled every 12 months or 2,000 test hours, covering ball screw lubrication, encoder alignment verification, load cell zero-drift validation, and safety circuit functional checks.
