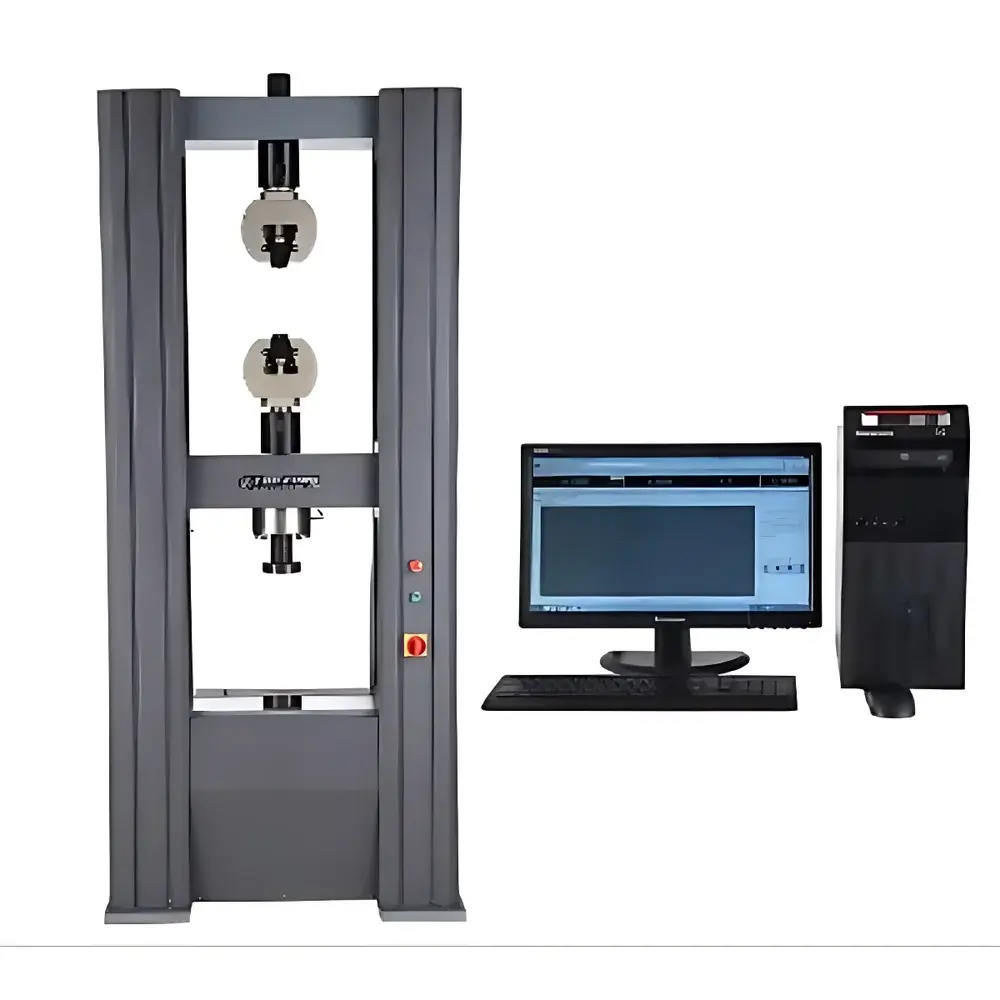

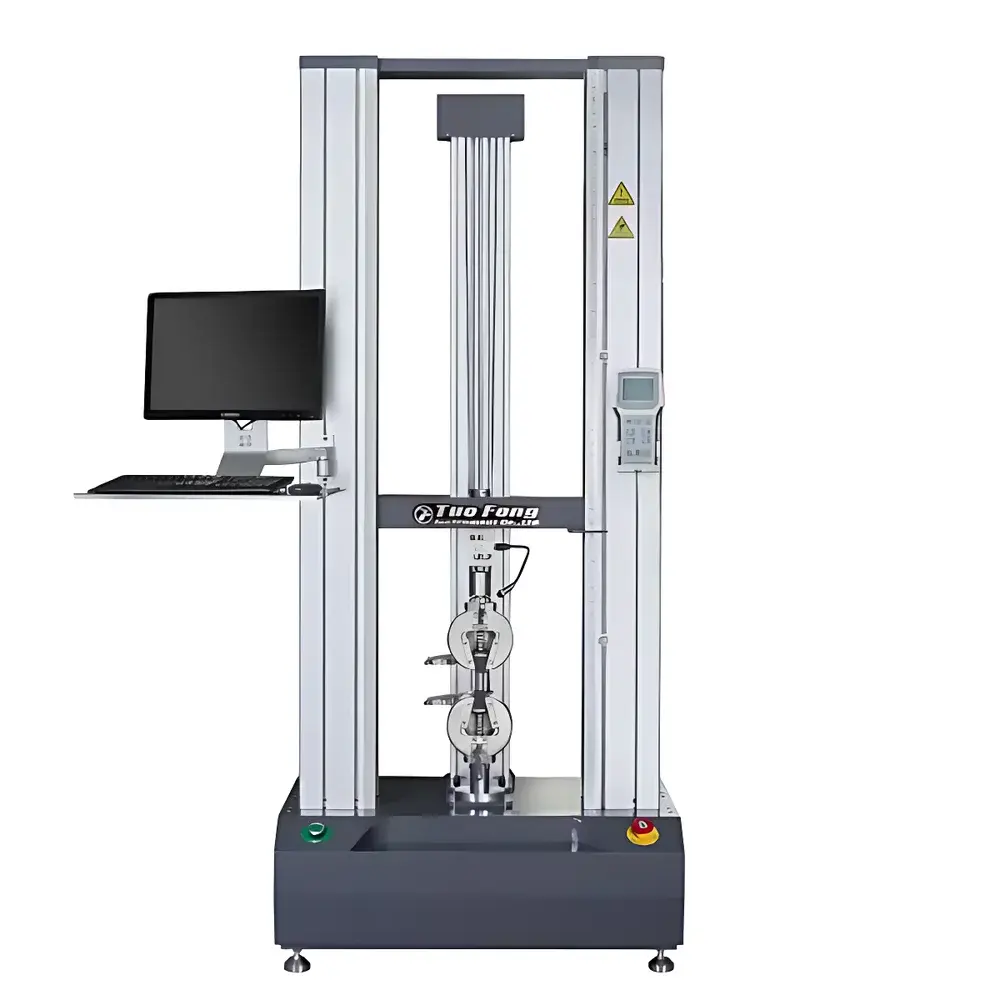

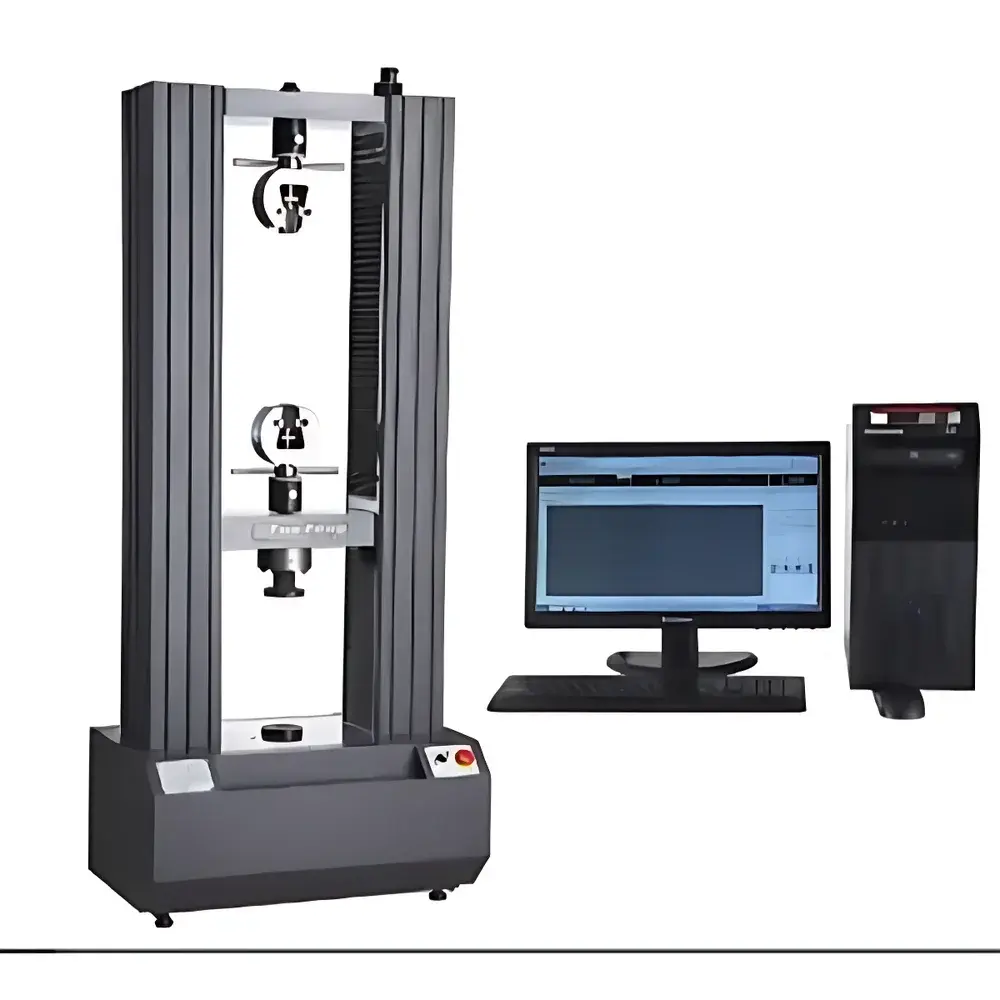

Tuofeng TFW-234 Microcomputer-Controlled Electromechanical Universal Testing Machine

Overview

The Tuofeng TFW-234 is a high-precision electromechanical universal testing machine engineered for static mechanical property characterization of fibers, polymers, composites, metals, and advanced engineering materials. Based on the fundamental principle of controlled uniaxial force application under displacement or load regulation, the system delivers traceable, repeatable, and metrologically validated measurements in accordance with international standards including ASTM E4, ISO 7500-1, GB/T 16491-2008, and JJG 475-2008. Its rigid C-frame architecture, preloaded ball-screw actuation, and dual-loop closed-loop control ensure minimal compliance and high fidelity in both low-force fiber tensile testing and higher-load structural material evaluation. Designed specifically for laboratories requiring multi-standard compliance and long-term calibration stability, the TFW-234 supports full traceability through NIST-traceable force transducers and encoder-based position feedback.

Key Features

• 0.5-class accuracy certified per ISO 7500-1 and GB/T 16491-2008, with force resolution of 1 part in ±500,000 and constant resolution across the entire 0.2–100% measurement range
• Imported servo motor coupled to a precision worm-gear reducer ensures smooth, low-noise operation and exceptional speed stability from 0.001 to 500 mm/min
• High-rigidity C-frame construction with 600 mm effective test width and 800 mm stroke accommodates standard and custom-length fiber specimens, yarns, nonwovens, and textile assemblies
• Dual-mode control architecture enables seamless transition between load-controlled, displacement-controlled, and strain-controlled test modes—including hold, ramp-hold, and cyclic protocols
• Integrated safety system includes electronic end-limit detection, hardware emergency stop, and automatic overload cutoff at 110% of full-scale capacity
• Motorized crosshead with independent fast/slow speed control and programmable return-to-start functionality improves throughput and operator ergonomics

Sample Compatibility & Compliance

The TFW-234 is optimized for fibrous and quasi-ductile materials, supporting standardized specimen geometries per ASTM D3822 (single-filament tensile), ASTM D5035 (strip tensile), ISO 13934-1 (fabric tensile), and GB/T 3923.1 (textile breaking strength). With customizable jaw faces—pneumatic, wedge, roller, or self-tightening—specimens ranging from microfilaments (<10 µm diameter) to braided composites (≥25 mm wide) can be secured without slippage or premature failure. All mechanical and software functions comply with regulatory requirements for quality assurance environments: data integrity meets FDA 21 CFR Part 11 criteria via electronic signatures, audit trails, and user-access controls; calibration records adhere to ISO/IEC 17025 documentation practices; and test reports include full metadata (operator ID, timestamp, environmental conditions, calibration certificate numbers).

Software & Data Management

Tuofeng TestSuite™ v5.2 is a Windows-based, multi-language (English, Simplified/Traditional Chinese) platform compliant with GLP and GMP workflows. It supports fully configurable test methods aligned with ASTM, ISO, and GB standards, enabling automatic calculation of tensile strength, elongation at break, Young’s modulus, yield point, Poisson’s ratio, tear resistance, peel adhesion, and compressive yield stress. Real-time plotting includes synchronized F–t, F–δ, σ–ε, and δ–t curves, with overlay capability for inter-batch comparison. All raw data are stored in encrypted binary format with checksum validation; export options include CSV, PDF, XML, and Excel-compatible .xlsx. Audit logs record every user action—including method edits, result modifications, and report generation—with immutable timestamps. Remote diagnostics and firmware updates are supported via secure HTTPS channel, with lifetime software maintenance included.

Applications

The TFW-234 serves as a core instrumentation platform in R&D labs and QC departments evaluating mechanical behavior across diverse fiber-based systems: synthetic and natural filament characterization (polyester, nylon, aramid, cellulose); nonwoven web integrity (spunbond, meltblown, needlepunch); technical textiles (geotextiles, filtration media, medical fabrics); composite reinforcements (carbon/glass fiber tows, prepreg tapes); elastomeric fibers (spandex, TPU filaments); and biodegradable polymers (PLA, PHA filaments). It further supports process development for spinning, drawing, heat-setting, and coating operations by quantifying stress relaxation, creep compliance, and hysteresis behavior under controlled thermal or environmental conditions (when integrated with optional environmental chambers).

FAQ

What standards does the TFW-234 support out-of-the-box?
ASTM D3822, D5035, D2256, D1709, D882; ISO 13934-1, 13935-1, 9073-3; GB/T 3923.1, 14344, 24218.12; EN ISO 13934-1.
Can the system perform creep or stress-relaxation tests?
Yes—via programmable hold modes with time-based load or displacement stabilization, fully traceable per ASTM D2990 and ISO 899-1.
Is third-party calibration certification available?
Yes—NIST-traceable calibration certificates issued by CNAS-accredited laboratories are provided with initial delivery and recommended annually.
How is data integrity ensured for regulated industries?
Through 21 CFR Part 11–compliant user authentication, electronic signatures, immutable audit trails, and role-based access control (admin/operator/viewer).
What extensometer options are compatible?
Contact-type clip-on extensometers (10–50 mm gauge length, ±0.5 µm resolution) and non-contact video extensometers (for brittle or low-modulus fibers) are supported via digital I/O and USB interfaces.
